2021 MAZDA MODEL 6 Owners Manual

Name and address of the importer: Refer to "MEXICO" (page 8-14) in Importer/
Distributor section.
Brand name of the product: Visteon Corporation
Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-14) in Importer/Distributor section.
Names and addresses of where to acquire spare parts, consumable s and accessories: Refer
to "MEXICO" (page 8-14) in Importer/Distributor section.
Warranty period, items covered by the warranty and its possible limitations o r exceptions:
Refer to the Warranty Booklet fo r detailed warranty information.
Warranty procedure:
Centre of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
Brief description: Auto motive Electronics Infotainment Head Uni t
Model name of the product: MAZDA_GEN_65_CMU
omologation ID: RCPJOMA13-1301
Electrical specifications:
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-55
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

Voltage: 10-16V, Frequency: 2.4GHz, Current: 1A(Typ)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-56
Mazda6_8JN3-EA-20H_Edition1_old2020-6-18 17:31:27

Name and address of the importer: Refer to "MEXICO" (page 8-14) in Importer/
Distributor section.
Brand name of the product: Visteon Corporation
Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-14) in Importer/Distributor section.
Names and addresses of where to acquire spare parts, consumable s and accessories: Refer
to "MEXICO" (page 8-14) in Importer/Distributor section.
Warranty period, items covered by the warranty and its possible limitations o r exceptions:
Refer to the Warranty Booklet fo r detailed warranty information.
Warranty procedure:
Centre of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx

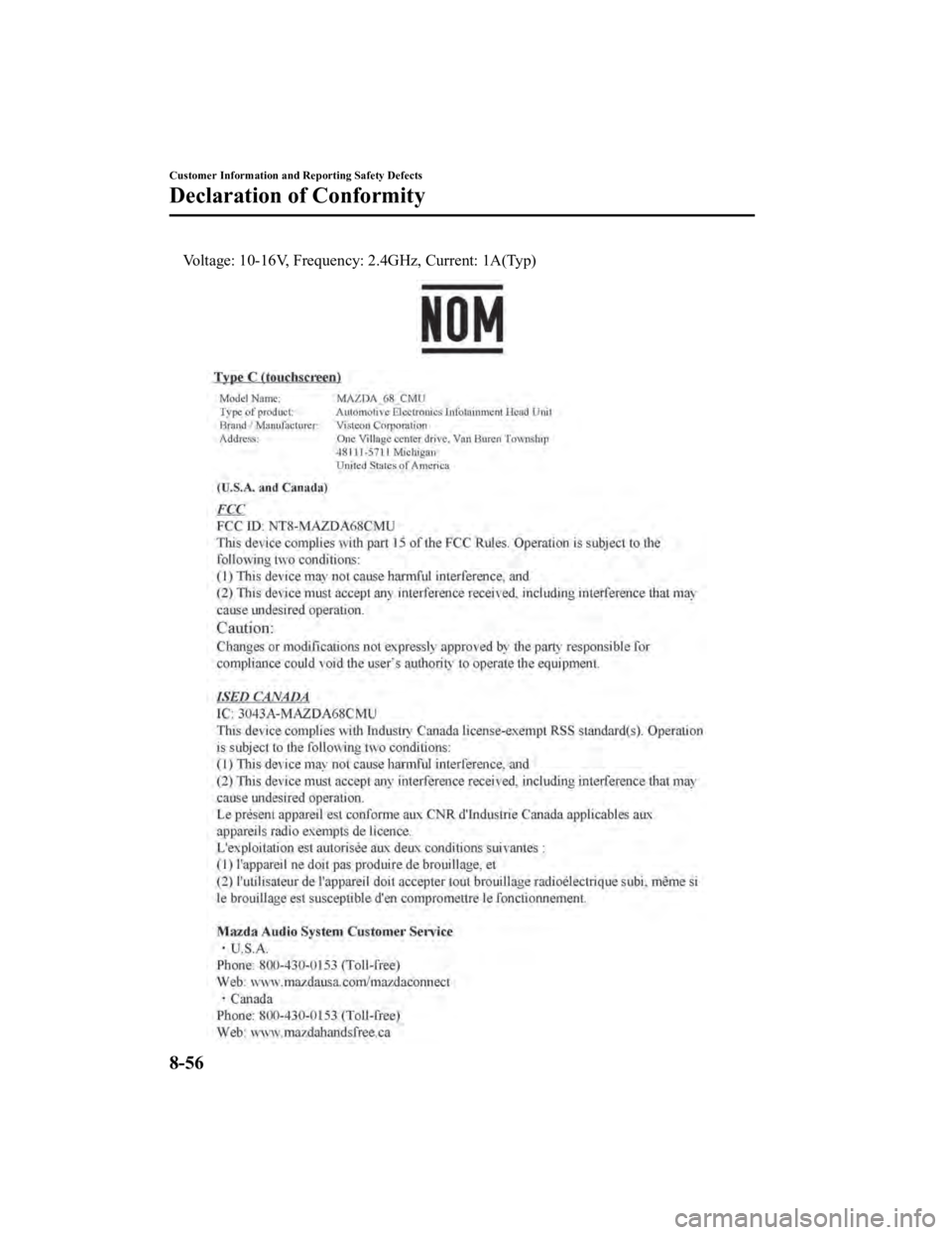

Brief description: Auto motive Electronics Infotainment Head Uni t
Model name of the product: MAZDA_68_CMU
Homologation ID: --
Electrical specifications:
Voltage: 10-16V, Frequency: 2.4GHz, Current: 1A(Typ)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-57
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

MEMO
8-58
Mazda6_8JN3-EA-20H_Edition1_old2020-6-18 17:31:27

9Specifications
Technical information about your Mazda.
Identification Numbers..................... 9-2 Vehicle Information Labels.......... 9-2
Specifications..................................... 9-4Specifications............................... 9-4
9-1
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
Mazda6_8JN3-EA-20H_Edition1_old
2020-6-18 17:31:27

▼Engine Number
SKYACTIV-G 2.5, SKYACTIV-G 2.5T

Forward
SKYACTIV-D 2.2

Forward
Specifications
Identification Numbers
9-3
Mazda6_8JN3-EA-20H_Edition1_old
2020-6-18 17:31:27

Specifications
▼Engine
Gasoline engine
Item Specification
SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.010.5
Diesel engine
Item Specification
SKYACTIV-D 2.2
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 86.0 × 94.3 mm (3.39 × 3.71 in)
Displacement 2,191.1 ml (2,191.1 cc)
Compression ratio 14.4
▼Electrical System
Battery*1
Classification
Specification
SKYACTIV-G 2.5,
SKYACTIV-G 2.5T 12V-60Ah/20HR or 12V-65Ah/20HR
SKYACTIV-D 2.2 12V-65Ah/20HR or 12V-80Ah/20HR
Spark-plug
Classification Specification
SKYACTIV-G 2.5 Mazda Genuine spark plug
*2PE5R-18-110 or PE5S-18-110
SKYACTIV-G 2.5T PY8V-18-110
*1 Check the battery installed on the vehicle and use a battery with an equal or higher performance. However, the
performance of the battery may vary even among the same battery types, consult an Authorized Mazda Dealer
for replacement.
*2 The spark plugs provide the SKY ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
Specifications
Specifications
9-4
Mazda6_8JN3-EA-20H_Edition1_old 2020-6-18 17:31:27
