Page 51 of 70
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER49
SEATING
SEATING
3rd-Row Folding Seat*†1 8
One-Touch Slide & Fold 2nd Row Seats
Folding 3rd-Row Seat
1. Fully lower the headrest A
2. Pull the Seat folding strap B located on the Seatback
3. Fold the Seat down
To get in and out of the 3rd Row Seat, adjust the 2nd Row
Seat by pressing the One-Touch Slide & Fold 2nd Row Seats
(located on top C and side D of the 2nd-row seatback):
1. Set the front seatback to the most upright position, and
slide the seat forward, if needed
2. Lower the 2nd Row Seat Headrest to the lowest position
3. Insert the seatbelt buckle into the pocket between the
rear seatback and the cushion
4. Press the One-Touch Slide & Fold buttons to slide the
Seat forward
Refer to section 3 in the Owner’s Manual for more information.
Refer to section 3 in the Owner’s Manual for more information.
The strap can be used in the back of the 2nd Row Seat to slide and fold the 2nd Row Seats.
QUICK TIPREMINDER: Do not use the One-Touch Slide & Fold buttons while the 2nd-row passenger seat is occupied.
AA
B
C
D
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
2nd & 3rd Row Folding Seats Video
One-Touch Slide & Fold 2nd-Row Seats Video
Page 57 of 70
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER55
How to Sync Transmitter with HomeLink®*
If programming for the first time, begin with Step 1
(repeating this step will delete all information).
To program non-rolling and rolling code garage door
openers and other devices:
1. Press and hold the left A and center C buttons
simultaneously until the indicator light G begins to
flash (to reprogram buttons, skip this step)
2. Press and hold the desired button A B C and hold
the button on the transmitter while it is approximately
1 to 3 inches away from the mirror. The HomeLink®
Indicator light E will flash rapidly once the frequency
signal has been successfully programmed
To finish programming rolling code garage door
openers, complete these steps:
3. Locate the “learn” or “smart” button on the garage door’s motor head unit.
Press and release the button and complete Step 4 within 30 seconds
4. Firmly press and release the programmed HomeLink® button up to three times
Operating HomeLink®:
Press one of the programmed HomeLink® buttons.
Erasing programmed buttons:
Press and hold the A and C buttons simultaneously for approximately
20 seconds, and then release both buttons within 30 seconds.
The HomeLink® / Auto-Dimming Rearview Mirror* is designed to
reduce glare from a vehicle’s headlights located in the rear and
also connect up to three electronic transmitters into one location.
HomeLink®†12 with Auto-Dimming Rearview Mirror*
A HomeLink® Channel 1
B HomeLink® Channel 2
C HomeLink® Channel 3
D Garage Door Opener Status
Indicator: Closing or Closed
E HomeLink® Operation Indicator
F Garage Door Opener Status
Indicator: Opening or Open
G HomeLink® User Interface
Indicator
•
•You can reprogram a single HomeLink® button by repeating Step 2 •Erasing the programmed buttons will delete all trained transmitters
QUICK TIPS
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink® system, you may need to purchase a HomeLink Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515.
D
E
F
G
ACB
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Homelink® Support Video
OTHER KEY FEATURES
OTHER KEY FEATURES
Page 59 of 70
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER57

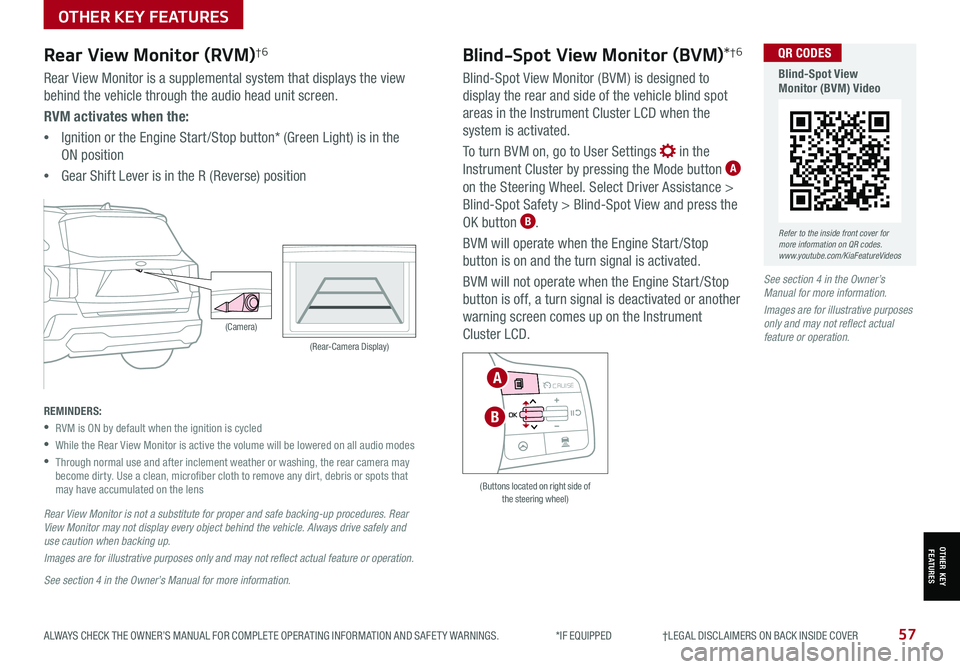

Rear View Monitor (RVM)†6
Rear View Monitor is a supplemental system that displays the view
behind the vehicle through the audio head unit screen.
RVM activates when the:
•Ignition or the Engine Start /Stop button* (Green Light) is in the
ON position
•Gear Shift Lever is in the R (Reverse) position
REMINDERS:
•RVM is ON by default when the ignition is cycled
•While the Rear View Monitor is active the volume will be lowered on all audio modes
•
Through normal use and after inclement weather or washing, the rear camera may become dirty. Use a clean, microfiber cloth to remove any dirt, debris or spots that may have accumulated on the lens
Rear View Monitor is not a substitute for proper and safe backing-up procedures. Rear View Monitor may not display every object behind the vehicle. Always drive safely and use caution when backing up.
Images are for illustrative purposes only and may not reflect actual feature or operation.
(Camera)
(Rear-Camera Display)
Blind-Spot View Monitor (BVM)*†6
Blind-Spot View Monitor (BVM) is designed to
display the rear and side of the vehicle blind spot
areas in the Instrument Cluster LCD when the
system is activated.
To turn BVM on, go to User Settings in the
Instrument Cluster by pressing the Mode button A
on the Steering Wheel. Select Driver Assistance >
Blind-Spot Safety > Blind-Spot View and press the
OK button B.
BVM will operate when the Engine Start /Stop
button is on and the turn signal is activated.
BVM will not operate when the Engine Start /Stop
button is off, a turn signal is deactivated or another
warning screen comes up on the Instrument
Cluster LCD.
See section 4 in the Owner’s Manual for more information.
Images are for illustrative purposes only and may not reflect actual feature or operation.
(Buttons located on right side of the steering wheel)
MODE MODE
MODE
MODE MODE
OK
CRUISE
Smart Cruise Control
OK
Cruise Control
OK
CRUISE
BluetoothEco
OK
CRUISE
L FA
OK
CRUISE
User Settings
Trip Modes
Fuel Econ
OK
CRUISE
HDA
MODE
OK
CRUISE
Audio LV DA MSLA - ISLA
MODE
OK
MODE CRUISE
CRUISE
A
B
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Blind-Spot View Monitor (BVM) Video
See section 4 in the Owner’s Manual for more information.
OTHER KEY FEATURES
OTHER KEY FEATURES
