Page 3 of 32
Additional information about your vehicle is also available in your Owner’s Manual, INFINITI InTouch™ Owner’s Manual and at www.InfinitiUSA.com.
Table of Contents
• A cellular telephone should not be used for any purpose while
driving so full attention may be
given to vehicle operation.
•
Alw
ays wear your seat belt.
•
Supplemen
tal air bags do not
replace proper seat belt usage. • Childr
en 12 and under
should always ride in the
rear seat properly secured in
child restraints or seat belts
according to their age
and weight.
• Do not drink and drive.For more information, refer to the “Safety — Seats,
seat belts and supplemental restraint system (section
1)”, the “Monitor, climate, audio, phone and voice
recognition systems (section 4)” and the “Starting
and driving (section 5)” of your Owner’s Manual.
PLEASE SEE YOUR OWNER’S MANUAL FOR IMPORTANT SAFETY INFORMATION AND SYSTEM OPERATION LIMITATIONS.
Cockpit Overview ........................................................................\
............ 1
Instrumen t Panel ........................................................................\
............. 3
Meters and Gauges
........................................................................\
........ 5
Infiniti Intelligent Key System
.............................................................. 7
Locking and Unlocking your Vehicle via the Door Handle
............7
Memory Seats (if so equipped)
............................................................ 8
Starting/Stopping the Engine
............................................................. 8
HomeLink
® Universal Transceiver (if so equipped).......................... 9
Heater and Air Conditioner (automatic) .........................................10
Power Folding Outside Mirrors (if so equipped)
...........................11
Wiper and Washer Switch
..................................................................12
Vehicle Information Display
................................................................ 13
Fuel-filler Door
........................................................................\
.............. 14
Seat Adjustments
........................................................................\
......... 14Clock Set/Adjustment
........................................................................\
..
15
Connecting your Cellular Phone or Device via Bluetooth
® .......... 15
Blue
tooth® Hands-free Phone System ............................................. 16
F
M/AM/HD/SiriusXM® Radio (if so equipped) ............................. 17
Apple CarPlay®........................................................................\
............... 18
Android Auto™
........................................................................\
................19
Navigation System (if so equipped)
.................................................. 20
INFINITI InTouch™ Services
................................................................. 21
Upper Display (Shortcut Menu)
......................................................... 22
Intelligent Cruise Control (ICC) (if so equipped)
............................23
Cruise Control (if so equipped)
.......................................................... 23
Blind Spot Warning (BSW) (if so equipped)
...................................24
Lane Departure Warning (LDW) (if so equipped)
.........................24
Page 5 of 32
2
Cockpit Overview
Headlight and turn signal switch
Upper display and audio control switch
Voice Recognition control switches
Wiper and washer switch
Intelligent cruise control (ICC) switches (if so equipped)
Vehicle information display control switches
Page 16 of 32
13
Vehicle Information Display
The vehicle information display will provide warnings and information
for items such as:
USING THE VEHICLE INFORMATION DISPLAY
To change the displayed item on the vehicle information
display
, press the or button on the steering wheel.
The odometer and twin trip odometer are displayed in the vehicle
information display when the ignition switch is in the ON position.
RESETTING THE TRIP ODOMETER
Pushing the TRIP RESET switch
under the combination meter
panel changes display to TRIP A or TRIP B.
Pushing the TRIP RESET switch
for more than 1 second resets
the trip odometer to zero.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
• Automatic Transmission (AT)
•
All-
Wheel Drive (AWD)
•
Cruise C
ontrol
•
In
telligent Cruise Control (ICC)
•
A
ctive Lane Control
•
Lane Departur
e Warning (LDW)/
Lane Departure Prevention (LDP)
•
Blind Spo
t Warning (BSW)
•
Blind Spo
t Intervention
® (BSI)
•
Back-up Collision
Intervention (BCI)
•
Dist
ance Control Assist (DCA)
•
Forward Emergency
Braking (FEB)
•
Predictive Forward
Collision Warning (PFCW)
•
Active Trace Control •
In telligent Key System
Page 26 of 32
23

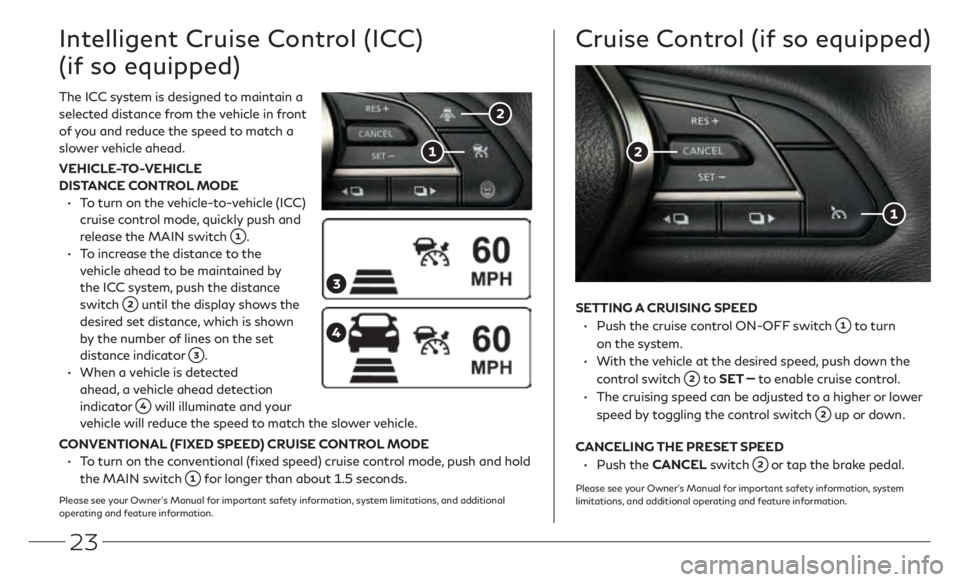

The ICC system is designed to maintain a
selected distance from the vehicle in front
of you and reduce the speed to match a
slower vehicle ahead.
VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
•
T
o turn on the vehicle-to-vehicle (ICC)
cruise control mode, quickly push and
release the MAIN switch
.
•
T
o increase the distance to the
vehicle ahead to be maintained by
the ICC system, push the distance
switch
until the display shows the
desired set distance, which is shown
by the number of lines on the set
distance indicator
.
•
When a
vehicle is detected
ahead, a vehicle ahead detection
indicator
will illuminate and your
vehicle will reduce the speed to match the slower vehicle.
CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE
•
T
o turn on the conventional (fixed speed) cruise control mode, push and hold
the MAIN switch
for longer than about 1.5 seconds.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
SETTING A CRUISING SPEED
•
Push the cruise c
ontrol ON-OFF switch
to turn
on the system.
•
With the
vehicle at the desired speed, push down the
control switch
to SET to enable cruise control.
•
The cruising speed c
an be adjusted to a higher or lower
speed by toggling the control switch
up or down.
CANCELING THE PRESET SPEED
•
Push the CANCEL switch
or tap the brake pedal.
Please see your Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
Cruise Control (if so equipped)Intelligent Cruise Control (ICC)
(if so equipped)
