2021 HYUNDAI TUCSON HYBRID Owners Manual

Convenient features
5-60
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
Remote window opening function (if
equipped)
OTM050230L
You can still control the window
movement with the engine turned off.
Press the Door Unlock button (1) for more
than 3 seconds. The window moves
down after the doors are unlocked, as
long as you press the door unlock button.
The window movement stops, when you
release the door unlock button.
Information
• The remote window opening function
may abruptly stop, when you move
away from your vehicle during
operation. Stay in close proximity from
your vehicle, while monitoring the
window movement.
• One of the windows may stop
operating, when the window is
interrupted by certain force. However,
the other windows will keep operating.
Thus, you should make sure that all
windows are opened.
• Please be aware that the doors unlock
when the windows are opened using the
remote window opening function.

05
5-61
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof control switch located
on the overhead console.
ONX4H050005N
The ignition switch must be in the ON
position before you can open or close the
sunroof.
The sunroof can be operated for
approximately 3 minutes after the
ignition switch is in the ACC or LOCK
(OFF) position. However, if the front
door is opened, the sunroof cannot be
operated even within the 3 minutes
period.
Information
• In cold and wet climates, the sunroof
may not work properly due to freezing
conditions.
• After the vehicle is washed or in a
rainstorm, be sure to wipe off any
water that is on the sunroof before
operating it.
WARNING
• Never adjust the sunroof or sunshade
while driving. This could result in
loss of control and an accident that
may cause serious injury, or property
damage.
• Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof.
• Do not extend your head, arms or
body outside the sunroof while
driving, to avoid serious injury.
• Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
• Do not operate the sunroof while
using the roof rack to transport
cargo. This may cause the cargo to
come loose and distract the driver.
• Do not extend any luggage outside
the sunroof while driving.
NOTICE
• Do not continue to move the sunroof
control switch after the sunroof
is fully opened, closed, or tilted.
Damage to the motor or system
components could occur.
• Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or
snow may wet the interior of the
vehicle. Also, leaving the sunroof
open when the vehicle is unattended
may invite theft.
PanoramIC sUnr oof (If eQUIPPed)

Convenient features
5-62
Sunshade
ONX4050016
To open the sunshade:
Pull the sunroof control switch (1)
backward to the first detent position.
To close the sunshade:
Push the sunroof control switch (1)
forward to the first detent position.
To stop the sunshade at the desired
position while the sunroof is operating,
push the sunroof control switch
backward or forward and release the
control switch.
Information
• Activating the control switch to the first
detent requires only a very light touch.
• Wrinkles formed on the sunshade as
material characteristic are normal.
CAUTION
Do not pull or push the sunshade by
hand as such action may damage the
sunshade or cause it to malfunction.
Sliding the sunroof
ONX4050017
When the sunshade is closed:
If you pull the sunroof control switch
(1) backward past the first detent, the
sunshade will slide all the way open and
then the sunroof glass will slide all the
way open.
When the sunshade is opened:
If you pull the sunroof control switch (1)
backward, the sunroof glass will slide all
the way open.
To stop the sunroof at the desired
position while the sunroof is operating,
push the sunroof control switch (1)
backward or forward and release the
control switch.
Information
Only the front glass of the sunroof opens
and closes.

05
5-63
Tilting the sunroof
ODN8059238
When the sunshade is closed:
If you push the sunroof control switch
upwards, the sunshade will slide open
and then the sunroof glass will tilt open.
When the sunshade is opened:
If you push the sunroof control switch
upwards, the sunroof glass will tilt open.
To stop the sunroof at the desired
position while the sunroof is operating,
push the sunroof control switch
backward or forward and release the
control switch.
Closing the sunroof
ODN8A059038
To close the sunroof glass:
Push the sunroof control switch forward
to the first detent position.
To close the sunroof glass and sunshade:
Push the sunroof control switch (1)
forward to the second detent position.
The sunroof glass will close, then the
sunshade will close automatically.
To stop the sunroof at the desired
position while the sunroof is operating,
push the sunroof control switch (1)
backward or forward and release the
control switch.
CAUTION
Close the sunroof when driving in
dusty environments. Dust may cause a
malfunction of the vehicle system.

Convenient features
5-64

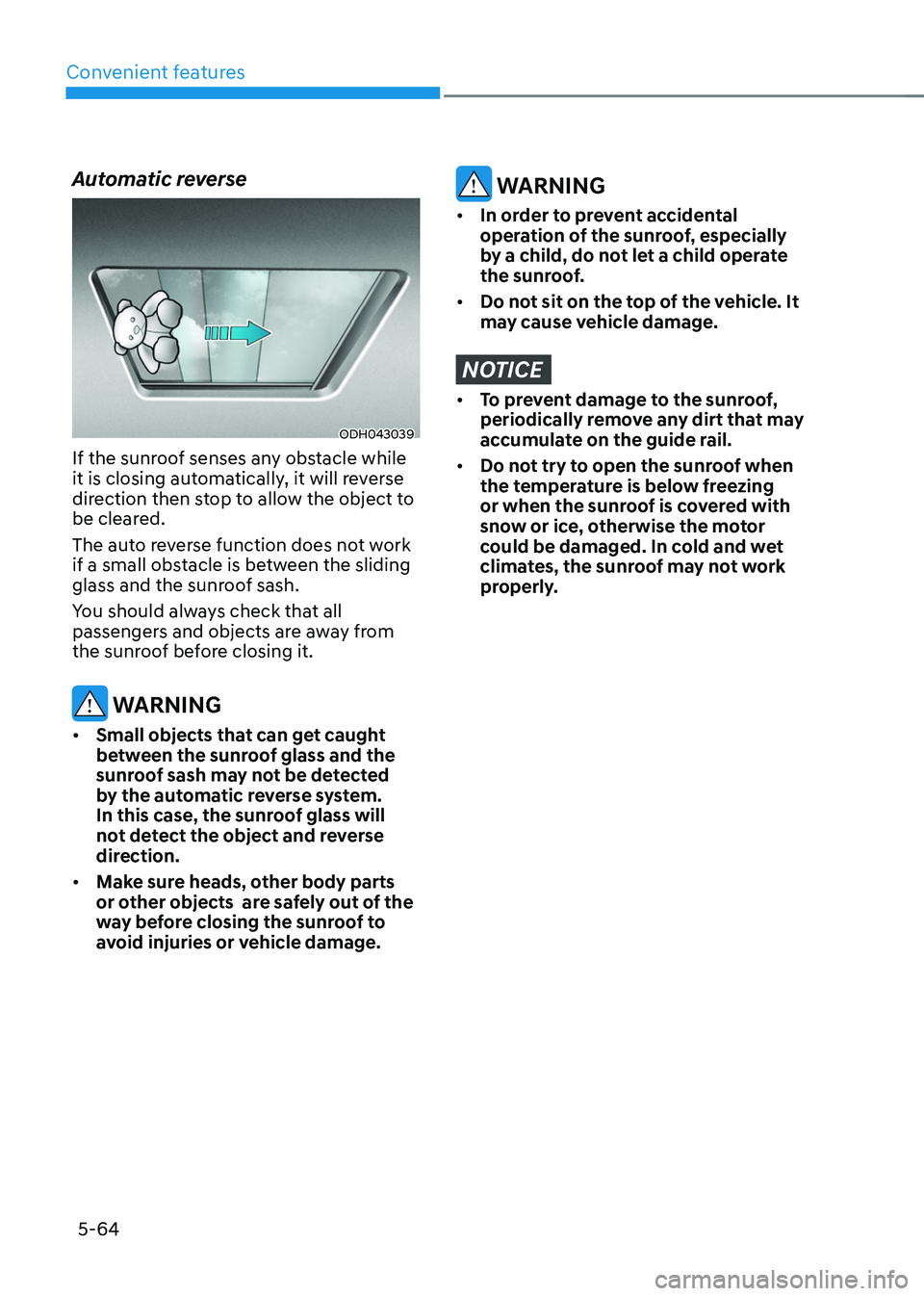

Automatic reverse
ODH043039
If the sunroof senses any obstacle while
it is closing automatically, it will reverse
direction then stop to allow the object to
be cleared.
The auto reverse function does not work
if a small obstacle is between the sliding
glass and the sunroof sash.
You should always check that all
passengers and objects are away from
the sunroof before closing it.
WARNING
• Small objects that can get caught
between the sunroof glass and the
sunroof sash may not be detected
by the automatic reverse system.
In this case, the sunroof glass will
not detect the object and reverse
direction.
• Make sure heads, other body parts
or other objects are safely out of the
way before closing the sunroof to
avoid injuries or vehicle damage.
WARNING
• In order to prevent accidental
operation of the sunroof, especially
by a child, do not let a child operate
the sunroof.
• Do not sit on the top of the vehicle. It
may cause vehicle damage.
NOTICE
• To prevent damage to the sunroof,
periodically remove any dirt that may
accumulate on the guide rail.
• Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, otherwise the motor
could be damaged. In cold and wet
climates, the sunroof may not work
properly.

05
5-65
Resetting the sunroof
ONX4E050143
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
- When the 12V batt
ery is either
disconnected or discharged
- When the sunroo

f fuse is replaced
- If the sunroo

f one-touch AUTO OPEN/
CLOSE operation is not functioning
properly
Sunroof resetting procedure:
1.
It is recommended t

o perform the
reset procedure with the vehicle
engine running. Start the vehicle in
P (Park).
2.
Make sur

e the sunshade and sunroof
is in the fully closed position. If the
sunshade and sunroof is open, push
the control switch forward until the
sunshade and sunroof is fully closed.
3.
Release the con

trol switch when the
sunshade and sunroof is fully closed.
4.
Push the contr

ol switch forward about
10 seconds until the sunroof moves
slightly.
5.
Release the con

trol switch. 6.
Within 3 seconds, push and hold
the contr

ol switch forward until the
sunshade and sunroof operates as
follows:
Sunshade
Open → Glass Open → Glass Close → Sunshade Close
Do no
t release the switch until the
operation is completed.
If you release the control switch during
operation, start the procedure again from
step 2.
7. Release the sunr oof control switch
after all steps have completed. The
sunroof system has been reset.
Information
If the sunroof is not reset when the vehicle
battery is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.
For more detailed information, we
recommend that you contact an
authorized HYUNDAI dealer.

Convenient features
5-66

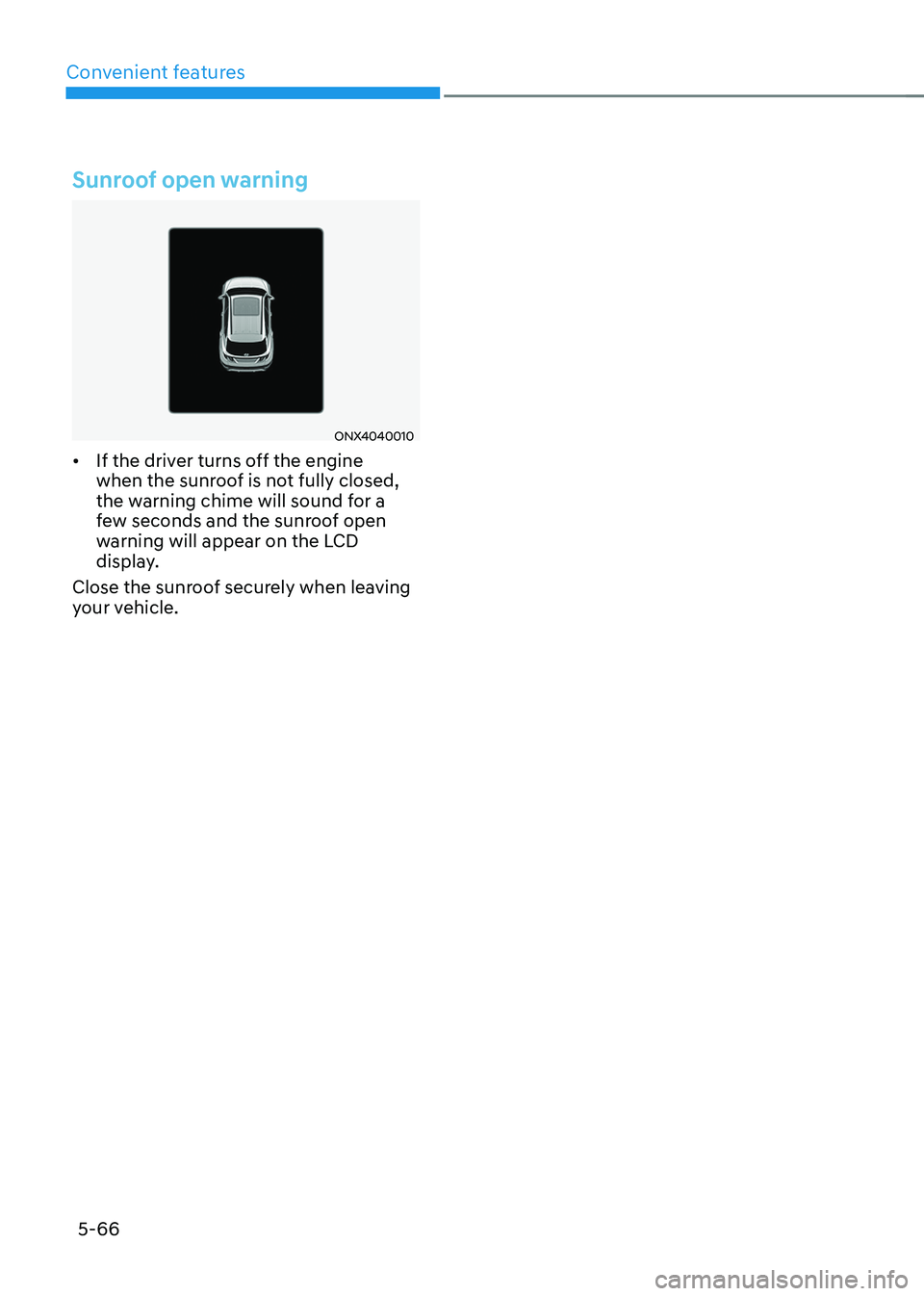

Sunroof open warning
ONX4040010
• If the driver turns off the engine
when the sunroof is not fully closed,
the warning chime will sound for a
few seconds and the sunroof open
warning will appear on the LCD
display.
Close the sunroof securely when leaving
your vehicle.

05
5-67

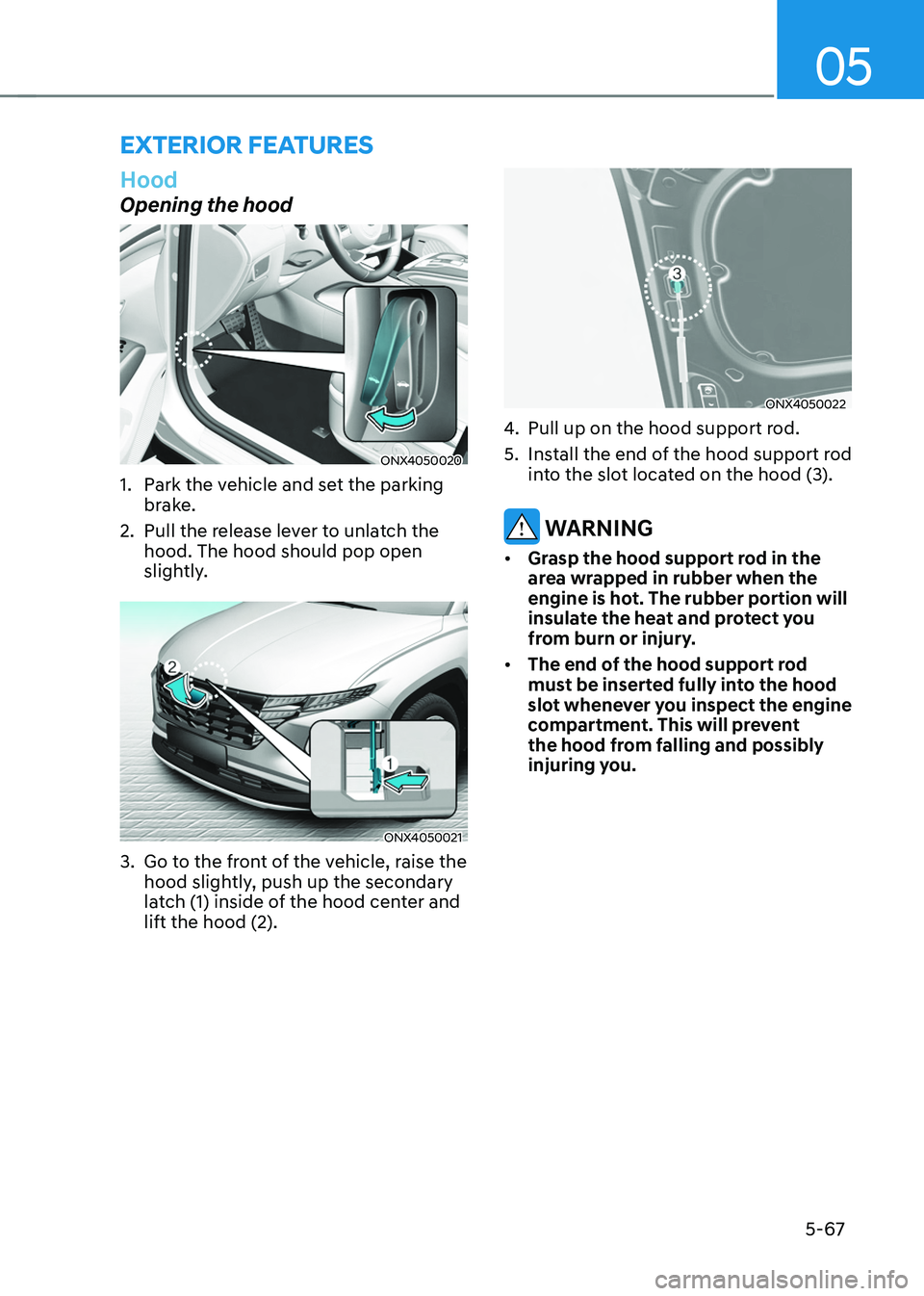

exterior feAtures
Hood
Opening the hood
ONX4050020
1. Park the vehicle and set the parking
brake.
2.
Pull the release le

ver to unlatch the
hood. The hood should pop open
slightly.
ONX4050021
3. Go to the front of the vehicle, raise the
hood sligh tly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2).
ONX4050022
4. Pull up on the hood support rod.
5.
Install the end o
f the hood support rod
into the slot located on the hood (3).
WARNING
• Grasp the hood support rod in the
area wrapped in rubber when the
engine is hot. The rubber portion will
insulate the heat and protect you
from burn or injury.
• The end of the hood support rod
must be inserted fully into the hood
slot whenever you inspect the engine
compartment. This will prevent
the hood from falling and possibly
injuring you.
