2021 HYUNDAI PALISADE traction control

7-42
Maintenance

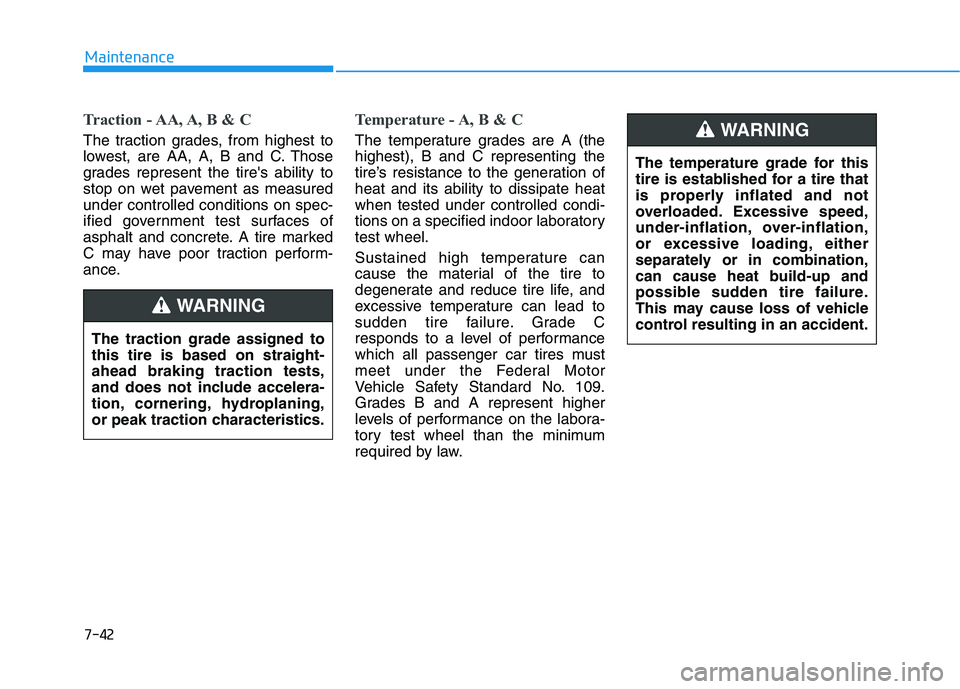

Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on spec-
ified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction perform-
ance.
Temperature - A, B & C
The temperature grades are A (the
highest), B and C representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. Grade C
responds to a level of performance
which all passenger car tires must
meet under the Federal Motor
Vehicle Safety Standard No. 109.
Grades B and A represent higher
levels of performance on the labora-
tory test wheel than the minimum
required by law.The temperature grade for this
tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
under-inflation, over-inflation,
or excessive loading, either
separately or in combination,
can cause heat build-up and
possible sudden tire failure.
This may cause loss of vehicle
control resulting in an accident.WARNING
The traction grade assigned to
this tire is based on straight-
ahead braking traction tests,
and does not include accelera-
tion, cornering, hydroplaning,
or peak traction characteristics.
WARNING

I-6
Fuses ...............................................................................7-48
Engine compartment panel fuse replacement ............7-50
Fuse/relay panel description .......................................7-51
Instrument panel fuse replacement.............................7-49
Multi fuse ...................................................................7-50
Gauges and meters ..........................................................3-71
Glove box......................................................................3-192
Grove box lamp ............................................................3-141
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .......................................5-149
Head Restraints ...............................................................2-21
Front seat head restraints............................................2-22
Rear seat head restraints .............................................2-24
Head up display ............................................................3-130
Headlamp delay function ..............................................3-138
Headlamp position ........................................................3-133
Heated steering wheel .....................................................3-32
High Beam Assist (HBA) .............................................3-134
High beam operation.....................................................3-134
Highway driving ...........................................................5-151
Highway Driving Assist (HDA) system .......................5-122
Hill-start Assist Control (HAC) ......................................5-39
Hood................................................................................3-53Horn ................................................................................3-31
How to use this manual .....................................................F6
Idle Stop and Go (ISG) System ......................................5-50
If the engine doesn't turn over or turns over slowly.........6-3
If the engine overheats ......................................................6-6
If the engine stalls at a crossroad or crossing...................6-2
If the engine stalls while driving ......................................6-2
If the engine turns over normally but doesn't start ...........6-3
If the engine will not start.................................................6-3
If you have a flat tire while driving ..................................6-3
Immobilizer system.........................................................3-14
Important safety precautions.............................................2-2
Air Bag Hazards ...........................................................2-2
Always Wear Your Seat Belt ........................................2-2
Control Your Speed ......................................................2-3
Driver Distraction.........................................................2-2
Keep Your Vehicle in Safe Condition ..........................2-3
Restrain All Children....................................................2-2
In case of emergency while driving..................................6-2
Index
I
G
H

I-13
Tire traction ................................................................7-38
Use of compact spare tires .........................................6-19
Wheel alignment and tire balance ..............................7-36
Wheel replacement .....................................................7-38
Towing ............................................................................6-22
Trailer Stability Assist (TSA) .........................................5-42
Trailer towing................................................................5-157
Trip computer ................................................................3-110
Accumulated Info display ........................................3-112
Average fuel economy ..............................................3-111
Digital speedometer ..................................................3-113
Driving Info display .................................................3-112
Instant fuel economy ................................................3-111
Smart shift ................................................................3-113
Turn signals...................................................................3-137
USB charger ..................................................................3-200
USB port ...........................................................................4-2
Use of compact spare tires ..............................................6-19
User settings mode........................................................3-100Vanity mirror lamp........................................................3-141
Vehicle break-in process ....................................................F9
Vehicle certification label ...............................................8-10
Vehicle identification number (VIN) ..............................8-10
Vehicle load limit ..........................................................5-165
Vehicle modification ..........................................................F9
Vehicle Stability Management (VSM)............................5-38
Vehicle weight and luggage volume .................................8-6
View modes ...................................................................3-115
Warning and indicator lights...........................................3-76
Air bag warning light .................................................3-77
All Wheel Drive (AWD) warning light......................3-83
All wheel drive lock indicator light ...........................3-89
Anti-lock Brake System (ABS) warning light ...........3-78
Auto hold ON indicator light .....................................3-88
Auto stop indicator light ............................................3-85
Charging system warning light .................................3-81
Cruise indicator light ..................................................3-88
Downhill Brake Control (DBC) indicator light .........3-89
Electric Power Steering (EPS) warning light.............3-79
Electronic brake force warning light..........................3-78
Electronic Parking Brake (EPB) warning light..........3-80
Electronic stability control (ESC) indicator light ......3-85
I
Index
U
V
W
