2021 HYUNDAI PALISADE fold seats

2-4
Safety system of your vehicle
S SE
EA
AT
TS
S

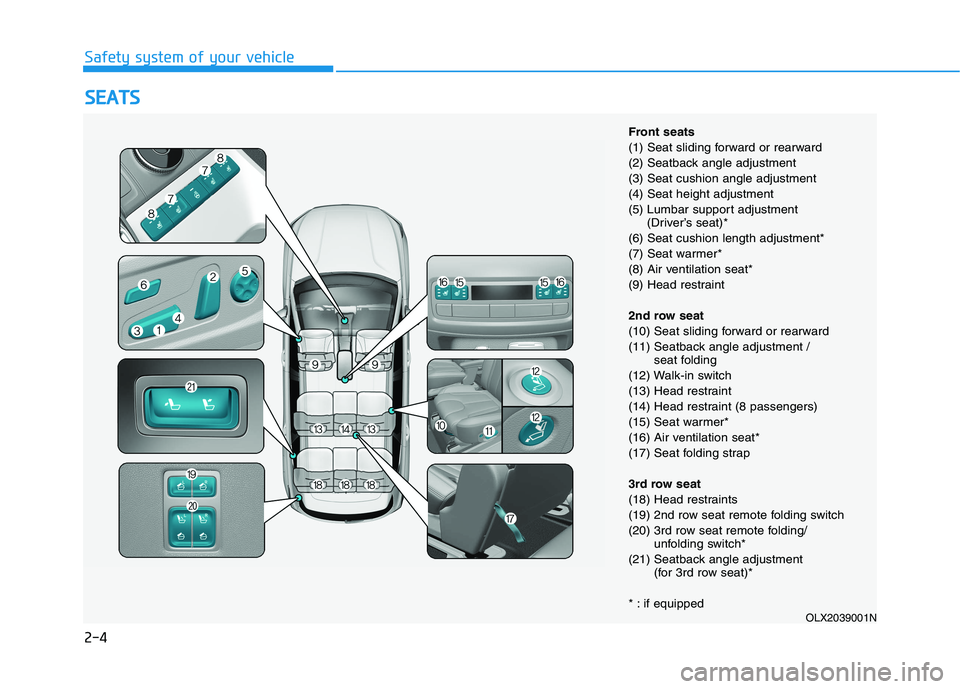

Front seats
(1) Seat sliding forward or rearward
(2) Seatback angle adjustment
(3) Seat cushion angle adjustment
(4) Seat height adjustment
(5) Lumbar support adjustment
(Driver’s seat)*
(6) Seat cushion length adjustment*
(7) Seat warmer*
(8) Air ventilation seat*
(9) Head restraint
2nd row seat
(10) Seat sliding forward or rearward
(11) Seatback angle adjustment /
seat folding
(12) Walk-in switch
(13) Head restraint
(14) Head restraint (8 passengers)
(15) Seat warmer*
(16) Air ventilation seat*
(17) Seat folding strap
3rd row seat
(18) Head restraints
(19) 2nd row seat remote folding switch
(20) 3rd row seat remote folding/
unfolding switch*
(21) Seatback angle adjustment
(for 3rd row seat)*
* : if equipped
OLX2039001N

2-17
Safety system of your vehicle
2
5. To use the rear seat, lift and unfold
the seatback to the upright posi-
tion by pulling up the recline lever.
Push the seatback firmly until it
clicks into place. Make sure the
seatback is locked in place.
6. Return the rear seat belt to the
proper position.Do not place objects in the rear
seats, since they cannot be
properly secured and may hit
vehicle occupants in a collision
causing serious injury or death.
WARNING
When returning the rear seat-
back from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked
into its upright position by
pushing on the top of the seat-
back. In an accident or sudden
stop, the unlocked seatback
could allow cargo to move for-
ward with great force and enter
the passenger compartment,
which could result in serious
injury or death.
WARNING
OLX2039024N
■2nd row seat
OLX2039096N
■3rd row seat
Make sure the vehicle is off, the
shift button is in P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move if
the shift button is inadvertently
shifted to another position.
WARNING
Be careful when loading
cargo through the rear pas-
senger seats to prevent dam-
age to the vehicle interior.
When cargo is loaded through
the rear passenger seats,
ensure the cargo is properly
secured to prevent it from
moving while driving.
Unsecured cargo in the pas-
senger compartment can
cause damage to the vehicle
or injury to it's occupants.
CAUTION

2-18
Safety system of your vehicle
2nd row seat folding
(from outside)
Push the 2nd row seat back folding
switch (1) located on the left side of
the cargo area. (L : Left seatback
folding, R : Right seatback folding)
3rd row seat remote
folding/unfolding (if equipped)
Push the 3rd row seat back folding
switch (1) located on the left side of
the cargo area. (L : Left seatback
folding/unfolding, R : Right seatback
folding/unfolding)
You can also fold or unfold the left or
right seatback of the 3rd row seat by
touching the menu (All menus →
Setup →Vehicle in the Infotainment
system).
For more details, refer to the sep-
arately supplied Multimedia manu-
al with your vehicle.The 3rd row seat that is remotely
folded or unfolded, is controlled only
when the shift button is in “P” with
Start ON, or the shift button is in “N”
and the parking brake is in “ON.”
However, the seat is controlled at
any condition in Start OFF state.
When the vehicle moves or shifts
while the seat is being controlled, the
seat may stop operation.
When you press the switch once
more while folding and unfolding the
seat, operation stops. When you
press the switch again, the operation
resumes.
With the seat folded, when you press
the angle adjusting switch, the seat
is unfolded.
OLX2039026NOLX2039030N
Rear seat folding
Do not fold the rear seats(2nd &
3rd row seats), if passengers,
pets or luggage are on the rear
seats.
It may cause injury or damage
to passengers, pets, luggage.
WARNING

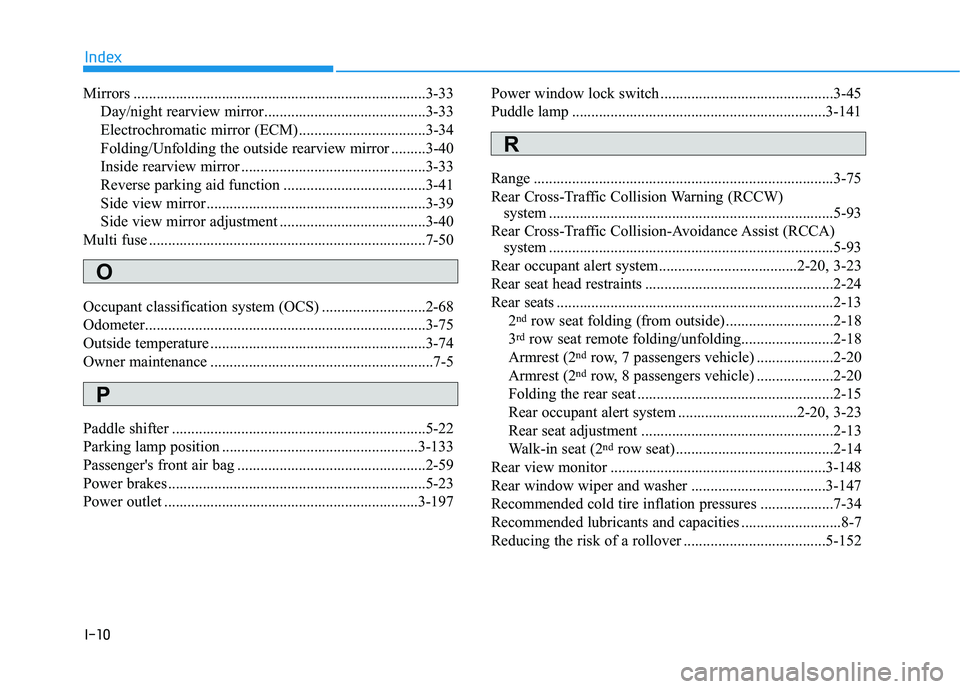

I-10
Mirrors ............................................................................3-33
Day/night rearview mirror..........................................3-33
Electrochromatic mirror (ECM) .................................3-34
Folding/Unfolding the outside rearview mirror .........3-40
Inside rearview mirror ................................................3-33
Reverse parking aid function .....................................3-41
Side view mirror .........................................................3-39
Side view mirror adjustment ......................................3-40
Multi fuse ........................................................................7-50
Occupant classification system (OCS) ...........................2-68
Odometer.........................................................................3-75
Outside temperature ........................................................3-74
Owner maintenance ..........................................................7-5
Paddle shifter ..................................................................5-22
Parking lamp position ...................................................3-133
Passenger's front air bag .................................................2-59
Power brakes ...................................................................5-23
Power outlet ..................................................................3-197Power window lock switch .............................................3-45
Puddle lamp ..................................................................3-141
Range ..............................................................................3-75
Rear Cross-Traffic Collision Warning (RCCW)
system ..........................................................................5-93
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
system ..........................................................................5-93
Rear occupant alert system....................................2-20, 3-23
Rear seat head restraints .................................................2-24
Rear seats ........................................................................2-13
2
ndrow seat folding (from outside) ............................2-18
3rdrow seat remote folding/unfolding........................2-18
Armrest (2ndrow, 7 passengers vehicle) ....................2-20
Armrest (2ndrow, 8 passengers vehicle) ....................2-20
Folding the rear seat ...................................................2-15
Rear occupant alert system ...............................2-20, 3-23
Rear seat adjustment ..................................................2-13
Walk-in seat (2
ndrow seat) .........................................2-14
Rear view monitor ........................................................3-148
Rear window wiper and washer ...................................3-147
Recommended cold tire inflation pressures ...................7-34
Recommended lubricants and capacities ..........................8-7
Reducing the risk of a rollover .....................................5-152
Index
R
P
O
