2021 HONDA PILOT Owner's Manual (in English)

711
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure:1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right using a
flat-tip screwdriver.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Lever
Models without power tailgate
Screwdriver
21 PILOT-31TG76500.book 711 ページ ２０２０年３月１８日　水曜日　午後４時３８分

712
21 PILOT-31TG76500.book 712 ページ ２０２０年３月１８日　水曜日　午後４時３８分

713
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 714
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 716
Devices that Emit Radio Waves ....... 717
Reporting Safety Defects ................. 718Emissions Testing
Testing of Readiness Codes.............. 719
Warranty Coverages ........................ 721
Authorized Manuals ......................... 724
Customer Service Information ......... 725
21 PILOT-31TG76500.book 713 ページ ２０２０年３月１８日　水曜日　午後４時３８分

714
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*3
9,755 lbs (4,425 kg)*4
Canada:4,425 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)Quantity7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models without navigation system
*2: Models with navigation system and 18 inch wheel
*3: Models with navigation system and 20 inch wheel
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1, *2
LED*3
Fog Lights*LEDFront Turn Signal Lights21 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up LightsLEDRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior Lights
Map LightsLED*
5 W*
Ceiling LightsLED*
5 W*
Ambient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
21 PILOT-31TG76500.book 714 ページ ２０２０年３月１８日　水曜日　午後４時３８分

715
uuSpecifications u
Information
■
Brake Fluid
■ Automatic Tran smission Fluid
■ Rear Differential Fluid
*
■Transfer Assembly Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF Type-3.1 or higher
Capacity Change 3.5 US qt (3.3 L)
SpecifiedHonda DPSF-II
Capacity Change 1.92 US qt (1.82 L)
SpecifiedHonda HGO-1CapacityChange0.45 US qt (0.43 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
Capacity
Change5.4 US qt (5.1 L)Change
including
filter5.7 US qt (5.4 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.96 US gal (7.40 L)(change including the remaining 0.22 US gal
(0.82 L) in the reserve tank)
■ Tire
*1: Models with 18 inch wheel
*2: Models with 20 inch wheel
RegularSize245/60R18 105H*1
245/50R20 102H*2
Pressure32 (220 [2.2])*1
psi (kPa [kgf/cm2])35 (240 [2.4])*2
Compact
SpareSizeT165/80D17 104MPressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular18 x 8J*1
20 x 8J*2
Compact Spare17 x 4T
* Not available on all models
21 PILOT-31TG76500.book 715 ページ ２０２０年３月１８日　水曜日　午後４時３８分

716
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows:1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number
Automatic Transmission
Number
21 PILOT-31TG76500.book 716 ページ ２０２０年３月１８日　水曜日　午後４時３８分

717
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
21 PILOT-31TG76500.book 717 ページ ２０２０年３月１８日　水曜日　午後４時３８分

718
Information

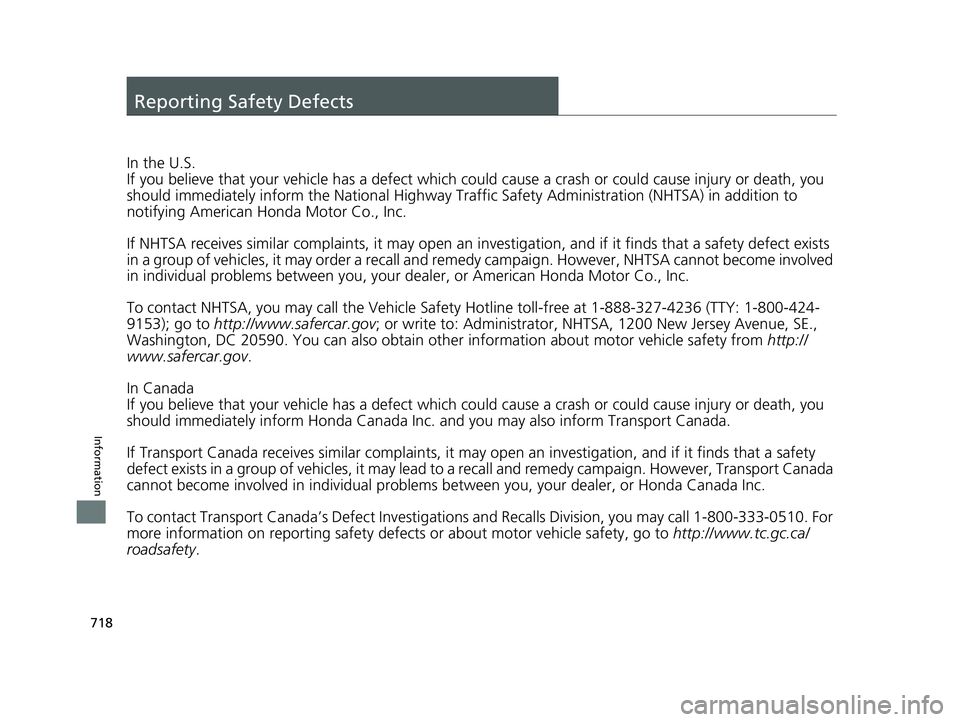

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
21 PILOT-31TG76500.book 718 ページ ２０２０年３月１８日　水曜日　午後４時３８分
