2021 HONDA PILOT Owner's Manual (in English)

207
uuAdjusting the Seats uArmrest
Continued
Controls
Armrest
Pull down the armrest.
Pull the armrest all the way down, then pull it
up to the desired angle.
■Using the Front Seat Armrest
Models with adjustable armrest
21 PILOT-31TG76500.book 207 ページ ２０２０年３月１８日　水曜日　午後４時３８分

208
uuAdjusting the Seats uArmrest
Controls
Pull down the armrest.
Pull down the armrest of the center backrest.
■Using the Second Row Seat Armrest
Models with captain seat
Models with bench seat
21 PILOT-31TG76500.book 208 ページ ２０２０年３月１８日　水曜日　午後４時３８分

209Continued
Controls

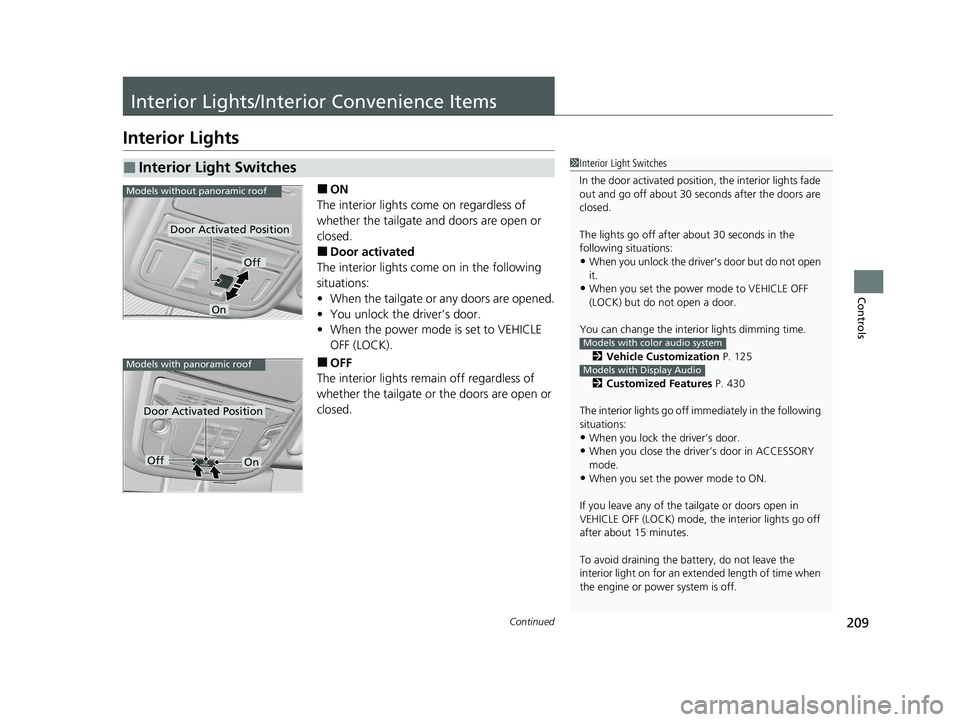

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the tailgate and doors are open or
closed.
■Door activated
The interior lights come on in the following
situations:
• When the tailgate or any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the tailgate or the doors are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Vehicle Customization P. 125
2 Customized Features P. 430
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
If you leave any of the tailgate or doors open in
VEHICLE OFF (LOCK) mode, th e interior lights go off
after about 15 minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine or power system is off.
Models with color audio system
Models with Display Audio
Models without panoramic roof
Door Activated Position
Off
On
Models with panoramic roof
Door Activated Position
OffOn
21 PILOT-31TG76500.book 209 ページ ２０２０年３月１８日　水曜日　午後４時３８分

uuInterior Lights/Interior Convenience Items uInterior Lights
210
Controls
■Front
The map lights can be turned on and off by
pressing the lenses or buttons.
■Map Lights1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
Models without panoramic roof
Models with panoramic roof
Models without panoramic roof
21 PILOT-31TG76500.book 210 ページ ２０２０年３月１８日　水曜日　午後４時３８分

Continued211
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

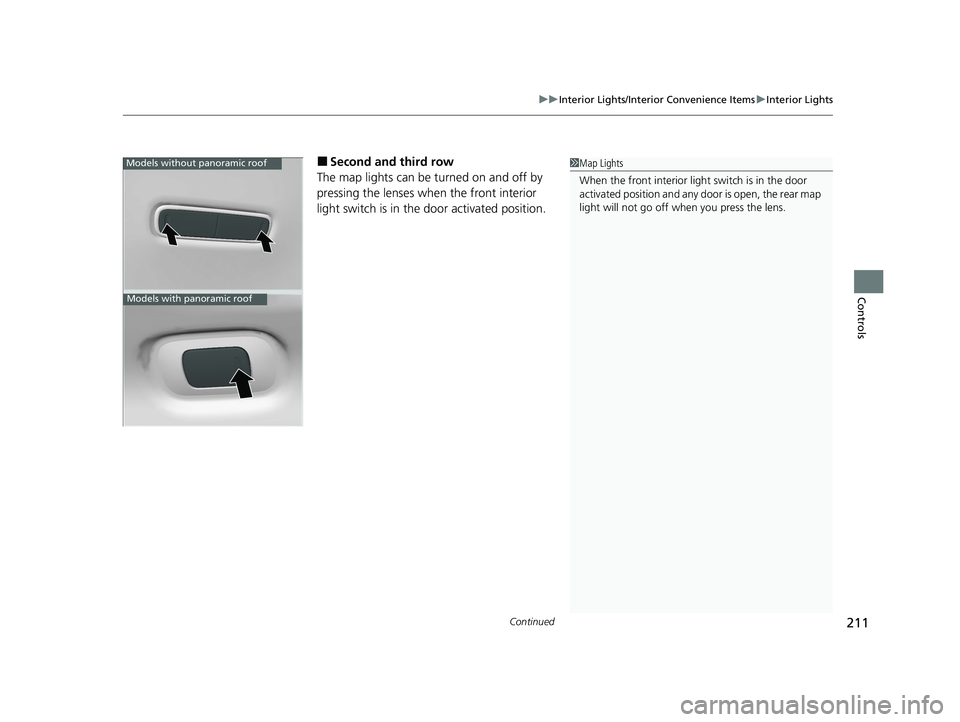

■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the rear map
light will not go off when you press the lens.Models without panoramic roof
Models with panoramic roof
21 PILOT-31TG76500.book 211 ページ ２０２０年３月１８日　水曜日　午後４時３８分

212
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
■ON
The light comes on regardless of whether the
tailgate is open or closed.
■Tailgate activated
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Cargo Area Light
Off
On
Tailgate Activated Position
21 PILOT-31TG76500.book 212 ページ ２０２０年３月１８日　水曜日　午後４時３８分

213
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Pull the lever to open the glove box. You can
lock the glove box with the built-in key.
To open the console compartment, press the
button to unlock the lid, and then slide it
rearward.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
■Console Compartment
Button
21 PILOT-31TG76500.book 213 ページ ２０２０年３月１８日　水曜日　午後４時３８分

214
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Console Tray
Slide the tray when you use the console
compartment.
21 PILOT-31TG76500.book 214 ページ ２０２０年３月１８日　水曜日　午後４時３８分
