2021 HONDA INSIGHT Owner's Manual (in English)

Continued143
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

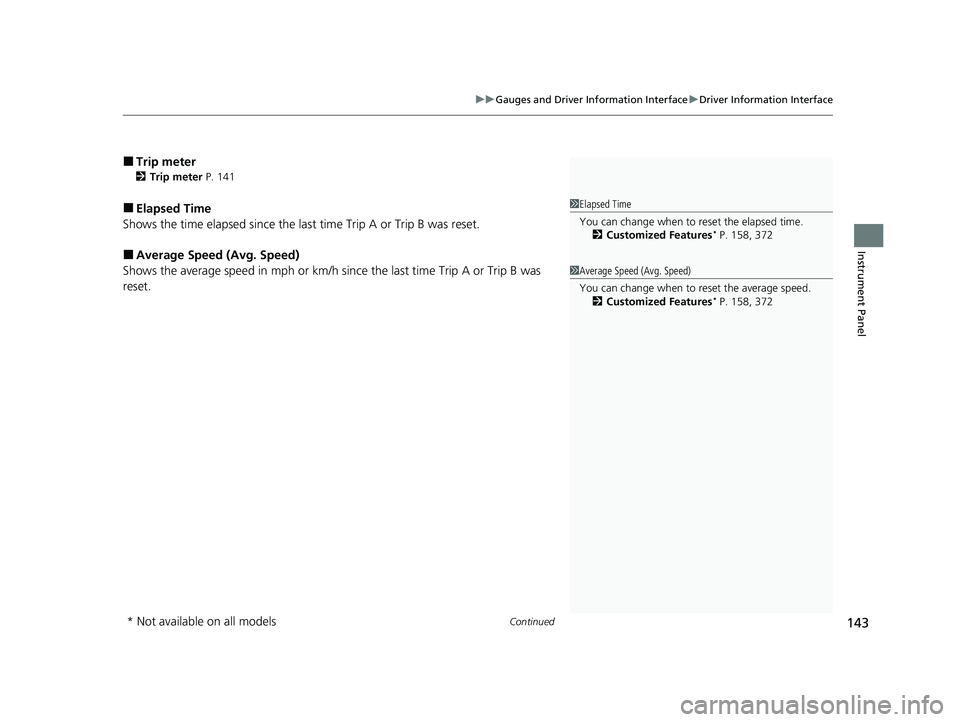

■Trip meter
2 Trip meter P. 141
■Elapsed Time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■Average Speed (Avg. Speed)
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset.
1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features
* P. 158, 372
1Average Speed (Avg. Speed)
You can change when to reset the average speed.
2 Customized Features
* P. 158, 372
* Not available on all models
21 INSIGHT-31TXM6200.book 143 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuGauges and Driver Information Interface uDriver Information Interface
144
Instrument Panel
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the
navigation system
*, Android Auto or Apple
CarPlay, turn-by-turn directions to your
destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 334
2 Apple CarPlay P. 331
■Navigation*1Navigation*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 372
When the compass or turn-by-turn directions are
displayed, you can contro l some navigation system
functions on the driver information interface by
scrolling the left selector wheel.
2 Refer to the navigation system
Models with navigation system
Compass
Turn-By-Turn Driving Directions
* Not available on all models
21 INSIGHT-31TXM6200.book 144 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued145
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
2 Driver Information Interface Warning and
Information Messages P. 107
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 565
■Warnings1Warnings
If there are no Warnings, None message appears on
the driver information interface.
(Example)
■Maintenance
21 INSIGHT-31TXM6200.book 145 ページ ２０２０年２月５日　水曜日　午前１０時０分

146
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 420
■Phone
21 INSIGHT-31TXM6200.book 146 ページ ２０２０年２月５日　水曜日　午前１０時０分

147
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Shows the current audio information.
2 Audio System Basic Operation P. 268
■Audio
21 INSIGHT-31TXM6200.book 147 ページ ２０２０年２月５日　水曜日　午前１０時０分

148
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the traffic sign recognition system.
2 Traffic Sign Recognition System P. 530
■Traffic Sign Recognition System
21 INSIGHT-31TXM6200.book 148 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued149
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
The Driver Attention Monitor an alyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.
When you select Driver Attention on the
driver information interface, bars on it light up
in white to indicate the degree of the driver’s
attention.
2 Accessing contents in the main display
P. 136
■Driver Attention Monitor1 Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information
Interface
Left Selector
Wheel
(home) Button
Level
21 INSIGHT-31TXM6200.book 149 ページ ２０２０年２月５日　水曜日　午前１０時０分

150
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
If two bars light up, the Driver Attention
Level Low message will appear.
If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the left
selector wheel is pressed or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to dete ct that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
21 INSIGHT-31TXM6200.book 150 ページ ２０２０年２月５日　水曜日　午前１０時０分
