2021 HONDA INSIGHT Owner's Manual (in English)

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
●Comes on if there is a problem with
RDM, CMBSTM or blind spot
information system*.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 451●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the RDM and CMBSTM
are deactivated temporarily after
the 12-volt battery has been
disconnected and then re-
connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
* Not available on all models
21 INSIGHT-31TXM6200.book 103 ページ ２０２０年２月５日　水曜日　午前１０時０分

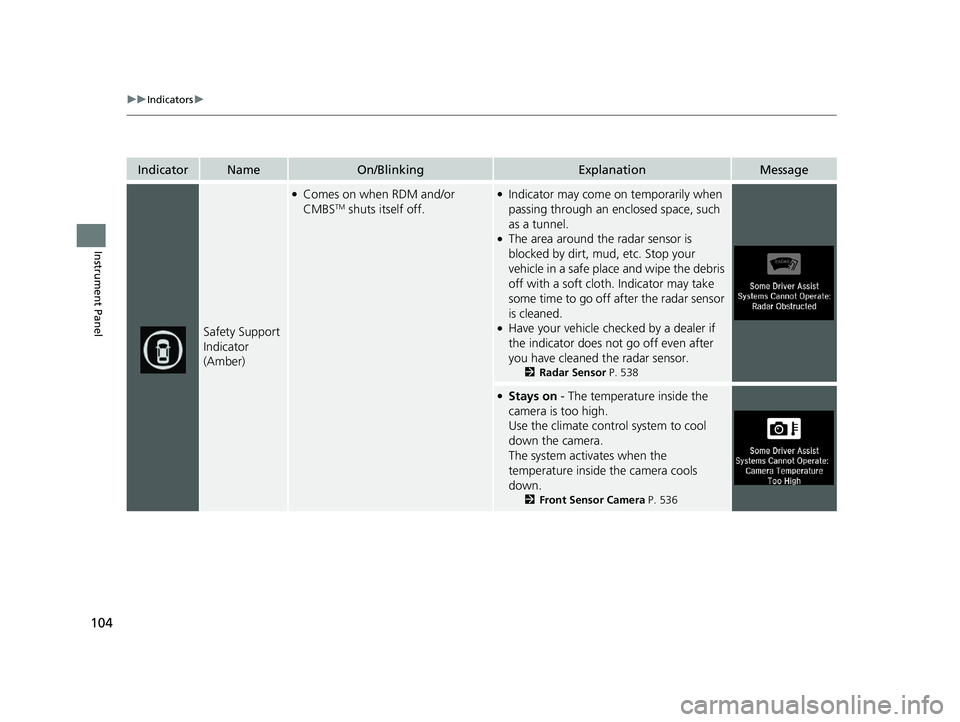

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
●Comes on when RDM and/or
CMBSTM shuts itself off.
●Indicator may come on temporarily when
passing through an enclosed space, such
as a tunnel.
●The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth. Indicator may take
some time to go off after the radar sensor
is cleaned.
●Have your vehicle checked by a dealer if
the indicator does not go off even after
you have cleaned the radar sensor.
2Radar Sensor P. 538
●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 536
21 INSIGHT-31TXM6200.book 104 ページ ２０２０年２月５日　水曜日　午前１０時０分

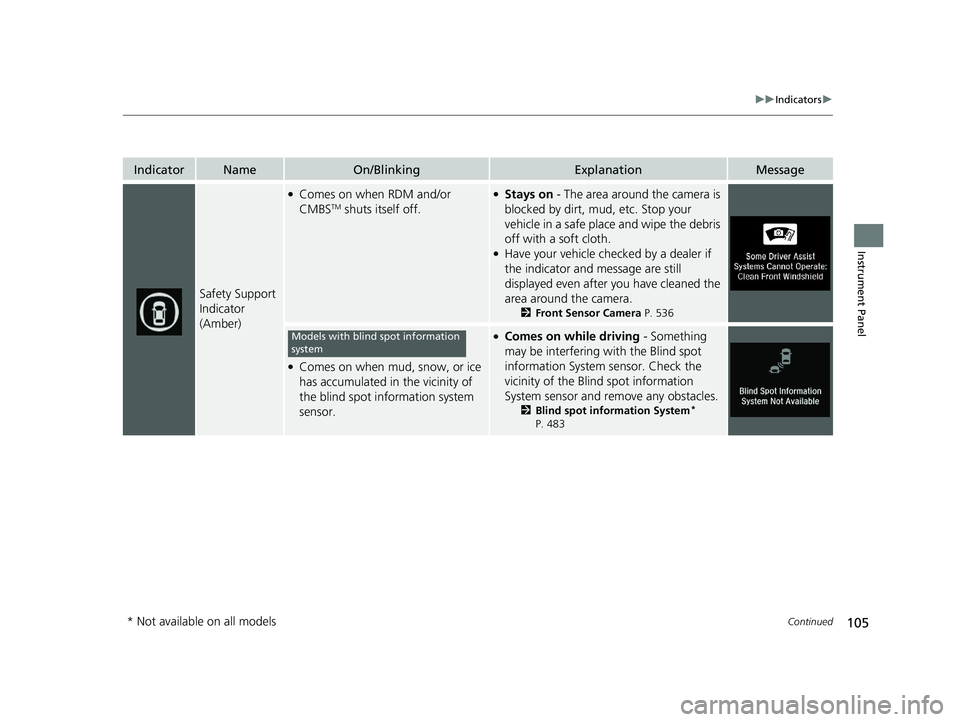

105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
●Comes on when RDM and/or
CMBSTM shuts itself off.
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth.
●Have your vehicle checked by a dealer if
the indicator and message are still
displayed even after you have cleaned the
area around the camera.
2 Front Sensor Camera P. 536
●Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot information system
sensor.
●Comes on while driving - Something
may be interfering wi th the Blind spot
information System sensor. Check the
vicinity of the Blind spot information
System sensor and re move any obstacles.
2Blind spot information System*
P. 483
Models with blind spot information
system
* Not available on all models
21 INSIGHT-31TXM6200.book 105 ページ ２０２０年２月５日　水曜日　午前１０時０分

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Green/Gray)
●Lights up in green when RDM,
CMBSTM and blind spot information
system* are on.●Lights up in green and gray when
RDM, CMBSTM or blind spot
information system* are off.●Lights up in gray when RDM,
CMBSTM and blind spot information
system* are off.
2 RDM On and Off P. 527
2 CMBSTM On and Off P. 493
2 Blind spot information System On
and Off P. 485
* Not available on all models
21 INSIGHT-31TXM6200.book 106 ページ ２０２０年２月５日　水曜日　午前１０時０分

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings to see the message
again with the system message indicator on.
2 Switching the Display P. 136
MessageConditionExplanation
●Appears when the vehicle is no longer able to run
due to a malfunction.●Immediately stop in a safe place.
●Appears when there is a ri sk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stoppe d, apply the parking brake.●Have your vehicle checked by a dealer.
●Appears when you set the power mode to ON again
and the vehicle is able to run.
2Turning on the Power P. 454
21 INSIGHT-31TXM6200.book 107 ページ ２０２０年２月５日　水曜日　午前１０時０分

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if any door or th e trunk is not completely
closed.
• Appears if any door or th e trunk is opened while
driving. The beeper sounds.• Disappears when all doors and the trunk are closed.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Warning Appears P. 643
●Appears when the engine coolant temperature is
near its upper limit.●Drive slowly to prevent overheating.
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 641
21 INSIGHT-31TXM6200.book 108 ページ ２０２０年２月５日　水曜日　午前１０時０分

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the washer fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 584
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 567
●Appears when there is a pr oblem with the sensor on
the 12-volt battery.●Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 601
Canadian models
21 INSIGHT-31TXM6200.book 109 ページ ２０２０年２月５日　水曜日　午前１０時０分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the cooling
system.●Drive slowly to prevent ov erheating and have your
vehicle checked by a deal er as soon as possible.
●Appears when the fuel fill cap is loose or is not
installed.
2Tighten Fuel Cap Message P. 645
●Appears if the vehicle’s speed reaches about 10 mph
(15 km/h) with the fuel fill door opened.●Stop the vehicle and close the fuel fill door.
●Appears when the fuel fill door has been open for 30
minutes.●Turn off the power system, re install the fuel cap, and
close the fuel fill door.
- If you still want to refuel, press the fuel fill door release
button to reopen the door.
