2021 HONDA CLARITY FUEL CELL steering

491
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
If a Tire Goes FlatTemporarily Repairi ng a Flat Tire....... 492
Handling of the Jack ......................... 504
Power System Won’t Start Checking the Procedure ................... 505
If the Smart Entry Remote Battery is Weak .......................................... 506
Emergency Power System Off........... 507
If the 12-Volt Battery Is Dead .......... 508
Overheating How to Handle Overheating ............. 511
If Hydrogen Gas is Leaking .............. 513Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 515
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 516
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 516If the Brake System Indicator (Red) Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On ...................... 517
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 518
If the Transmission System Indicator Blinks along with the Warning Message .... 519
Fuses Fuse Locations ................................. 520
Inspecting and Changing Fuses ........ 527
Emergency Towing ........................... 528
If You Cannot Unlock the Hydrogen Fuel Lid ...................................................... 529
If You Cannot Open the Trunk ........ 530
21 CLARITY FCV CSS-31TRT6400_02.book 491 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

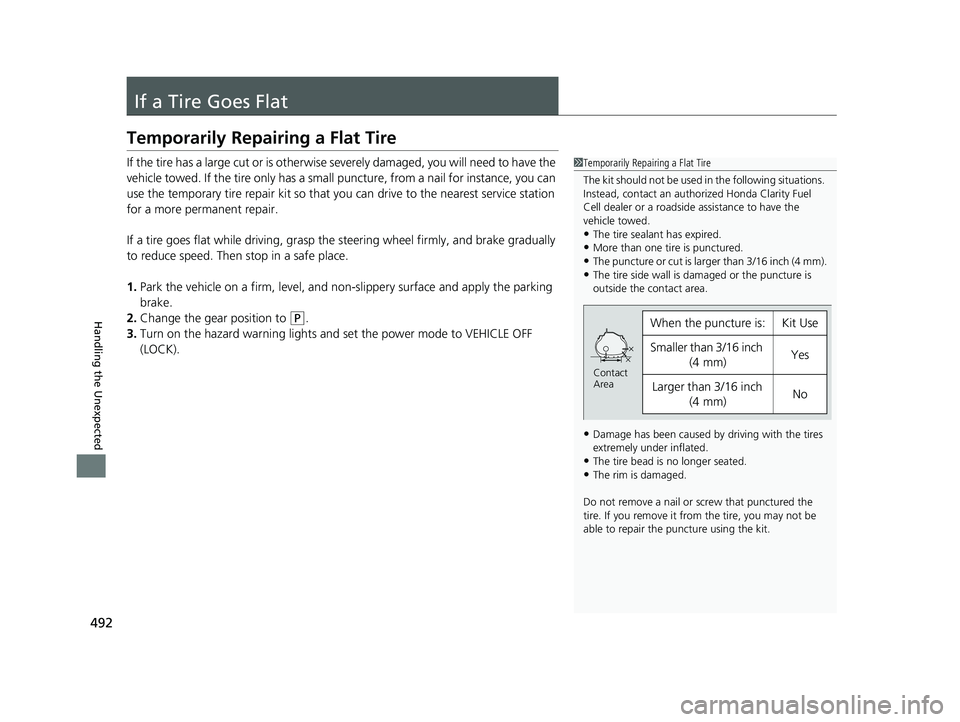

492
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a smal l puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Honda Clarity Fuel
Cell dealer or a roadside assistance to have the
vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.
•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tires
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch
(4 mm)No
Contact
Area
21 CLARITY FCV CSS-31TRT6400_02.book 492 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

507
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the button while driving unless it is
absolutely necessary for the power system to be
turned off.
21 CLARITY FCV CSS-31TRT6400_02.book 507 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

Index
543
Index
Index
Numbers
12-Volt Battery Charging System Indicator ................................................... 92
A
ABS (Anti-lock Brake System) .................. 433
Accessories and Modifications ................ 489
Accessory Power Sockets ......................... 186
Acoustic Vehicle Alerting System ............ 384
Adaptive Cruise Control (ACC) with Low Speed Follow .......................... 101, 391
Additives
Coolant .................................................. 461
Washer ................................................... 464
Adjusting
Armrest .................................................. 179
Front Seats.............................................. 174
Head Restraints ....................................... 176
Mirrors.................................................... 172
Steering Wheel ....................................... 171
Temperature ........................................... 123
Agile Handling Assist ............................... 417
Air Conditioning System (Climate Control
System) .................................................... 190
Changing the Mode................................ 192
Defrosting the Windshield and
Windows .............................................. 194
Dust and Pollen Filter .............................. 482
Plasmacluster .......................................... 196
Sensors ................................................... 198 Synchronization Mode ............................. 195
Using Automatic Climate Control ............ 190
Air Pressure ....................................... 471, 533
Airbags ........................................................ 55
Advanced Airbags ..................................... 61
Airbag Care ............................................... 71
Driver’s Knee Airbag .................................. 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 58
Indicator .............................................. 68, 95
Passenger Airbag Off Indicator .................. 69
Sensors ...................................................... 55
Side Airbags .............................................. 65
Side Curtain Airbags .................................. 67
AM/FM Radio ............................................ 238
Android Auto
TM........................................ 275
Anti-lock Brake System (ABS) .................. 433
Indicator .................................................... 94
Apple CarPlay
TM........................................ 272
Armrest ..................................................... 179
Audio Remote Controls ............................ 203
Audio System .................................... 200, 206
Adjusting the Sound ................................ 231
Audio/Information Screen ........................ 207
Changing the Home Screen Icon Layout .. 214
Changing the Screen Interface ................. 228
Closing Apps ........................................... 230
Customizing the Meter ............................ 214
Display Setup ........................................... 232
Error Messages ........................................ 279
General Information ................................ 283 Home Screen........................................... 220
Limitations for Manual Operation ............ 233
Menu Customize ..................................... 229
MP3/WMA/AAC ...................................... 259
Reactivating ............................................ 202
Recommended Devices............................ 285
Remote Controls ..................................... 203
Security Code .......................................... 202
Selecting an Audio Source ....................... 233
Status Area ............................................. 227
Theft Protection ...................................... 202
USB Flash Drives ...................................... 285
USB Port.................................................. 201
Wallpaper Setup...................................... 218
Audio/Information Screen ....................... 207
Authorized Manuals ................................ 540
Auto Door Locking/Unlocking ................. 147
Automatic Brake Hold ............................. 431
Indicator............................................ 89, 431
Automatic Brake Hold System Indicator............................................ 89, 431
Automatic Lighting .................................. 161
Average Fuel Economy ............................ 123
Average Fuel Economy Records .............. 126
Average Speed ......................................... 124
21 CLARITY FCV CSS-31TRT6400_02.book 543 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

545
Index
D
Daytime Running Lights.......................... 163
Dead Battery (12-Volt) ............................. 508
Defrosting the Windshield and Windows ................................................. 194
Devices that Emit Radio Waves ............... 535
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 172
Directional Signals (Turn Signal) ............. 159
Display Button .......................................... 207
Door Mirrors ............................................. 173
Doors ........................................................ 135
Auto Door Locking.................................. 147
Auto Door Unlocking .............................. 147
Door Open Message ................................. 47
Keys........................................................ 135
Locking/Unlocking the Doors from the Inside .............................................. 28, 144
Locking/Unlocking the Doors from the Outside ................................................. 137
Lockout Prevention System ..................... 143
DOT Tire Quality Grading ........................ 473
Driver Information Interface ................... 121
Driver’s Knee Airbag .................................. 63
Driving ...................................................... 365
Braking ................................................... 427
Shifting Gear .......................................... 377
Transmission ........................................... 376
Turning on the Power ............................. 372
Driving Position Memory System ............ 169Dust and Pollen Filter
............................... 482
E
Eco Assist® System ...................................... 24
Eco Drive Display ...................................... 127
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System Indicator ............................................ 95, 516
Electronic Stability Control (ESC) ............. 415
Emergency ................................................ 528
EPS (Electric Power Steering) System ........ 95
Exterior Care (Cleaning) ........................... 485
Exterior Mirrors ........................................ 173
F
FC System in Extreme Cold-weather
Conditions ............................................... 423
Features ..................................................... 199
Filters Dust and Pollen ....................................... 482
Flat Tire ..................................................... 492
Floor Mats ................................................. 484
Fluids Brake ....................................................... 463
Coolant ................................................... 461
Transmission ............................................ 463
Windshield Washer .................................. 464
FM/AM Radio ............................................ 238
Foot Brake ................................................. 430 Front Airbags (SRS)
..................................... 58
Front Seat Heaters .................................... 188
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ................................ 385
Fuel ...................................................... 35, 447
Economy ................................................. 450
Gauge ..................................................... 118
How to Handle Leaked Hydrogen Gas ..... 513
Hydrogen Leak Indicator............................ 92
Instant Fuel Economy .............................. 124
Low Fuel Indicator ..................................... 92
Range ..................................................... 118
Refueling................................................. 447
Requirement ................................... 447, 532
Fuel Cell Power Generation Monitor ...... 126
Fuel Cell Vehicle Precautions ..................... 14
Fuel Economy ........................................... 450
Fuel Fill Door .............................................. 35
Fuses .......................................................... 520
Inspecting and Changing......................... 527
Locations......................................... 520, 522
G
Gauges ...................................................... 118
Gear Position Indicator ...................... 93, 379
Gear Shift Positions Transmission ........................................... 377
Glass (care) ........................................ 483, 486
Glove Box .................................................. 182
21 CLARITY FCV CSS-31TRT6400_02.book 545 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

546
Index
H
Handling the Unexpected........................ 491
HandsFreeLink® (HFL)............................... 331
Automatic Import of Cellular Phonebook
and Call History ..................................... 344
Displaying Messages ................................ 358
HFL Buttons ............................................. 331
HFL Menus .............................................. 334
HFL Status Display.................................... 333
In Case of Emergency .............................. 362
Limitations for Manua l Operation ............ 333
Making a Call .......................................... 352
Options During a Call .............................. 355
Phone Setup ............................................ 339
Phonebook Phonetic M odification ........... 348
Receiving a Call ....................................... 355
Receiving a Text Message/E-mail .............. 356
Ring Tone ................................................ 343
Selecting a Mail Account ......................... 357
Speed Dial ............................................... 345
To Set Up Text Message/E-mail Options ... 342
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 238
Head Restraints ......................................... 176
Headlights ................................................. 160
Aiming .................................................... 465
Automatic Operation ............................... 161
Dimming ......................................... 160, 163
Operating ................................................ 160
Head-Up Display ....................................... 129
Brightness Control ................................... 167 Heated Door Mirror
................................. 168
Heaters (Seat) ........................................... 188
HFL (HandsFreeLink ®)............................... 331
High Beam Indicator .................................. 98
High Voltage Battery ............................... 422
Hill Start Assist System ............................. 374
HomeLink ® Universal Transceiver ............ 328
Honda App License Agreement .............. 286
Honda Sensing ®........................................ 36
HondaLink ®............................................. 264
I
Identification Numbers
Motor, and Transmission ......................... 534
Vehicle Identification ............................... 534
Illumination Control Buttons ........................................... 166, 167
Immobilizer System .................................. 151
Indicator.................................................... 98
Indicators .................................................... 88
12-Volt Battery Charging System ....... 92, 515
Adaptive Cruise Control (ACC) with Low Speed Follow ......................... 101, 391
Anti-lock Brake System (ABS)..................... 94
Automatic Brake Hold ....................... 89, 431
Automatic Brake Hold System ........... 89, 431
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 102, 103
Electric Power Steering (EPS) System .. 95, 516
Gear Position............................................. 93 High Beam ................................................ 98
Hydrogen Leak.......................................... 92
Immobilizer System ................................... 98
Lane Keeping Assist System
(LKAS) ........................................... 102, 410
Lights On .................................................. 98
Low Fuel ................................................... 92
Low Tire Pressure/TPMS ............ 96, 418, 420
Parking Brake and Brake System (Amber) .. 90
Parking Brake and Brake System (Red) ..................... 88, 89, 516, 517
POWER SYSTEM ....................................... 91
READY ...................................................... 92
Road Departure Mitigation (RDM) ........... 100
Seat Belt Reminder .............................. 50, 94
Security System Alarm............................... 99
SPORT Mode..................................... 99, 383
Supplemental Restraint System ........... 68, 95
System Message ....................................... 97
Transmission System ................................. 93
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®)
System ............................................ 95, 415
VSA ® OFF .......................................... 95, 416
Information .............................................. 531
Instant Fuel Economy .............................. 124
Instrument Panel ........................................ 87
Brightness Control .................................. 166
Interior Lights ........................................... 180
Interior Rearview Mirror ......................... 172
21 CLARITY FCV CSS-31TRT6400_02.book 546 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

548
Index
OpeningTrunk....................................................... 530
Opening/Closing Hood ....................................................... 460
Power Windows ...................................... 154
Trunk....................................................... 148
Operating the Switches Around the Steering Wheel ....................................... 156
Outside Temperature Display .................. 123
Overheating .............................................. 511
P
Pandora®................................................. 257
Panic Mode ............................................... 153
Parking ...................................................... 443
Parking Brake ............................................ 427
Parking Brake and Brake System
Indicator (Red) ........................................ 517
Passenger Airbag Off Indicator ................. 69
Passing Indicators ..................................... 160
Plasmacluster ............................................ 196
Playing Bluetooth ® Audio ........................ 262
POWER Button .......................................... 156
Power System Turning on............................................... 372
POWER SYSTEM Indicator .......................... 91
Power Windows ........................................ 154
Precautions While Driving Rain ......................................................... 375
Pregnant Women ....................................... 53 Puncture (Tire)
.......................................... 492
R
Radiator.................................................... 462
Radio (FM/AM) ......................................... 238
Radio (SiriusXM ®) ..................................... 242
Radio Data System (RDS) ......................... 240
Range ........................................................ 118
RDS (Radio Data System) ......................... 240
READY Indicator ......................................... 92
Rear Defogger Button ............................. 168
Rearview Mirror ....................................... 172
Refueling .................................................. 447
Fuel ................................................. 447, 532
Fuel Gauge.............................................. 118
Regenerative Energy and Regenerative Braking ...................................................... 23
Regulations ............................... 420, 473, 535
Remote Transmitter ................................. 141
Replacement
Battery .................................................... 481
Bulbs ....................................................... 465
Fuses ............................................... 520, 522
Tires ........................................................ 476
Wiper Blade Rubber ................................ 467
Reporting Safety Defects ......................... 536
Resetting a Trip Meter ............................. 123
Road Departure Mitigation (RDM) ......... 387
On and Off.............................................. 388
S
Safe Driving ................................................ 43
Safety Checklist .......................................... 47
Safety Labels .............................................. 85
Safety Message ............................................ 3
Seat Belts .................................................... 48
Adjusting the Shoulder Anchor ................. 52
Automatic Seat Belt Tensioners ................. 50
Checking .................................................. 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 79
Pregnant Women...................................... 53
Reminder ............................................ 50, 94
Warning Indicator ............................... 50, 94
Seat Heaters ............................................. 188
Seats .......................................................... 174
Adjusting ................................................ 174
Front Seats.............................................. 174
Seat Heaters ........................................... 188
Security System ........................................ 151
Immobilizer System Indicator ..................... 98
Security System Alarm Indicator ................ 99
Selecting a Child Seat ................................ 76
Setting the Clock ...................................... 134
Shift Button ........................................ 34, 377
Operation ............................................... 379
Shifting (Transmission) ...................... 34, 377
Shoulder Anchor ........................................ 52
Side Airbags ............................................... 65
Side Curtain Airbags .................................. 67
21 CLARITY FCV CSS-31TRT6400_02.book 548 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

549
Index
Siri® Eyes Free ........................................... 271
SiriusXM ® Radio ....................................... 242
Smart Entry System .................................. 137
Snow Tires ................................................ 478
Song By Voice
TM (SBV) .............................. 253
Spare Tire (Optional) ............................... 533
Specifications ........................................... 532
Specified Fuel ................................... 447, 532
SPORT Mode ............................................. 383
SPORT Mode Indicator ....................... 99, 383
SRS Airbags (Airbags) ................................ 58
Steering Wheel Adjusting ................................................ 171
Stopping ................................................... 443
Summer Tires ............................................ 478
Supplemental Restraint System (SRS) ....... 58
Switches (Around the Steering
Wheel) ............................................ 6, 7, 156
Synchronization Mode ............................ 195
System Message Indicator ......................... 97
T
Temperature Sensor................................ 198
Temporary Tire Repair Kit ....................... 493
Time (Setting) ........................................... 134
Tire Pressure Monitoring System
(TPMS) ..................................................... 418
Indicator ........................................... 96, 518
Tires .......................................................... 470
Air Pressure..................................... 471, 533 Chains ..................................................... 478
Checking and Maintaining ....................... 470
Flat Tire (Puncture) ................................... 492
Inspection ................................................ 470
Labeling .................................................. 471
Regulations ............................................. 473
Rotation .................................................. 477
Spare (Optional) ...................................... 533
Summer .................................................. 478
Temporary Tire Repair Kit ........................ 493
Wear Indicators ....................................... 475
Winter ..................................................... 478
Towing a Trailer ....................................... 371
Towing Your Vehicle ................................ 371
Emergency .............................................. 528
TPMS (Tire Pressure Monitoring System) .................................................... 418
Transmission ............................... 34, 376, 377
Creeping ................................................. 376
Fluid ........................................................ 463
Gear Position Indicator ...................... 93, 379
Number ................................................... 534
Operating the Shift Button ................ 34, 379
Shifting ................................................... 377
Trip Meter ................................................. 123
Troubleshooting ....................................... 491
Blown Fuse ...................................... 520, 522
Brake Pedal Vibrates .................................. 39
Buzzer Sounds When Opening Door .......... 39
Emergency Towing .................................. 528
Flat Tire/Puncture ..................................... 492 Noise When Braking .................................. 41
Overheating ............................................ 511
Power System Won’t Start ....................... 505
Rear Door Won’t Open...................... 39, 146
Warning Indicators .................................... 88
Trunk ......................................................... 148
Lid........................................................... 148
Light Bulbs .............................................. 532
Unable to Open....................................... 530
Turn Signals .............................................. 159
Indicators (Instrument Panel) ..................... 98
Turn-by-Turn Directions ................... 124, 131
Turning on the Power .............................. 372
Does Not Activate ................................... 505
If the 12-Volt Battery Is Dead................... 508
U
Under-Floor Storage Area ....................... 187
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ................................................. 28, 144
USB Flash Drives ............................... 259, 285
USB Ports ................................................... 201
Using the Smart Entr y with Push Button
Start System ............................................ 137
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 534
21 CLARITY FCV CSS-31TRT6400_02.book 549 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
