2021 HONDA CLARITY FUEL CELL tires

476
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance

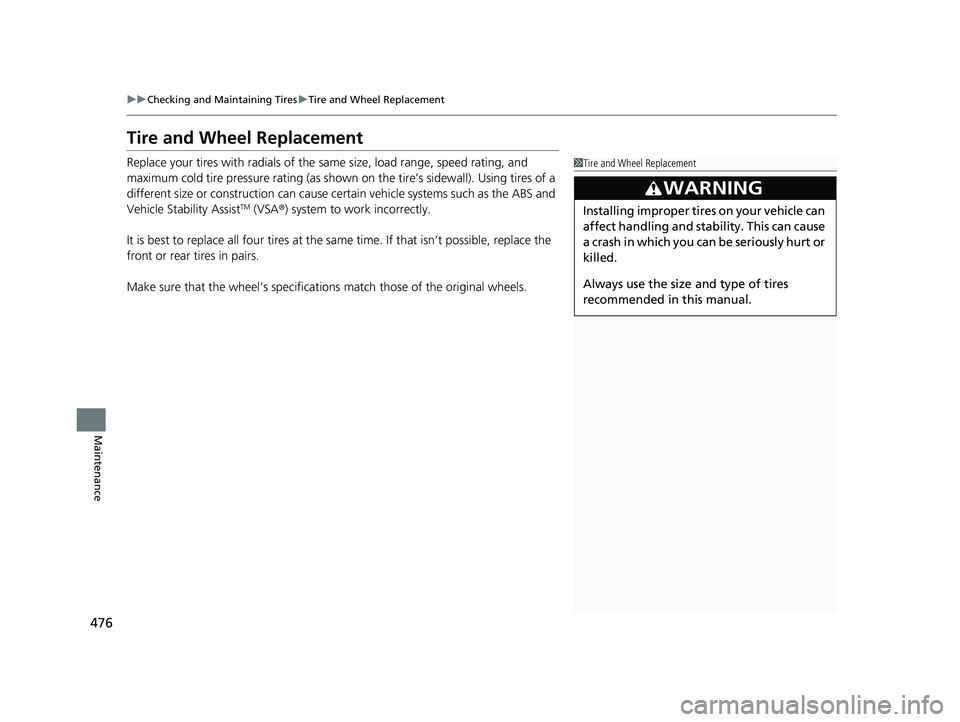

Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist
TM (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specifications match thos e of the original wheels.
1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this manual.
21 CLARITY FCV CSS-31TRT6400_02.book 476 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

477
uuChecking and Maintaining Tires uTire Rotation
Maintenance

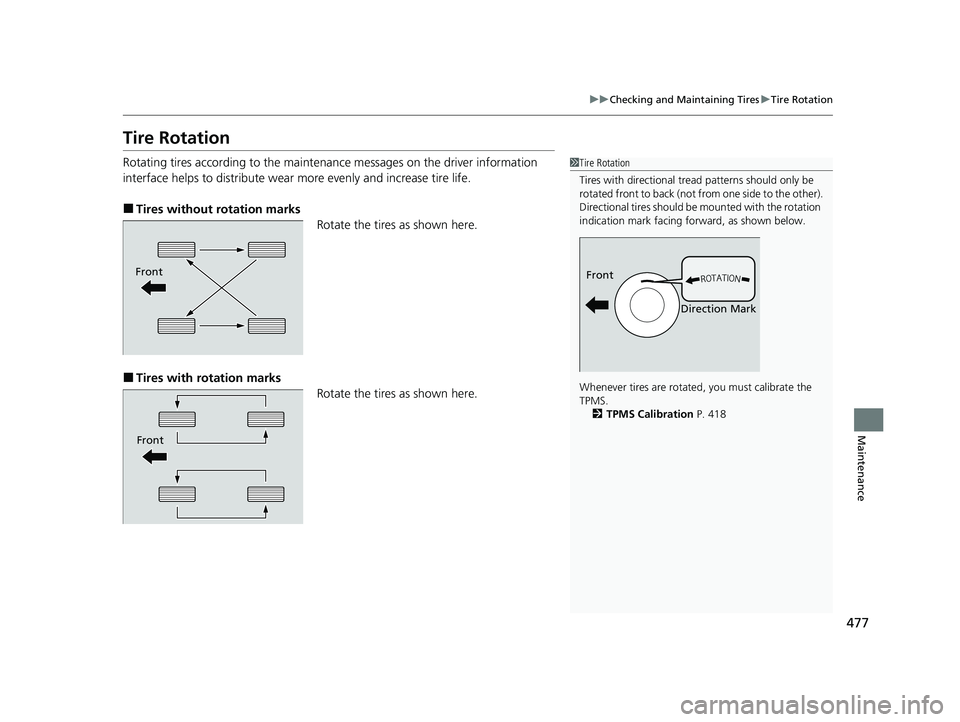

Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 418
Front
Direction MarkFront
Front
21 CLARITY FCV CSS-31TRT6400_02.book 477 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

478
uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain sufficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season ti res when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Ra dial Chain SC1040
1Winter Tires
NOTICE
Traction devices that are the wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer’s instructi ons regarding vehicle
operational limits.
If your vehicle is equipp ed with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact an
authorized Honda Clarit y Fuel Cell dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instructions in this manual
regarding the selection and use of tire
chains.
21 CLARITY FCV CSS-31TRT6400_02.book 478 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

492
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a smal l puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact an authorized Honda Clarity Fuel
Cell dealer or a roadside assistance to have the
vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.
•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tires
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch
(4 mm)No
Contact
Area
21 CLARITY FCV CSS-31TRT6400_02.book 492 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

504
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tires, consult an authorized Honda Clarity Fuel Cell dealer.
Jacking Points
21 CLARITY FCV CSS-31TRT6400_02.book 504 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

518
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS,
the indicator blinks for about one minute, and then stay on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by an author ized Honda Clarity Fuel Cell dealer
as soon as possible.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
21 CLARITY FCV CSS-31TRT6400_02.book 518 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

538
uuWarranty Coverages u
Information
Replacement 12-Volt Batte ry Limited Warranty – provides prorated coverage
for a replacement battery purchased from an authorized Honda Clarity Fuel Cell
dealer.
Replacement Exhaust Components Lifetime Limited Warranty – provides
coverage for as long as th e purchaser of the exhaust components owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or re cycled part has been used to repair the
vehicle or someone other than the authoriz ed service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.
21 CLARITY FCV CSS-31TRT6400_02.book 538 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

547
Index
Inverter Coolant....................................... 461
Adding to the Radiator ........................... 462
Adding to the Reserve Tank .................... 461
Overheating ............................................ 511
iPod ........................................................... 250
J
Jacking Points ........................................... 504
Jump Starting ........................................... 508
K
Key Number Tag ...................................... 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 135
Lockout Prevention ................................. 143
Number Tag............................................ 136
Rear Door Won’t Open ........................... 146
Remote Transmitter ................................ 141
Types and Functions................................ 135
L
Lane Keeping Assist System (LKAS) ........ 408
LaneWatchTM............................................ 425
Language (HFL) ........................................ 333
LATCH (Child Seats) ................................... 77
Lights ................................................ 160, 465
Automatic............................................... 161
Bulb Replacement ................................... 465
Daytime Running Lights .......................... 163 High Beam Indicator .................................. 98
Interior .................................................... 180
Light Switches ......................................... 160
Lights On Indicator .................................... 98
Turn Signals ............................................. 159
Load Limits ................................................ 369
Locking/Unlocking .................................... 135
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 135
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge (12-Volt) .................. 515
Low Smart Entry Remote Signal Strength .................................................. 136
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) ............. 369
M
Maintenance............................................. 451
12-Volt Battery ........................................ 479
Brake Fluid .............................................. 463
Cleaning .................................................. 483
Climate Control System ........................... 482
Coolant ................................................... 461
Maintenance Minder
TM............................ 455
Precautions .............................................. 452
Radiator .................................................. 462 Remote Transmitter ................................. 481
Replacing Light Bulbs .............................. 465
Safety...................................................... 453
Service Items ........................................... 457
Tires ........................................................ 470
Transmission Fluid ................................... 463
Under the Hood ...................................... 459
Map Lights ................................................ 181
Maximum Load Limit ............................... 369
Meters, Gauges ......................................... 118
Mirrors ...................................................... 172
Adjusting ................................................ 172
Door ....................................................... 173
Exterior ................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 489
Motor ........................................................ 534
Coolant ................................................... 461
If the 12-Volt Battery Is Dead................... 508
MP3 ........................................................... 259
Multi-View Rear Camera .......................... 445
N
Numbers (Identification).......................... 534
O
Odometer................................................. 123
Open Source Licenses ............................... 300
21 CLARITY FCV CSS-31TRT6400_02.book 547 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
