2021 HONDA CLARITY FUEL CELL key

Continued353
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To make a call using the imported
phonebook
1. Go to the Phone Menu screen.
2Phone Menu screen P. 337
2.Select Phonebook.
3. Select a name.
u You can also search by letter. Select
Search .
u Use the keyboard on the touch screen for
entering a name, if multiple numbers
exist select a number.
4. Select a number.
u Dialing starts automatically.
■To make a call using a phone number
1. Go to the Phone Menu screen.
2Phone Menu screen P. 337
2.Select Dial.
3. Select a number.
u Use the keyboard on the touch screen for
entering numbers.
4. Select .
u Dialing starts automatically.
1To make a call using the imported phonebook
You can call a stored voice-tagged speed dial number
using voice commands.
2 Speed Dial P. 345
1To make a call using a phone number
You can call a stored voice-tagged speed dial number
using voice commands.
2 Speed Dial P. 345
21 CLARITY FCV CSS-31TRT6400_02.book 353 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

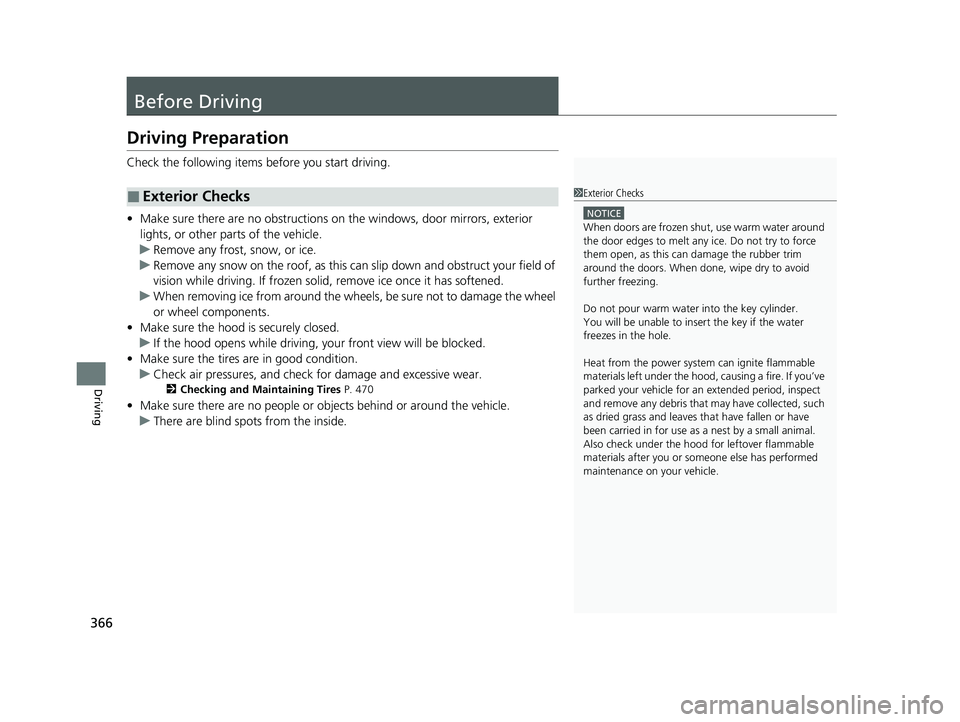

366
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 470
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the power syst em can ignite flammable
materials left under the hood, causing a fire. If you’ve
parked your vehicle for an extended period, inspect
and remove any debris that may have collected, such
as dried grass and leaves th at have fallen or have
been carried in for use as a nest by a small animal.
Also check under the hood fo r leftover flammable
materials after you or so meone else has performed
maintenance on your vehicle.
21 CLARITY FCV CSS-31TRT6400_02.book 366 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

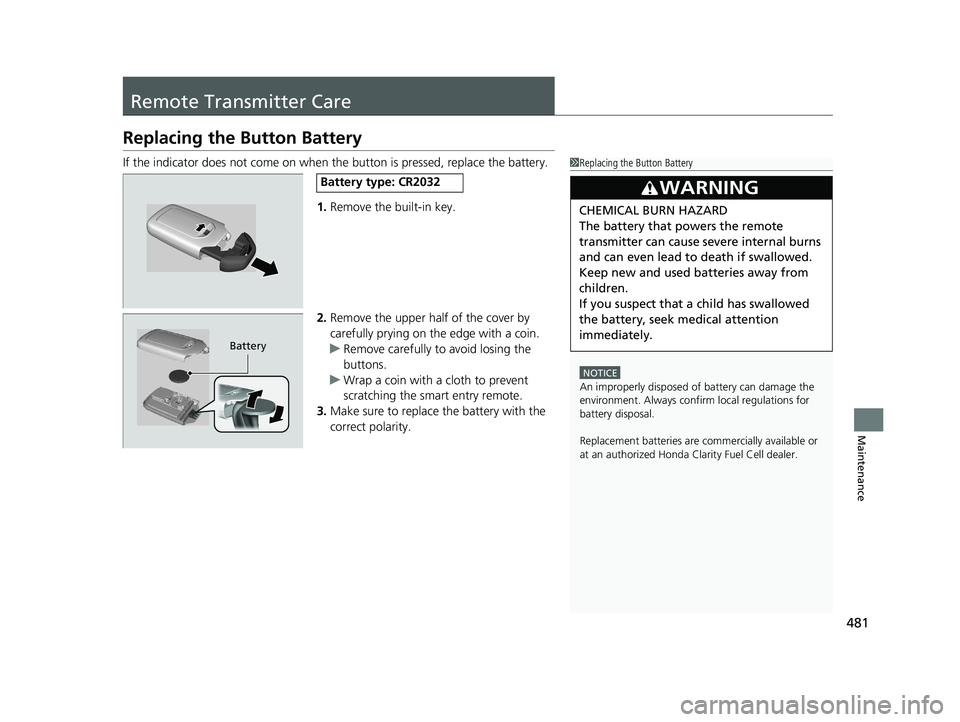

481
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at an authorized Honda Clarity Fuel Cell dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
21 CLARITY FCV CSS-31TRT6400_02.book 481 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

530
Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1If You Cannot Open the Trunk
Following up:
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Built-in Key
21 CLARITY FCV CSS-31TRT6400_02.book 530 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

545
Index
D
Daytime Running Lights.......................... 163
Dead Battery (12-Volt) ............................. 508
Defrosting the Windshield and Windows ................................................. 194
Devices that Emit Radio Waves ............... 535
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 172
Directional Signals (Turn Signal) ............. 159
Display Button .......................................... 207
Door Mirrors ............................................. 173
Doors ........................................................ 135
Auto Door Locking.................................. 147
Auto Door Unlocking .............................. 147
Door Open Message ................................. 47
Keys........................................................ 135
Locking/Unlocking the Doors from the Inside .............................................. 28, 144
Locking/Unlocking the Doors from the Outside ................................................. 137
Lockout Prevention System ..................... 143
DOT Tire Quality Grading ........................ 473
Driver Information Interface ................... 121
Driver’s Knee Airbag .................................. 63
Driving ...................................................... 365
Braking ................................................... 427
Shifting Gear .......................................... 377
Transmission ........................................... 376
Turning on the Power ............................. 372
Driving Position Memory System ............ 169Dust and Pollen Filter
............................... 482
E
Eco Assist® System ...................................... 24
Eco Drive Display ...................................... 127
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System Indicator ............................................ 95, 516
Electronic Stability Control (ESC) ............. 415
Emergency ................................................ 528
EPS (Electric Power Steering) System ........ 95
Exterior Care (Cleaning) ........................... 485
Exterior Mirrors ........................................ 173
F
FC System in Extreme Cold-weather
Conditions ............................................... 423
Features ..................................................... 199
Filters Dust and Pollen ....................................... 482
Flat Tire ..................................................... 492
Floor Mats ................................................. 484
Fluids Brake ....................................................... 463
Coolant ................................................... 461
Transmission ............................................ 463
Windshield Washer .................................. 464
FM/AM Radio ............................................ 238
Foot Brake ................................................. 430 Front Airbags (SRS)
..................................... 58
Front Seat Heaters .................................... 188
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ................................ 385
Fuel ...................................................... 35, 447
Economy ................................................. 450
Gauge ..................................................... 118
How to Handle Leaked Hydrogen Gas ..... 513
Hydrogen Leak Indicator............................ 92
Instant Fuel Economy .............................. 124
Low Fuel Indicator ..................................... 92
Range ..................................................... 118
Refueling................................................. 447
Requirement ................................... 447, 532
Fuel Cell Power Generation Monitor ...... 126
Fuel Cell Vehicle Precautions ..................... 14
Fuel Economy ........................................... 450
Fuel Fill Door .............................................. 35
Fuses .......................................................... 520
Inspecting and Changing......................... 527
Locations......................................... 520, 522
G
Gauges ...................................................... 118
Gear Position Indicator ...................... 93, 379
Gear Shift Positions Transmission ........................................... 377
Glass (care) ........................................ 483, 486
Glove Box .................................................. 182
21 CLARITY FCV CSS-31TRT6400_02.book 545 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

547
Index
Inverter Coolant....................................... 461
Adding to the Radiator ........................... 462
Adding to the Reserve Tank .................... 461
Overheating ............................................ 511
iPod ........................................................... 250
J
Jacking Points ........................................... 504
Jump Starting ........................................... 508
K
Key Number Tag ...................................... 136
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 135
Lockout Prevention ................................. 143
Number Tag............................................ 136
Rear Door Won’t Open ........................... 146
Remote Transmitter ................................ 141
Types and Functions................................ 135
L
Lane Keeping Assist System (LKAS) ........ 408
LaneWatchTM............................................ 425
Language (HFL) ........................................ 333
LATCH (Child Seats) ................................... 77
Lights ................................................ 160, 465
Automatic............................................... 161
Bulb Replacement ................................... 465
Daytime Running Lights .......................... 163 High Beam Indicator .................................. 98
Interior .................................................... 180
Light Switches ......................................... 160
Lights On Indicator .................................... 98
Turn Signals ............................................. 159
Load Limits ................................................ 369
Locking/Unlocking .................................... 135
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 135
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge (12-Volt) .................. 515
Low Smart Entry Remote Signal Strength .................................................. 136
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) ............. 369
M
Maintenance............................................. 451
12-Volt Battery ........................................ 479
Brake Fluid .............................................. 463
Cleaning .................................................. 483
Climate Control System ........................... 482
Coolant ................................................... 461
Maintenance Minder
TM............................ 455
Precautions .............................................. 452
Radiator .................................................. 462 Remote Transmitter ................................. 481
Replacing Light Bulbs .............................. 465
Safety...................................................... 453
Service Items ........................................... 457
Tires ........................................................ 470
Transmission Fluid ................................... 463
Under the Hood ...................................... 459
Map Lights ................................................ 181
Maximum Load Limit ............................... 369
Meters, Gauges ......................................... 118
Mirrors ...................................................... 172
Adjusting ................................................ 172
Door ....................................................... 173
Exterior ................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 489
Motor ........................................................ 534
Coolant ................................................... 461
If the 12-Volt Battery Is Dead................... 508
MP3 ........................................................... 259
Multi-View Rear Camera .......................... 445
N
Numbers (Identification).......................... 534
O
Odometer................................................. 123
Open Source Licenses ............................... 300
21 CLARITY FCV CSS-31TRT6400_02.book 547 ページ ２０２０年９月２５日　金曜日　午 後３時１５分
