2021 HONDA ACCORD SEDAN display

Continued145
uuGauges and Displays uDriver Information Interface
Instrument Panel

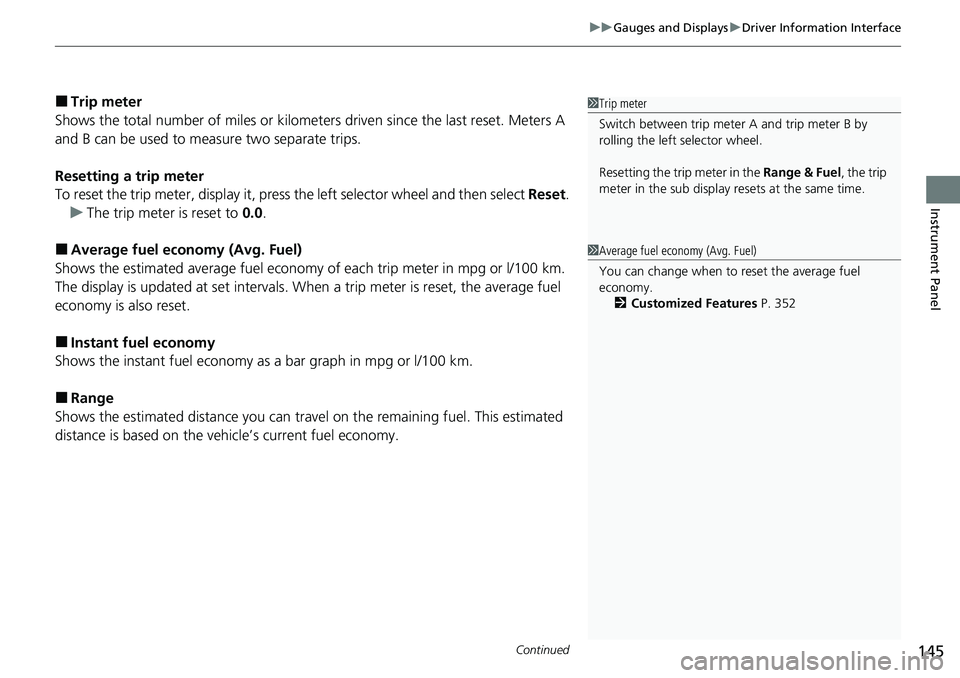

■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel and then select Reset.
u The trip meter is reset to 0.0 .
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Trip meter
Switch between trip meter A and trip meter B by
rolling the left selector wheel.
Resetting the trip meter in the Range & Fuel, the trip
meter in the sub display resets at the same time.
1 Average fuel economy (Avg. Fuel)
You can change when to reset the average fuel
economy.
2 Customized Features P. 352

146
uuGauges and Displays uDriver Information Interface
Instrument Panel
Roll the left selector wheel to switch between trip computer A and trip computer B.

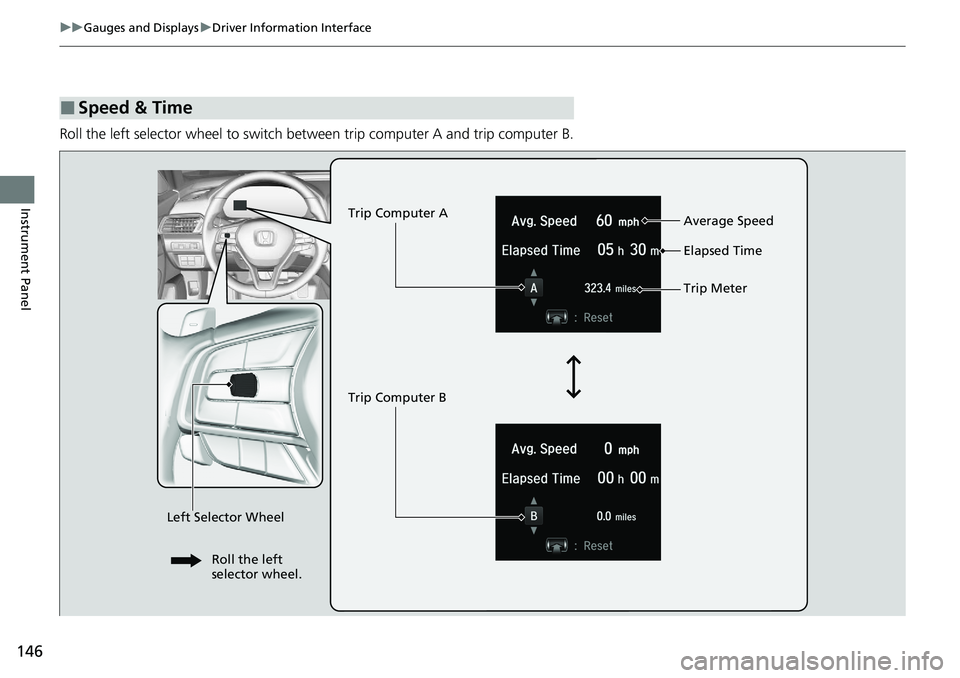

■Speed & Time
Trip Computer A
Trip Computer B Trip Meter Average Speed
Elapsed Time
Left Selector Wheel
Roll the left
selector wheel.

Continued147
uuGauges and Displays uDriver Information Interface
Instrument Panel

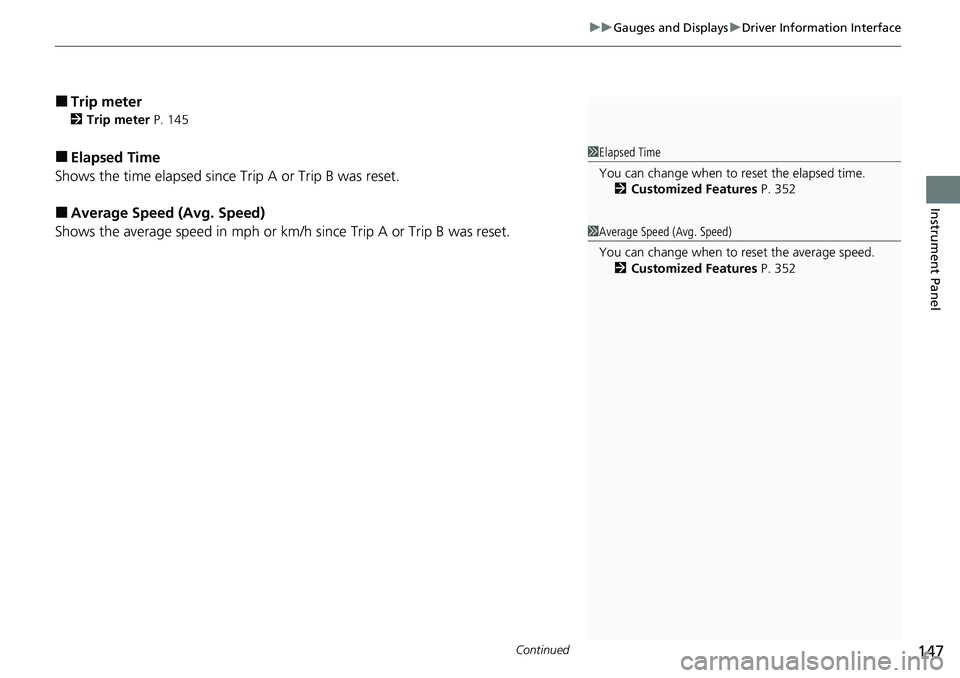

■Trip meter
2 Trip meter P. 145
■Elapsed Time
Shows the time elapsed since Trip A or Trip B was reset.
■Average Speed (Avg. Speed)
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 352
1Average Speed (Avg. Speed)
You can change when to reset the average speed.
2 Customized Features P. 352

uuGauges and Displays uDriver Information Interface
148
Instrument Panel
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the
navigation system
*, Android Auto or Apple
CarPlay, turn-by-turn directions to your
destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 321
2 Apple CarPlay P. 314
■Navigation1Navigation
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 352
When the compass or turn-by-turn directions are
displayed, you can contro l some navigation system
functions on the driver information interface by
scrolling the left selector wheel.
2 Refer to the Navigation System Manual
Models with navigation system
Compass
Turn-By-Turn Driving Directions
* Not available on all models

Continued149
uuGauges and Displays uDriver Information Interface
Instrument Panel
2 Driver Information Interface Warning and
Information Messages P. 109
Shows the remaining oil life and Maintenance
MinderTM.
2Maintenance MinderTM P. 543

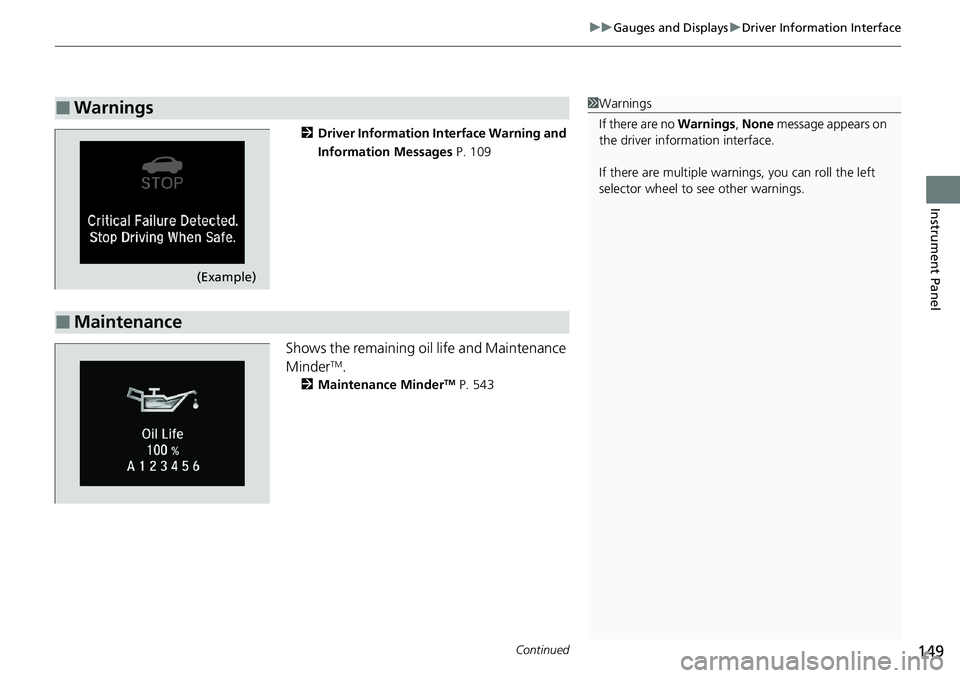

■Warnings1Warnings
If there are no Warnings, None message appears on
the driver information interface.
If there are multiple warnings, you can roll the left
selector wheel to see other warnings.
(Example)
■Maintenance

150
uuGauges and Displays uDriver Information Interface
Instrument Panel

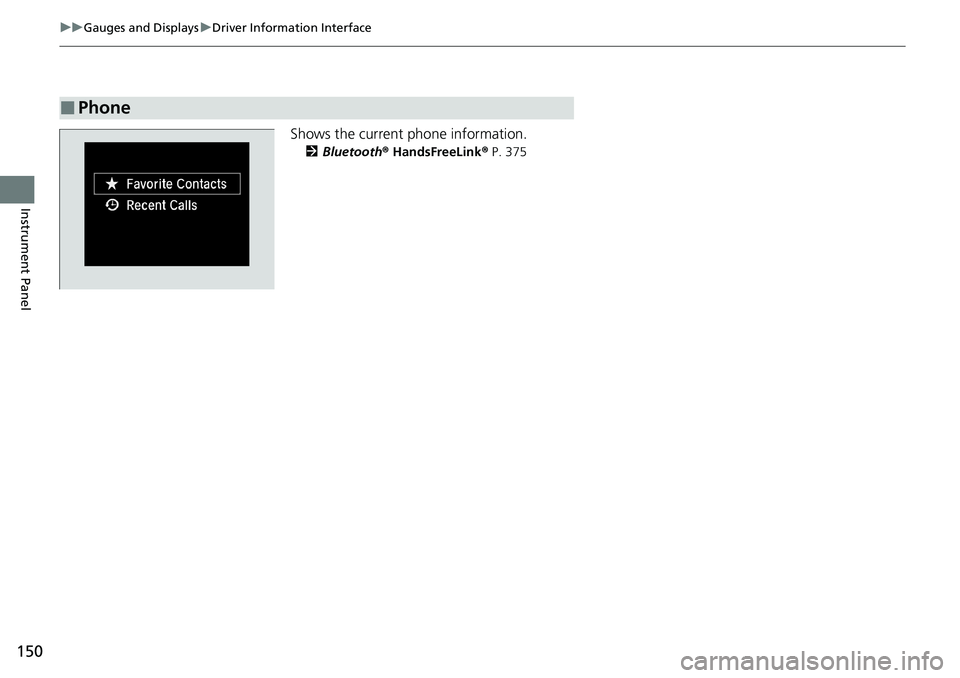

Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 375
■Phone

Continued151
uuGauges and Displays uDriver Information Interface
Instrument Panel

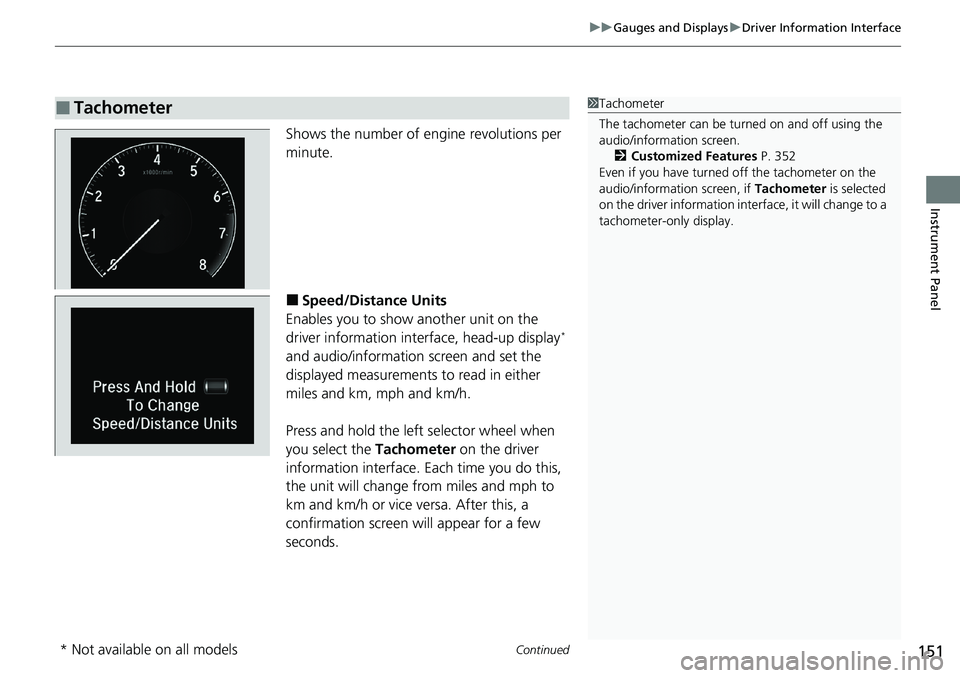

Shows the number of engine revolutions per
minute.
■Speed/Distance Units
Enables you to show another unit on the
driver information interface, head-up display
*
and audio/information screen and set the
displayed measurements to read in either
miles and km, mph and km/h.
Press and hold the left selector wheel when
you select the Tachometer on the driver
information interface. Each time you do this,
the unit will change from miles and mph to
km and km/h or vice versa. After this, a
confirmation screen will appear for a few
seconds.
■Tachometer1 Tachometer
The tachometer can be tu rned on and off using the
audio/information screen.
2 Customized Features P. 352
Even if you have turned off the tachometer on the
audio/information screen, if Tachometer is selected
on the driver information interface, it will change to a
tachometer-only display.
* Not available on all models

152
uuGauges and Displays uDriver Information Interface
Instrument Panel

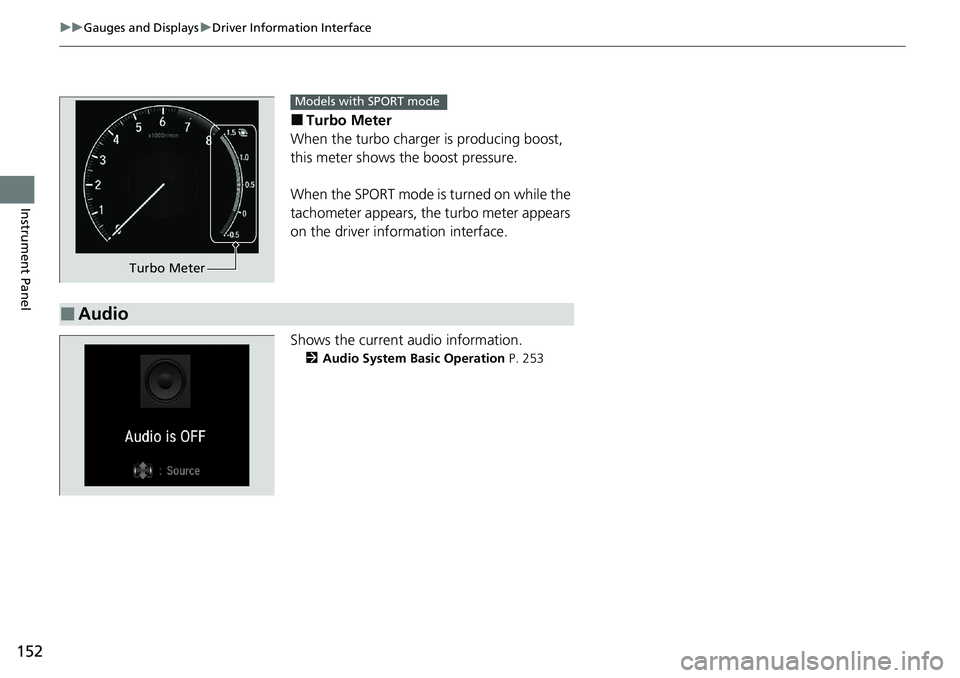

■Turbo Meter
When the turbo charger is producing boost,
this meter shows th e boost pressure.
When the SPORT mode is turned on while the
tachometer appears, the turbo meter appears
on the driver information interface.
Shows the current audio information.
2 Audio System Basic Operation P. 253
Turbo Meter
Models with SPORT mode
■Audio
