PRECAUTIONS fOR SAfETy / T AbLE Of CONTENTS
SAfETy NOTES
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER (OR
BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with the arrowhead
symbol within an equilateral triangle is
intended to alert the user about the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Always operate the vehicle in a safe
manner. Do not become distracted by
the vehicle while driving and always be fully
aware of all driving conditions. Do not change
settings or any functions. Pull over in a safe and
legal manner before attempting such operations.
To promote safety, certain functions are disabled
unless the parking brake is on.
To reduce the risk of electric shock, do
not remove the cover or back of this
product. There are no user-serviceable parts
inside. Refer servicing to qualified service
personnel.
To reduce the risk of fire or electric
shock, do not expose this product to
dripping or splashing water, rain, or moisture.
When driving your vehicle, be sure to
keep the volume of the unit low enough
to allow you to hear sounds coming from the
outside.
Do not drop it and avoid heavy impacts
at anytime.
The driver should not watch the monitor
while driving. If the driver watches the
monitor while driving, it may lead to
carelessness and cause an accident.
f CC NOTICE (f OR USA)
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on a
circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation. Any changes
PRECAUTIONS f OR SAfETy / T AbLE Of CONTENTS
1 JX1_AVNT_USA_QRG_ENG_MFL71279723.indd 42020-10-27 11:33:26
ENG
12

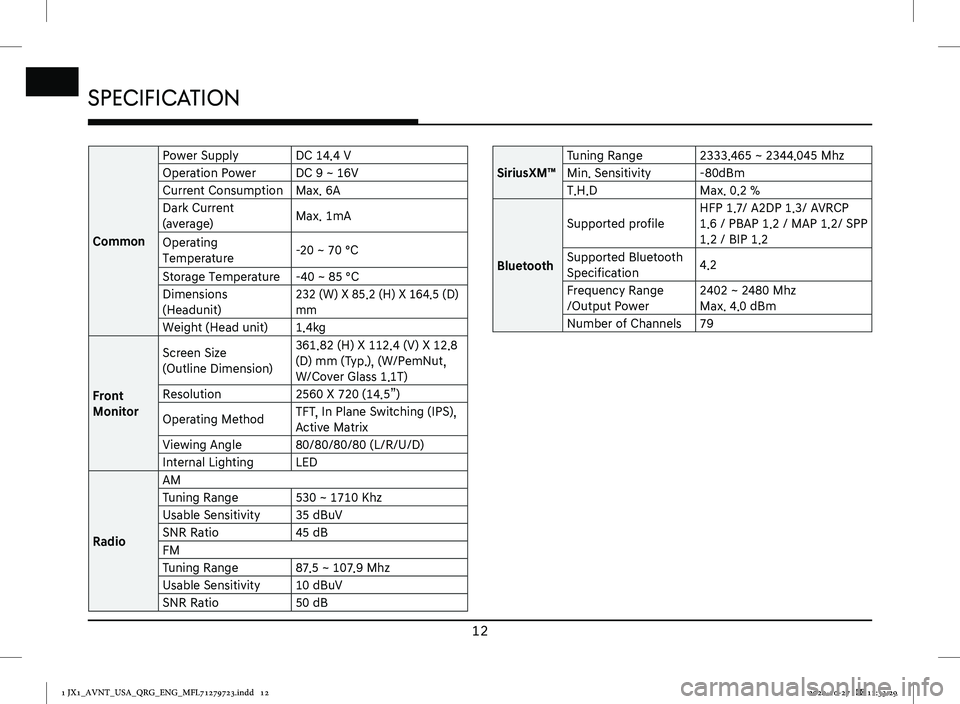

Specification
Specification
Common
Power SupplyDC 14.4 V
Operation PowerDC 9 ~ 16V
Current ConsumptionMax. 6A
Dark Current
(average) Max. 1mA
Operating
Temperature-20 ~ 70 °C
Storage Temperature-40 ~ 85 °C
Dimensions
(Headunit)
232 (W) X 85.2 (H) X 164.5 (D)
mm
Weight (Head unit)1.4kg
Front
Monitor
Screen Size
(Outline Dimension)
361.82 (H) X 112.4 (V) X 12.8
(D) mm (Typ.), (W/PemNut,
W/Cover Glass 1.1T)
Resolution2560 X 720 (14.5”)
Operating MethodTFT, In Plane Switching (IPS),
Active Matrix
Viewing Angle80/80/80/80 (L/R/U/D)
Internal LightingLED
Radio
AM
Tuning Range530 ~ 1710 Khz
Usable Sensitivity35 dBuV
SNR Ratio45 dB
FM
Tuning Range87.5 ~ 107.9 Mhz
Usable Sensitivity10 dBuV
SNR Ratio50 dB
SiriusXM™
Tuning Range2333.465 ~ 2344.045 Mhz
Min. Sensitivity-80dBm
T.H.DMax. 0.2 %
Bluetooth
Supported profile
HFP 1.7/ A2DP 1.3/ AVRCP
1.6 / PBAP 1.2 / MAP 1.2/ SPP
1.2 / BIP 1.2
Supported Bluetooth
Specification4.2
Frequency Range
/Output Power
2402 ~ 2480 Mhz
Max. 4.0 dBm
Number of Channels79
1 JX1_AVNT_USA_QRG_ENG_MFL71279723.indd 122020-10-27 11:33:29
