When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 mi
(800 km) of the message appearing. Make
sure you reset the Intelligent Oil-Life
Monitor after each oil change. See
Oil
Change Indicator Reset (page 223).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals,
Your vehicle is very sophisticated and built
with multiple, complex performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.
We have recommended maintenance
intervals for various parts and component
systems based upon engineering testing.
We rely upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
our genuine manufactured or our
authorized re-manufactured replacement
parts engineered for your vehicle. Additives and Chemicals
This owner's manual and our Workshop
Manual list the recommended additives
and chemicals for your vehicle. We do not
recommend using chemicals or additives
not approved by us as part of your vehicle
’s
normal maintenance. Please consult your
warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using our approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals.
327
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance

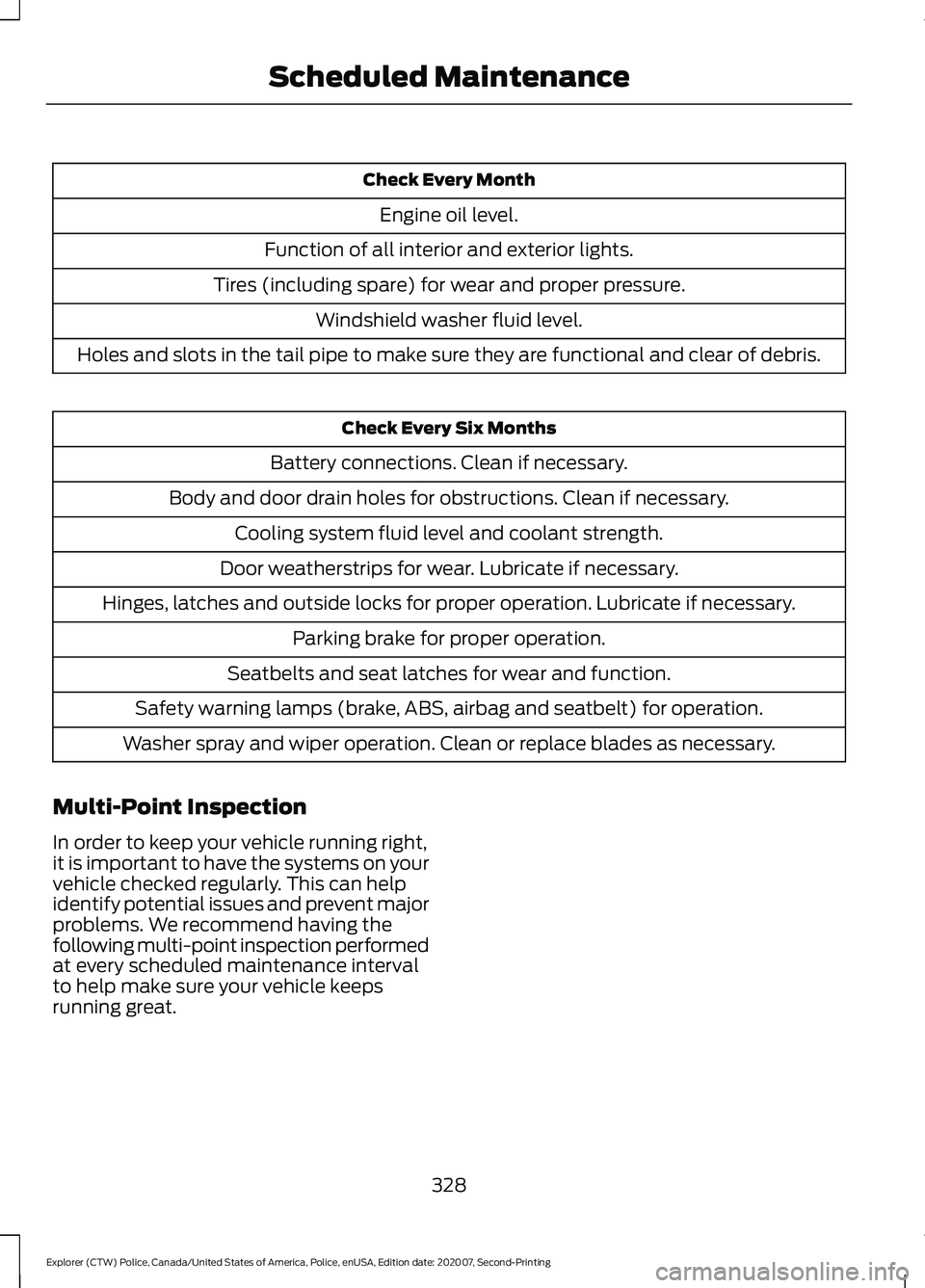

Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure. Windshield washer fluid level.
Holes and slots in the tail pipe to make sure they are functional and clear of debris. Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Seatbelts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and seatbelt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.
328
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance
Multi-Point Inspection
Hazard warning system operation
Accessory drive belt(s)
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and properpressure2
Fluid levels 1
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer
2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you
use your vehicle. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time. This means you do not have to remember
to change the oil on a mileage-based
schedule. Your vehicle lets you know when
an oil change is due by displaying a
message in the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of
use.
329
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance
At Every Oil Change Interval as Indicated by the Information Display
1
Inspect the steering linkage, ball joints, suspension and the tire-rod ends.
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or
drag.
1 Do not exceed one year or 12,500 mi (20,000 km) between service intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. See Engine Oil
Check
(page 222). Brake Fluid Maintenance
1
Change the brake fluid. 2
Every 3 Years
1 Perform this maintenance item every 3 years. Do not exceed the designated time for
the interval.
2 Brake fluid servicing requires special equipment available at your authorized dealer. Other Maintenance Items
1
Replace the cabin air filter.
Every
20,000 mi
(32,186 km)
Replace the engine air filter.
Every
30,000 mi
(48,280 km)
Change the engine coolant and motor electronics coolant. 2
At
200,000 mi
(322,000 km)
Replace the spark plugs.
Every
100,000 mi
(160,000 km)
Inspect the accessory drive belt or belts. 3
Every
100,000 mi
(160,000 km)
331
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance
Driver Training/EVOC
Replace engine oil and filter as indicated by the information
display and perform services listed in the Extreme Usage
Scheduled Maintenance chart.
As required
Inspect brake pads, rotors, calipers hoses, and service as
required.
Inspect engine oil level.
Inspect vehicle every day
prior to starting training
Set tire pressure. Refer to driver door placard for cold tire
pressure information.
Inspect tire quality for wear.
Set wheel lug nut torque. The cold wheel lug nut torque
is 150 lb.ft (204 Nm). If wheels are torqued while they are
hot (after 15 minutes of EVOC driving), torque may be
checked to hot wheel lug nut torque of
70 lb.ft (95 Nm).
Proper functioning of safety devices (seat belts, no air bag
lights, etc.)
Front differential/axle fluid.
25 hours of training use
Rear differential/axle fluid.
100 hours of training use
Change transmission and transfer case fluids.
Annually
Note: Follow base owner guide direction
for 1,000-mile vehicle break-in prior to using
vehicle for training purposes.
Note: Incorporate vehicle cool-down after
hard driving.
Note: Perform Training / EVOC service
according to the Extreme Usage Scheduled
Maintenance chart.
Note: Use Police Interceptor part numbers
for replacement parts. Engine Idle Hour Meter
Your vehicle may have an idle meter to
indicate how much time the vehicle has
been sitting in park (P) or neutral (N). The
meter is incorporated with the vehicle
odometer. Depressing the odometer-reset
button once displays the trip odometer
(miles [kilometers] following by a "T" for
trip odometer); depressing the
odometer-reset button a second time
displays the idle meter (hours following by
an "H" for hours). The idle meter only
accumulates time while the vehicle is in
park (P) or neutral (N). Displayed time is
cumulative for the vehicle and cannot be
reset to zero. Police vehicles often
334
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance
experience long periods of idling, during
which engine oil continues to break down
but distance is not accumulated on the
odometer. Engine Idle Hours have been
incorporated into the Intelligent Oil-Life
Monitor.
Exceptions
There are several exceptions to the Normal
Schedule:
Axle and Transfer Case maintenance:
The Transfer case, front and rear axles in
your vehicle do not require an any normal
scheduled maintenance. Vehicles are
electrically monitored and notify the driver
required service by displaying a message
in the information display. The transfer
case, front and rear axles are more likely
to require a fluid change if the vehicle has
experienced extended periods of
extreme/severe duty cycle driving.
Changing or checking the transfer case,
front and/or rear axle lubricant is not
necessary unless the unit has been
submerged in water, shows signs of
leakage, a message indicating required
service displays, or the vehicle has been
used under special operating conditions
such as Driver Training/EVOC. Contact
your authorized dealer for service.
California fuel filter replacement: If you
register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. We however, urge you to have
all recommended maintenance services
performed at the specified intervals and
to record all vehicle service. Hot climate oil change intervals
:
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5,000 mi (8,000 km)
.
If the available API SM or SN oils are not
available, then the oil change interval is
3,000 mi (4,800 km)
.
Engine air filter and cabin air filter
replacement
: The life of the engine air
filter and cabin air filter is dependent on
exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter and
cabin air filter.
335
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance
A
A/C
See: Climate Control.......................................... 101
About This Manual...........................................7
ABS See: Brakes............................................................. 151
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 152
Accessories See: Replacement Parts
Recommendation............................................ 10
Adjusting the Headlamps.........................233 Vertical Aim Adjustment................................. 233
Adjusting the Steering Wheel...................65
Airbag Disposal
...............................................53
Air Conditioning See: Climate Control.......................................... 101
Air Filter See: Changing the Engine Air Filter -
3.0L..................................................................... 224
See: Changing the Engine Air Filter - 3.3L..................................................................... 225
Alarm See: Anti-Theft Alarm........................................ 63
All-Wheel Drive
.............................................144
Anti-Theft Alarm............................................63
Alarm System........................................................ 63
Arming the Alarm................................................. 63
Disarming the Alarm........................................... 63
Object Detection.................................................. 64
Police Perimeter Alert Settings...................... 64
Police Perimeter Alert System........................ 63
Switching the Police Perimeter Alert On and Off................................................................ 63
System Configuration........................................ 64
System Error.......................................................... 64
Triggering the Alarm............................................ 63
Appendices....................................................369
At a Glance........................................................18
Audible Warnings and Indicators.............82 Automatic Transmission Warning
Chime.................................................................. 83
Headlamps On Warning Chime...................... 82
Key in Ignition Warning Chime........................ 82
Parking Brake On Warning Chime.................. 82Audio Control..................................................65
Auxiliary Steering Wheel Controls.................66
You can operate the following functions
with the control:.............................................. 65
Audio System
................................................303
General Information......................................... 303
Audio Unit
......................................................303
Accessing the Sound Settings...................... 303
Accessing the System Settings................... 304
Adjusting the Volume...................................... 304
Changing Radio Stations............................... 304
Pausing or Playing Media............................... 304
Returning to the Previous Screen...............304
Scrolling Through the Menu Options........305
Selecting a Menu Option................................ 305
Selecting Media................................................. 304
Selecting the Radio.......................................... 305
Switching the Audio Unit On and Off........305
Switching the Display On and Off..............305
Using a Cell Phone............................................ 305
Using Seek, Fast Forward and Reverse............................................................. 305
Autolamps........................................................70 Windshield Wiper Activated
Headlamps........................................................ 70
Automatic Climate Control.......................101 Directing the Airflow........................................... 101
Setting the Blower Motor Speed................... 101
Setting the Temperature.................................. 101
Switching Auto Mode On and Off.................101
Switching Maximum Air Conditioning On and Off.............................................................. 103
Switching Maximum Defrost On and Off....................................................................... 103
Switching Recirculated Air On and Off....................................................................... 103
Switching the Air Conditioning On and Off....................................................................... 102
Switching the Climate Control On and Off....................................................................... 102
Automatic Transmission
............................142
If Your Vehicle Gets Stuck in Mud or
Snow................................................................... 142
Understanding the Positions of Your Automatic Transmission............................. 142
Automatic Transmission Fluid Check............................................................230
399
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Index
Auxiliary Power Points.................................116
110 Volt AC Power Point.................................... 116
12 Volt DC Power Point...................................... 116
USB Port and Power Point Locations..........116
AWD See: All-Wheel Drive......................................... 144
B
Battery See: Changing the 12V Battery....................... 231
Blind Spot Information System...............167 Blind Spot Information System with Trailer
Tow..................................................................... 168
Switching the System On and Off................170
System Errors....................................................... 170
Using the Blind Spot Information System............................................................... 167
BLIS See: Blind Spot Information System...........167
Bonnet Lock See: Opening and Closing the Hood...........218
Booster Seats..................................................28 Types of Booster Seats...................................... 29
Brake Fluid Check
........................................230
Brake Fluid Service Interval............................. 231
Brakes................................................................151 General Information........................................... 151
Breaking-In......................................................192
Bulb Specification Chart...........................301
C
Canceling the Set Speed...........................166
Capacities and Specifications - 3.0L.................................................................279
Air Conditioning System.................................. 279
Alternative Engine Oil for Extremely Cold Climates........................................................... 282
Automatic Transmission................................ 280
Engine Coolant.................................................... 281
Engine Oil.............................................................. 282
Front Axle............................................................. 285
Fuel Tank............................................................... 283
Grease.................................................................... 283
Hydraulic Brake System.................................. 284
Locks...................................................................... 284
Rear Axle............................................................... 285Transfer Case......................................................
284
Washer Reservoir............................................... 286
Capacities and Specifications - 3.3L, Hybrid Electric Vehicle (HEV)..............294
Air Conditioning System................................. 294
Alternative Engine Oil for Extremely Cold Climates............................................................ 297
Automatic Transmission................................. 295
Engine Coolant................................................... 296
Engine Oil............................................................. 296
Front Axle............................................................. 299
Fuel Tank.............................................................. 298
Grease.................................................................... 298
Hydraulic Brake System.................................. 298
Locks...................................................................... 298
Rear Axle.............................................................. 300
Transfer Case...................................................... 299
Washer Reservoir.............................................. 300
Capacities and Specifications - 3.3L................................................................286
Air Conditioning System.................................. 287
Alternative Engine Oil for Extremely Cold Climates........................................................... 289
Automatic Transmission................................. 287
Engine Coolant................................................... 288
Engine Oil............................................................. 289
Front Axle.............................................................. 292
Fuel Tank.............................................................. 290
Grease................................................................... 290
Hydraulic Brake System................................... 291
Locks....................................................................... 291
Rear Axle............................................................... 293
Transfer Case...................................................... 292
Washer Reservoir............................................... 293
Capacities and Specifications................275
Car Wash See: Cleaning the Exterior.............................. 239
Catalytic Converter
......................................138
On-Board Diagnostics (OBD-II)................... 139
Readiness for Inspection and Maintenance (I/M) Testing................................................... 139
Changing a Bulb
...........................................236
LED Lamps............................................................ 237
License Plate Lamp........................................... 237
Rear Direction Indicator and Reversing Lamp................................................................. 236
Changing a Fuse
...........................................216
Fuses....................................................................... 216
400
Explorer (CTW) Police, Canada/United States of America, Police, enUSA, Edition date: 202007, Second-Printing Index
