2021 FORD F-150 fuses

Protected Component
Fuse Rating
Fuse
Loca- tion
Not used.
—
1
Delayed accessory feed.
10 A
2
Wireless charger.
7.5 A
3
Not used.
20 A
4
Not used.
—
5
Driver power window switch.
10 A
6
Gear shift module.
10 A
7
Cell phone passport module.
5 A
8
Combined sensor module.
5 A
9
Not used.
—
10
Not used.
—
11
Enhanced central gateway.
7.5 A
12
Climate control.
Instrument cluster.
7.5 A
13
Steering column control module.
Not used (spare).
15 A
14
Integrated control panel.
15 A
15
SYNC.
Not used.
—
16
Headlamp control module.
7.5 A
17
Not used.
7.5 A
18
Headlamp switch.
5 A
19
Passive start.
5 A
20
Ignition switch.
Key inhibit solenoid.
Trailer brake switch.
5 A
21
Not used.
5 A
22
500
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse
Loca- tion
Driver door control module.
30 A
23
Moonroof.
30 A
24
Not used.
20 A
25
Passenger door control module.
30 A
26
Not used.
30 A
27
Amplifier.
30 A
28
12 inch display.
15 A
29
Adjustable pedals.
Not used.
5 A
30
RF receiver.
10 A
31
Driver monitor.
Terrain management switch.
Audio control module.
20 A
32
Not used.
—
33
Run/start relay.
30 A
34
400 watt inverter run/start.
5 A
35
Auto-dimming interior mirror.
15 A
36
Rear heat seat run/start.
Adaptive front steering run/start.
Heated wheel (vehicles without adaptive front steering).
Advanced driver-assistance systems.
20 A
37
Rear power windows.
30 A circuit
breaker.
38
501
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Fuses

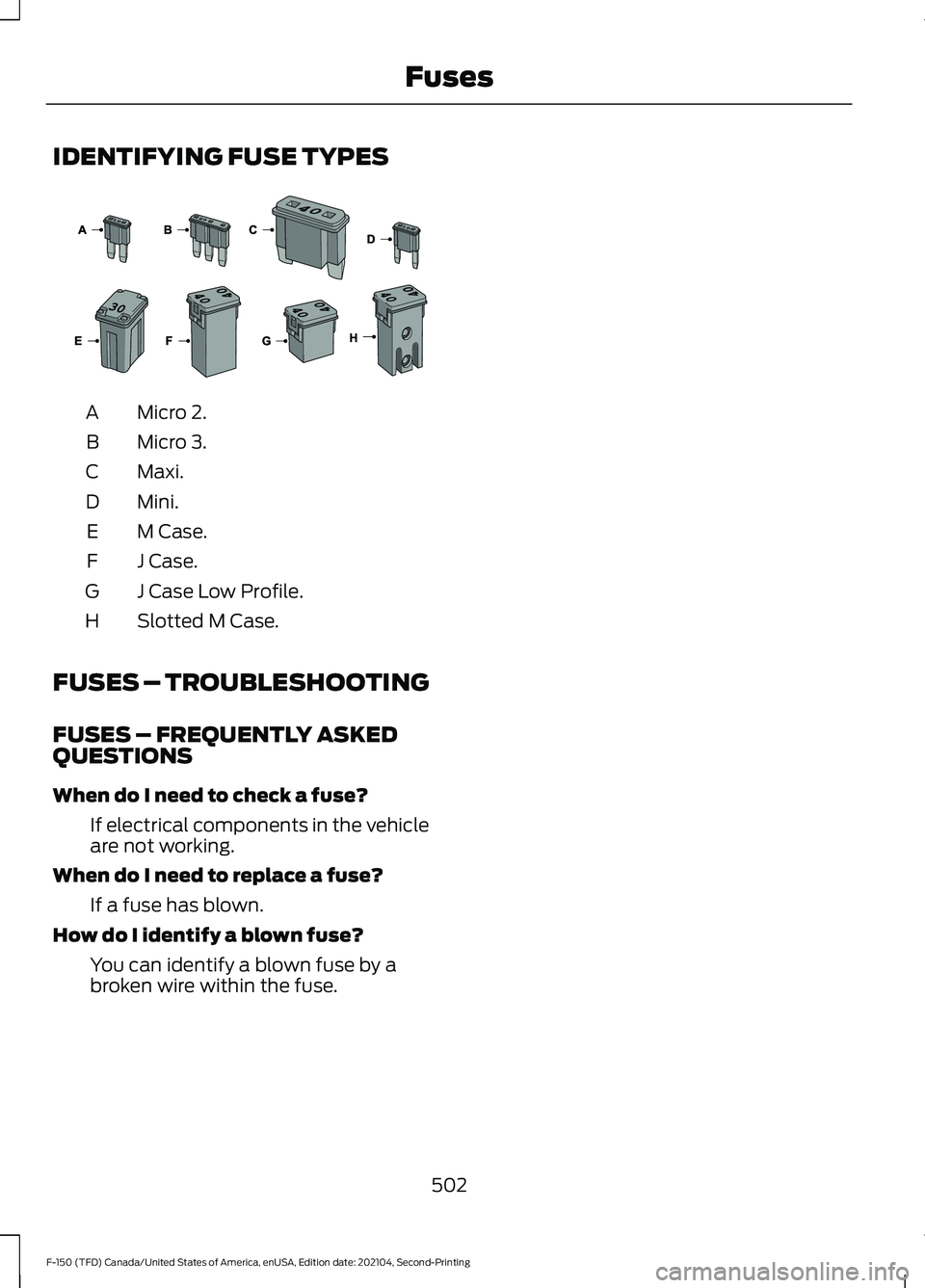

IDENTIFYING FUSE TYPES
Micro 2.
A
Micro 3.
B
Maxi.
C
Mini.
D
M Case.
E
J Case.
F
J Case Low Profile.
G
Slotted M Case.
H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKED
QUESTIONS
When do I need to check a fuse? If electrical components in the vehicle
are not working.
When do I need to replace a fuse? If a fuse has blown.
How do I identify a blown fuse? You can identify a blown fuse by a
broken wire within the fuse.
502
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Fuses E267379

3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it fully latches.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Engine compartment fuse box. See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 510).
C.
504
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE338089 E337516

Engine coolant reservoir. See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.
UNDER HOOD OVERVIEW - 3.3L Engine compartment fuse box.
See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 510).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 510).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 309).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 516).
F.
Engine coolant reservoir.
See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.
506
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE337514

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™
Engine compartment fuse box. See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 510).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 510).
D.
Brake fluid reservoir.
See Brakes (page 308).
E.
Air filter.
See Changing the Engine Air Filter (page 517).
F.
Engine coolant reservoir.
See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.
507
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE313722

UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Engine compartment fuse box. See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 510).
C.
Engine oil filler cap.
See Adding Engine Oil (page 510).
D.
Brake fluid reservoir. See
Checking the Brake Fluid (page 309).
E.
Air filter.
See Changing the Engine Air Filter (page 517).
F.
Secondary coolant reservoir. See
Checking the Coolant (page 511).
G.
Engine coolant reservoir. See
Checking the Coolant (page 511).
H.
Windshield washer fluid reservoir.
I.
508
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE333718

The interior set is taped on a wire harness
by the passenger side footwell. This set is
the other end of the circuits taped behind
the battery tray, with a white spot tape
mark.
Remove the fuse panel access door in the
kick panel to access the wires. If you do not
see them, you may need to pull them
down.
See Fuses (page 493). See your authorized
dealer for service.
Circuits from the under hood fuse box (A)
are powered. All other circuits (B-E) are
not connected at either end.
Additional information on fuse and relay
locations is available. See Fuses (page
493). See your authorized dealer for service.
IDENTIFYING THE AUXILIARY SWITCH WIRING
The relays are coded as follows: Fuse
Wire Size
Passenger
Footwell
Wire Color
Under-
hoodPass
Through
Wire Color
Power
Distribu- tion Box
10A
1.0 mm²
AUX 1
Violet/Green
AUX 1
Violet/Green
AUX 1
15A
1.0 mm²
AUX 2
Green/Brown
AUX 2
Green/
Brown
AUX 2
15A
1.0 mm²
AUX 3
Green/Blue
AUX 3
Green/Blue
AUX 3
10A
1.0 mm²
AUX 4
Brown
AUX 4
Brown
AUX 4
5A
1.0 mm²
AUX 5
Blue/Orange
AUX 5
Blue/Orange
AUX 5
5A
1.0 mm²
AUX 6
Yellow/
Orange
AUX 6
Yellow/
Orange
AUX 6
660
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Auxiliary Switches - Raptor/Tremor
