2021 CITROEN BERLINGO VAN technical data

231
Technical data

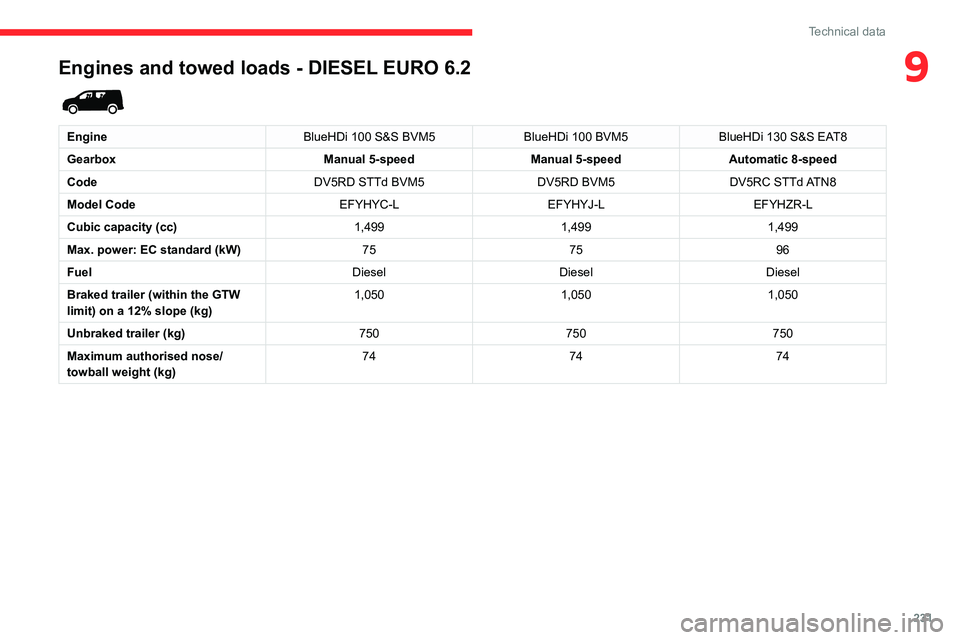

9Engines and towed loads - DIESEL EURO 6.2

EngineBlueHDi 100 S&S BVM5BlueHDi 100 BVM5BlueHDi 130 S&S EAT8
Gearbox Manual 5-speedManual 5-speedAutomatic 8-speed
Code DV5RD STTd BVM5DV5RD BVM5DV5RC STTd ATN8
Model Code EFYHYC-LEFYHYJ-LEFYHZR-L
Cubic capacity (cc) 1,4991,4991,499
Max. power: EC standard (kW) 757596
Fuel DieselDieselDiesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 1,050
1,0501,050
Unbraked trailer (kg) 750750750
Maximum authorised nose/
towball weight (kg) 74
7474

232
Technical data


EngineBlueHDi 100 S&S BVM5BlueHDi 130 S&S EAT8
Gearbox Manual 5-speedAutomatic 8-speed
Code DV5RD BE STTD - TBCDV5RC STTd ATN8
Length M (L1)XL (L2) M (L1)XL (L2)
Model Code 5 seats


ECYHYC-A ECYHYC-C ECYHZR-A ECYHZR-C
7 seats


ECYHYC-B ECYHYC-D ECYHZR-B ECYHZR-D
Cubic capacity (cc) 1,4991,499
Max. power: EC standard (kW) 7596
Fuel DieselDiesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 5 seats
1,3001,2501,300 1,225/1,250
7 seats 1,150 1,050/1,100 1,100/1,150 1,050/1,100
Unbraked trailer (kg) 5 seats 740/750750750750
7 seats 750750750750
Maximum authorised nose/
towball weight (kg) 5 seats
74745274
7 seats 60 (Citroën) 50/60 (Citroën) 50 50

233
Technical data
9Engines and towed loads - DIESEL EURO 6.3

EngineBlueHDi 100 S&S
BVM6 BlueHDi 100 BVM6 BlueHDi 130 S&S
BVM6BlueHDi 130 BVM6 BlueHDi 130 S&S
EAT8
Gearbox Manual 6-speed Manual 6-speed Manual 6-speed Manual 6-speed Automatic 8-speed
Code DV5RCf MB6 STTD DV5RCf MB6 DV5RC ML6C STTD DV5RC ML6C DV5RC ATN8 STTD
Model Code EFYHT2-LEFYHT2-LEFYHZ2-LEFYHZ2-LEFYHZ3-L
Cubic capacity (cc) 1,4991,4991,4991,4991,499
Max. power: EC standard (kW) 75
75969696
Fuel DieselDieselDieselDieselDiesel
Braked trailer (within
the GTW limit) on a 12% slope (kg) 1,250
1,2501,2501,250
Unbraked trailer (kg) 750750750750
Maximum authorised
nose/towball weight (kg) 74
747474

234
Technical data


EngineBlueHDi 100 S&S BVM6 BlueHDi 130 S&S BVM6 BlueHDi 130 S&S EAT8
Gearbox Manual 6-speedManual 6-speedAutomatic 8-speed
Code DV5RCf MB6 STTD DV5RC ML6C STTDDV5RC ATN8 STTD
Length M (L1) XL (L2) M (L1) XL (L2) M (L1) XL (L2)
Model Code 5 seats


ECYHT2-A ECYHT2-C ECYHZ2-A ECYHZ2-C ECYHZ3-A ECYHZ3-C
7 seats


ECYHT2-B ECYHT2-D ECYHZ2-B ECYHZ2-D ECYHZ3-B ECYHZ3-D
Cubic capacity (cc) 1,4991,4991,499
Max. power: EC standard (kW) 749696
Fuel DieselDieselDiesel
Braked trailer (within
the GTW limit) on a 12%
slope (kg) 5 seats
1,300 1,250 1,500 1,450
7 seats 1,150 1,050/1,100 1,350 1,250
Unbraked trailer (kg) 5 seats 740/750 750750750
7 seats 750750750750
Maximum authorised
nose/towball weight (kg) 5 seats
74747474
7 seats 60 (Citroën) 50/60
(Citroën)55/60
50

235
Technical data
9Motor and towed loads - Electric
Electric motor
Electric motor
TechnologySynchronous with permanent magnets
Max. power : EC standard (kW)/(hp) 100
Traction battery
Technology Lithium-Ion
Battery pack 18 modules
Installed capacity (kWh) 50
Domestic charging Mode 2
Alternating current (AC) voltage
Rating (A) 230
8 or 16
Accelerated charging Mode 3
Alternating current (AC) voltage
Rating (A) 230 (single-phase or three-phase)
16 or 32
Superfast charging Mode 4
Direct current (DC) voltage 400
Towed loads
Model codes:ZKX
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 750
Unbraked trailer (kg) 750
Maximum authorised nose weight (kg) 50

236
Technical data
Identification markings
Various visible markings for vehicle identification
and vehicle search.


A. Vehicle Identification Number (VIN), under
the bonnet.
Stamped on the chassis, near the right-hand
front wheel arch.
B. Vehicle Identification Number (VIN), on the
dashboard.
Printed on an adhesive label visible through the
windscreen.
C. Manufacturer's label.
Affixed to the centre pillar, left-hand side or right-
hand side.
Bears the following information:
–
Manufacturer
’s name.
–

European whole vehicle type approval
number

.
– Vehicle Identification number (VIN).
– Gross vehicle weight (GVW).
–

Gross train weight (GTW).
–


Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres/paint code label.


Affixed to the driver's door.
Bears the following information about the tyres:
–
T
yre pressures, unladen and laden.
–

T
yre specification, made up of the dimensions
and type as well as the load and speed indices.
–

Spare tyre inflation pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).
In the event of a change in the type of tyres,
contact a CITROËN dealer for the tyre fits
approved for the vehicle.

285
Event data recorders
13Event data recorders
Electronic control units are installed in your
vehicle. Control units process data which is
received by vehicle sensors, for example, or
which they generate themselves or exchange
amongst themselves. Some control units are
necessary for the safe functioning of your
vehicle, others assist you while you drive (driver
assistance systems), while others provide
comfort or infotainment functions.
The following contains general information about
data processing in the vehicle. You will find
additional information as to which specific data is
uploaded, stored and passed on to third parties
and for what purpose in your vehicle under
the key word Data Protection closely linked
to the references for the affected functional
characteristics in the relevant owner's manual
or in the general terms of sale. These are also
available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display).
–

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–

Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's
identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g.
roadside assistance agents) may read the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.
Comfort and infotainment
functions
Comfort settings and personalised settings
may
be saved in the vehicle and modified or
reinitialised at any time.
Depending on the vehicle's equipment level,
this
may
include:
–

Seat and steering wheel position settings.

293
Alphabetical index
Running out of fuel (Diesel) 202
S
Safety, children 104, 106–108, 110, 114–116
Saturation of the particle filter (Diesel)
196
Screen, cold climate

188
Screen menu map

254
Screenwash

89
Screenwash, front

88
Screenwash, rear

89
SCR (Selective Catalytic Reduction)

197
Seat belts

99–102, 109
Seat, bench front, 2-seat

55–56, 100
Seat, rear bench

56, 58
Seats, front

50–52, 55–56
Seats, front bench

55–56
Seats, heated

52–53
Seats, Multiflex ~ Extenso Cab

68
Seats, rear

50, 55–58, 107
Selector, gear

130–132
Sensors (warnings)

140
Serial number, vehicle

236
Service indicator

20
Servicing

20, 195
Settings, equipment

29–30
Settings, system

244, 257, 280
Shield, snow

188
Sidelamps

83–85, 210–211
Side parking sensors

162
Side repeater

2 11
Silent vehicle warning sound (Electric)

95, 118
Sliding side door, electric 37, 44
Smartphone
62
Snow chains

137, 188
Snow screen

188
Socket, 12 V accessory

60–61
Socket, 220 V

62
Socket, auxiliary

241, 252, 275
Socket, Jack

275
Speed limiter

142–145, 152
Speed limit recognition

140, 142
Speedometer

10, 12, 140
Sport mode

134
Stability control (ESC)

95–98
Starting a Diesel engine

174
Starting the engine

119, 121
Starting the vehicle

120, 122, 127–129, 131
Starting using another battery

122, 215
Station, radio

239–240, 250–251, 274
Stay, bonnet

192
Steering mounted controls, audio

237–238, 248, 261
Steering wheel, adjustment

53
Stickers, customising ~ Stickers,
expressive

201
Stopping the vehicle

121–122,
127–129, 131–132
Stop & Start

28, 74, 78, 134–136, 174, 192, 195, 218
Storage

60
Storage boxes

63
Stowing rings

67
Sunshine sensor

73
Super-fast charging (Electric)

185–186, 236Surround Rear Vision 164
Switching off the engine
119, 121
Synchronising the remote control

41
T
Tables of engines 236
Tank, fuel
174–175
Technical data

227–231, 235, 236
Telephone

242–243, 255–256, 277–279
Time (setting)

244, 257, 281
TMC (Traffic info)

268
Tools

203
Topping-up AdBlue®

198
Touch screen

28–30, 81
Towbar

96, 189
Towed loads

227–231, 235, 236
Towing another vehicle

218–219
Towing eye

219
Traction battery charge

180
Traction battery (Electric)

30, 176–177, 236
Traction control (ASR)

96–98
Traffic information (TMC)

268
Trailer

96, 189
Trailer stability assist (TSA)

96
Trajectory control systems

95
Triangle, warning

67
Trip computer

27–28
Type of bulbs

210
Tyres

197, 236
Tyre under-inflation detection

136–137, 206
