2021 CITROEN BERLINGO VAN technical data

223
Technical data
9



Vehicle length
M (L1) XL (L2)
I Interior width between wheel arches 1,229
J Maximum interior width Without sliding side door 1,733
With 1 sliding side door 1,630
With 2 sliding side doors 1,527
K Clear opening height With side-hinged doors 1,137
With tailgate 1,197
L Clear opening width 1
242

224

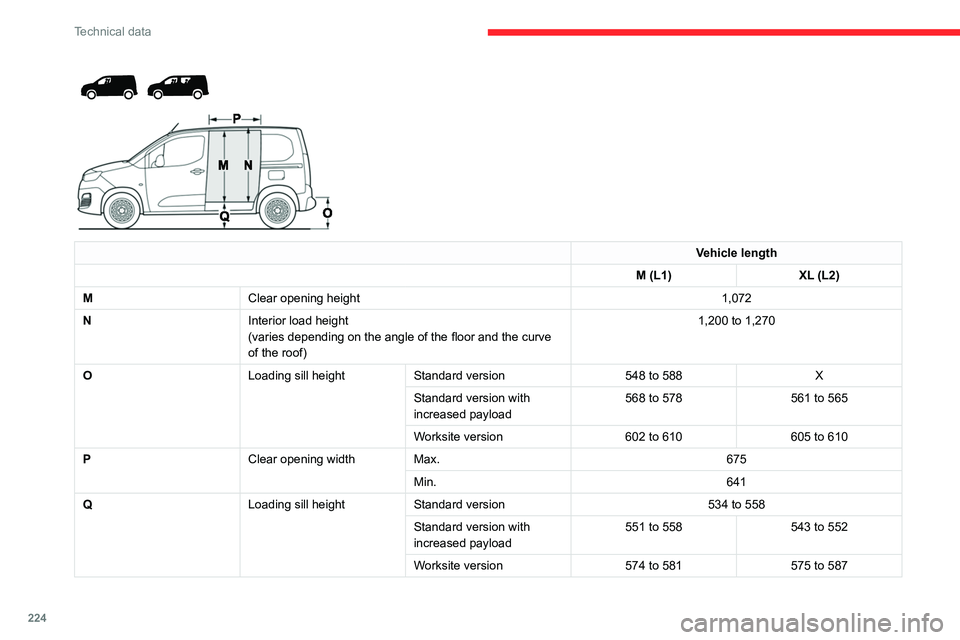

Technical data
Vehicle length
M (L1) XL (L2)
M Clear opening height 1,072
N Interior load height
(varies depending on the angle of the floor and the curve
of the roof) 1,200 to 1,270 O
Loading sill height
Standard version 548 to 588X
Standard version with
increased payload 568 to 578
561 to 565
Worksite version 602 to 610605 to 610
P Clear opening width Max. 675
Min. 641
Q Loading sill heightStandard version 534 to 558
Standard version with
increased payload 551 to 558
543 to 552
Worksite version 574 to 581575 to 587

225
Technical data
9


Vehicle length
M (L1) XL (L2)
R Interior floor lengthWith partition 1,8172,167
With ladder 1,7902,140
S Maximum loading length
(With protective cover in place) 3,090
3
440

226
Technical data




Vehicle length
M (L1) XL (L2)
A Overall length 4,4034,753
B Overall heightWithout roof bars 1,800 to 1,8071,812 to 1,818
With roof bars 1,837 to 1,8441,843 to 1,849
C Wheelbase 2,7852,975
D Front overhang 892
E Rear overhang 726886
F Width inc. mirrorsFolded 1,921
Unfolded 2,107
G Front track width 1,553
H Rear track width 1,567

227
Technical data
9Engine technical data and
towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.
Only the values available at the time of
publication are presented in the tables.
Contact a CITROËN dealer or a qualified
workshop to obtain missing values.
The maximum power corresponds to the value type-approved on a test bed, under
conditions defined by European legislation
(Directive 1999/99/EC). For more information, contact a CITROËN dealer
or a qualified workshop.
Weights and towed loads
The weights and towed loads relating to
the vehicle are indicated on the registration
document, as well as in sales brochures.
These values are also indicated on the
manufacturer's plate or label.
For more information, contact a CITROËN dealer
or a qualified workshop.
The GTW (Gross Train Weight) and towed load
values indicated are valid up to a maximum
altitude of 1,000 metres. The towed load value
must be reduced by 10% for each additional
1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball.
When exterior temperatures are high, the
vehicle performance may be limited in
order to protect the engine. When the exterior
temperature is higher than 37°C, reduce the
towed weight.
Towing even with a lightly loaded vehicle can adversely affect its road holding.
Braking distances are increased when towing
a trailer.
When using a vehicle to tow, never exceed
a speed of 62 mph (100
km/h) (observe the
local legislation in force).
If the exterior temperature is high, it is
recommended that the engine is allowed
to idle for 1 to 2 minutes after the vehicle
comes to a stop, to facilitate its cooling.
Engines and towed loads - PETROL

Vehicles fitted with the VTi 110 BVM5 engine are not suitable for towing.

228
Technical data
Engines and towed loads - PETROL EURO 6.3

EnginePureTech 110 S&S BVM6 PureTech 130 S&S EAT8
Gearbox Manual 6-speedAutomatic 8-speed
Code EB2ADT MB6 STTDEB2ADTS ATN8 STTD
Length M (L1)XL (L2) M (L1)XL (L2)
Model Code 5 seats


ERHNP2-A ERHNP2-C ERHNS3-A ERHNS3-C
7 seats


ERHNP2-B ERHNP2-D ERHNS3-B ERHNS3-D
Cubic capacity (cc) 1,1991,199
Max. power: EC standard (kW) 8196
Fuel UnleadedUnleaded
Braked trailer (within
the GTW limit) on a 12%
slope (kg) 5 seats
1,1501,1001,2001,150
7 seats 1,000900/950 1,0501,000/950
Unbraked trailer (kg) 5 seats 720/730750740/750 750
7 seats 750750750750
Maximum authorised
nose/towball weight (kg) 5 seats
74747474
7 seats 50/705070/50 50

229
Technical data
9Engines and towed loads - DIESEL

EngineHDi 92 S&S BVM5
Gearbox Manual 5-speed
Code DV6DR
Length M (L1)XL (L2)
Model Code 5 seats


EC___A-AEC___A-C
7 seats


EC___A-B EC___A-D
Cubic capacity (cc) 1,560
Max. power: EC standard (kW) 68
Fuel Diesel
Braked trailer (within
the GTW limit) on a 12%
slope (kg) 5 seats
1,1001,050
7 seats 950900
Unbraked trailer (kg) 5 seats 720750
7 seats 750750
Maximum authorised
nose/towball weight (kg) 5 seats
7474
7 seats 70 (Citroën)50

230
Technical data
Engines and towed loads - DIESEL EURO 6.1

EngineBlueHDi 100 BVM5
Gearbox Manual 5-speed
Code DV6FD BE
Length M (L1)XL (L2)
Model Code 5 seats


ECBHYB-A ECBHYB-C
7 seats


ECBHYB-B ECBHYB-D
Cubic capacity (cc) 1,560
Max. power: EC standard (kW) 73
Fuel Diesel
Braked trailer (within the GTW limit) on a 12% slope (kg) 5 seats 1,1001,050
7 seats 950900
Unbraked trailer (kg) 5 seats730750
7 seats 750
Maximum authorised nose/towball weight (kg) 5 seats7474
7 seats 70 (Citroën) 50
