2021 CHEVROLET CAMARO High Performence

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
8 Infotainment System
If the system is unable to begin recording,
the Start Recording button is grayed out.
Touch Start Recording to begin recording.
After recording begins, this button changes
to Stop Recording. Touch to stop the
recording session.
The recording must be stopped and the file
closed before removing the SD card, or the
recording cannot be reviewed.
The elapsed time will show when recording.
To define a finish line, see“Define Finish
Line” later in this section.
If there is no available space on the SD card,
a message displays. Delete or transfer
recordings on the SD card or use another SD
card with free space.
To delete a recording, go to the Recorded
Sessions menu and touch
Vnext to the
item. See “Recorded Sessions” later in this
section.
If no SD card is inserted, a message displays. Define Finish Line
To track and record the vehicle’s lap times,
the starting point of a lap must be set.
Crossing this point activates the lap timer
when recording.
To set the finish line, position the vehicle
with the front bumper at the start/finish
point. From the PDR menu, touch Define
Finish Line and then touch Mark Finish Line.
This can be done with the vehicle moving.
Recorded Sessions
To view recorded videos, touch Recorded
Sessions.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Infotainment System 9
A list of recordings displays.
Select the recording to start playback.
Touch
Vnext to an item to delete that
recording. Touch Yes to delete or No to
cancel on the confirmation screen.
Video playback is not allowed while the
vehicle is in motion.
Tap the screen while the video is playing to
display the video controls:
Video Scrubber : Changes the position and
playback. The length of the bar corresponds
to the time of the video. Advance or rewind
the video by dragging along the bar.
Delete Recording : Touch to delete the
video. A confirmation screen displays. Touch
Yes to delete or No to cancel.
Pause/Play : Touch to play or pause the
video. The button will change when touched.
/: Touch to display the previous screen.
Exit : Touch to exit the current display.
Choose Video Overlay
Touch Choose Video Overlay to display
the menu.
Select one:
.No Overlay
.Sport
.Track
.Performance Timing
No Overlay:
No vehicle data displays on top of the
recorded video. Vehicle data is still available
with the video when accessed in the toolbox
software.
Sport:
Displays these vehicle metrics:
.Vehicle Speed: Up to three digits are
displayed in km/h or MPH depending on
vehicle settings.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
10 Infotainment System
.Engine Rotations Per Minute (RPMs): The
vertical line and triangle show current
RPMs. As the RPMs increase, the backfill
follows.
.Transmission State (Current Gear):
Automatic and manual transmissions
display 1, 2, etc.
.Lateral G-Force Graphic: Left and Right
G-Forces are displayed. The graphic fills to
the left or the right depending on the
measure value. The measured G-Force
displays as a number at the top of the
graphic.
.Event Odometer: This displays the
distance driven since the recording began.
Track:
Displays these vehicle metrics:
.Vehicle Speed: Same as Sport.
.GPS Tracking Map: Shows the vehicle’s
current position relative to a known
route.
.Engine Rotations Per Minute (RPMs): The
vertical line and triangle indicate current
RPMs. As the RPMs increase, the backfill
follows.
.Transmission State (Current Gear): Same
as Sport.
.Friction Bubble Graphic: Lateral and
longitudinal G-Forces are displayed as a
dot within a bubble. A red dot displays
when the vehicle starts braking and turns
green when the vehicle accelerates. The
dot is white when the vehicle is not
moving. A white dot is the default.
.Brake and Throttle Graphic: Displays
the percentage value of brake and
throttle pedal position from 0–100%.
.Steering Angle: The graphic fills from the
center to the left or right depending on
the direction of steering. The numerical
steering angle displays below the graphic.
.StabiliTrak/Electronic Stability Control
(ESC) Active Indicator: The graphic only
displays if the active handling systems
are activated.
.Performance Traction Management (PTM)
Mode: Displays the current PTM mode.
The options are Wet, Dry, Sport 1, Sport 2,
or Race.
.Current Lap Time: Displays the elapsed
lap time if the finish line is defined and
the vehicle has crossed the defined finish
line at least once.
.Event Odometer: Displays the distance
driven since the recording began.
.Drive Mode: Displays the vehicle’s current
drive mode.
Performance Timing:
Displays these vehicle metrics:
.Vehicle Speed: Same as Sport.
.Engine Rotations Per Minute (RPMs):
Same as Sport.
.Transmission State (Current Gear): Same
as Sport.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Infotainment System 11
.0–100 km/h (0–60 mph), 0–200 km/h
(0–100 mph), 400 m (1/4 mi), and
0–200–0 km/h (0–100–0 mph): The timer
starts recording as soon as the vehicle
accelerates. As the vehicle passes each
speed and distance milestone, it is
displayed on the overlay.
.Throttle Position: Displays the percentage
of throttle applied from 0–100%.
.StabiliTrak/ESC Active Indicator: The
graphic only displays if the active
handling systems are activated.
Naming Convention
The recorded video file name is stored as
the recorded date and the length of the
recording.
If the recorded session was recorded while
the system was in Valet Mode, the file
name will display the mode, date, and
length of time. Settings
Touch Settings on the PDR menu to display
settings.
Valet Mode Recording :
Allows recording
preferences to be selected. It is
recommended that a blank SD card be used.
Available choices are:
.Automatically record when in Valet Mode:
Enables the PDR to begin recording as
soon as the vehicle is in Valet Mode.
.Overwrite existing data when memory
full: Allows manual overwriting of
previous recordings, one at a time
starting with the oldest, when the current
recording requires additional storage to
continue.
Audio will not record during Valet Mode.
Record Audio : Allows audio to be recorded
along with video.
Audio will not record during Valet Mode.
Software Information : Displays PDR
software information and version numbers.
Toolbox Software : Allows for the evaluation
of the driver and the vehicle performance on
a personal computer after a recorded event.
See www.chevrolet.com or your dealer for
details to download the software.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
12 Driving and Operating
Driving and Operating
Driving Information
Track Events and Competitive Driving . . . 12
Automatic Transmission
Automatic Transmission . . . . . . . . . . . . . . . . 19
Ride Control Systems
Competitive Driving Mode . . . . . . . . . . . . . . 21
Limited-Slip Differential . . . . . . . . . . . . . . . . . 24
Fuel
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . 25
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . 25
Driving Information
Track Events and Competitive
Driving
{Danger
High-performance features are intended
for use only on closed tracks by
experienced and qualified drivers and
should not be used on public roads.
High-speed driving, aggressive cornering,
hard braking, and other high-performance
driving can be dangerous. Improper driver
inputs for the conditions may result in
loss of control of the vehicle, which could
injure or kill you or others. Always drive
safely.
This section covers specific track events and
competitive driving information for the
Camaro High Performance models only. For
additional track events and competitive
driving information, see the owner’s manual. Track events or competitive driving may
affect the vehicle warranty. See the
warranty manual before using the vehicle
for racing or other competitive driving.
The Engine Sound Management setting
should not be set to Stealth Mode during
track events and competitive driving. See
“Driver Mode Control”
in the owner’s
manual.
{Warning
Prior to each track event and again
before returning to public roads, tighten
the wheel nuts with a torque wrench to
the proper torque specification. Wheel
nuts that are improperly or incorrectly
tightened can cause the wheels to
become loose or come off, resulting in a
crash. See “Capacities and Specifications”
in the owner’s manual for wheel nut
torque specifications.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Driving and Operating 13
Engine OilCaution
If you use the vehicle for racing or other
competitive driving, the engine may use
more oil than it would with normal use.
Low oil levels can damage the engine. For
information on how to add oil, see
Engine Oil028.
Be sure to check the oil level often during
racing or other competitive driving and
keep the level at or near the upper mark
that shows the proper operating range on
the engine oil dipstick. The LT1 and LT4 engines are factory filled
with 0W-40 dexos2 oil. 0W-40 dexos2
engine oil is approved for both track and
street use with the LT1 and LT4 (ZL1 only,
not ZL1 1LE) engines. 15W-50 full synthetic
engine oil may also be used for track use
and is required on the ZL1 1LE, but after
track use must be changed back to 0W-40
dexos2 for street use. See
Capacities and
Specifications 043.
Fuel
Consider using 100 octane unleaded gasoline
if the air temperature is above 30 °C (86 °F)
at a track event. Do not use any fuel with
conditions listed in Prohibited Fuels025.
Automatic Transmission Fluid
Transmission fluid should be changed after
every 15 hours of track use. Any
transmission level set or change should be
performed at your dealer.
Manual Transmission Fluid
Manual transmission fluid should be
changed after every 15 hours of track usage.

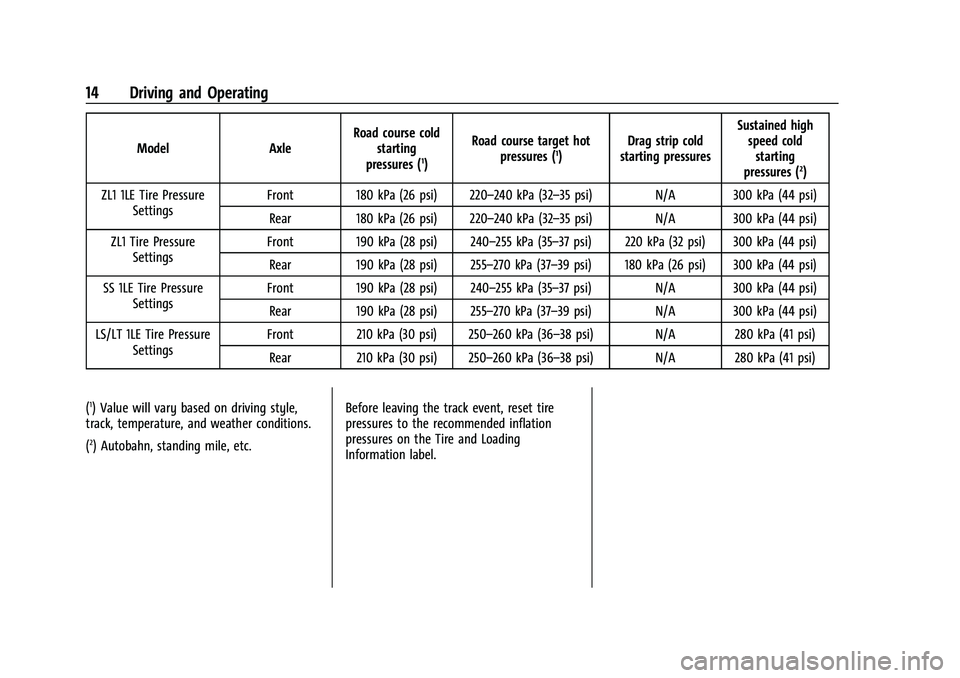

Tire Pressures
Tire pressure specifications are listed
in psi (kPa). Limit the vehicle weight to a
maximum of the driver and one passenger,
with no additional cargo.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
14 Driving and Operating
ModelAxleRoad course cold
starting
pressures (1) Road course target hot
pressures (1) Drag strip cold
starting pressures Sustained high
speed coldstarting
pressures (2)
ZL1 1LE Tire Pressure Settings Front 180 kPa (26 psi) 220–240 kPa (32–35 psi) N/A 300 kPa (44 psi)
Rear 180 kPa (26 psi) 220–240 kPa (32–35 psi) N/A 300 kPa (44 psi)
ZL1 Tire Pressure Settings Front 190 kPa (28 psi) 240–255 kPa (35–37 psi) 220 kPa (32 psi) 300 kPa (44 psi)
Rear 190 kPa (28 psi) 255–270 kPa (37–39 psi) 180 kPa (26 psi) 300 kPa (44 psi)
SS 1LE Tire Pressure Settings Front 190 kPa (28 psi) 240–255 kPa (35–37 psi) N/A 300 kPa (44 psi)
Rear 190 kPa (28 psi) 255–270 kPa (37–39 psi) N/A 300 kPa (44 psi)
LS/LT 1LE Tire Pressure Settings Front 210 kPa (30 psi) 250–260 kPa (36–38 psi) N/A 280 kPa (41 psi)
Rear 210 kPa (30 psi) 250–260 kPa (36–38 psi) N/A 280 kPa (41 psi)
(
1) Value will vary based on driving style,
track, temperature, and weather conditions.
(
2) Autobahn, standing mile, etc. Before leaving the track event, reset tire
pressures to the recommended inflation
pressures on the Tire and Loading
Information label.

Chevrolet Camaro High Performance Owner Manual Supplement (GMNA-
Localizing-U.S./Canada/Mexico-14584225) - 2021 - CRC - 9/30/20
Driving and Operating 15
Front License Plate/Bracket Removal
(ZL1 Only)
For track use, the front license plate and
bracket can be removed from the fascia for
increased airflow. Remove the license plate
to access the four screws that attach the
license plate bracket to the front fascia.
Water Deflector
If operating a ZL1 on a closed course in hot
temperatures, remove the water deflector to
increase airflow and improve cooling.
Remove the three bolts. Replace
immediately after track use to protect the
engine compartment from water intrusion.
Torque to 4.5Y(40 lb in).
Wicker Bill
A rear spoiler wicker bill is available for
LS/LT and SS with the 1LE package only.
If equipped with a wicker bill, use the
instructions for installation.
Underbody Air Deflector Tire Dam Kit
The underbody air deflector tire dam kit
provided with ZL1 vehicles reduces the
amount of aerodynamic lift on the front
axle for better handling. The original tire
dams must be reinstalled after the track
event. For installation, see the instructions
provided with the kit.
