2021 CADILLAC ESCALADE engine

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
TECHNICAL DATA 455
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and Lubricants
0 451.
If the vehicle has a diesel engine, see the Duramax diesel supplement.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System* 14.3 L 15.1 qt
Engine Oil with Filter 7.6 L 8.0 qt
Fuel Tank
IShort Wheelbase 90.8 L 24.0 gal
ILong Wheelbase 106.0 L 28.0 gal
Transfer Case Fluid 1.5 L 1.6 qt
Wheel Nut Torque 190 Y140 lb ft

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
456 TECHNICAL DATA
ApplicationCapacities
Metric English
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN CodeSpark Plug Gap
6.2L V8 Engine (L87) L0.95–1.10 mm (0.037–0.043 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the
spark plug.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
TECHNICAL DATA 457
Engine Drive Belt Routing
If the vehicle has a diesel engine, see
the Duramax diesel supplement.
6.2L Engine

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
CUSTOMER INFORMATION 467
If another party's insurance company
is paying for the repairs, you are not
obligated to accept a repair valuation
based on that insurance company's
collision policy repair limits, as you
have no contractual limits with that
company. In such cases, you can have
control of the repair and parts choices
as long as the cost stays within
reasonable limits.
Publication Ordering
Information
Service Manuals
Service manuals have the diagnosis
and repair information on the engine,
transmission, axle, suspension, brakes,
electrical system, steering system,
body, etc.
Customer Literature
Owner’s manuals are written
specifically for owners and are
intended to provide basic operational
information about the vehicle. The
owner’s manual includes the
Maintenance Schedule for all models.Customer literature publications
available for purchase include owner’s
manuals, warranty manuals, and
portfolios. Portfolios include an
owner’s manual, warranty manual,
if applicable, and zip lock bag or
pouch.
Current and Past Models
Service manuals and customer
literature are available for many
current and past model year GM
vehicles.
To order, call 1-800-551-4123
Monday–Friday, 8:00 a.m.–6:00 p.m.
eastern time
For credit card orders only (VISA,
MasterCard, or Discover), see Helm,
Inc. at: www.helminc.com.
To order by mail, write to:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
Make checks payable in U.S. funds.
Radio Frequency
Statement
This vehicle uses license-exempt
transmitters / receivers / systems that
operate on a radio frequency that
complies with Part 15/Part 18 of the
Federal Communications Commission
(FCC) rules and with Innovation,
Science and Economic Development
(ISED) Canada's license-exempt RSS(s)
/ RSP-100 / ICES-GEN.
Operation is subject to the following
two conditions:
1. The device may not cause harmful interference.
2. The device must accept any interference received, including
interference that may cause
undesired operation of the device.
Changes or modifications to any of
these systems by other than an
authorized service facility could void
authorization to use this equipment.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21

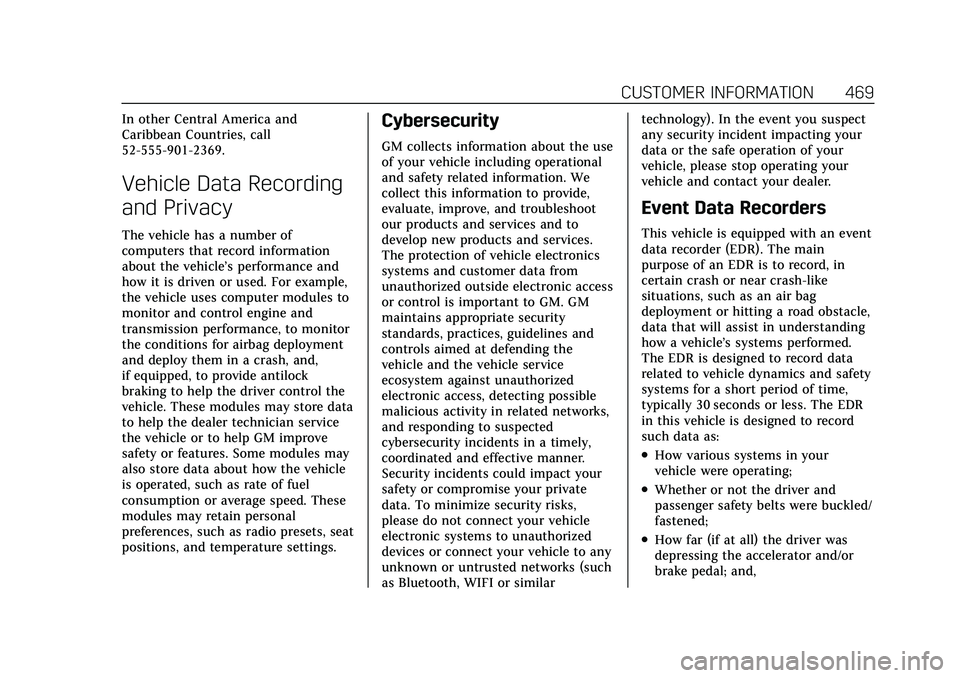

CUSTOMER INFORMATION 469
In other Central America and
Caribbean Countries, call
52-555-901-2369.
Vehicle Data Recording
and Privacy
The vehicle has a number of
computers that record information
about the vehicle’s performance and
how it is driven or used. For example,
the vehicle uses computer modules to
monitor and control engine and
transmission performance, to monitor
the conditions for airbag deployment
and deploy them in a crash, and,
if equipped, to provide antilock
braking to help the driver control the
vehicle. These modules may store data
to help the dealer technician service
the vehicle or to help GM improve
safety or features. Some modules may
also store data about how the vehicle
is operated, such as rate of fuel
consumption or average speed. These
modules may retain personal
preferences, such as radio presets, seat
positions, and temperature settings.
Cybersecurity
GM collects information about the use
of your vehicle including operational
and safety related information. We
collect this information to provide,
evaluate, improve, and troubleshoot
our products and services and to
develop new products and services.
The protection of vehicle electronics
systems and customer data from
unauthorized outside electronic access
or control is important to GM. GM
maintains appropriate security
standards, practices, guidelines and
controls aimed at defending the
vehicle and the vehicle service
ecosystem against unauthorized
electronic access, detecting possible
malicious activity in related networks,
and responding to suspected
cybersecurity incidents in a timely,
coordinated and effective manner.
Security incidents could impact your
safety or compromise your private
data. To minimize security risks,
please do not connect your vehicle
electronic systems to unauthorized
devices or connect your vehicle to any
unknown or untrusted networks (such
as Bluetooth, WIFI or similartechnology). In the event you suspect
any security incident impacting your
data or the safe operation of your
vehicle, please stop operating your
vehicle and contact your dealer.
Event Data Recorders
This vehicle is equipped with an event
data recorder (EDR). The main
purpose of an EDR is to record, in
certain crash or near crash-like
situations, such as an air bag
deployment or hitting a road obstacle,
data that will assist in understanding
how a vehicle’s systems performed.
The EDR is designed to record data
related to vehicle dynamics and safety
systems for a short period of time,
typically 30 seconds or less. The EDR
in this vehicle is designed to record
such data as:
.How various systems in your
vehicle were operating;
.Whether or not the driver and
passenger safety belts were buckled/
fastened;
.How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
472 ONSTAR
PressQto connect to an Advisor to:
.Verify account information or
update contact information.
.Get driving directions.
.Receive a Diagnostic check of the
vehicle's key operating systems.
.Receive Roadside Service.
.Manage Wi-Fi Settings, if equipped.
Press
>to get a priority connection
to an OnStar Advisor available 24/7 to:
.Get help for an emergency.
.Be a Good Samaritan or respond to
an AMBER Alert.
.Get assistance in severe weather or
other crisis situations and find
evacuation routes.
OnStar Services
Emergency
Emergency Services require an active
safety and security plan. With
Automatic Crash Response, built-in
sensors can automatically alert a
specially trained OnStar Advisor who
is immediately connected in to the
vehicle to help. Press
>for a priority connection to
an OnStar Advisor who can contact
emergency service providers, direct
them to your exact location, and relay
important information.
With OnStar Crisis Assist, specially
trained Advisors are available
24 hours a day, 7 days a week, to
provide a central point of contact,
assistance, and information during a
crisis.
With Roadside Service, Advisors can
locate a nearby service provider to
help with a flat tire, a battery jump,
or an empty gas tank.
Security
If equipped, OnStar provides these
services:
.With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
.With Remote Ignition Block,
if equipped, OnStar can block the
engine from being restarted.
.With Stolen Vehicle Slowdown,
if equipped, OnStar can work with
law enforcement to gradually slow
the vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked
and the vehicle alarm sounds, a
notification by text, e-mail, or phone
call will be sent. If the vehicle is
stolen, an OnStar Advisor can work
with authorities to recover the vehicle.
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
.Prior to vehicle purchase. PressQ
to set up an account.
.After change in ownership and at
90 days.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
INDEX 479
IndexA
Accessories and Modifications . . . . . 364
Accessory Power . . . . . . . . . . . . . . . . . . . . 248
Adaptive Cruise Control . . . . . . . . . . . . 274
Add-On Electrical Equipment . . . . . . 360
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 448
Adjustments
Lumbar, Front Seats . . . . . . . . . . . . . . . 44
Agreements Trademarks and License . . . . . . . . . 211
Air Cleaner/Filter, Engine . . . . . . . . . . 371
Air Conditioning . . . . . . . . . . . . . . .220, 224
Air Filter
Life System . . . . . . . . . . . . . . . . . . . . . . . . 371
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . . . . . 226
Air Suspension Four Corner . . . . . . . . . . . . . . . . . . . . . . . 268
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
How Does an Airbag Restrain? . . . . 70
Passenger Sensing System . . . . . . . . 71
What Makes an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Airbag System (cont'd)
What Will You See after an
Airbag Inflates? . . . . . . . . . . . . . . . . . . 70
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Where Are the Airbags? . . . . . . . . . . . 67
Airbags
Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Passenger Status Indicator . . . . . . . 121
Readiness Light . . . . . . . . . . . . . . . . . . . 120
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
System Check . . . . . . . . . . . . . . . . . . . . . . 65
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . 28
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . 321
Rear Pedestrian . . . . . . . . . . . . . . . . . . . 312
Side Blind Zone (SBZA) . . . . . . . . . . 321
All-Season Tires . . . . . . . . . . . . . . . . . . . . . 394
All-Terrain Tires . . . . . . . . . . . . . . . . . . . . 395
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . 163
Antenna
Multi-band . . . . . . . . . . . . . . . . . . . . . . . . 168
Antilock Brake System (ABS) . . . . . . 261
Warning Light . . . . . . . . . . . . . . . . . . . . 125

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
480 INDEX
Appearance CareExterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . . . . . 202
Armrest Storage . . . . . . . . . . . . . . . . . . . . . . 98
Assistance Systems for Driving . . . . 313
Assistance Systems for Parking and Backing . . . . . . . . . . . . . . . . . . . . . . . 299
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Auto Stop Stop/Start System . . . . . . . . . . . . . . . . 247
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . . . 33
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 19
Emergency Braking (AEB) . . . . . . . . 315
Headlamp System . . . . . . . . . . . . . . . . 152
Transmission . . . . . . . . . . . . . . . . . . . . . . 251
Transmission Fluid . . . . . . . . . . . . . . . 370
Vehicle Hold Light . . . . . . . . . . . . . . . . 125
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . 255
Automatic Vehicle Hold (AVH) . . . . 263
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Axle, Front . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 381B
Battery Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Load Management . . . . . . . . . . . . . . . . 155
Power Protection . . . . . . . . . . . . . . . . . . 156
Battery - North America . . . . . .380, 425
Blade Replacement, Wiper . . . . . . . . . 382
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . 196, 197
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . 171
Brake Electric Boost . . . . . . . . . . . . . . . . . . . . . 261
Parking, Electric . . . . . . . . . . . . . . . . . . 261
System Warning Light . . . . . . . . . . . . 124
Brake Pad Life System . . . . . . . . . . . . . . 378
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
Pad Life System . . . . . . . . . . . . . . . . . . . 378
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 Automatic Emergency (AEB) . . . . . 315
Braking System
Front Pedestrian (FPB) . . . . . . . . . . . 317
Break-In, New Vehicle . . . . . . . . . . . . . . 244
Bulb Replacement Headlamp Aiming . . . . . . . . . . . . . . . . 384 Bulb Replacement (cont'd)
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . 384
Buying New Tires . . . . . . . . . . . . . . . . . . . 408
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 108
California Perchlorate Materials
Requirements . . . . . . . . . . . . . . . . . . . 363
California Proposition 65 Warning . . . . . . . . . . . . .363, 380, 425, Back Cover
Canadian Vehicle Owners . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . 455
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . 250
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Winter Driving . . . . . . . . . . . . . . . . . . . . 239
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . 100
Caution, Danger, and Warning . . . . . . . . 2
Center Console Storage . . . . . . . . . . . . . . 99
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . 412
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Charging System Light . . . . . . . . . . . . . 122
