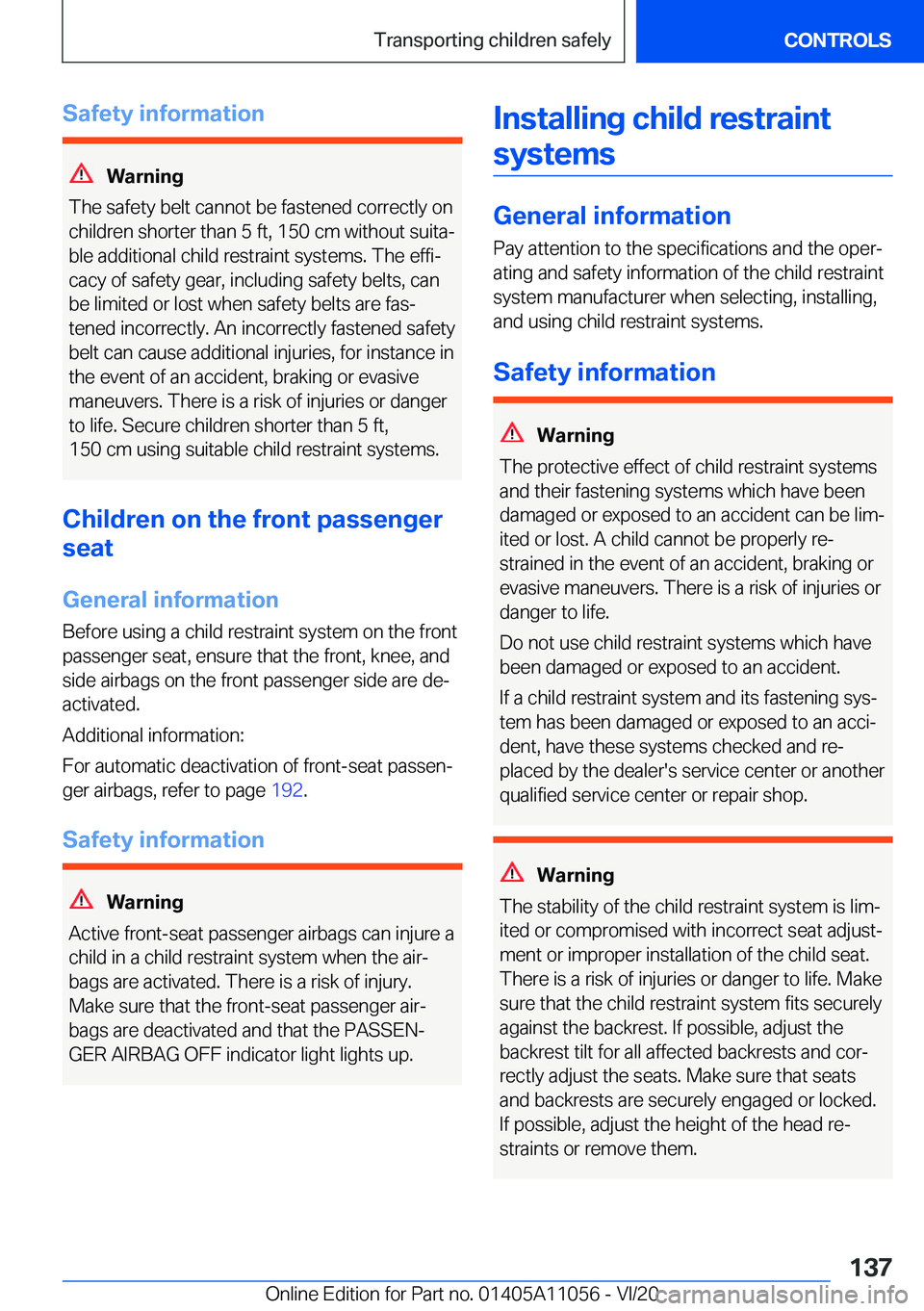

Safety
information
Warning
The
safety
belt
cannot
be
fastened
correctly
on
children
shorter
than
5
ft,
150
cm
without
suita#j
ble
additional
child
restraint
systems.
The
effi#j
cacy
of
safety
gear,
including
safety
belts,
can
be
limited
or
lost
when
safety
belts
are
fas#j tened
incorrectly.
An
incorrectly
fastened
safetybelt
can
cause
additional
injuries,
for
instance
in
the
event
of
an
accident,
braking
or
evasive
maneuvers.
There
is
a
risk
of
injuries
or
danger
to
life.
Secure
children
shorter
than
5
ft,
150
cm
using
suitable
child
restraint
systems.
Children
on
the
front
passenger
seat
General
information Before
using
a
child
restraint
system
on
the
frontpassenger
seat,
ensure
that
the
front,
knee,
andside
airbags
on
the
front
passenger
side
are
de#j
activated.
Additional
information:
For
automatic
deactivation
of
front-seat
passen#j
ger
airbags,
refer
to
page
192.
Safety
information
Warning
Active
front-seat
passenger
airbags
can
injure
a
child
in
a
child
restraint
system
when
the
air#j
bags
are
activated.
There
is
a
risk
of
injury.
Make
sure
that
the
front-seat
passenger
air#j
bags
are
deactivated
and
that
the
PASSEN#j
GER
AIRBAG
OFF
indicator
light
lights
up.
Installing
child
restraint
systems
General
information Pay
attention
to
the
specifications
and
the
oper#j
ating
and
safety
information
of
the
child
restraint system
manufacturer
when
selecting,
installing,
and
using
child
restraint
systems.
Safety
information
Warning
The
protective
effect
of
child
restraint
systems
and
their
fastening
systems
which
have
been
damaged
or
exposed
to
an
accident
can
be
lim#j
ited
or
lost.
A
child
cannot
be
properly
re#j
strained
in
the
event
of
an
accident,
braking
or evasive
maneuvers.
There
is
a
risk
of
injuries
or
danger
to
life.
Do
not
use
child
restraint
systems
which
have been
damaged
or
exposed
to
an
accident.
If
a
child
restraint
system
and
its
fastening
sys#j tem
has
been
damaged
or
exposed
to
an
acci#jdent,
have
these
systems
checked
and
re#jplaced
by
the
dealer's
service
center
or
anotherqualified
service
center
or
repair
shop.
Warning
The
stability
of
the
child
restraint
system
is
lim#j
ited
or
compromised
with
incorrect
seat
adjust#j ment
or
improper
installation
of
the
child
seat.
There
is
a
risk
of
injuries
or
danger
to
life.
Make sure
that
the
child
restraint
system
fits
securelyagainst
the
backrest.
If
possible,
adjust
the
backrest
tilt
for
all
affected
backrests
and
cor#j
rectly
adjust
the
seats.
Make
sure
that
seats
and
backrests
are
securely
engaged
or
locked.
If
possible,
adjust
the
height
of
the
head
re#j
straints
or
remove
them.
Seite
137Transporting
children
safelyCONTROLS137
Online
Edition
for
Part
no.
01405A11056
-
VI/20

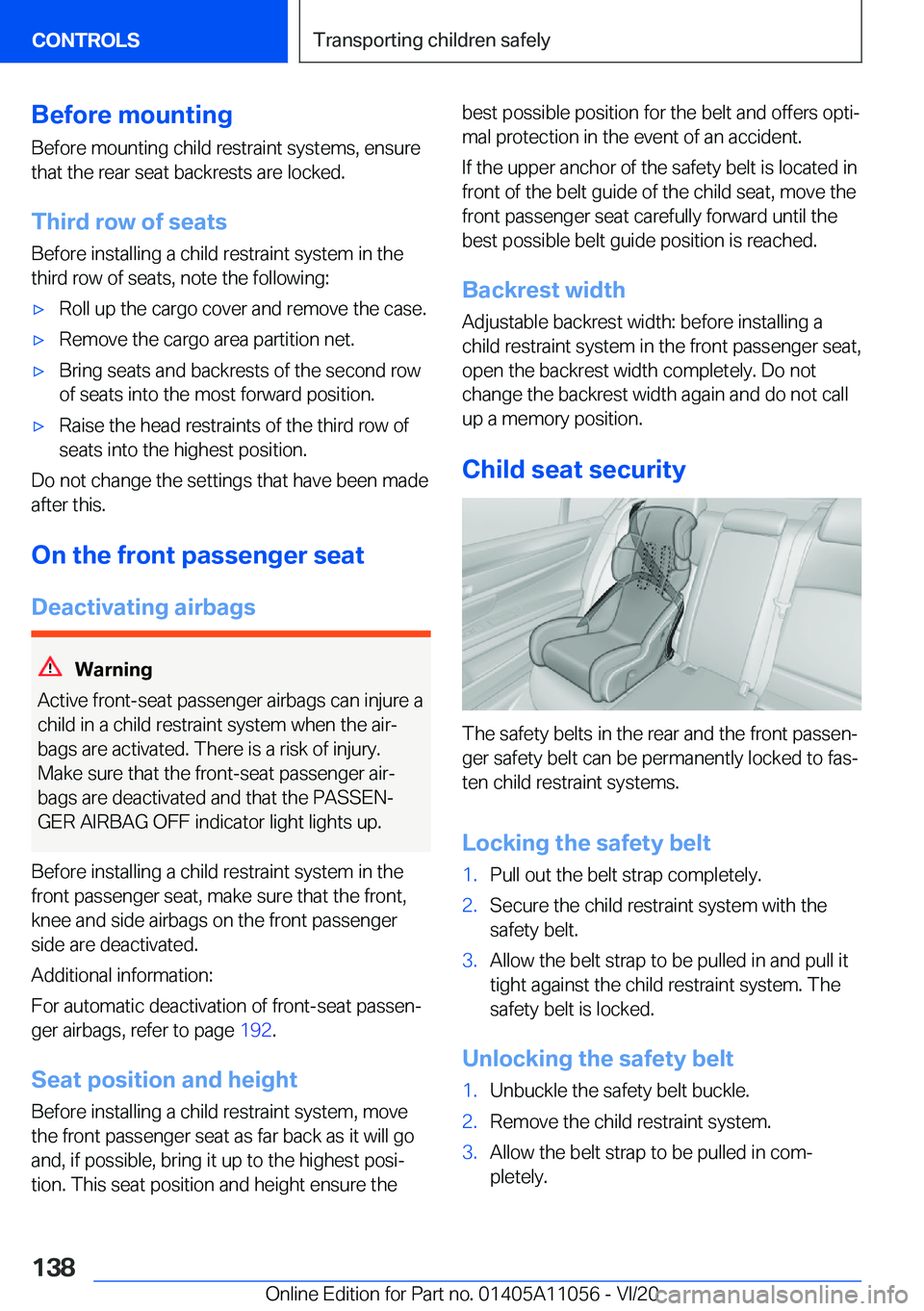

Before
mountingBefore
mounting
child
restraint
systems,
ensure
that
the
rear
seat
backrests
are
locked.
Third
row
of
seats Before
installing
a
child
restraint
system
in
the
third
row
of
seats,
note
the
following:'xRoll
up
the
cargo
cover
and
remove
the
case.'xRemove
the
cargo
area
partition
net.'xBring
seats
and
backrests
of
the
second
row of
seats
into
the
most
forward
position.'xRaise
the
head
restraints
of
the
third
row
of
seats
into
the
highest
position.
Do
not
change
the
settings
that
have
been
made after
this.
On
the
front
passenger
seat Deactivating
airbags
Warning
Active
front-seat
passenger
airbags
can
injure
a
child
in
a
child
restraint
system
when
the
air#j bags
are
activated.
There
is
a
risk
of
injury.Make
sure
that
the
front-seat
passenger
air#jbags
are
deactivated
and
that
the
PASSEN#j
GER
AIRBAG
OFF
indicator
light
lights
up.
Before
installing
a
child
restraint
system
in
the
front
passenger
seat,
make
sure
that
the
front,
knee
and
side
airbags
on
the
front
passenger side
are
deactivated.
Additional
information:
For
automatic
deactivation
of
front-seat
passen#j ger
airbags,
refer
to
page
192.
Seat
position
and
height Before
installing
a
child
restraint
system,
move
the
front
passenger
seat
as
far
back
as
it
will
go
and,
if
possible,
bring
it
up
to
the
highest
posi#j
tion.
This
seat
position
and
height
ensure
the
best
possible
position
for
the
belt
and
offers
opti#j
mal
protection
in
the
event
of
an
accident.
If
the
upper
anchor
of
the
safety
belt
is
located
in
front
of
the
belt
guide
of
the
child
seat,
move
the
front
passenger
seat
carefully
forward
until
the
best
possible
belt
guide
position
is
reached.
Backrest
width
Adjustable
backrest
width:
before
installing
a
child
restraint
system
in
the
front
passenger
seat, open
the
backrest
width
completely.
Do
notchange
the
backrest
width
again
and
do
not
callup
a
memory
position.
Child
seat
security
The
safety
belts
in
the
rear
and
the
front
passen#j
ger
safety
belt
can
be
permanently
locked
to
fas#j
ten
child
restraint
systems.
Locking
the
safety
belt
1.Pull
out
the
belt
strap
completely.2.Secure
the
child
restraint
system
with
the
safety
belt.3.Allow
the
belt
strap
to
be
pulled
in
and
pull
it
tight
against
the
child
restraint
system.
The
safety
belt
is
locked.
Unlocking
the
safety
belt
1.Unbuckle
the
safety
belt
buckle.2.Remove
the
child
restraint
system.3.Allow
the
belt
strap
to
be
pulled
in
com#j
pletely.Seite
138CONTROLSTransporting
children
safely138
Online
Edition
for
Part
no.
01405A11056
-
VI/20

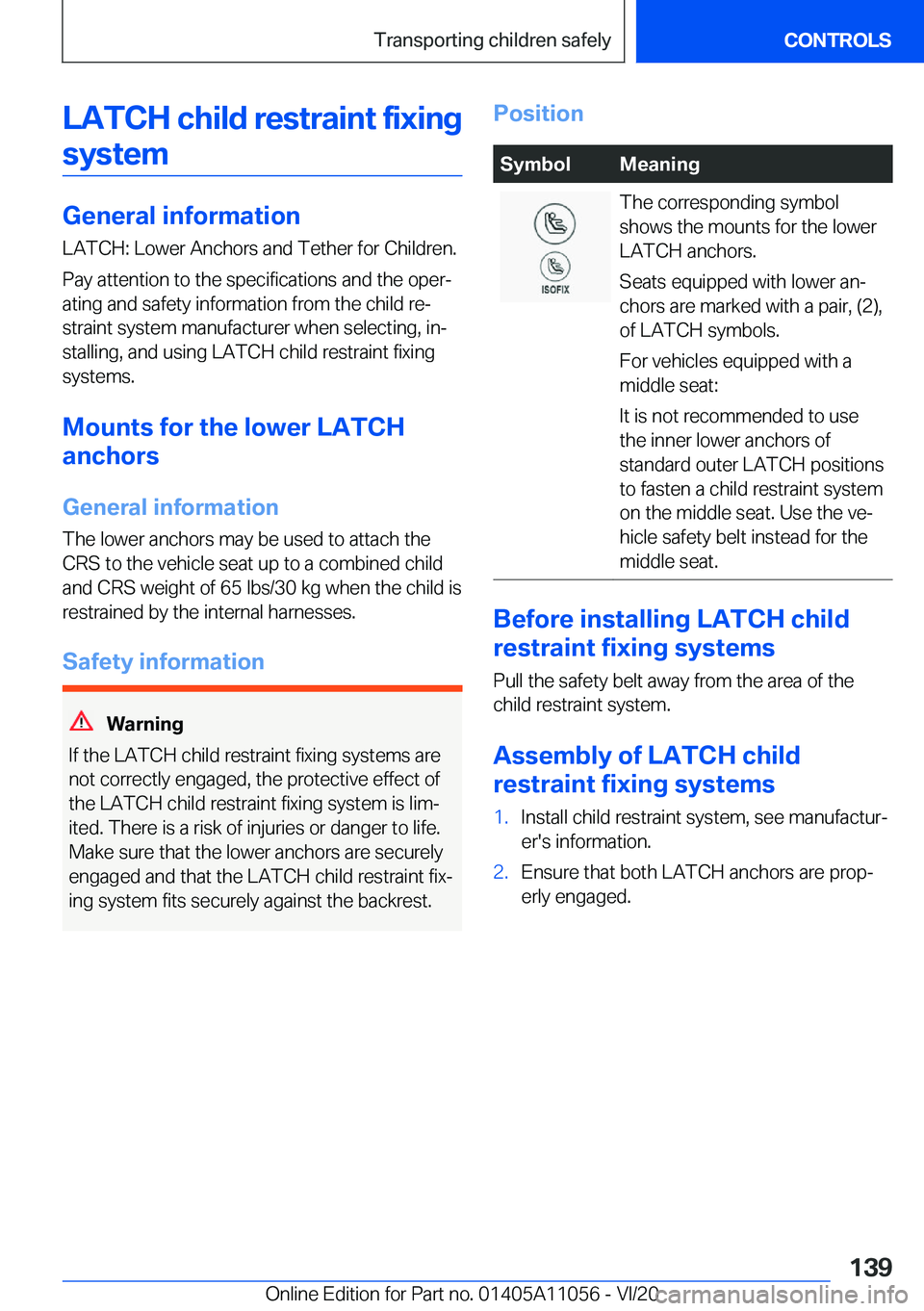

LATCH
child
restraint
fixingsystem
General
information LATCH:
Lower
Anchors
and
Tether
for
Children.Pay
attention
to
the
specifications
and
the
oper#j
ating
and
safety
information
from
the
child
re#j
straint
system
manufacturer
when
selecting,
in#j
stalling,
and
using
LATCH
child
restraint
fixing
systems.
Mounts
for
the
lower
LATCH
anchors
General
information The
lower
anchors
may
be
used
to
attach
the
CRS
to
the
vehicle
seat
up
to
a
combined
child
and
CRS
weight
of
65
lbs/30
kg
when
the
child
is restrained
by
the
internal
harnesses.
Safety
information
Warning
If
the
LATCH
child
restraint
fixing
systems
are not
correctly
engaged,
the
protective
effect
of
the
LATCH
child
restraint
fixing
system
is
lim#j
ited.
There
is
a
risk
of
injuries
or
danger
to
life.
Make
sure
that
the
lower
anchors
are
securely
engaged
and
that
the
LATCH
child
restraint
fix#j
ing
system
fits
securely
against
the
backrest.
PositionSymbolMeaningThe
corresponding
symbol
shows
the
mounts
for
the
lower
LATCH
anchors.
Seats
equipped
with
lower
an#j
chors
are
marked
with
a
pair,
(2),
of
LATCH
symbols.
For
vehicles
equipped
with
a
middle
seat:
It
is
not
recommended
to
use
the
inner
lower
anchors
of
standard
outer
LATCH
positions
to
fasten
a
child
restraint
system
on
the
middle
seat.
Use
the
ve#j
hicle
safety
belt
instead
for
the
middle
seat.
Before
installing
LATCH
child
restraint
fixing
systems
Pull
the
safety
belt
away
from
the
area
of
the
child
restraint
system.
Assembly
of
LATCH
childrestraint
fixing
systems
1.Install
child
restraint
system,
see
manufactur#j
er's
information.2.Ensure
that
both
LATCH
anchors
are
prop#j erly
engaged.Seite
139Transporting
children
safelyCONTROLS139
Online
Edition
for
Part
no.
01405A11056
-
VI/20

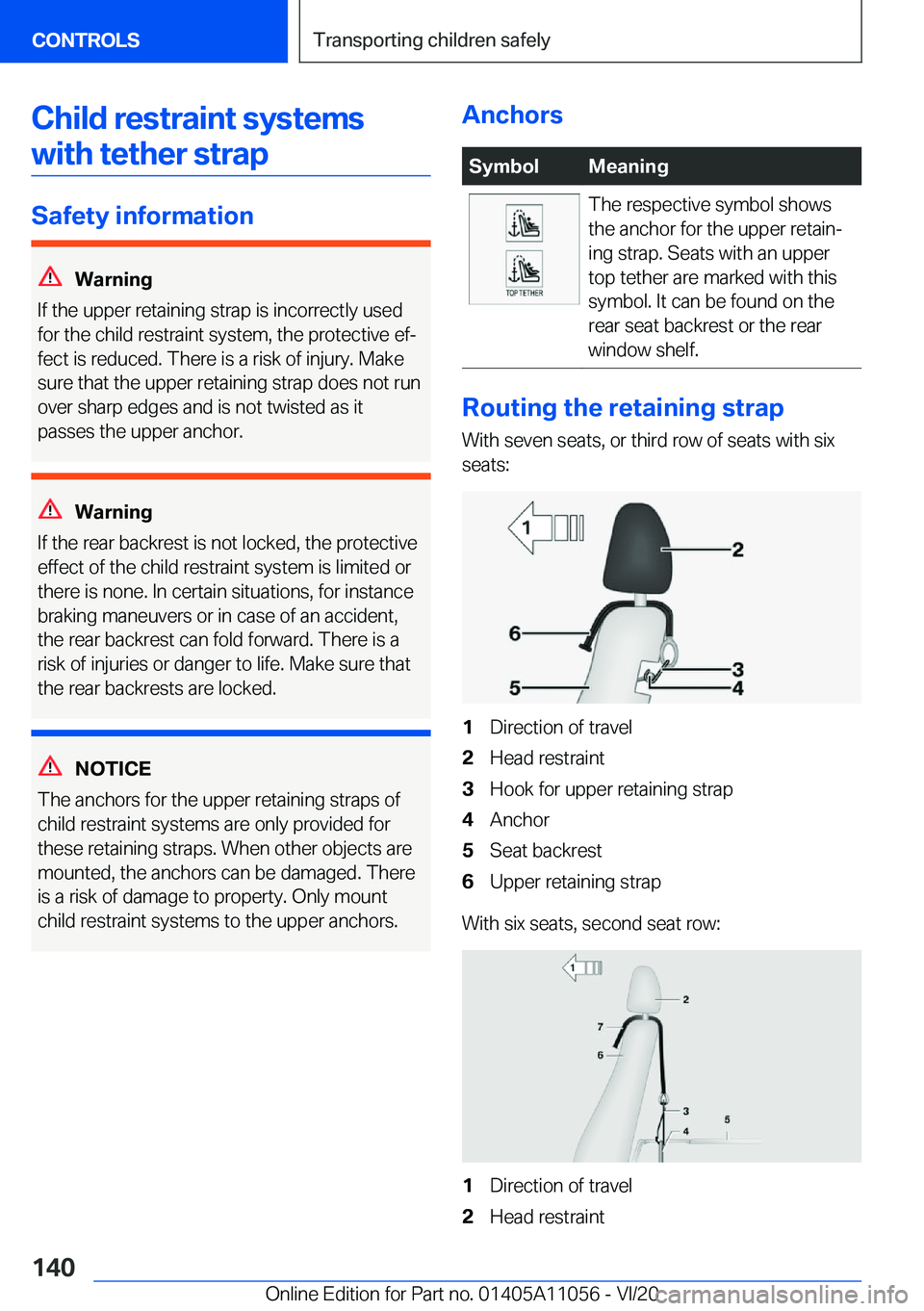

Child
restraint
systemswith
tether
strap
Safety
information
Warning
If
the
upper
retaining
strap
is
incorrectly
used
for
the
child
restraint
system,
the
protective
ef#j fect
is
reduced.
There
is
a
risk
of
injury.
Makesure
that
the
upper
retaining
strap
does
not
run
over
sharp
edges
and
is
not
twisted
as
it passes
the
upper
anchor.
Warning
If
the
rear
backrest
is
not
locked,
the
protective
effect
of
the
child
restraint
system
is
limited
or there
is
none.
In
certain
situations,
for
instance
braking
maneuvers
or
in
case
of
an
accident,
the
rear
backrest
can
fold
forward.
There
is
a
risk
of
injuries
or
danger
to
life.
Make
sure
that
the
rear
backrests
are
locked.
NOTICE
The
anchors
for
the
upper
retaining
straps
of
child
restraint
systems
are
only
provided
for
these
retaining
straps.
When
other
objects
are
mounted,
the
anchors
can
be
damaged.
There
is
a
risk
of
damage
to
property.
Only
mount
child
restraint
systems
to
the
upper
anchors.
AnchorsSymbolMeaningThe
respective
symbol
shows
the
anchor
for
the
upper
retain#j
ing
strap.
Seats
with
an
upper
top
tether
are
marked
with
this
symbol.
It
can
be
found
on
the
rear
seat
backrest
or
the
rear
window
shelf.
Routing
the
retaining
strap
With
seven
seats,
or
third
row
of
seats
with
sixseats:
1Direction
of
travel2Head
restraint3Hook
for
upper
retaining
strap4Anchor5Seat
backrest6Upper
retaining
strap
With
six
seats,
second
seat
row:
1Direction
of
travel2Head
restraintSeite
140CONTROLSTransporting
children
safely140
Online
Edition
for
Part
no.
01405A11056
-
VI/20

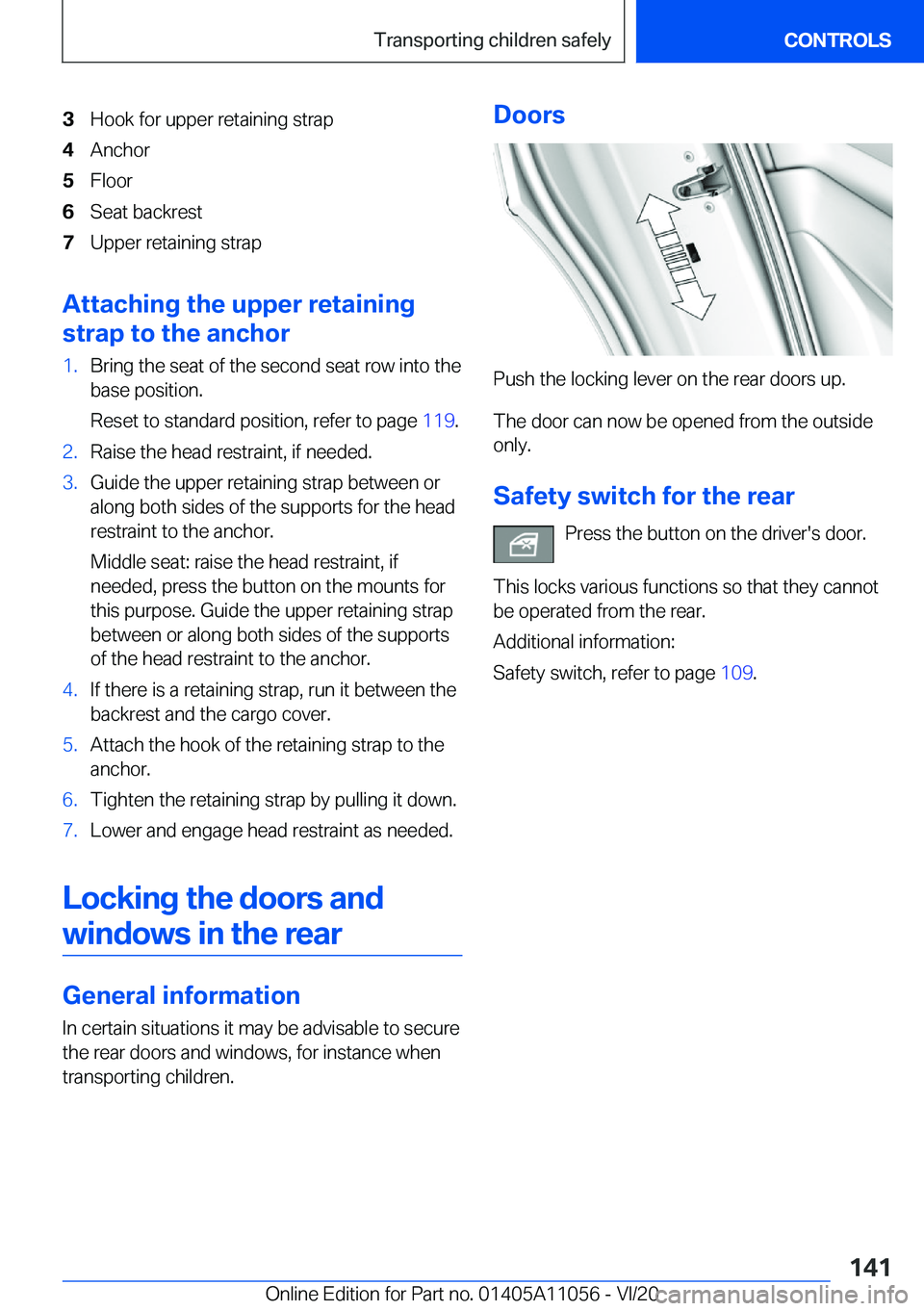

3Hook
for
upper
retaining
strap4Anchor5Floor6Seat
backrest7Upper
retaining
strap
Attaching
the
upper
retaining
strap
to
the
anchor
1.Bring
the
seat
of
the
second
seat
row
into
the base
position.
Reset
to
standard
position,
refer
to
page
119.2.Raise
the
head
restraint,
if
needed.3.Guide
the
upper
retaining
strap
between
or
along
both
sides
of
the
supports
for
the
head
restraint
to
the
anchor.
Middle
seat:
raise
the
head
restraint,
if
needed,
press
the
button
on
the
mounts
for this
purpose.
Guide
the
upper
retaining
strap
between
or
along
both
sides
of
the
supports of
the
head
restraint
to
the
anchor.4.If
there
is
a
retaining
strap,
run
it
between
the
backrest
and
the
cargo
cover.5.Attach
the
hook
of
the
retaining
strap
to
the
anchor.6.Tighten
the
retaining
strap
by
pulling
it
down.7.Lower
and
engage
head
restraint
as
needed.
Locking
the
doors
and
windows
in
the
rear
General
information In
certain
situations
it
may
be
advisable
to
securethe
rear
doors
and
windows,
for
instance
when
transporting
children.
Doors
Push
the
locking
lever
on
the
rear
doors
up.
The
door
can
now
be
opened
from
the
outside
only.
Safety
switch
for
the
rear Press
the
button
on
the
driver's
door.
This
locks
various
functions
so
that
they
cannot
be
operated
from
the
rear.
Additional
information:
Safety
switch,
refer
to
page
109.
Seite
141Transporting
children
safelyCONTROLS141
Online
Edition
for
Part
no.
01405A11056
-
VI/20

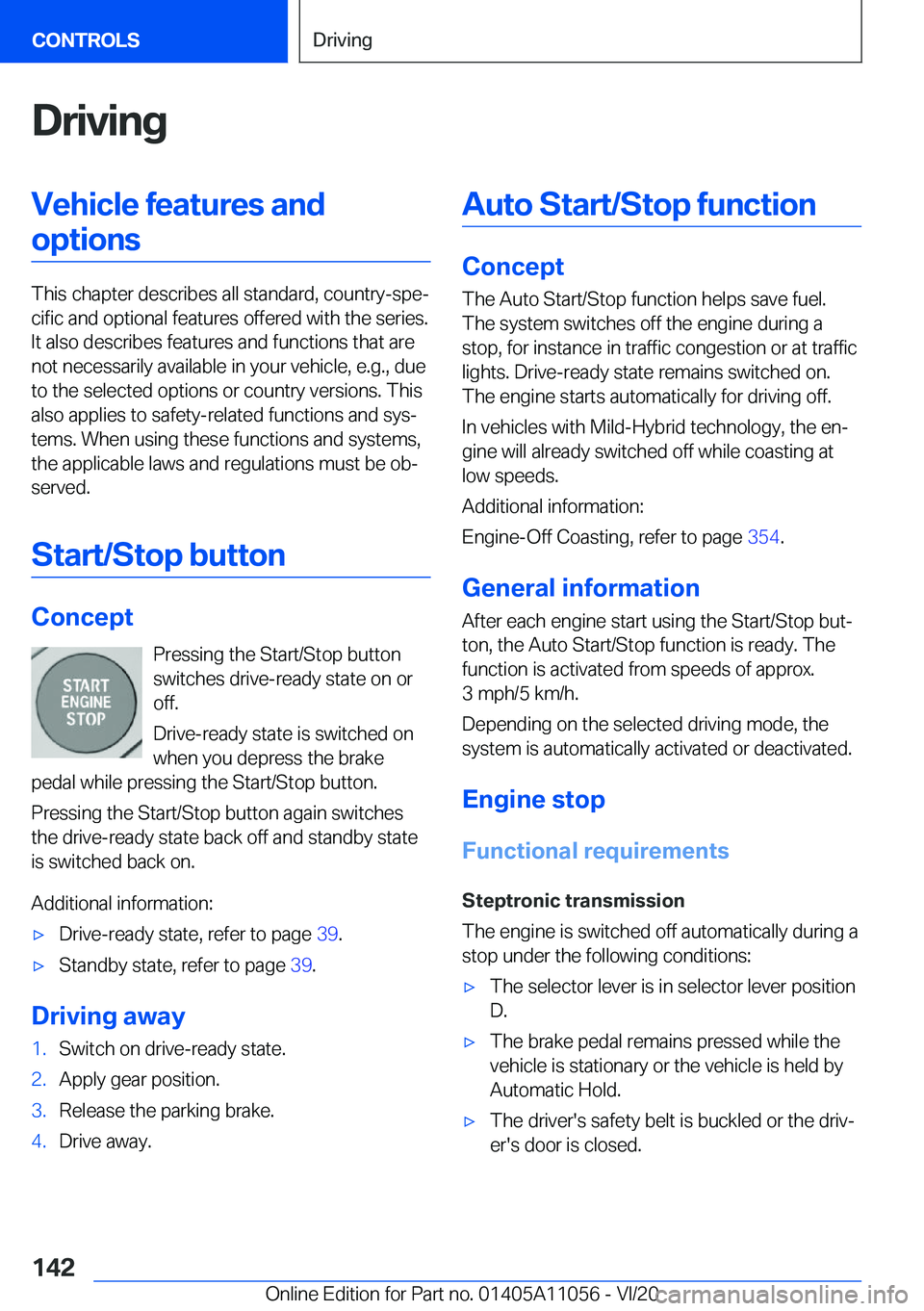

DrivingVehicle
features
andoptions
This
chapter
describes
all
standard,
country-spe#jcific
and
optional
features
offered
with
the
series. It
also
describes
features
and
functions
that
are
not
necessarily
available
in
your
vehicle,
e.g.,
due to
the
selected
options
or
country
versions.
Thisalso
applies
to
safety-related
functions
and
sys#j
tems.
When
using
these
functions
and
systems,
the
applicable
laws
and
regulations
must
be
ob#j
served.
Start/Stop
button
Concept Pressing
the
Start/Stop
button
switches
drive-ready
state
on
or
off.
Drive-ready
state
is
switched
on
when
you
depress
the
brake
pedal
while
pressing
the
Start/Stop
button.
Pressing
the
Start/Stop
button
again
switches the
drive-ready
state
back
off
and
standby
state
is
switched
back
on.
Additional
information:
'xDrive-ready
state,
refer
to
page
39.'xStandby
state,
refer
to
page
39.
Driving
away
1.Switch
on
drive-ready
state.2.Apply
gear
position.3.Release
the
parking
brake.4.Drive
away.Auto
Start/Stop
function
Concept
The
Auto
Start/Stop
function
helps
save
fuel.
The
system
switches
off
the
engine
during
a stop,
for
instance
in
traffic
congestion
or
at
traffic
lights.
Drive-ready
state
remains
switched
on.
The
engine
starts
automatically
for
driving
off.
In
vehicles
with
Mild-Hybrid
technology,
the
en#j gine
will
already
switched
off
while
coasting
at
low
speeds.
Additional
information:
Engine-Off
Coasting,
refer
to
page
354.
General
information
After
each
engine
start
using
the
Start/Stop
but#j ton,
the
Auto
Start/Stop
function
is
ready.
The
function
is
activated
from
speeds
of
approx. 3
mph/5
km/h.
Depending
on
the
selected
driving
mode,
the
system
is
automatically
activated
or
deactivated.
Engine
stop
Functional
requirements Steptronic
transmission
The
engine
is
switched
off
automatically
during
a
stop
under
the
following
conditions:
'xThe
selector
lever
is
in
selector
lever
position D.'xThe
brake
pedal
remains
pressed
while
the
vehicle
is
stationary
or
the
vehicle
is
held
by Automatic
Hold.'xThe
driver's
safety
belt
is
buckled
or
the
driv#jer's
door
is
closed.Seite
142CONTROLSDriving142
Online
Edition
for
Part
no.
01405A11056
-
VI/20

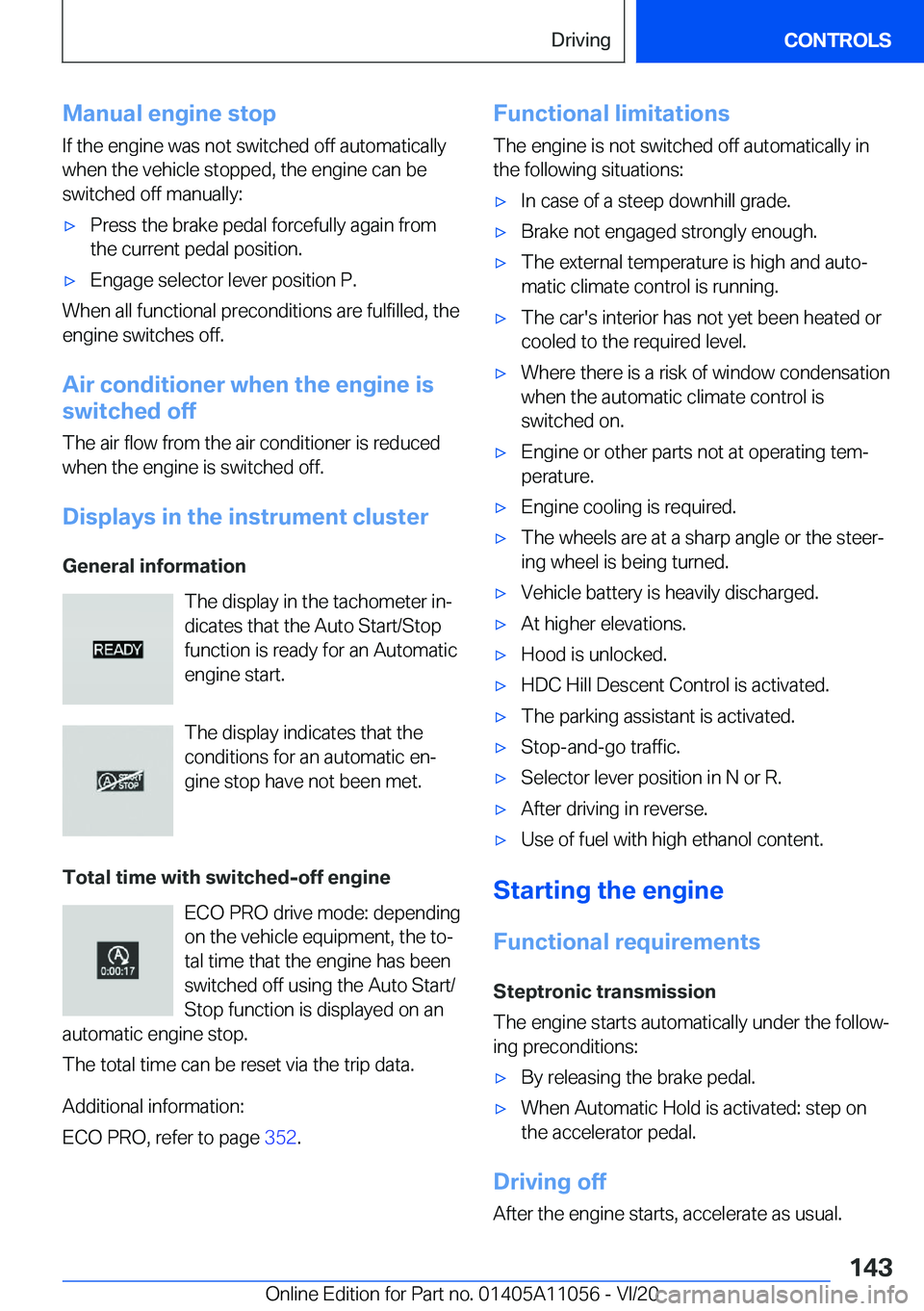

Manual
engine
stopIf
the
engine
was
not
switched
off
automaticallywhen
the
vehicle
stopped,
the
engine
can
be
switched
off
manually:'xPress
the
brake
pedal
forcefully
again
from the
current
pedal
position.'xEngage
selector
lever
position
P.
When
all
functional
preconditions
are
fulfilled,
theengine
switches
off.
Air
conditioner
when
the
engine
is
switched
off
The
air
flow
from
the
air
conditioner
is
reduced
when
the
engine
is
switched
off.
Displays
in
the
instrument
cluster
General
information The
display
in
the
tachometer
in#j
dicates
that
the
Auto
Start/Stop
function
is
ready
for
an
Automatic engine
start.
The
display
indicates
that
the
conditions
for
an
automatic
en#j
gine
stop
have
not
been
met.
Total
time
with
switched-off
engine ECO
PRO
drive
mode:
depending
on
the
vehicle
equipment,
the
to#j
tal
time
that
the
engine
has
been
switched
off
using
the
Auto
Start/
Stop
function
is
displayed
on
an
automatic
engine
stop.
The
total
time
can
be
reset
via
the
trip
data.
Additional
information:
ECO
PRO,
refer
to
page
352.
Functional
limitations
The
engine
is
not
switched
off
automatically
in
the
following
situations:'xIn
case
of
a
steep
downhill
grade.'xBrake
not
engaged
strongly
enough.'xThe
external
temperature
is
high
and
auto#j
matic
climate
control
is
running.'xThe
car's
interior
has
not
yet
been
heated
or cooled
to
the
required
level.'xWhere
there
is
a
risk
of
window
condensation
when
the
automatic
climate
control
is
switched
on.'xEngine
or
other
parts
not
at
operating
tem#j perature.'xEngine
cooling
is
required.'xThe
wheels
are
at
a
sharp
angle
or
the
steer#jing
wheel
is
being
turned.'xVehicle
battery
is
heavily
discharged.'xAt
higher
elevations.'xHood
is
unlocked.'xHDC
Hill
Descent
Control
is
activated.'xThe
parking
assistant
is
activated.'xStop-and-go
traffic.'xSelector
lever
position
in
N
or
R.'xAfter
driving
in
reverse.'xUse
of
fuel
with
high
ethanol
content.
Starting
the
engine
Functional
requirements Steptronic
transmission
The
engine
starts
automatically
under
the
follow#j
ing
preconditions:
'xBy
releasing
the
brake
pedal.'xWhen
Automatic
Hold
is
activated:
step
on
the
accelerator
pedal.
Driving
off
After
the
engine
starts,
accelerate
as
usual.
Seite
143DrivingCONTROLS143
Online
Edition
for
Part
no.
01405A11056
-
VI/20

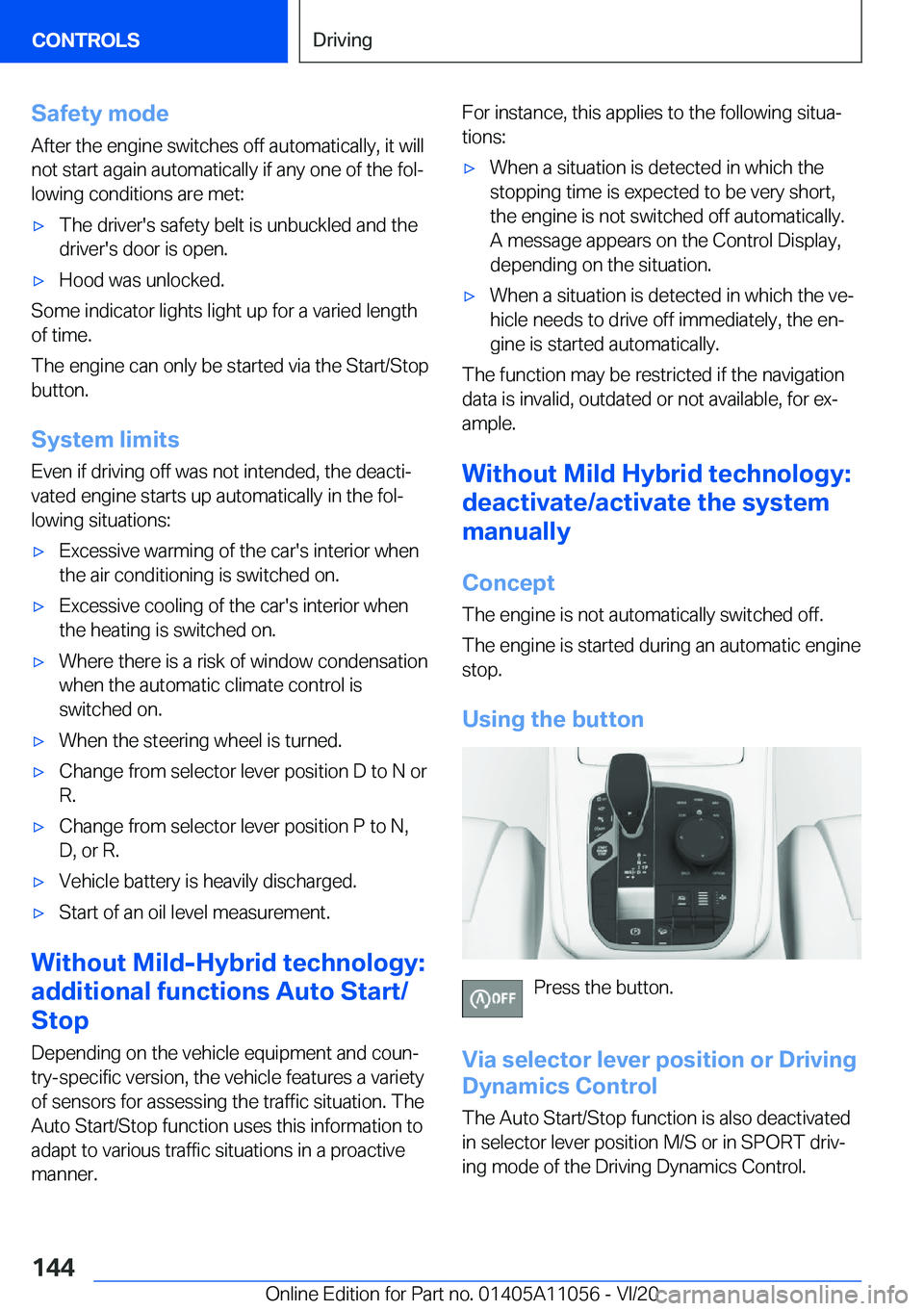

Safety
mode
After
the
engine
switches
off
automatically,
it
will not
start
again
automatically
if
any
one
of
the
fol#j
lowing
conditions
are
met:'xThe
driver's
safety
belt
is
unbuckled
and
the
driver's
door
is
open.'xHood
was
unlocked.
Some
indicator
lights
light
up
for
a
varied
length of
time.
The
engine
can
only
be
started
via
the
Start/Stop button.
System
limits
Even
if
driving
off
was
not
intended,
the
deacti#j vated
engine
starts
up
automatically
in
the
fol#jlowing
situations:
'xExcessive
warming
of
the
car's
interior
when
the
air
conditioning
is
switched
on.'xExcessive
cooling
of
the
car's
interior
when
the
heating
is
switched
on.'xWhere
there
is
a
risk
of
window
condensation
when
the
automatic
climate
control
is
switched
on.'xWhen
the
steering
wheel
is
turned.'xChange
from
selector
lever
position
D
to
N
or
R.'xChange
from
selector
lever
position
P
to
N, D,
or
R.'xVehicle
battery
is
heavily
discharged.'xStart
of
an
oil
level
measurement.
Without
Mild-Hybrid
technology:
additional
functions
Auto
Start/
Stop
Depending
on
the
vehicle
equipment
and
coun#j
try-specific
version,
the
vehicle
features
a
variety of
sensors
for
assessing
the
traffic
situation.
The
Auto
Start/Stop
function
uses
this
information
to adapt
to
various
traffic
situations
in
a
proactivemanner.
For
instance,
this
applies
to
the
following
situa#j
tions:'xWhen
a
situation
is
detected
in
which
the
stopping
time
is
expected
to
be
very
short,
the
engine
is
not
switched
off
automatically.
A
message
appears
on
the
Control
Display,
depending
on
the
situation.'xWhen
a
situation
is
detected
in
which
the
ve#j
hicle
needs
to
drive
off
immediately,
the
en#j
gine
is
started
automatically.
The
function
may
be
restricted
if
the
navigation
data
is
invalid,
outdated
or
not
available,
for
ex#j
ample.
Without
Mild
Hybrid
technology:
deactivate/activate
the
system
manually
Concept
The
engine
is
not
automatically
switched
off.
The
engine
is
started
during
an
automatic
engine
stop.
Using
the
button
Press
the
button.
Via
selector
lever
position
or
Driving
Dynamics
Control
The
Auto
Start/Stop
function
is
also
deactivatedin
selector
lever
position
M/S
or
in
SPORT
driv#j
ing
mode
of
the
Driving
Dynamics
Control.
