2021 AUDI Q2 navigation system

Navigation
Route criteria: Refer to
^>page
217, Route crite­

ria.

Show location on map: Important: You must
have seLected a destination from the results list.
The destination entered will be shown on the

map.

Parking
at
this location*: Important: You must
have seLected a destination from the results list.
All the parking facilities near the location selec­
ted are shown on the infotainment display.
Delete: The selected entry will be deleted. You
can delete individual entries or all the entries

(e.g.
favourites or last destinations).
Audi connect at this location*: Important: You
must have selected a destination from the re­
sults list. This allows you to search for e.g. travel
information in the vicinity of the seLected loca­

tion.

Online traffic data*: The online traffic informa­
tion
tapage
226 can be switched
on/off.

Add destination to contact: Refer to

^>page
216.
Store as favourite: Refer to
<^page
216.
Voice guidance: Refer to
^page
218.
Navigation settings: Refer to
<=>page
217.
(T)
Note

Information on online traffic data* can be
found on the Internet at www.audi.com.
Personal route assist

Applies
to: vehicles with navigation system and personal

route
assist
Your MMI system can memorise routes
that
you
frequently follow and suggest them based on
your vehicle's current location (e.g. the daily
route
to
your workplace and back).

yi

::

Fig.
177 Example: Personal route display

Fig.
178 Personal route tip

•
Press the |NAV/MAP| button repeatedly until
the Enter destination menu is displayed

^page
207, Fig. 172.

*•
Select: right control button > Personal route
assist.
When the function is activated
fcTÎ,
the MMI re­
cords routes you frequently follow (even if
you
do
not enter the destinations and start route
guid­

ance).
If route guidance is not active, your personal
routes are listed below the home address in the
Enter destination menu and marked with the

symbol^®
^>Fig.
177. This symbol is displayed
in the status line on the infotainment display
while the personal route assist function is switch­
ed on and the navigation menu is active. •
214

Navigation

CO
< o rN
IV
rN
•-H

•H
00
The distance to the destination and the estima­
ted time of arrival are also displayed for your per­
sonal routes. Even before route guidance is star­

ted,
your MMI system monitors the traffic situa­
tion for your personal routes and the infotain­
ment display shows possible traffic disruptions
along the route you will probably take (2)

*>Fig.
177.
A message is displayed if there are any Larger
traffic disruptions (more than 7 minutes delay),
irrespective of which menu is selected
<=>Fig.
178.
Select and confirm one of the following options:
- Start route guidance: The MMI starts route
guidance for the personal route shown and
searches for
a
faster route (if one is available).
- Ignore this route and this message: The desti­
nation shown and all of the corresponding per­
sonal routes are no Longer taken into account
on the current trip. No more messages are dis­
played for the destination shown. The destina­
tion shown and
all
the corresponding personal
routes are ignored until the car is parked and
the ignition is subsequently switched on again.
- Ignore all messages: All of the personal routes
are ignored for the current trip. No more mes­
sages are displayed. Messages for traffic dis­
ruptions on the personal routes are not dis­
played again until the car is parked and the ig­
nition is subsequently switched on again.
The symbol disappears from the status line and
your trips are no longer recorded as soon as you
switch off the personal route assist function.
Trips which have already been recorded remain

stored.

Deleting a personal route:
- Select the desired personal route in the Enter
destination menu
®
^>Fig.
177.
- SeLect: right control button > Delete destina­

tion.

Deleting all personal routes:
- Select:
|MENU]
button > Settings
>
left control
button > MMI settings > Factory settings.
- Select: Navigation and online memory
>
Re­
store factory settings
^page
256.
- Personal routes are memorised depending
on your vehicle's location. Routes are priori­
tised depending on how often you drive to a
destination.
- Up to three personal routes are displayed in
the Enter destination menu. The traffic sit­
uation is always monitored for the three
routes most likely to be followed depending
on your vehicle's current location.
- Please note that, once a personal route has
been stored, it remains stored after the
function is deactivated (i.e. it has to be de­
leted manually).
- This function is not available in the Mexican
market.
Home address
Applies to: vehicles with navigation system

•
Press the |NAV/MAP| button repeatedly until
the Enter destination menu is displayed

<> page
207, Fig. 172.
Storing a home address
- Select and confirm Home address (2)

<=>page
207, Fig. 172. After calling up the
home address for the first time, you will be
asked to set
a
home address.
- Select and confirm Create now.
- Enter
a
destination or select
a
destination from
the list. Or:
- Select and confirm a destination > right control
button > Store as home address.
A home address is stored in the MMI regardless
of any mobile phone which may be connected.
This home address is always available, even if no
mobiLe phone is connected to the MMI.
Editing home address
- Select the Home address (2)
Opage
207,
Fig. 172.
- Select: right controL button > Edit home ad­

dress.

- Select and confirm a new destination as the
home address.
215

Navigation
The seLected destination will
be
stored
as the

new home address.
Favourites

Applies
to:
vehicles with navigation system

•
Press
the |NAV/MAP|
button repeatedly until
the Enter destination menu
is
displayed

•=>page
207,
Fig.
172.

- To store
a
destination as a favourite: Search
for
the
desired destination using
the
entry

field.
Or:
Select and confirm
a
destination from
the List. Select: right controL button > Store
as

favourite.
- To rename a favourite: Select
the
left control
button
>
Favourites
>
a
favourite from
the
list
> right controL button
>
Rename favourite.
- To move a favourite: Select
a
favourite from
the list
>
right control button
>
Move favourite.
SeLect and confirm
the
position
of
the favourite

selected.

- To delete
a
favourite: Select
a
favourite from
the list
>
right control button
>
Delete favour­
ite > Delete this favourite
or
Delete
all
favour­

ites.

Directory contacts

Applies
to:
vehicles with navigation system
Two addresses (private/business)
can
be stored
as
a
destination
for
each
contact
in the
directo­

ry-

• Press
the |NAV/MAP|
button repeatedly until
the Enter destination menu
is
displayed

=>page
207,
Fig.
172.

Storing
a
destination
as a
contact
in the

directory
Important:
A
mobile phone must
be
connected
to
the MMI
system
^>page
173.

- SeLect
a
destination
>
right control button
>

Add destination
to
contact.
- SeLect and confirm Add business destination
or

Add private destination.
- Enter a name.
Or:
SeLect and confirm a directo­
ry contact from
the
list.
- Select and confirm Store business card.
Alternative routes

Applies
to:
vehicles with navigation system

.--. -*
_
o Ï

J»
Berlin
*

&£
% I
&
-•
O

si
on a

Fig.
179
Display
of
alternative routes
on the
overview
map

Important:
A
destination must have been
en­

tered and
you
must have started route guidance.

>
Press
the |NAV/MAP|
button repeatedly until
the Enter destination menu
is
displayed

<$page
207,
Fig.
172.

*•
Select: right control button
>
Navigation set­
tings
>
Always display alternative routes.
Three routes will
be
displayed
on the
overview
map
G
Fig.
179.

•
SeLect and confirm
the
route which
you
would
like
to use for
route guidance.
When this function
is
switched
on
|vf,
up to
three
suggested routes
and
their characteristics
are

displayed
on the
overview
map
=>F/g.
179.

The following information
(if
available)
is
dis­
played
in the
route suggestions:
- Route type
(fast(T),
alternative
fast
(2),
eco­
nomical
routed))

- Distance
to
destination
and
estimated time
of

arrival
- Level
of
congestion
on the
route including
length
of
delay
The route which
was
calculated
on the
basis
of

the selected route criteria
is
highlighted
on the

overview map. Further information
on
particular
characteristics
of
your route
(4)<=*Fig.
179 is
also
shown
on the
display and read
out.

You
can use the
rotary pushbutton
to
preselect
the possible alternative routes
and
have them
displayed
on the map.
Select and confirm
the

route which
you
would Like
to use for
route
guid­

ance.

216

Navigation

CO

â

rN
rN
t-H
O
<

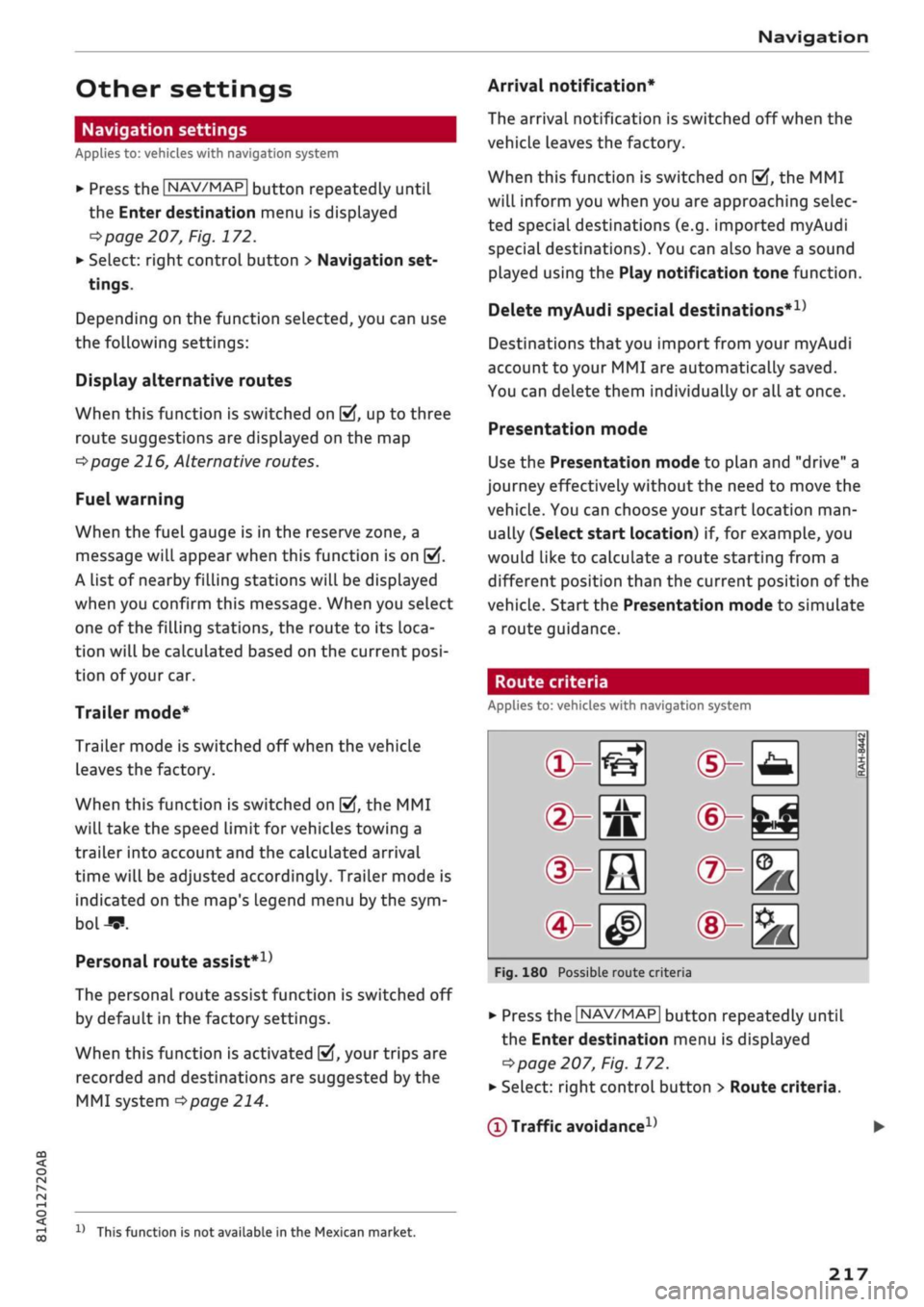

Other settings

Navigation settings

Applies
to:
vehicles with navigation system

•
Press
the |NAV/MAP|
button repeatedly until
the Enter destination menu
is
displayed

o
page
207,
Fig.
172.

•
Select: right control button
>
Navigation set­

tings.

Depending
on the
function seLected,
you can use

the following settings:
Display alternative routes
When this function
is
switched
on
|vj,
up to
three
route suggestions
are
displayed
on the map

^>page
216,
Alternative routes.
Fuel warning
When
the
fuel gauge
is in the
reserve zone,
a

message will appear when this function
is on
[vf.

A list
of
nearby filling stations will
be
displayed
when you confirm this message. When
you
select
one
of
the filling stations,
the
route
to its
loca­
tion will
be
calculated based
on the
current
posi­

tion
of
your
car.

Trailer mode*
Trailer mode
is
switched
off
when
the
vehicle
leaves
the
factory.
When this function
is
switched
on
|vf,
the MMI

will take
the
speed limit
for
vehicles towing
a

trailer into account and
the
calculated arrival
time will
be
adjusted accordingly. Trailer mode
is

indicated
on the
map's legend menu
by the
sym­

bol-*!.

Personal route assist*1)
The personal route assist function
is
switched
off

by default
in the
factory settings.
When this function
is
activated
EÎ,
your trips
are

recorded
and
destinations
are
suggested by
the

MMI system
^>page
214.

Arrival notification*
The arrival notification
is
switched
off
when
the

vehicle leaves
the
factory.
When this function
is
switched
on
@f,
the MMI

will inform
you
when
you are
approaching selec­
ted special destinations (e.g. imported myAudi
special destinations). You
can
also have a sound
played using
the
Play notification tone function.
Delete myAudi special destinations*11
Destinations that you import from your myAudi
account
to
your
MMI are
automatically saved.
You
can
delete them individually
or all at
once.
Presentation mode
Use
the
Presentation mode
to
plan
and
"drive"
a

journey effectively without
the
need
to
move
the

vehicle. You
can
choose your start Location
man­

ually (Select start location)
if, for
example,
you

would like
to
calculate a route starting from
a

different position than
the
current position
of the

vehicle. Start
the
Presentation mode
to
simulate
a route guidance.
Route criteria

Applies
to:
vehicles with navigation system

®-«?

dHft

d^e

(S^#

Fig.
180
Possible route crite

1 1
1

®-feJ

®-fc

®-3K

ria

•
Press
the |NAV/MAP|
button repeatedly until
the Enter destination menu
is
displayed

=>page
207,
Fig.
172.

•
Select: right control button > Route criteria.

(T)
Traffic avoidance
D

x)
This function
is
not
available
in the
Mexican market.
217

Navigation
- automatic: The route is automatically
opti­

mised using the current traffic information. If
the MMI system does not display
a
detour route
although the automatic traffic avoidance func­
tion is on and a traffic jam has been reported
on the planned route, this is because the
esti­

mated time required for the detour is longer
than the delay on the route with the traffic jam.
- manual: The MMI indicates that
a
better route
is available and informs you of the potential
time saving
^>page
226. You can then choose
which route you would like to use.
- off: The route is not updated automatically. No
optimised route is suggested.
(2) Motorways/ (f) Vignette roads1)/ (4) Toll
roads/(?)
Ferries1)/©Motorail1);
If
you
do not
wish
for
the navigation system to include motor­

ways,
vignette/toll roads, ferries or car trains
when calculating the route, you can select the
option avoid.

(7)
Time restricted
-
avoid:
Roads that are closed at certain times of
the day (e.g. pedestrian zones) are excluded
from the route calculation.
- automatic: The MMI system determines wheth­
er the restricted road can be included in the
route calculation based on the time tables cur­
rently stored in the navigation data.
- with: Roads that are closed at certain times of
the day are included in the route calculation.

(§)
Seasonally restricted1)
-
avoid:
Roads that are closed seasonally (e.g.
mountain passes) are excluded from the route
calculation.
- automatic: The MMI system determines wheth­
er the seasonally restricted road can be
inclu­

ded in the route calculation based on the time
tables currently stored in the navigation data.
-
with:
Roads that are closed seasonally are in­
cluded in the route calculation.
Voice guidance
Applies to: vehicles with navigation system

»•
Press the |NAV/MAP| button repeatedly until
the Enter destination menu is displayed

^page
207, Fig. 172.

•
Select: right control button
>
Voice guidance.
Voice guidance: The navigation cues can be
played in complete or compact form. You can use
the traffic option to have the system play only
those announcements on traffic obstructions
that are relevant
for
your route. SeLect off if you
do not want the system to play any navigation

cues.

Voice guidance during calls: Navigation cues
during a telephone call can be switched on/off.
Entertainment fader: Refer to
•=>page
261.
Volume of spoken cues: You can change the
vol­

ume of
a
spoken cue while it is being played us­
ing the ON/OFF button
opage
152. Further in­
formation can be found on
^>page
261.

11
This function is not available in the Mexican market.
218

Navigation

CO
< o rN
IV
rN
t-H
o <
00
Map
How to
use
the map

Applies
to: vehicles with navigation system
H

an^fc Hetnuc'ijlo

'
in
1,2 km
Blaubach
in
1,0
km
Autobahn-Flugh

Fig.
181 Example: Standard map with crosshairs switched

off

Aachen
AlexanderstraBe Komphausbad da n se m an n pi
a

Fig.
182 Example: Standard map with crosshairs switched

on

•
Press the |NAV/MAP| button repeatedly until
the map is displayed
^Fig.
181.
Zooming in/out on map
- Turn the rotary pushbutton clockwise or
anti­

clockwise. You can also zoom in or out on the
map using the MMI touch
pad*
^>page
157. Or:
Scroll the left thumbwheel on the multi-func­
tion steering wheel*
^>page
16.
Switching the crosshairs on/off
- To switch on the crosshairs: Press the rotary
pushbutton while the map is displayed

^Fig.
181.
- To switch off the crosshairs: Press the |BACK|

button.

With the crosshairs switched off
•=>
Fig.
181:

(l)
Orientation: The map is displayed either in
the 2D north
or
the 2D driving position per­
spective.

1J
Applies to vehicles without camera-based speed limit
dis­

play
only
(2) Distance to the destination
(D When the trailer mode function is switched
on
[vj,
a corresponding symbol is shown next
to the arrival time.
(4) Scale: Turn the rotary pushbutton clockwise/
anti-clockwise to zoom in or out. When the
Automatic zoom function is switched on
(vf,

an "A" for "automatic" is shown in the zoom

symbol.

(D Altitude
(?) Location of the vehicle
(7) Route information: Various information is
displayed during route guidance (e.g. the up­
coming manoeuvre including the calculated
distance and road name). Traffic information
or special destinations on your current route
are also displayed.
(D Road the vehicle is currently on. When the
vehicle is stationary, "offroad" is displayed

here.

With the crosshairs switched on
^>Fig.
182:
(9) The crosshairs: Move the crosshairs in the de­
sired direction using the MMI touch padVro-
tary pushbutton and select an item on the
map as the destination. Alternatively, have
information displayed on the map item.
© Speed display1); Display of the maximum
speed limit on motorways, dual carriageways
and other major roads.
© Entertainment drawer*: Refer to
^page
157.
© Additional information on the position of the
crosshairs: If
you
move the crosshairs onto a
point on the map, any existing information
on the current position of the crosshairs will
be displayed. Press the rotary pushbutton to
call up the destination details or start route
guidance. If the crosshairs are switched off,
the road you are currently on will be dis­

played.

© Map content (special destinations, favour­

ites).
If several special destinations are loca­
ted close to each other, their symbols are
stacked on the map.
219

Navigation
© Better route
If
a
better route is available
for the current route guidance, this will be
shown on the map together with the time

saved.
Further information can be found
from
^>page
226 onwards.
Further options on the map
Applies to: vehicles with navigation system
©
Whether the level of congestion is taken into
account when the route is being calculated
depends on your traffic avoidance settings

<=>
page 217.
Map functions
Applies to: vehicles with navigation system

•
Press the |NAV/MAP| button repeatedly until
the map is displayed
•=>page
219, Fig. 181.

•
Press the left control button.
The following map functions are available:
Switch to destination entry
The search function must be displayed in the En­
ter destination menu
•=>page
207, Fig. 172.
Traffic announcements
Up-to-date traffic information is shown on the in­
fotainment display. Further information can be
found from
^page
225 onwards.
Route list
The route list can only be displayed when the
route guidance function is active; it contains in­
formation on the route, road names and the
length of the route sections. On motorways, po­
tential parking areas and service stations will be

displayed.
You can select them as e.g. a stopover.
Special destinations along the route
Important: The route guidance function must be

active.

You can search for special destinations along
your current route. For more information, please
refer to
opage
211.

»•
Press the |NAV/MAP| button repeatedly until
the map is displayed
^>page
219, Fig. 181.

•
Press the right controL button.
Depending on the function chosen, the following
additional options may be available in the Map

menu:

Stop route guidance: Refer to
^>page
213
Adjust position: You can adjust the vehicle's po­
sition on the map manually and thus change the

route.

Map settings: Refer to
^>page
221.

Route criteria: Refer to
•=>page
217.
Voice guidance: Refer to
^>page
218.
Navigation settings: Refer to
<=>page
217.
Always display alternative routes: Refer to

<=>page
216.
Parking in vicinity of route*: Parking facilities
near the vehicle are displayed.
Store current position*: You can store your
vehi­

cle's current position as a favourite
opage
216
or as a contact in the directory
<^page
216.
Audi connect at this location*: Enables you to
search for e.g. Travel information in the location
entered (events, weather at destination etc.).
Online traffic data*: You can switch the onLine
traffic data on or off
(vf.

Country information: Refer to
^>page
213.
Exclude route*: When route guidance is activa­

ted,
a section of the calculated route that you
have set (max 20 km) will be avoided if possible.
The navigation system will calculate an alterna­
tive route. The route you entered will only be
blocked in the current route guidance; if re­

quired,
you will need to re-enter the route you
wish to avoid. If
you
exclude a route section, this
section will be hatched in red and white on the

map.
•
220

Navigation
Adjust route*: Move your finger
over
the MMI
touch padVrotary pushbutton to adjust the route
on the overview map.
Map settings

Applies
to: vehicles with navigation system

•
Press the
|NAV/MAP|
button repeatedly until
the map is displayed.

•
Select: right control button > Map settings.
Depending on the function seLected, you can use
the following settings:
Map colours
day/night: The map is displayed with a
Light/dark

background colour.
automatic: The colour of the map changes to
match the current light conditions (e.g. from day
to night when driving through tunnels).
Map display
Standard: Refer to
opage
219, Fig. 182.
Google Earth*: Refer to
^>page
222, Fig. 183.

Traffic*1);
Refer to
^>page
225, Fig. 187.
Map orientation
destination: The map indicates the destination
and is set to face north.
2D driving position/2D north map: The map de­
picts the vehicle's current position. The map is
set to face the direction of travel or north.
3D driving position*: The current vehicle
posi­

tion is displayed in a three-dimensional map, and
the map is set to face the direction of
travel.
If
the map scale is more than 100 km, the map is

set to
face north.
overview: The entire route from the vehicle
posi­

tion to the final destination or next stopover is
displayed on the map. The map scale varies ac­
cording to the Length of the route and is adapted
automatically. The map is set to face north.
Route information
The display of route information such as the
street you are currently on, upcoming turn-offs,
traffic information or special destinations on the
current route can be switched on/off.
Automatic zoom

on:
The map scale is adjusted automatically ac­
cording to the category of the road you are on
(motorway, major
road,
other road) to ensure

that
you always have the best possible overview
of the route ahead. When there is an upcoming
turn-off, the map display will also be automati­
cally adjusted so that you have a more detailed
view.
intersection: When route guidance is active and
there are upcoming turn-offs, the map dispLay
will temporarily switch to a more detailed scale
so that the road layout can be identified more
easily.
off: The map scale you have set will remain
unal­

tered.

Map content
The dispLay of map content such as weather in­

formation,
traffic information or favourite desti­
nations can be switched on and off.
The weather* is shown on the map if the scale is
set to 5 km or more
^>page
216, Fig. 179.

CO

rN
IV
rN
t-H
o <
x)
This function is not available in the Mexican market.
221
