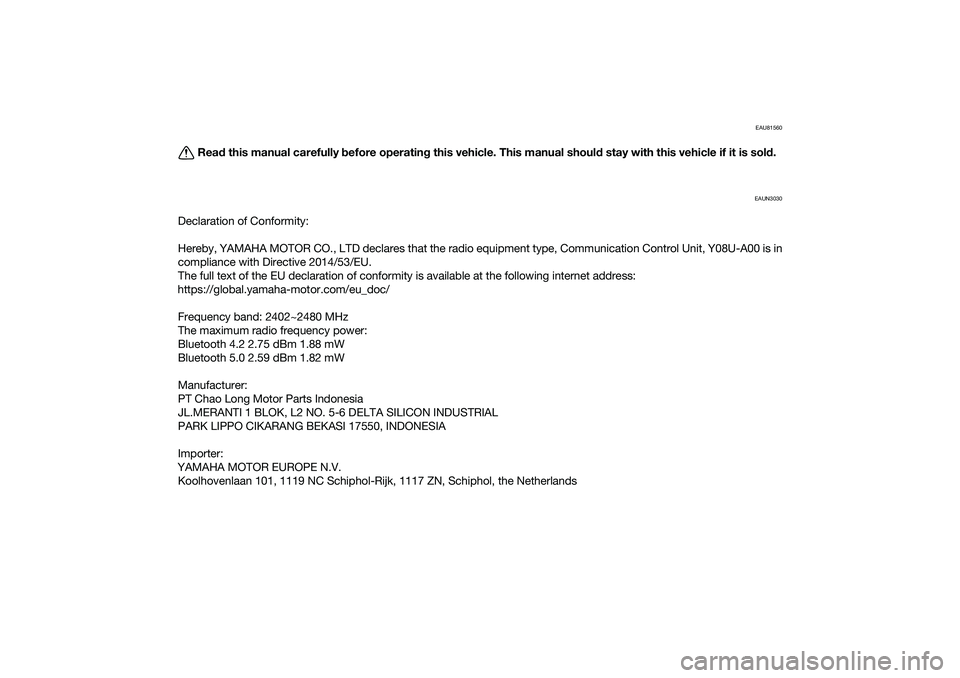

EAU81560
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
EAUN3030
Declaration of Conformity:
Hereby, YAMAHA MOTOR CO., LTD declares that the radio equipment type, Communication Control Unit, Y08U-A00 is in
compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://global.yamaha-motor.com/eu_doc/
Frequency band: 2402~2480 MHz
The maximum radio frequency power:
Bluetooth 4.2 2.75 dBm 1.88 mW
Bluetooth 5.0 2.59 dBm 1.82 mW
Manufacturer:
PT Chao Long Motor Parts Indonesia
JL.MERANTI 1 BLOK, L2 NO. 5-6 DELTA SILICON INDUSTRIAL
PARK LIPPO CIKARANG BEKASI 17550, INDONESIA
Importer:
YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, 1117 ZN, Schiphol, the NetherlandsUBALE0E0.book Page 1 Wednesday, September 30, 2020 1:37 PM
Special features
5-1
5
EAUN3012
CCU (Communication Control
Unit)This model is equipped with a CCU
that allows your vehicle and smart-
phone to connect using Bluetooth
wireless technology and the MyRide
App.
With this connection, notifications from
apps, incoming phone calls and
missed calls are signaled to you, and
the battery level of your smartphone is
displayed.
WARNING
EWAN0070
Always stop the vehicle before
operating your smartphone.
Never take your hands off the
handlebars while riding.
Always concentrate on riding by
keeping your eyes and mind on
the road.NOTICE
ECAN0150
The Bluetooth connection may not
work in the following situations.In a location exposed to strong
radio waves or other electro-
magnetic noise.
At facilities nearby that are
emitting strong radio waves (TV
or radio towers, power plants,
broadcasting stations, airports,
etc.).
Pairing the CCU and your smartphone1. Install the MyRide App on your
smartphone and activate it.TIPThe MyRide App can be downloaded
from an App store.2. Open the seat. (See page 6-17.)
3. Remove the battery cover.4. Pull out the CCU and scan its QR
code with the MyRide App.
5. When pairing is complete, the App
connect icon and smartphone
battery level meter will come on.1. Battery cover
1
1. CCU (Communication Control Unit)
2. CCU QR Code
1. App connect icon
2. Smartphone battery level meter
12
1
2
