2020 VOLVO S90 Quick Guide

MAINTENANCE AND SERVICE
}}
* Option/accessory.607
The wiper blades will also move out of the service position if:
The windshield wipers are turned on.
The windshield washers are turned on.
The rain sensor is activated.
The vehicle begins moving.
CAUTION
If the wiper arms in service position are raised from the windshield, they must befolded back against the windscreen beforeactivating wiping, washing or rain sensoras well as before departure. This is to pre-vent scratching the paint on the hood.
Related information
Using the rain sensor (p. 177)
Using the windshield and headlight wash- ers (p. 178)
Using the rain sensor's memory function(p. 178)
Filling washer fluid (p. 607)
Replacing windshield wiper blades(p. 605)
Using the windshield wipers (p. 176)
Wiper blades and washer fluid (p. 176)
Filling washer fluid Washer fluid is used to help keep the head- lights and windshield clean. Washer fluidcontaining anti-freeze should be used in verycold weather (below-freezing temperatures).
Fill washer fluid into the reservoir with the blue cover. The reservoir is used for both the windshield washer and the headlight washer
*
NOTE
When there is approximately 1 liter (1 qt) of washer fluid remaining, the message
Washer fluid Level low, refill and the
symbol will be displayed in the
instrument panel.
Recommended grade: Washer fluid recom-
mended by Volvo, with frost protection during cold weather and temperatures below the freezing point.
CAUTION
Use Volvo's original washer fluid or an equivalent fluid with the recommended pHvalue between 6 and 8, diluted as recom-mended, e.g. in a 1:1 solution with pH-neu-tral water.
CAUTION
Use washer fluid with anti-freeze when temperatures are below the freezing pointto help keep the pump, reservoir and hosesfrom freezing.
Volume: The washer fluid reservoir has a volume of 5.5 liters (5.8 qts).
Related information

Using the rain sensor (p. 177)
Using the windshield and headlight wash-ers (p. 178)
Using the rain sensor's memory function(p. 178)
Putting the wiper blades in service posi-tion (p. 606)

||
MAINTENANCE AND SERVICE
608
Replacing windshield wiper blades (p. 605)
Using the windshield wipers (p. 176)
Wiper blades and washer fluid (p. 176)

S P E C I F I C A T I O N S

SPECIFICATIONS
610
Type designationsThe decals in the vehicle contain information such as chassis number, type designation,color code, etc.
Location of decals
The illustration is general and details may vary depending on market and model.

SPECIFICATIONS
}}
611

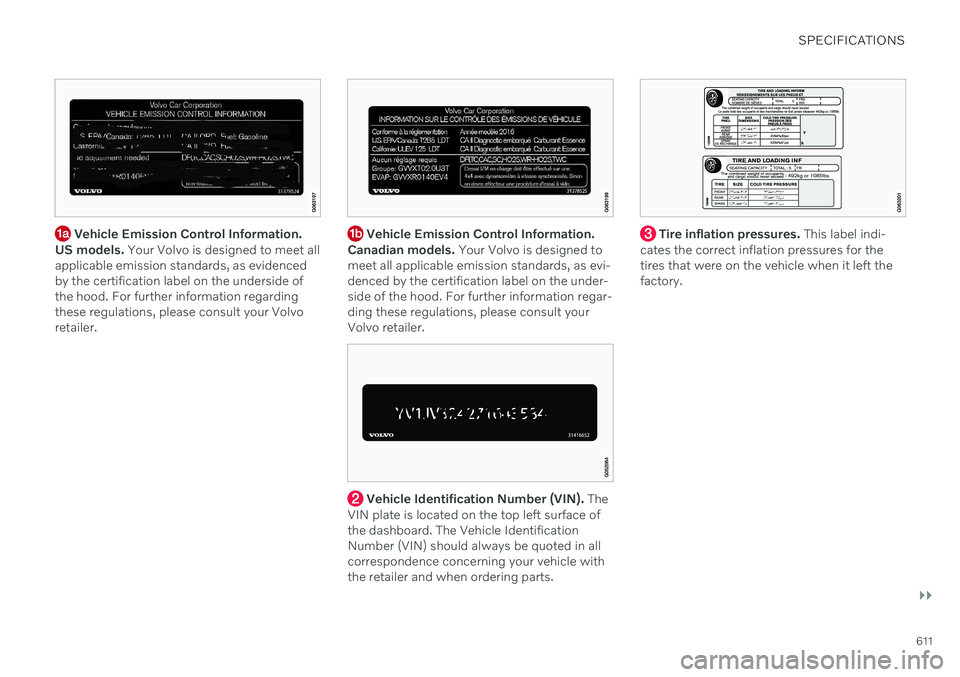

Vehicle Emission Control Information.
US models. Your Volvo is designed to meet all
applicable emission standards, as evidenced by the certification label on the underside ofthe hood. For further information regardingthese regulations, please consult your Volvoretailer. Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi- denced by the certification label on the under-side of the hood. For further information regar-ding these regulations, please consult yourVolvo retailer.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when it left thefactory.

||
SPECIFICATIONS
612
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada).Your Volvo is designed to meet all applicablesafety standards, as evidenced by the certifi-cation label on the driver's side B-pillar (thestructural member at the side of the vehicle, atthe rear of the driver's door opening). Thislabel also includes codes for paint color, etc.For further information regarding these regula-tions, please consult your Volvo retailer. U.S.models have the upper decal; Canadian mod-els have the lower one. Engine oil. This label contains the recom-
mended engine oil specifications.
Decal A/C. Refrigerant R1234yf.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions ofthose found in the vehicle. The purpose isto show approximately how they look andabout where they are located on the vehi-cle. The information that applies for yourvehicle in particular is found on the decalon the vehicle.
Related information
Air conditioning specifications (p. 619)

SPECIFICATIONS
}}
613
DimensionsThe vehicle's length, height, etc. are shown in the table.
Dimensions mm inches
A Ground clearance A
141 5.6
B Wheelbase 3061 120.5 C Length 5083 200.1
D Load length, floor, folded backrest 2098 82.6
E Load length, floor 1149 45.2 F Height B
1450 57.1Dimensions mm inches
G Load height 435 17.1 H Wheel track, front 1628C
1618 D
1617 E64.1
C
63.7 D
63.7 E
I Wheel track, rear 1629C
1619 D
1618 E64.1
C
63.7 D
63.7 EDimensions mm inches
J Load width, floor 1014 39.9
K Width 1879F
1890 G74.0
F
74.4 G

||
SPECIFICATIONS
614
Dimensions mm inches
L Width incl. rearview mirrors 2019 79.5
M Width incl. folded rearview mirrors 1895 74.6
A
At curb weight + 2 people. (Varies slightly depending on tire dimensions, chassis, etc.)
B Including roof antenna, at curb weight.
C Vehicles with 17/18-inch wheels.
D Vehicles with 19-inch wheels.
E Vehicles with 20-inch wheels.
F Chassis width.
G At door moldings.
Related information
Weights (p. 615)
