2020 TOYOTA RAV4 HYBRID Owners Manual (in English)

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: If battery is disconnected, the power back door needs to be reinit\
ialized.
1. When the liftgate reaches the desired height, push the rear liftgate \
close-button POUIFEPPSKBNPGUIFMJGUHBUF
PODF1SFTTBOEIPMEUIFCVUUPOVOUJMUIFCV[[FS
TPVOET UJNFT

2. To reset the height, with the liftgate open and not moving, press and\
hold the rear liftgate close-button until the buzzer sounds 4 times, and continue\
to hold
until it buzzes again -then let go. Push the same button to close the li\
ftgate.
When you next open the liftgate, it will open to the maximum height.
3. To set the height using the Multi-Information Display, press “
” or “” meter
control switches and select “
” from the MID. Press “” or “” and select
and then press “”. Select Opening Adjustment, then press “”. Select
EFTJSFEQPTJUJPO IFJHIUPQUJPOTUPDIPPTFGSPN

UIFOQSFTTi
”.
For more details, refer to the Owner’s Manual. To automatically open/close Power Liftgate
Quickly swipe your foot near the
lower center part of the rear bumper for within 1 second to trigger sens\
or. To
operate, make sure that the touchless sensor operation is enabled and th\
at you are
carrying the remote.
Rear door-Power Liftgate (if equipped)
Instrument panel
Power Liftgate (back door)
Hands-Free, Foot-Activated Power Liftgate
(if equipped)
Open: Push and hold
Close: Push and hold again
(close only)
Sensor area
(open only)
Carry Smart
Key remote
PROGRAMMABLE POWER LIFTGATE

16
Tilt & telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Lock release lever Angle
Unlock
Lock
Door locks
Windows-Power
All window auto up/down Push the switch completely down or pull it completely
up and release to fully open or close. To stop window partway, lightly p\
ush the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Driver side
Up
Down
Window lock switch
FEATURES & OPERATIONS

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

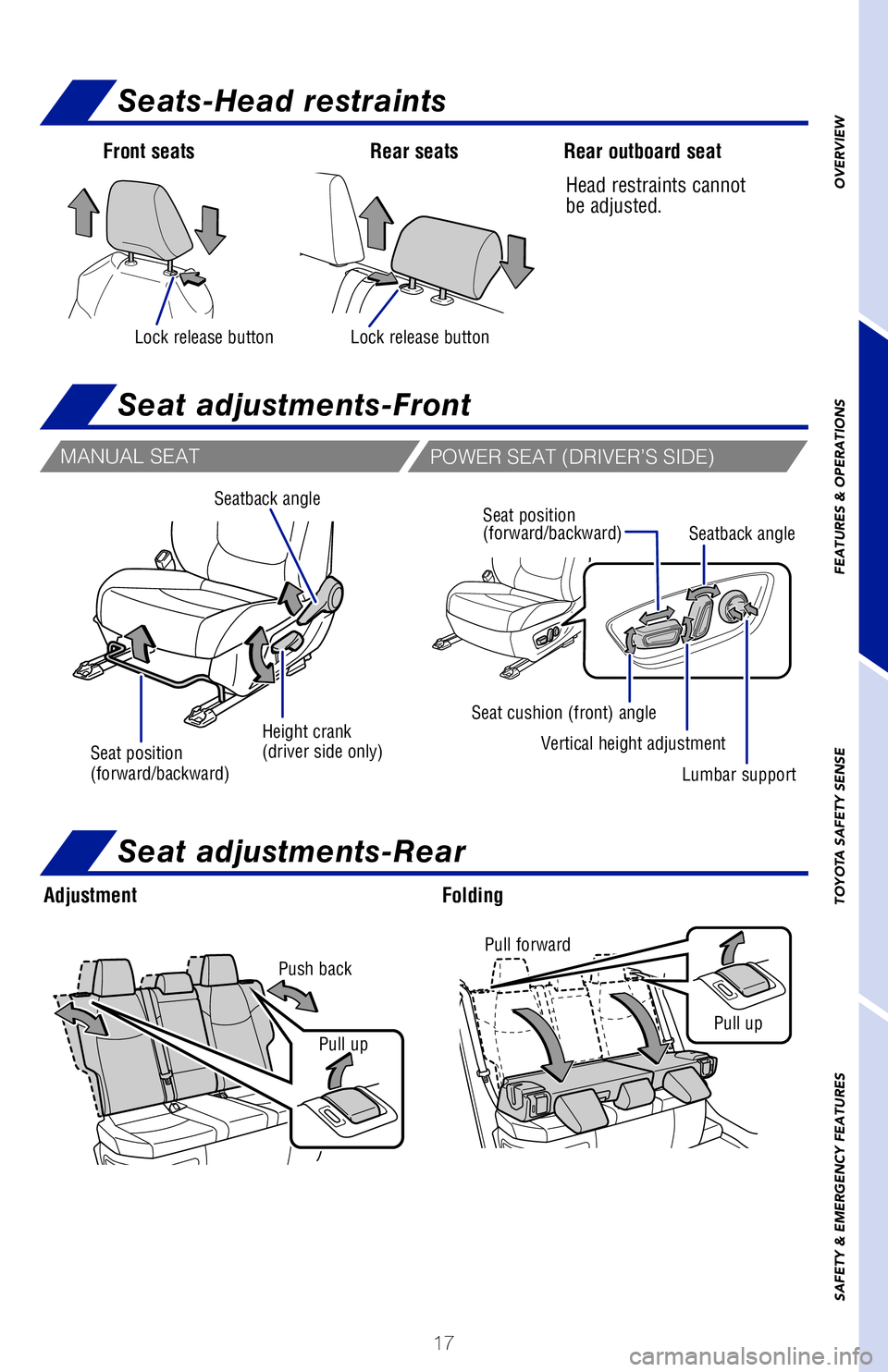

Seat adjustments-Front
Seats-Head restraints
Lock release buttonLock release button
Head restraints cannot
be adjusted.
Front seats Rear outboard seat
Rear seats
MANUAL SEAT
108&34&"5 %3*7&344*%&

Seat position
(forward/backward)Height crank
(driver side only)
Seatback angle
Seat position
(forward/backward)Seatback angle
Lumbar support
Vertical height adjustment
Seat cushion (front) angle
Seat adjustments-Rear
Pull upPull up
Push back
Pull forward
Folding
Adjustment

18
FEATURES & OPERATIONS
1 The right hand signals will flash three times.2 The left hand signals will flash three times.
Right turn
Lane change
1
Lane change2
Left turn
Lights & turn signals
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night.
Automatic light cut off system Automatically turns lights off after 30 second
delay, or lock switch on remote is pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Ow\
ner’s Manual
for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
Type AType B
HEADLIGHTS
Parking lights
Low beam
High beam
Automatic High beam* or
Auto
Headlights
DRL OFF Parking lights
DRL ON Headlights
OFF
High beam flasher
TURN SIGNALS

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Windshield wipers & washers
Front fog lights come on only when the headlights are on low beam.
Turn
OFF
ON
FRONT
*Intermittent windshield wiper
frequency adjustment Rotate to
increase/decrease wipe frequency. *
Rain-sensing windshield wiper Rotate
to increase/decrease sensor sensitivity.
Intermittent (if equipped)
Adjust frequency*
Adjust frequency*Single wipeSingle wipe
Interval wipeInterval wipe
Slow Slow
FastFastPull to wash
and wipePull to wash
and wipe
Off
Off
Rain-sensing (if equipped)
REAR
Single wipe
Interval wipe
Off
Push to Wash and wipe
'0(-*()54 *'&26*11&%

Cup holders
FRONT REAR

20
FEATURES & OPERATIONS
Moonroof (if equipped)
Recommended driving position to
minimize wind noise.
Push once to open partway; again
to open completely.
SLIDING OPERATION
TILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway.
Push once to open completely.
Tilt
Close
Open
Close
Clock

1VTIiMENU” button next to the screen.

4FMFDUiSetup” or “General ” in the touch screen to access the general settings
screen.

4FMFDUiClock. ”

5IFOTFMFDUEFTJSFEJUFNTUPCFSFTFU

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Premium Audio only
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO*.
Select to set to automatic
GPS adjustment of clock.
Select to set hour display
to 12 or 24 hour time.

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SLIDING OPERATION
TILTING OPERATION
Open - Slide and hold the switch backward.
The electronic sunshade will open fully
automatically.*
Close - Slide and hold the
switch forward.
The electronic sunshade will close fully
automatically.*
Open - Slide and hold the switch backward.
The panoramic moonroof and electronic
sunshade will open automatically.*
Close - Slide and hold the switch forward.
The panoramic moonroof will fully close
automatically.
Tilt-up - Press the center of the switch to
tilt the panoramic moonroof up. When the
panoramic moonroof is tilted up, the electronic
sunshade opens to the half-open position.
Tilt-down - Press and hold the
switch to tilt
down. The panoramic moonroof can be tilted
down only when it is in the tilt-up position.
Note: The panoramic moonroof can be opened from the tilt-up position. Al\
so,
lightly pressing the
switch again stops the panoramic moonroof partway.
* Note: Quickly slide and release the switch in either direction to stop\
the
electronic sunshade partway.
* Note: Quickly slide and release the switch in either direction to stop\
the
panoramic moonroof partway. Open and closing the electronic sunshade
Open and closing the panoramic moonroof
Tilting the panoramic moonroof up and down
Open
Open
Close
Close
Panoramic moonroof (if equipped)

22
FEATURES & OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority whi\
le
driving. Do not use the Audio Multimedia system if it will distract you.\
Back switch
Volume control
Microphone
Voice command
switch
Start and end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)
