Page 21 of 52
19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Rear view monitor system
See-through view switch See-through view switchRotation pause switch Rotation pause switch
The Bird’s Eye View Camera with Perimeter Scan function assists the driver in
viewing the surroundings, when operating at low speeds or parking, by combining
front, side and rear cameras and displaying an overhead image on the Audio
Multimedia system screen.
To view or turn OFF the screen, press the camera switch when the shift lever is in
the “P” position. It will display two angles, the Moving view and the See Through
view.
For limitations and more details, refer to section 6-3 in the “Navigation and
Multimedia System Owner’s Manual.”
Moving viewSee through view
Bird’s Eye View Camera
with Perimeter Scan Function
(if equipped)
Body color setting switch Body color setting switch
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button
and select “Display” on the screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Navigation and Multimedia System Owner’s Manual for limitations
and more details on this system.
Page 22 of 52
20
FEATURES & OPERATIONS
Multi-Information Display (MID)
w % * 4 1 - " : * ' & 2 6 * 1 1 & %
w % * 4 1 - " : * ' & 2 6 * 1 1 & %
Push “meter control switches” to change information in the following:
Push “meter control switches” to change information in the following:
Refer to the Owner’s Manual for more details.Drive information
Warning messages
Warning messages
Audio system-linked display
Audio system-linked display
Eco-friendly driving information
Settings display
Vehicle information
Driving assist system information
Driving assist system informationSettings display
Indicators
Menu icons
Shift position Outside temperatureSpeed limit display
(with navigation system)
Clock Full-Speed DRCC and
Lane Departure Alert display
Previous screen
Previous screen
Speedometer IndicatorsDisplay area Menu icons Shift position
Indicators
Enter/Select
Enter/Select
Scroll/search
screens
Scroll/search
screens
Odometer/trip
meter control
“ODO/TRIP” switch
Odometer/trip meter display
Display area Odometer/trip
meter control
display
Page 23 of 52
21
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Color Head-up display (HUD) (if equipped)
The head-up display can display the current vehicle speed and ECO driving
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
Select “
” and then “ w J O U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
U P B D D F T T
Head-up display settings. And push “
,” to enter selection.
Refer to the Owner’s Manual for more details.
Driving assist system status/
navigation system-linked display area
(if equipped)
Shift position/speed limit display area
ECO driving indicator/Tachometer Information display areaVehicle speed display
Page 28 of 52
26
Access
the audio/visual
screen Push to turn ON/OFF or
turn to adjust volume
Turn to tune
radio stations
manually or
select tracks
or filesAccess
the home screen
Access
the menu screenAccess
Toyota apps
screen
Access
the map screenAccess Bluetooth
hands-free system Seek station/track/file select
Touch screen display
FEATURES & OPERATIONS
Audio
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you. Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
Page 31 of 52
29
1 V T I iMENU” button next to the screen.
4 F M F D U iSetup” or “General” in the touch screen to access the general settings
screen.
4 F M F D U iClock.”
5 I F O T F M F D U E F T J S F E J U F N T U P C F S F T F U
Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
1 Premium Audio only2 Audio Plus/Premium Audio only
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Garage door opener (HomeLink®*) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
I U U Q X X X I P N F M J O L D P N U P Z P U B
* HomeLink®
is a registered trademark of Gentex Corporation.
Buttons
Remote
HomeLink® indicator light
Garage door operation
indicators
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO1.
Select to set to automatic
GPS adjustment of clock.2
Select to set hour display
to 12 or 24 hour time.
Clock

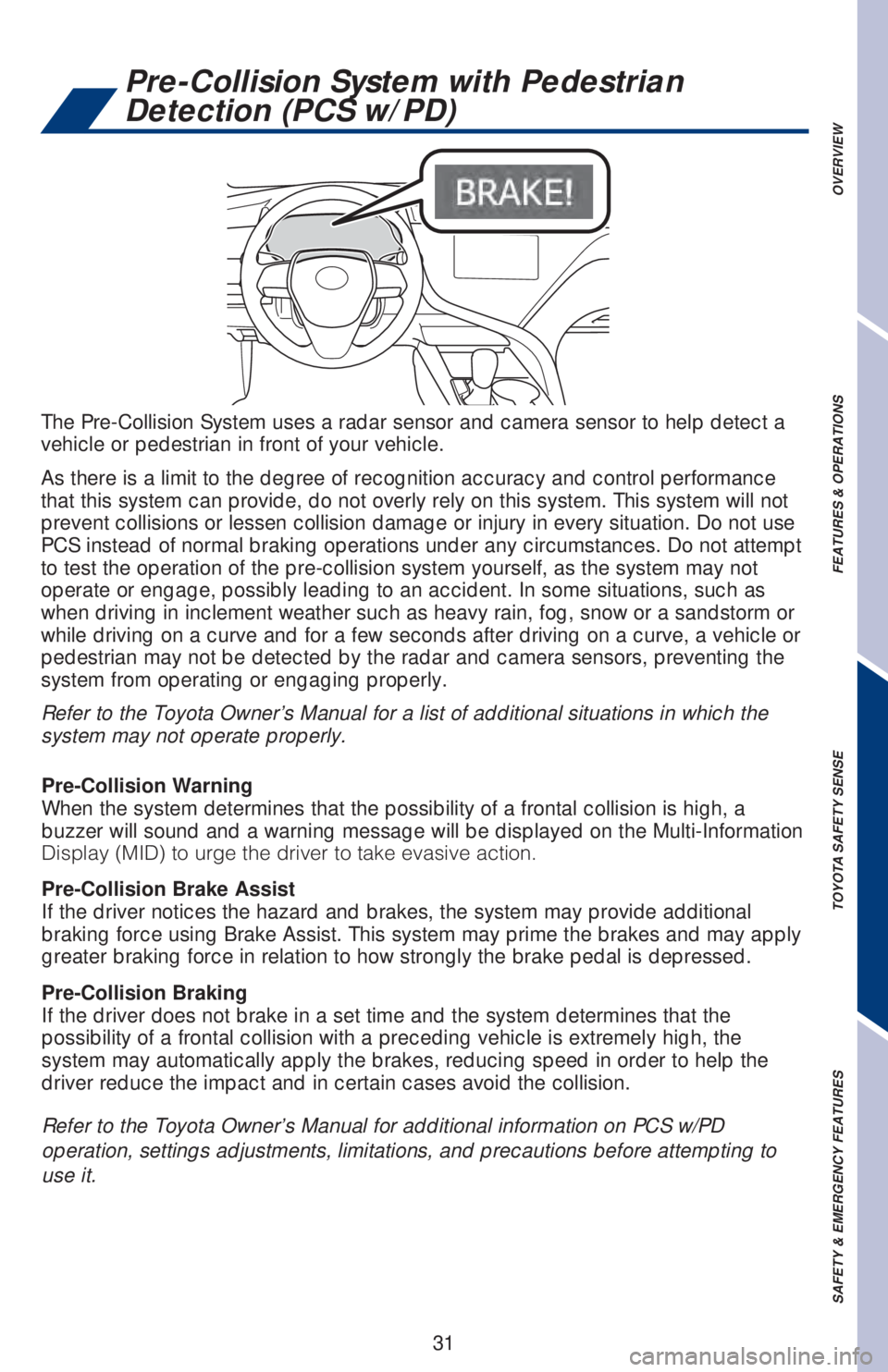

Page 33 of 52
31
The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the pre-collision system yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle or
pedestrian may not be detected by the radar and camera sensors, preventing the
system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to the Toyota Owner’s Manual for additional information on PCS w/PD
operation, settings adjustments, limitations, and precautions before attempting to
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
% J T Q M B Z . * %
U P V S H F U I F E S J W F S U P U B L F F W B T J W F B D U J P O
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 34 of 52
32
TOYOTA SAFETY SENSE™
CHANGING PCS ALERT TIMING
FarMiddle
(default)
Near
1 S F T T i” switches and select or from the Multi-Information Display
. * %
1 S F T T i
” switches and select “Warning sensitivity” from the MID and then
press “
”. The setting screen is displayed.
1 S F T T i
” each time to change the setting. Each time it is pressed, the
response to the PCS alert timing changes as shown above. You can press “
” to
go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to first provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and information.Under certain conditions, the PCS system included with the TSS-P package may
also help to detect a pedestrian in front of your vehicle using the in-vehicle camera
and front grille-mounted radar. The in-vehicle camera of PCS detects a potential
pedestrian based on size, profile, and motion of the detected pedestrian. However,
a pedestrian may not be detected depending on the conditions, including the
surrounding brightness and the motion, posture, size, and angle of the potential
detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION
Page 35 of 52
33
% * 4 " # - * / ( 1 3 & $ 0 - - * 4 * 0 / 4 : 4 5 & . 1 $ 4
LDA in TSS-P uses an in-vehicle camera designed to detect visible white and yellow
lane markers in front of the vehicle and the vehicle’s position on the road. If the
system determines that the vehicle is starting to unintentionally deviate from its lane,
the system alerts the driver with an audio and visual alert. When the alerts occur, the
driver must check the surrounding road situation and carefully operate the steering
wheel to move the vehicle back to the center part of their lane.
- % " J T E F T J H O F E U P G V O D U J P O B U T Q F F E T P G B Q Q S P Y J N B U F M Z N Q I L N I
P S I J H I F S
on relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on a path to
unintentionally depart from its lane, the system may provide small corrective steering
inputs to the steering wheel for a short period of time to help keep the vehicle in its
lane.
Lane Departure Alert with Steering Assist
(LDA w/SA)
1 S F T T i” switches and select or from the Multi-Information
% J T Q M B Z . * %
1 S F T T i
” switches and select “PSC” from the MID and then press “”. The
setting screen is displayed.
1 S F T T i
” to go back to the menu.
Note: The system is enabled each time the power switch is turned to ON
mode.
Refer to the Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
