2020 TESLA MODEL S Owner's Manual

Dashcam
About Dashcam
Note: Dashcam is a BETA feature.
In addition to supporting Autopilot features,
the cameras can record and store video
footage on a USB

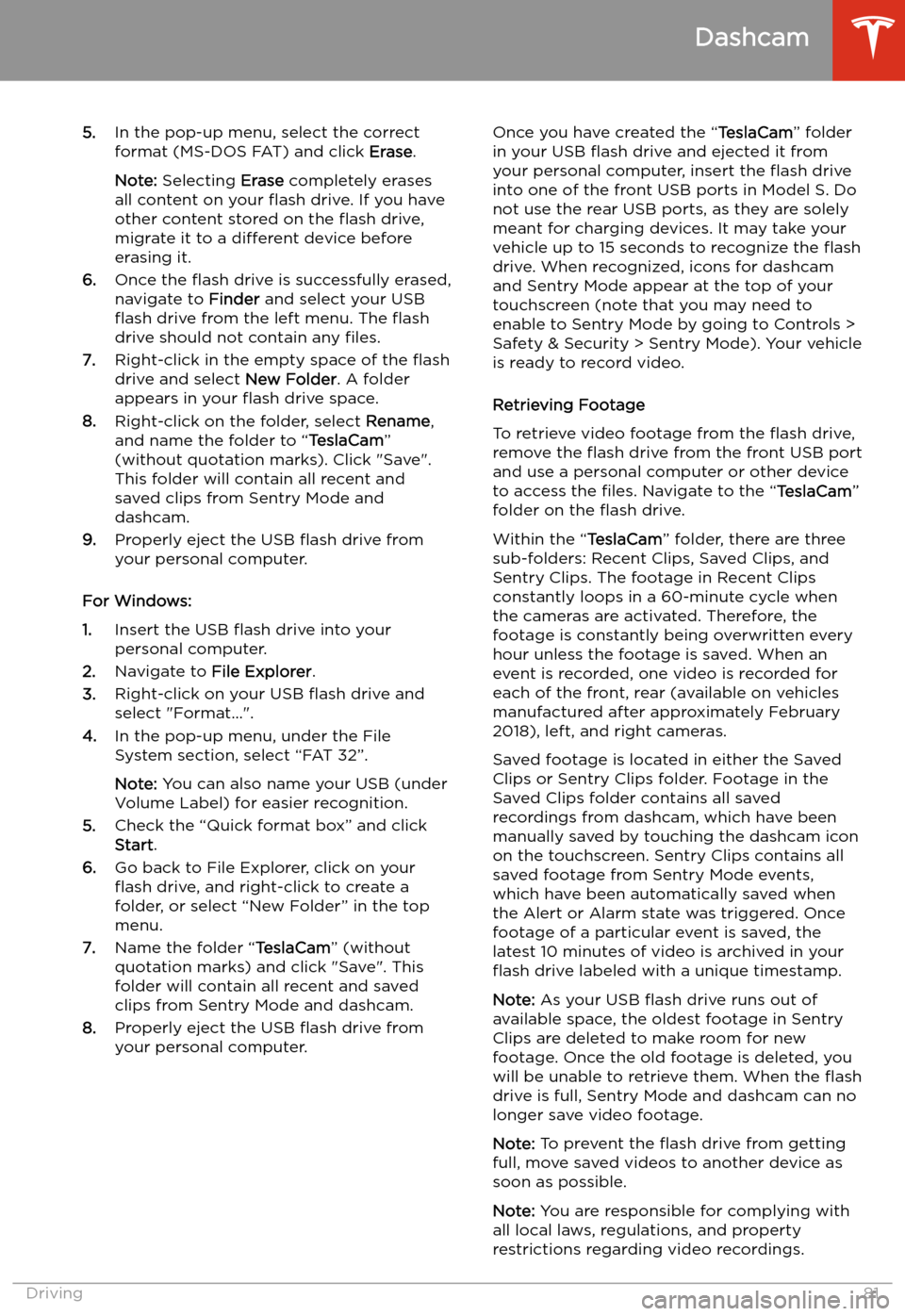

5.In the pop-up menu, select the correct
format (MS-DOS FAT) and click Erase.
Note: Selecting Erase completely erases
all content on your

Note: The cameras do not record audio.
Save Clips on Honk
Once a properly formatted USB

The following best practices can help ensure
that you have the best ownership experience
possible in harsh cold weather conditions.
Before Driving Warm the cabin and Battery ahead of
departure for maximum range and
performance. There are several ways to
precondition your vehicle:

Regenerative Braking
Regenerative braking may be limited if the Battery is too cold. As you continue to drive,
the Battery warms up and regenerative power
increases (see Regenerative Braking on page
67).
Note: Limited regenerative braking can be
avoided if you allow enough time to precondition your vehicle or use scheduleddeparture before your drive, as mentioned
previously.
Blue Snow

Autopilot
About Autopilot
How It Works Your Model S includes the following Autopilot components that actively monitor the surrounding
roadway:
1. A camera is mounted above the rear license plate.
2. Ultrasonic sensors are located in the front and rear bumpers.
3. A camera is mounted in each door pillar.
4. Three cameras are mounted to the windshield above the rear view mirror.
5. A camera is mounted to each front fender.
6. Radar is mounted behind the front bumper.
Model S is also equipped with high precision electronically-assisted braking and steering systems.
About Autopilot
Autopilot85

Features
T hese safety features are available on all
Model S equipped with Autopilot components:

Service. This will ensure appropriate
handling and mounting of the camera(s). Failure to do so can cause one or more
Autopilot features to malfunction.
Cleaning Cameras and Sensors
To ensure the various Autopilot components
can provide information that is as accurate as
possible, keep them clean and free of
obstructions or damage. Occasionally remove
any buildup of dirt by wiping the components
with a soft cloth dampened with warm water.
Caution: Do not use chemical-based or
abrasive cleaners. Doing so can damage
surfaces.Caution: Avoid using a high-pressure
power washer.Caution: Do not clean an ultrasonic sensor
or camera lens with a sharp or abrasive
object that can scratch or damage its
surface.
About Autopilot
Autopilot87
