2020 SUBARU WRX Quick Guide

4Fan Speed Control Dial:Turn the fan speed control dial to increase or decrease fan
speed.
5Airflow Mode Selection Button:
Press the button to select the desired airflow mode.
The selected mode – ventilation, bi-level, feet or feet-defrost – is shown on the display.
ICON MODE FUNCTION
Ventilation Instrument panel outlets
Bi-Level Instrument panel outlets and foot outlets
FeetFoot outlets, both side outlets of the instrument panel
and some through windshield defroster outlets
Feet-DefrostWindshield defroster outlets, foot outlets and both side
outlets of the instrument panel
DefrostWindshield defroster outlets and both side outlets of
the instrument panel
6Dual Button:Press the button to activate or deactivate the dual mode. Dual mode
makes it possible to have separate temperature settings for the driver’s side and
passenger’s side.
7Air Conditioner Button:Press this button to activate or deactivate the air
conditioning.
8Defroster Button:Press this button to defrost or dehumidify the windshield and front
door windows. NOTE: The air conditioning may turn on to defrost the windshield
more quickly. However, the indicator on the air conditioner button will not illuminate.
9Rear Window Defogger Button:Press this button to turn on the defogger. It will
automatically turn off after about 15 minutes. If the window clears before, then press
the button again to turn it off. The outside mirror defogger will also activate. You can
customize this function for continual operation through the Multi-Function Display
(MFD).
Heated Seats (if equipped)
The heated seat switches are located between the seats in front of
the center console. There is a separate switch for the driver and
passenger. Press the “HI” button for the high temperature setting or
press the “LO” button for the low temperature setting. Lightly press
the opposite button to turn the heated seat off.
GETTING COMFORTABLE
15

ACCESSORY CONNECTIONS
Power Outlets (12V)
1Power outlets (12V) are located below the
climate control dials and in the center
console. Electrical power is available for
use with in-vehicle electrical appliances
with a maximum power rating of 120W.
These outlets cannot be used to connect
to the SUBARU STARLINK™ multimedia
system.
2Auxiliary Input Jack
The 3.5mm auxiliary input jack is located
inside the center console storage compartment. You can connect a portable music
player to the auxiliary jack and hear your music through the multimedia system in
your Subaru. Press the “Source” button located on the steering wheel or the “Media”
button on the Touchscreen to select the auxiliary mode. For more information, please
refer to the SUBARU STARLINK™ Owner's Manual.
3USB Ports
The USB ports are located inside the center console storage compartment. You can
connect a variety of USB-equipped devices to these ports, such as portable music
players or smartphones, to enjoy your favorite music through the multimedia system
in your Subaru. These ports also provide charging (5V, 2.1A) to devices. For more
information, please refer to the SUBARU STARLINK™ Owner’s Manual or Quick
Guide.
GETTING COMFORTABLE
16

AUDIO CONTROLS
For additional information, please refer to the
SUBARU STARLINK™ Owner’s Manual.
1Volume
2Toggle Presets/Track
3Mute
4Source
5Voice Recognition
CRUISE CONTROL(if equipped)
For additional information, please refer to the
EyeSight®Owner’s Manual.
1RES/+ Switch
2SET/— Switch
3Cruise Control On/Off Switch
4CANCEL Button
CONTROLS
17

ADAPTIVE CRUISE CONTROL(if equipped)
For additional information, please refer to the
EyeSight®Owner’s Manual.
1RES/+ Switch
2SET/— Switch
3Lane Departure
4Distance Control
5Cruise Control On/Off Switch
I/SET SWITCH
Use the controls to display and change
selected items in the Combination Meter
Display (CMD). Pull and hold this switch to
access the settings menu. Pull the arrows to
move up or down the menu.
LIGHT CONTROLS
1AUTO:If equipped, rotate the end of the
lever to automatically turn your headlights
on or off, depending on the level of
outside light.
2Daytime Running Lights:Rotate the end
of the lever to turn on the instrument
panel lights, parking lights, side marker
lights, tail lights, and license plate lights.
3Headlights:Rotate the end of the lever to
turn on the headlights, instrument panel lights, parking lights, side marker lights, tail
lights, and license plate lights.
CONTROLS
18

4High Beams:Push the lever forward to change from low beam to high beam. Pull the
lever back to center to return to low beam. If equipped, this also activates the High
Beam Assist (HBA) system.
5Fog Lights:If equipped, rotate the dial to turn on the fog lights.
Illumination Brightness
While the light switch is on, rotating the dial on
the instrument panel upward will make the
illumination brighter. When the dial is fully
rotated upward (dots aligned), the instrument
panel illumination stays at full brightness.
Rotating the dial downward dims the
instrument panel illumination.
For map equipped vehicles this setting also
affects the day/night view and illumination
level.
Daytime Running Lights
The daytime running lights automatically turn on when the engine has started, the parking
brake is fully released, the light switch is in the Off, “AUTO” (if equipped) or “
”
position, and the select lever is not in the “P” position. Always turn on the headlights when
it’s dark outside by rotating the dial to the “
” or “AUTO” position.
TURN SIGNALS
Push slightly up for right lane change or fully
up for right turn signal. Push slightly down for
left lane change or fully down for left turn
signal.
CONTROLS
19

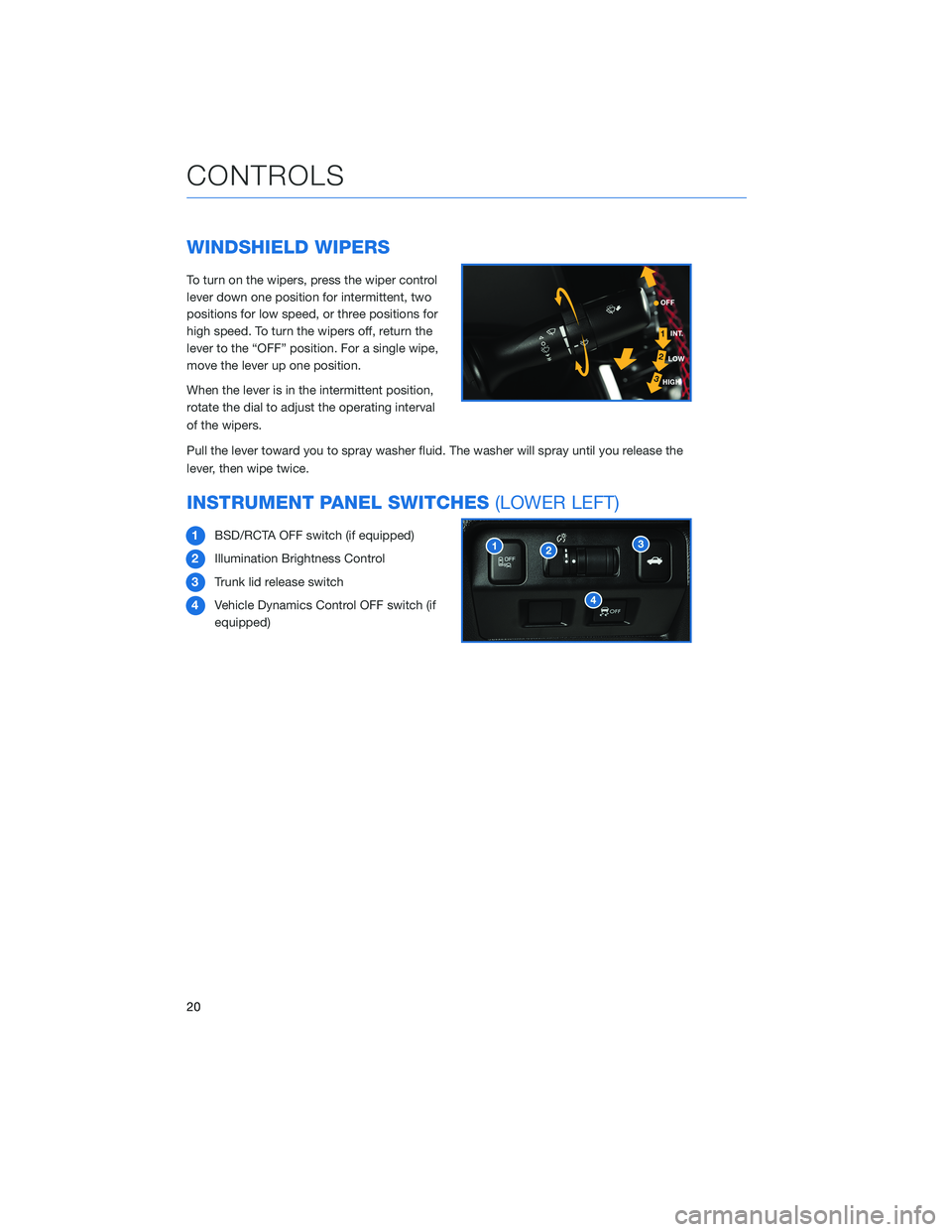

WINDSHIELD WIPERS
To turn on the wipers, press the wiper control
lever down one position for intermittent, two
positions for low speed, or three positions for
high speed. To turn the wipers off, return the
lever to the “OFF” position. For a single wipe,
move the lever up one position.
When the lever is in the intermittent position,
rotate the dial to adjust the operating interval
of the wipers.
Pull the lever toward you to spray washer fluid. The washer will spray until you release the
lever, then wipe twice.
INSTRUMENT PANEL SWITCHES(LOWER LEFT)
1BSD/RCTA OFF switch (if equipped)
2Illumination Brightness Control
3Trunk lid release switch
4Vehicle Dynamics Control OFF switch (if
equipped)
CONTROLS
20

OVERHEAD PANEL
1SOS Emergency Assistance:Press the
“SOS” button to connect with a SUBARU
STARLINK™ Customer Care Advisor
(Subscription required). Press and hold
the button for about two seconds to
cancel the call. Please refer to the
SUBARU STARLINK™ Safety and
Security Owner’s Manual or the SUBARU
STARLINK™ Quick Guide.
2Enhanced Roadside Assistance:Press
the “i” button to connect with a SUBARU
STARLINK™ Roadside Assistance
Provider (Subscription required). Press
and hold the button for about two
seconds to cancel the call. See your
STARLINK Quick Guide for more
information.
3Automatic Illumination:When the switch
is in the “DOOR” position, the map lights
illuminate when any door is opened, the
doors are unlocked using the remote
keyless entry system or keyless access
function, or the ignition is turned from
“ON” or “ACC” to “LOCK”/“OFF”.
4Lane Departure Warning OFF switch:Press and hold this switch for two seconds to
turn off the Lane Departure Warning and the Lane Sway Warning function. Press and
hold the switch again for two seconds to turn the systems back on. Please refer to
the EyeSight
®Owner’s Manual or Quick Guide.
5Pre-Collision Braking System OFF switch:Press and hold this switch for two
seconds to turn off the Pre-Collision Braking System and Pre-Collision Throttle
Management. Press and hold the switch again for two seconds to turn the systems
back on. Please refer to the EyeSight
®Owner’s Manual or Quick Guide.
6Map Lights:For WRX: press a map light to turn it on or off.
7Map Light Button:For STI: press the button to turn the light on or off.
NOTE: these lights can remain on even when the ignition is off, key removed from
vehicle and doors are locked.
WRX
WRX STI
CONTROLS
21

GAUGES
1Tachometer
2Combination Meter Display (CMD)
3Speedometer
4Fuel gauge5Trip meter and odometer
6Select lever/gear position indicator
7Engine coolant temperature gauge
WARNING AND INDICATOR LIGHTS
Red lights indicate immediate attention is required. Some examples are:
Seatbelt
warningDoor
openBrake system
Yellow lights indicate caution. Some examples are:
Low fuelEngine oil
level warning
lightTire pressure
warning light
Green and blue lights are for information. Some examples are:
Headlight
indicator
lightAuto Vehicle
Hold ONHigh beam
indicator
light
