2020 SUBARU ASCENT Quick Guide

SUBARU of America, Inc.
One Subaru Drive
Camden, NJ 08103-9800
MSA5B2000A
Issued September 2019
Printed in USA 09/19
2020
Quick Guide
Ascent
Love. It’s what makes a Subaru, a Subaru.

© 2019 Subaru of America, Inc. All rights reserved.
Contents may not be reproduced in whole or in part without prior written permission of
publisher. Specifications in this Guide are based on the latest product information available
at the time of publication. Some images shown are for illustration purposes only. Some
equipment shown in photography within this Guide is optional at extra co\
st. Specific
options may be available only in combination with other options. Specifi\
c combinations
of equipment or features may vary from time to time, and by geographic area. Subaru
of America, Inc. reserves the right to change or discontinue at any time, without notice: \
Prices, colors, materials, equipment, accessories, specifications, mod\
els and packages,
without incurring any obligation to make the same or similar changes on \
vehicles
previously sold. Colors shown may vary due to reproduction and printing processes.
Subaru of America, Inc. is not responsible for typographical errors.
Aha
™ is a trademark of Harman International Industries, Inc. Alcantara® is a registered
trademark of Alcantara S.p.A., and Alcantara is produced by the Toray Group. App Store®
is a registered trademark of Apple, Inc. Apple® is a registered trademark of Apple, Inc.
BBS® is a registered trademark of BBS Kraftahrzeugtechnik, AG. Bluetooth® is a registered
trademark of Bluetooth SIG, Inc. Brembo® is a registered trademark of Freni Brembo, S.p.A.
GreenEdge® is a registered trademark of Harman International Industries, Inc. Harman
Kardon® is a registered trademark of Harman International Industries, Inc. HD Radio® is a
registered trademark of iBiquity Digital Corporation. HomeLink® is a registered trademark
of Prince Corporation, a wholly owned subsidiary of Johnson Controls. iHeart® Radio
is a registered trademark of iHeartMedia, Inc. iPod® is a registered trademark of Apple,
Inc. iTunes® is a registered trademark of Apple, Inc. Metal-Matrix Diaphragm (MMD®) is a
registered trademark of Harman International Industries, Inc. MirrorLink™ is a trademark of
Car Connectivity Consortium, LLC. Pandora® is a registered trademark of Pandora Media,
Inc. Siri® is a registered trademark of Apple, Inc. Smart Way® is a registered trademark
of the U.S. Environmental Protection Agency. Stitcher™ is a trademark of Stitcher™, Inc.
TORSEN LSD® is a registered trademark of JTEKT TORSEN North America, Inc. SiriusXM®
All Access Radio is a registered trademark of SiriusXM Radio, Inc. SiriusXM Traffic® and
SiriusXM Travel Link® are registered trademarks of SiriusXM Radio, Inc. Added Security,
Crosstrek, Forester and Outback are registered trademarks of Subaru of America, Inc.
Ascent, DriverFocus and StarTex are trademarks of Subaru of America, Inc. BRZ, EyeSight,
Impreza, Lineartronic, Legacy, Subaru, SUBARU BOXER, Starlink, Subaru Starlink, WRX,
STI and X-MODE are registered trademarks of Subaru Corporation. Confidence in Motion is
a trademark of Subaru Corporation.

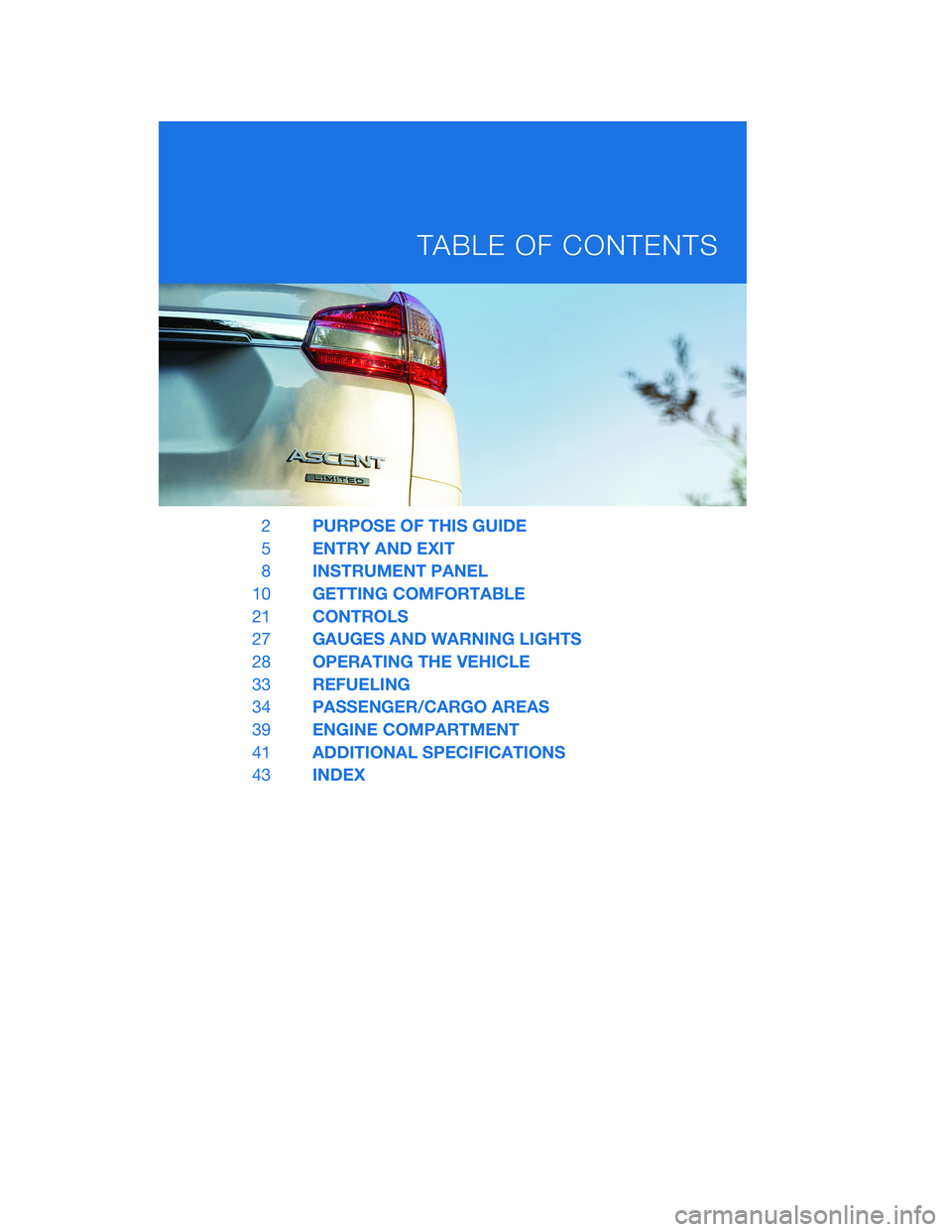

2PURPOSE OF THIS GUIDE
5ENTRY AND EXIT
8INSTRUMENT PANEL
10GETTING COMFORTABLE
21CONTROLS
27GAUGES AND WARNING LIGHTS
28OPERATING THE VEHICLE
33REFUELING
34PASSENGER/CARGO AREAS
39ENGINE COMPARTMENT
41ADDITIONAL SPECIFICATIONS
43INDEX
TABLE OF CONTENTS

FORWARD
Congratulations on choosing a Subaru vehicle! This Quick Guide is designed to provide
information on the basic operation and key features of your Subaru vehicle.
IMPORTANT SAFETY INFORMATION
The Quick Guide is not intended as a substitute for the Owner’s Manual. We strongly
encourage you to review the entire Owner’s Manual to ensure complete understanding.
ADDITIONAL RESOURCES
If you’re having difficulty using any of the functions outlined in this guide, you can get more
information from the following sources:
Your Subaru Owner’s Manual:
Located in the glovebox
Online Subaru Owner’s Resources:
www.subaru.com/owners
Subaru Customer Support:
www.subaru.com/customer-support
1-800-SUBARU3 (1-800-782-2783)
PURPOSE OF THIS GUIDE
2

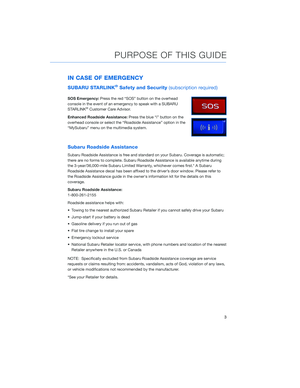

IN CASE OF EMERGENCY
SUBARU STARLINK®Safety and Security(subscription required)
SOS Emergency:Press the red “SOS” button on the overhead
console in the event of an emergency to speak with a SUBARU
STARLINK
®Customer Care Advisor.
Enhanced Roadside Assistance:Press the blue “i” button on the
overhead console or select the “Roadside Assistance” option in the
“MySubaru” menu on the multimedia system.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on your Subaru. Coverage is automatic;
there are no forms to complete. Subaru Roadside Assistance is available anytime during
the 3-year/36,000-mile Subaru Limited Warranty, whichever comes first.* A Subaru
Roadside Assistance decal has been affixed to the driver’s door window. Please refer to
the Roadside Assistance guide in the owner's information kit for the details on this
coverage.
Subaru Roadside Assistance:
1-800-261-2155
Roadside assistance helps with:
• Towing to the nearest authorized Subaru Retailer if you cannot safely drive your Subaru
• Jump-start if your battery is dead
• Gasoline delivery if you run out of gas
• Flat tire change to install your spare
• Emergency lockout service
• National Subaru Retailer locator service, with phone numbers and location of the nearest
Retailer anywhere in the U.S. or Canada
NOTE: Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation of any laws,
or vehicle modifications not recommended by the manufacturer.
*See your Retailer for details.
PURPOSE OF THIS GUIDE
3

TOWING YOUR ALL-WHEEL DRIVE SUBARU
Since Subaru Symmetrical All-Wheel Drive distributes power to all four wheels, improper
towing may damage your AWD system. The best way to tow your Subaru is with a flatbed
truck by your Subaru Retailer or a commercial towing service.
PURPOSE OF THIS GUIDE
4

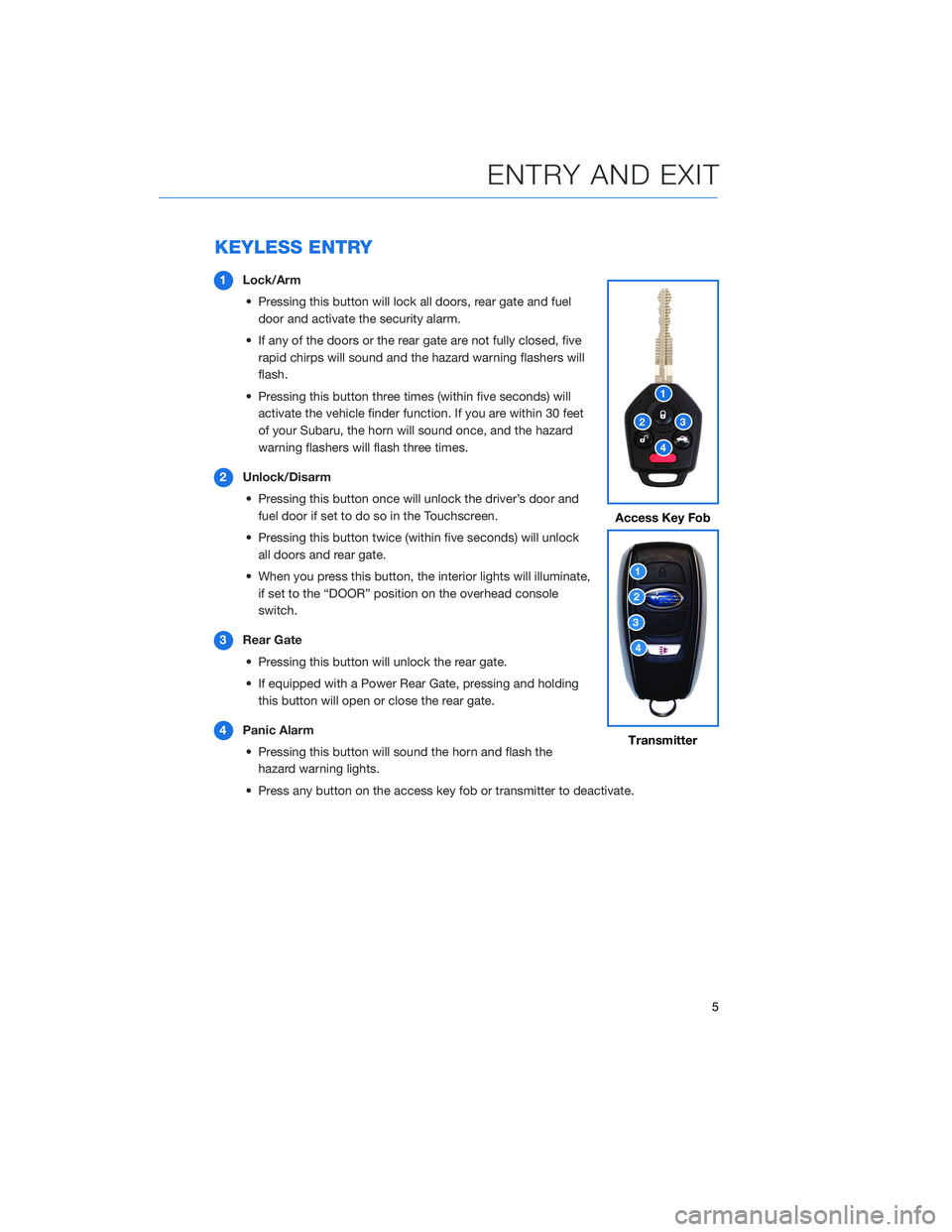

KEYLESS ENTRY
1Lock/Arm
• Pressing this button will lock all doors, rear gate and fuel
door and activate the security alarm.
• If any of the doors or the rear gate are not fully closed, five
rapid chirps will sound and the hazard warning flashers will
flash.
• Pressing this button three times (within five seconds) will
activate the vehicle finder function. If you are within 30 feet
of your Subaru, the horn will sound once, and the hazard
warning flashers will flash three times.
2Unlock/Disarm
• Pressing this button once will unlock the driver’s door and
fuel door if set to do so in the Touchscreen.
• Pressing this button twice (within five seconds) will unlock
all doors and rear gate.
• When you press this button, the interior lights will illuminate,
if set to the “DOOR” position on the overhead console
switch.
3Rear Gate
• Pressing this button will unlock the rear gate.
• If equipped with a Power Rear Gate, pressing and holding
this button will open or close the rear gate.
4Panic Alarm
• Pressing this button will sound the horn and flash the
hazard warning lights.
• Press any button on the access key fob or transmitter to deactivate.
Access Key Fob
Transmitter
ENTRY AND EXIT
5

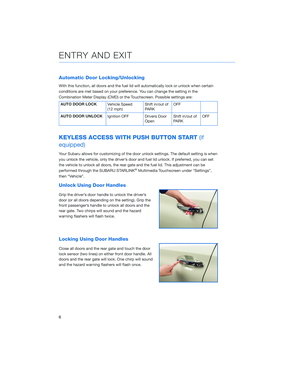

Automatic Door Locking/Unlocking
With this function, all doors and the fuel lid will automatically lock or unlock when certain
conditions are met based on your preference. You can change the setting in the
Combination Meter Display (CMD) or the Touchscreen. Possible settings are:
AUTO DOOR LOCK
Vehicle Speed
(12 mph)Shift in/out of
PARKOFF
AUTO DOOR UNLOCK
Ignition OFF Drivers Door
OpenShift in/out of
PARKOFF
KEYLESS ACCESS WITH PUSH BUTTON START(if
equipped)
Your Subaru allows for customizing of the door unlock settings. The default setting is when
you unlock the vehicle, only the driver’s door and fuel lid unlock. If preferred, you can set
the vehicle to unlock all doors, the rear gate and the fuel lid. This adjustment can be
performed through the SUBARU STARLINK
®Multimedia Touchscreen under “Settings”,
then “Vehicle”.
Unlock Using Door Handles
Grip the driver’s door handle to unlock the driver’s
door (or all doors depending on the setting). Grip the
front passenger’s handle to unlock all doors and the
rear gate. Two chirps will sound and the hazard
warning flashers will flash twice.
Locking Using Door Handles
Close all doors and the rear gate and touch the door
lock sensor (two lines) on either front door handle. All
doors and the rear gate will lock. One chirp will sound
and the hazard warning flashers will flash once.
ENTRY AND EXIT
6
