2020 OPEL CORSA F sensor

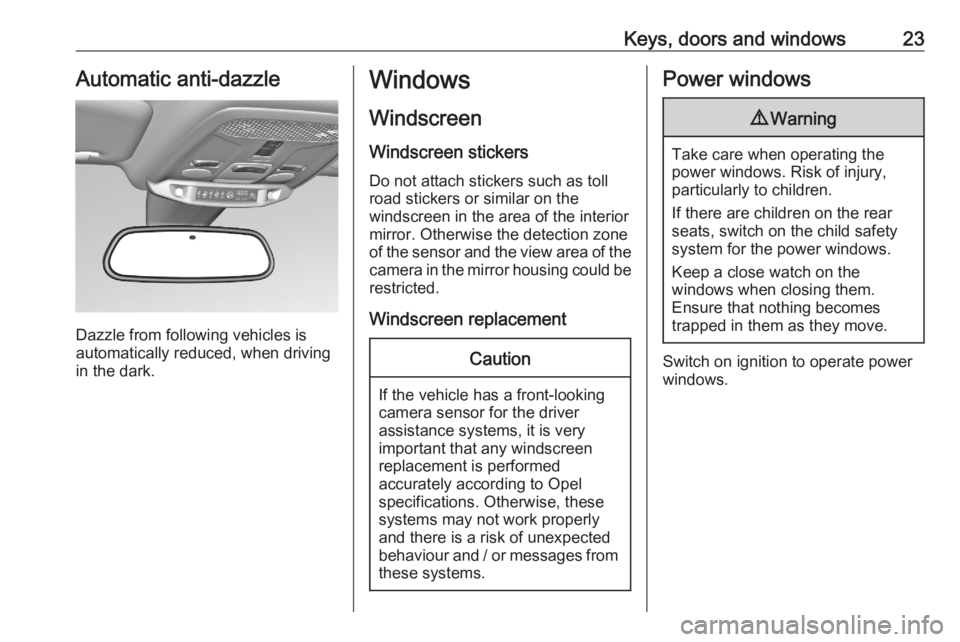

Keys, doors and windows23Automatic anti-dazzle
Dazzle from following vehicles is
automatically reduced, when driving
in the dark.
Windows
Windscreen
Windscreen stickers
Do not attach stickers such as toll
road stickers or similar on the
windscreen in the area of the interior
mirror. Otherwise the detection zone
of the sensor and the view area of the camera in the mirror housing could be
restricted.
Windscreen replacementCaution
If the vehicle has a front-looking
camera sensor for the driver
assistance systems, it is very
important that any windscreen
replacement is performed
accurately according to Opel
specifications. Otherwise, these
systems may not work properly
and there is a risk of unexpected
behaviour and / or messages from these systems.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
If there are children on the rear seats, switch on the child safety
system for the power windows.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Switch on ignition to operate power
windows.

Seats, restraints35airbag sensing and diagnostic
module, steering wheel,
instrument panel, inner door seals including the speakers, any of the
airbag modules, ceiling or pillar
trim, front sensors, side impact
sensors or airbag wiring.
Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not affix any objects onto the
airbag covers and do not cover them with other materials. Have damagedcovers replaced by a workshop.
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle operating
permit.
Control indicator v for airbag systems
3 67.
Child restraint systems on front
passenger seat with airbag
systems
Warning according to ECE R94.02:
EN: NEVER use a rearward-facing
child restraint on a seat protected by
an ACTIVE AIRBAG in front of it;
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG
geschützt ist, da dies den TOD oder
SCHWERE VERLETZUNGEN DES
KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant lui,
sous peine d'infliger des
BLESSURES GRAVES, voire
MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de
retención infantil orientado hacia
atrás en un asiento protegido por un
AIRBAG FRONTAL ACTIVO. Peligro de MUERTE o LESIONES GRAVES
para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ
устанавливать детское
удерживающее устройство лицом
назад на сиденье автомобиля,
оборудованном фронтальной
подушкой безопасности, если
ПОДУШКА НЕ ОТКЛЮЧЕНА! Это
может привести к СМЕРТИ или
СЕРЬЕЗНЫМ ТРАВМАМ
РЕБЕНКА.

52StorageRemove the roof rack when not inuse.Loading information
● Heavy objects in the load compartment should be placed
against the seat backrests. Make
sure that the backrests are
securely engaged. If objects can
be stacked, heavier objects
should be placed at the bottom.
● Prevent sliding of loose objects by securing them with straps
attached to the lashing eyes
3 51.
● Do not allow the load to protrude above the upper edge of the
backrests.
● Do not place any objects on the load compartment cover or theinstrument panel, and do notcover the sensor on top of the
instrument panel.
● The load must not obstruct the operation of the pedals, parking
brake and gear selector, or
hinder the freedom of movement of the driver. Do not place any
unsecured objects in the interior.
● Do not drive with an open load compartment.9Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.
● The payload is the difference between the permitted gross
vehicle weight (see identification
plate 3 203) and the EC kerb
weight.

54Instruments and controlsInstruments and
controlsControls ....................................... 55
Steering wheel adjustment ........55
Steering wheel controls .............55
Heated steering wheel ...............55
Horn ........................................... 56
Windscreen wiper and washer ..56
Rear window wiper and washer ...................................... 58
Outside temperature ..................58
Clock ......................................... 59
Power outlets ............................. 59
Inductive charging .....................60
Cigarette lighter ......................... 61
Ashtrays .................................... 61
Warning lights, gauges and indi‐ cators ........................................... 62
Instrument cluster ......................62
Speedometer ............................. 63
Odometer .................................. 63
Trip odometer ............................ 63
Tachometer ............................... 64
Fuel gauge ................................ 64
Engine coolant temperature gauge ....................................... 64Engine oil level monitor.............65
Service display .......................... 65
Control indicators ......................66
Turn lights .................................. 66
Seat belt reminder .....................66
Airbag and belt tensioners .........67
Airbag deactivation ....................67
Charging system .......................67
Malfunction indicator light ..........68
Service vehicle soon .................68
Stop engine ............................... 68
System check ............................ 68
Brake and clutch system ...........68
Parking brake ............................ 69
Electric parking brake ................69
Electric parking brake fault ........69
Automatic operation of electric parking brake off ....................... 69
Antilock brake system (ABS) .....69
Gear shifting .............................. 70
Lane keep assist .......................70
Electronic Stability Control and Traction Control system ...........70
Engine coolant temperature ......70
Preheating ................................. 70
Exhaust filter .............................. 70
AdBlue ....................................... 71
Deflation detection system ........71
Engine oil pressure ....................71
Low fuel ..................................... 72Autostop.................................... 72
Exterior light .............................. 72
Low beam .................................. 72
High beam ................................. 72
High beam assist .......................72
LED headlights .......................... 72
Front fog lights ........................... 72
Rear fog light ............................. 72
Rain sensor ............................... 72
Active emergency braking .........73
Door open .................................. 73
Displays ....................................... 73
Driver Information Centre ..........73
Info Display ................................ 75
Vehicle messages ........................76
Warning chimes .........................77
Vehicle personalisation ................77
Telematics services .....................78
Opel Connect ............................ 78

Instruments and controls57Windscreen wiper with rain sensorHI:fastLO:slowAUTO:automatic wiping with rain
sensorOFF:off
In AUTO position, the rain sensor
detects the amount of water on the
windscreen and automatically
regulates the frequency of the
windscreen wiper. If ignition is
switched off for more than one
minute, automatic wiping mode is
deactivated. To activate automatic
wiping mode the next time ignition is
switched on, press the lever
downwards to position OFF and back
to AUTO .
For a single wipe when the
windscreen wiper is off, press the
lever downwards to position 1x.
Do not use if the windscreen is frozen. Switch off in car washes.
Adjustable sensitivity of the rain
sensor
Turn the adjuster wheel to adjust the
sensitivity.
Keep the sensor free from dust, dirt
and ice.
Control indicator y 3 56.
Windscreen washer

62Instruments and controlsWarning lights, gauges
and indicators
Instrument cluster
The following instrument cluster is
available:
Overview
1Turn lights 3 66aSeat belt reminder 3 66dAirbag and belt tensioners
3 67gAirbag deactivation 3 67SCharging system 3 67WMalfunction indicator light
3 68CService vehicle soon 3 68+Stop engine 3 68XSystem check 3 68hBrake and clutch system
3 68j ,Electric parking brake 3 69oAutomatic operation of electric
parking break off 3 69kElectric parking brake fault
3 69iAntilock brake system (ABS)
3 69YGear shifting 3 70LLane keep assist 3 70JElectronic Stability Control
and Traction Control system
3 70VEngine coolant temperature
high 3 70zPreheating 3 70tExhaust filter 3 70uAdBlue 3 71qDeflation detection system
3 71TEngine oil pressure 3 71rLow fuel 3 72nAutostop 3 72FExterior light 3 72DLow beam 3 72AHigh beam 3 72BHigh beam assist 3 72GFront fog lights 3 72HRear fog light 3 72yRain sensor 3 72

72Instruments and controls9Warning
When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will still be operational.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Keep engine turned off and let the
vehicle be towed to a workshop.
Low fuel 2 illuminates yellow.
Level in fuel tank is too low.
Refuelling 3 157.
Bleeding the diesel fuel system
3 168.
Autostop n illuminates or flashes green.
Illuminates green
Engine is in an Autostop.
Flashes green
Autostop is temporarily unavailable,
or Autostop mode is invoked
automatically.
Stop-start system 3 103.
Exterior light
F illuminates green.
The exterior lights are on 3 80.
Low beam D illuminates green.
Illuminated when low beam is on.
High beam
A illuminates blue.
Illuminates when high beam is on,
during headlight flash 3 81.
High beam assist
B illuminates green.The high beam assist is activated
3 83.
LED headlights C illuminates and a warning
message is displayed in the Driver
Information Centre.
Seek the assistance of a workshop.
Front fog lights
G illuminates green.
The front fog lights are on 3 85.
Rear fog light H illuminates yellow.
The rear fog light is on 3 86.
Rain sensor y illuminates green.
Illuminated when rain sensor position on wiper lever is selected.
Windscreen wiper and washer 3 56.

Driving and operating125
It uses radar and camera sensors to
detect the vehicles ahead. If no
vehicle is detected in the driving path, the adaptive cruise control will
behave like a conventional cruise
control.
The adaptive cruise control
automatically decelerates the vehicle
when approaching a slower moving
vehicle. It then adjusts the vehicle
speed to follow the vehicle ahead at
the selected following distance. The
vehicle speed increases or decreases
to follow the vehicle ahead, but will
not exceed the set speed. It may
apply limited braking with activated
brake lights.
If the vehicle ahead accelerates or
changes lane, the adaptive cruise
control progressively accelerates the
vehicle to return to the stored set
speed. If the driver operates the turn
lights to overtake a slower vehicle, the
adaptive cruise control allows the
vehicle to temporarily approach the
vehicle ahead to help passing it.
However, the set speed will never be
exceeded.
The adaptive cruise control can store
set speeds over 30 km/h for manual
transmission. If the vehicle ahead is
moving too slowly and the selected
following distance cannot be
maintained anymore, a warning
chime is given and a message is
displayed in the Driver Information
Centre. The message prompts the
driver to take back control of the
vehicle. On vehicles with automatic
transmission, the system can brake
the vehicle until a full stop.9 Warning
The complete driver attention is
always required while driving with adaptive cruise control. The driver stays fully in control of the vehicle
because the brake pedal, the
accelerator pedal and the button
Ñ have priority over any adaptive
cruise control operation.
Switching on the system
Press w.
w is indicated in the Driver
Information Centre. The system is still not active.
