2020 NISSAN LEAF stop start

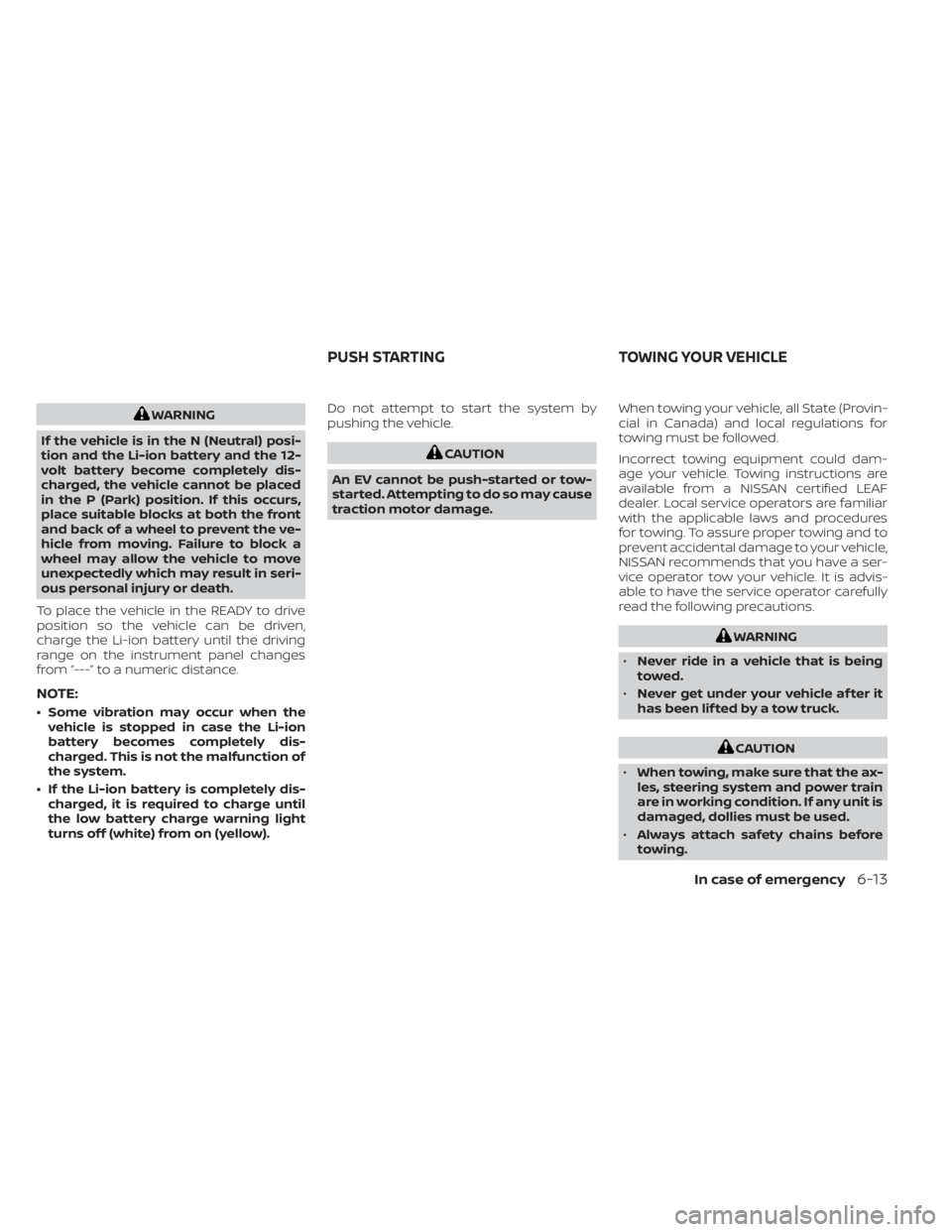

WARNING
If the vehicle is in the N (Neutral) posi-
tion and the Li-ion battery and the 12-
volt battery become completely dis-
charged, the vehicle cannot be placed
in the P (Park) position. If this occurs,
place suitable blocks at both the front
and back of a wheel to prevent the ve-
hicle from moving. Failure to block a
wheel may allow the vehicle to move
unexpectedly which may result in seri-
ous personal injury or death.
To place the vehicle in the READY to drive
position so the vehicle can be driven,
charge the Li-ion battery until the driving
range on the instrument panel changes
from “---” to a numeric distance.
NOTE:
• Some vibration may occur when the vehicle is stopped in case the Li-ion
battery becomes completely dis-
charged. This is not the malfunction of
the system.
• If the Li-ion battery is completely dis- charged, it is required to charge until
the low battery charge warning light
turns off (white) from on (yellow). Do not attempt to start the system by
pushing the vehicle.
CAUTION
An EV cannot be push-started or tow-
started. Attempting to do so may cause
traction motor damage. When towing your vehicle, all State (Provin-
cial in Canada) and local regulations for
towing must be followed.
Incorrect towing equipment could dam-
age your vehicle. Towing instructions are
available from a NISSAN certified LEAF
dealer. Local service operators are familiar
with the applicable laws and procedures
for towing. To assure proper towing and to
prevent accidental damage to your vehicle,
NISSAN recommends that you have a ser-
vice operator tow your vehicle. It is advis-
able to have the service operator carefully
read the following precautions.
WARNING
• Never ride in a vehicle that is being
towed.
• Never get under your vehicle af ter it
has been lif ted by a tow truck.
CAUTION
• When towing, make sure that the ax-
les, steering system and power train
are in working condition. If any unit is
damaged, dollies must be used.
• Always attach safety chains before
towing.
PUSH STARTING TOWING YOUR VEHICLE
In case of emergency6-13

10 Index
1
12-volt battery.................8-12
A
ABS (Anti-lock Braking System).....5-159Additional data recording (on vehicles
equipped with optional
ProPILOT Assist)
...............9-20Advanced air bag system.........1-49Air bag systemAdvanced air bag system........1-49Front-seat mounted side-impact
supplemental air bag system.....1-58Roof-mounted curtain side-impact
supplemental air bag system.....1-58Air bag warning labels............1-62Air bag warning light.........1-62, 2-21Air bag warning light,
supplemental..............1-62, 2-21Air conditionerAir conditioner specification label. . .9-9Air conditioning system refrigerant and
lubricant recommendations.......9-3AlarmHowtostopalarm
(refer to, vehicle security system)
. . .2-44Alcohol, drugs and driving..........5-9Antenna................... .4-43
Antifreeze...................5-169Anti-lock Braking System (ABS).....5-159Anti-lock Braking System (ABS) warning
light.......................2-16Appearance care
Exterior appearance care.........7-2Interior appearance care.........7-4At home af ter driving...........EV-21Audible reminders..............2-24Autolight switch...............2-49Autolight system...............2-49Automatic anti-glare inside mirror. . . .3-25Automatic climate control
(models with Navigation System). . . .4-35Automatic climate control
(models without Navigation System). .4-32Automatic door locks.............3-6Automatic Emergency Braking (AEB) with
Pedestrian Detection...........5-125Avoiding collision and rollover........5-7
B
Battery.....................8-2212-volt battery...............8-12Battery saver system..........2-53Li-ion battery.............EV-2, 2-7Li-ion battery available charge
gauge.................... .2-9Li-ion battery temperature gauge. . .2-7
Battery replacement
Key fob...................8-22Before driving your vehicle
(models with navigation system). . . .EV-15Before starting system...........5-14Blind Spot Intervention® (BSI).......5-47Blind Spot Warning (BSW)..........5-37Booster seats................ .1-39Brake...............5-19,5-20,8-17Anti-lock Braking System (ABS). . . .5-159Brake fluid.................8-10Brake system...............5-157BRAKE system warning light
(yellow)....................2-17BRAKE warning light (red)........2-17Parking brake operation.........5-20Brake fluid...................8-10Brake precautions.............5-157Brake system................5-157BRAKE system warning light (yellow). . .2-17BRAKE warning light (red)..........2-17Brightness control
Instrument panel.............2-54Bulb replacement...........8-24,8-25
C
Capacities and recommended
fuel/lubricants.................9-2Care of wheels.................7-3

Road accident precautions.........EV-9Roadside assistance program........6-2Rollover......................5-7Roof-mounted curtain side-impact
supplemental air bag system.......1-58
S
SafetyChild safety rear door lock.........3-6Child seat belts...............1-18Reporting safety defects.........9-15Scene guideAt home af ter driving..........EV-21Before driving your vehicle
(models with navigation system). . .EV-15Charging the Li-ion battery......EV-12Driving the vehicle............EV-18Parking the vehicle...........EV-20Starting your vehicle...........EV-17Seat beltChild safety.................1-18Infants....................1-19Injured person................1-13Larger children...............1-19Precautions on seat belt usage.....1-10Pregnant women..............1-13Rear center seat belt............1-16Seat belt cleaning..............7-6Seat belt extenders.............1-17Seat belt maintenance..........1-17Seat belts...................1-10Seat belts with pretensioners......1-61
Seat belt warning light..........2-21Shoulder belt height adjustment. . . .1-16Small children................1-19Three-point type..............1-13Seats........................1-2Heated seats................2-56Security system................2-43Security system (NISSAN Vehicle Immobilizer
System), engine start.........2-44, 5-14Security system (NISSAN Vehicle Immobilizer
System), EV system start.......2-44, 5-14Servicing climate control..........4-43Shif tingElectric shif t control system.......5-15Shoulder belt height adjustment......1-16Shoulder belt height adjustment, For front
seats.......................1-16Speedometer................. .2-6Stability control................5-160Starting
Before starting system..........5-14Jump starting................6-10Precautions when starting and
driving.................... .5-4Push starting................6-13Starting the traction motor.......5-15Status light, Front passenger air bag. . .1-52Steering
Heated steering wheel..........2-57Power steering system.........5-156Tilt steering column............3-23Stopping the vehicle..............6-5Storage.................... .2-61Stowing golf bags...............2-66
Sunglasses holder..............2-63Sun visors....................3-24Supplemental air bag warning labels. . .1-62Supplemental air bag warning
light....................1-62, 2-21Supplemental restraint system
Precautions on supplemental restraint
system
................... .1-43Supplemental Restraint System (SRS). . .1-43Switch
Autolight switch..............2-49ECO switch................ .2-55Fog light switch..............2-55Hazard warning flasher switch......6-2Headlight switch..............2-49Immediate charge switch. . .CH-48, 2-58Instrument brightness control.....2-54Power door lock switch........3-4, 3-6Rear window and outside mirror defroster
switch................... .2-48Rear window wiper and washer
switches...................2-47Turn signal switch.............2-54Wiper and washer switch........2-46
T
Telematic Control Unit Gen2K........9-18Telematics overview.............9-16Temperature
Li-ion battery temperature gauge. . . .2-7Thef t (NISSAN Vehicle Immobilizer System),
engine start...............2-44, 5-14
10-6Index
