2020 MERCEDES-BENZ SPRINTER engine

Obser
vethea dditional following point sduring
st artin gassistance:
R Startin gassis tance ma yonly be pr ovided
using batteries wit hanominal voltag eof12V
R The vehicles mus tnot to uche acho ther
R Vehicles with agasoline engine: only per‐
fo rm startin gassis tance when thee ngine and
ex haus tsyst em ar ecold #
Vehicles with abatter ymain switch: check
whe ther theb atter ymain switc hisinserted
( / pag e120) #
Secur ethe vehicle using thep arking brake. #
Vehicles with automatic transmission:
shif tthe transmission toposition 005D. #
Switc hoffthei gnition and all electrical con‐
sumers. #

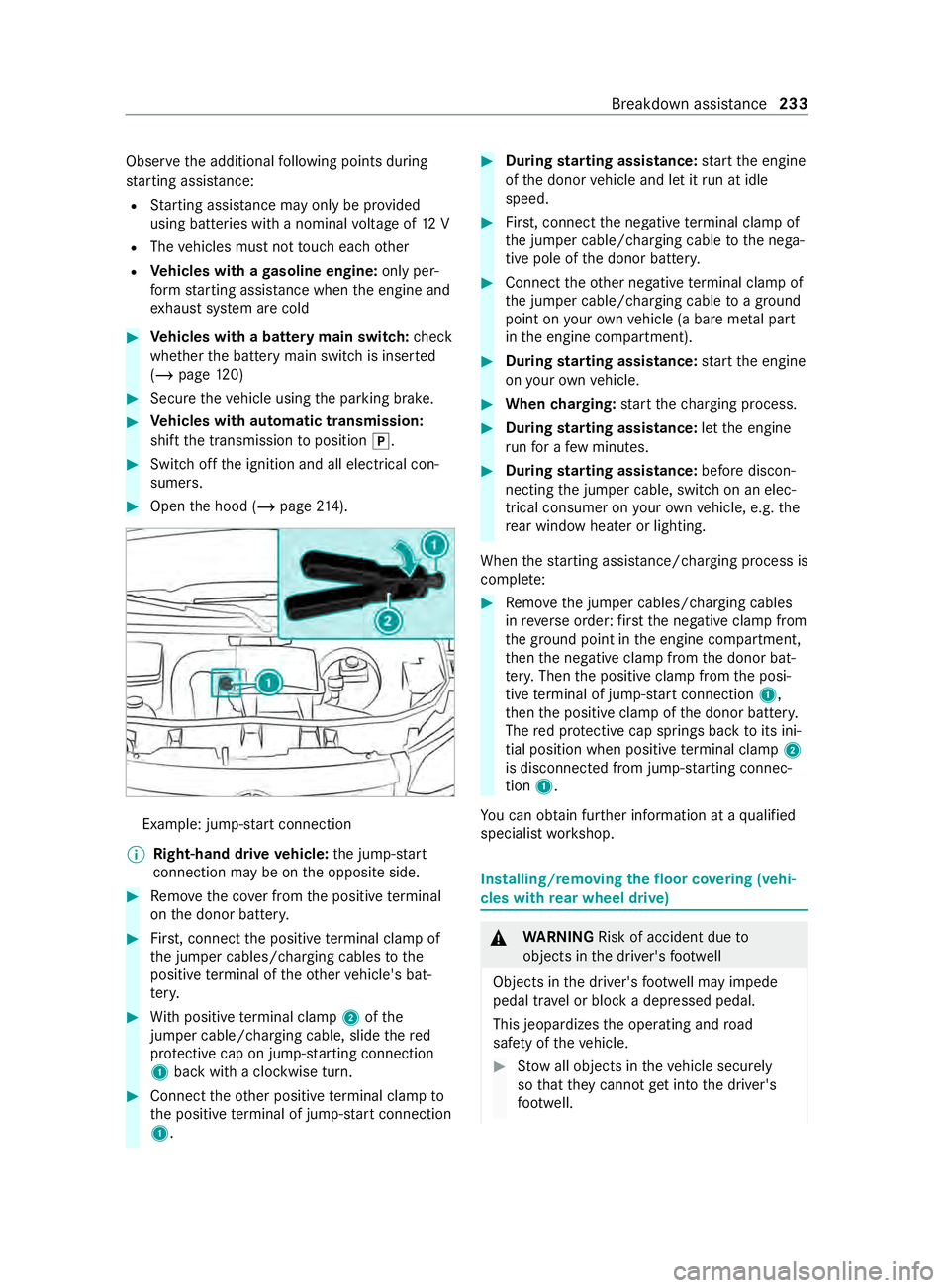

Open theh ood (/ page214). Example
:jump-s tart connection
% Right-hand driv
evehicle: thej ump-s tart
connection ma ybeonthe opposit eside. #
Remo vethec ove rfromt he positiv eterminal
on thed onor batter y. #
First,c onnec tthe positiv eterminal clam pof
th ej umper cables/charging cables tothe
positiv eterminal of theo ther vehicle's bat‐
te ry. #
With positiv eterminal clamp 2ofthe
jumper cable/charging cable ,slide ther ed
pr otectiv ecap on jump-s tarting connection
1 bac kwithac lockwise turn. #
Connect theo ther positiv eterminal clam pto
th ep ositiv eterminal of jump-s tart connection
1. #
During starting assistance: star tt he engine
of thed onor vehicle and le titrun at idle
speed. #
Firs t, connect then egativ eterminal clam pof
th ej umper cable/charging cable tothen ega‐
tiv ep ole of thed onor batter y. #
Connec tthe other negativ eterminal clam pof
th ej umper cable/charging cable toag round
po int on your ow nv ehicle (a bar emetal part
in thee ngine compartment). #
During starting assistance: star tt he engine
on your ow nv ehicle. #
When charging: star tt he chargin gprocess. #
During starting assistance: lett he engine
ru nf or afew minutes. #
During starting assistance: beforediscon‐
necting thej umper cable, switc honanelec‐
trical consumer on your ow nv ehicle, e.g. the
re ar wind owheater or lighting.
When thes tartin ga ssis tance/charging proces sis
comple te: #
Remo vethej umper cables/charging cables
in reve rseo rder:first then egativ eclam pfrom
th eg round point in thee ngine compartment,
th en then egativ eclam pfromt he donor bat‐
te ry.T he nt he positiv eclam pfromt he posi‐
tiv et erminal of jump-s tart connection 1,
th en thep ositiv eclam poft he donor batter y.
The redp rotectiv ecap springs bac ktoits ini‐
tial position when positiv eterminal clamp 2
is disconnected from jump-s tarting connec‐
tion 1.
Yo uc an obtain fur ther information at aqualified
specialis tworks hop. Installing/removing
thef loor co vering (vehi‐
cles with rear wheel drive) &
WARNING Risk of accident du eto
object sinthe driver's foot we ll
Object sinthe driver's foot we ll ma yimp ede
pedal tr avel or bloc kadepressed pedal.
This jeopardizes theo perating and road
saf etyoft hevehicle. #
Stow all object sinthevehicle securely
so that they canno tget intot he driver's
fo ot we ll. Breakdown assis
tance 233

#
Ensu refloor mats and carpets cannot
slip and pr ovide suf ficient room fort he
pedals. #
Do no tlay multiple floor mats or carpets
on topofo ne ano ther. #
Switc hoffall electrical consumers. #
Toremo ve: unscr ewscrews 3and remo ve
trim 2. #
Remo vefloor co vering 1. #
Toinstall: insertfloor co vering 1 and align
it at theb ase of thed rive r's seat and at the
door sill. #
Put trim 2in place and scr ewscrews 3
bac kin. Disconnecting
thes tar terb attery *
NO
TEDama getoelectrical assemblies Elect
rical assemblies could be damaged if the
st ar terb atter yisd isconnected whil ethe
engine is running. #
Switc hoffthee ngine. Then, release the
batter yclamps of thes tarter batter y. #
Alwaysd isconnect thes tarterb atter yin
th eb atter ycase in thel eftf ootwell firs t.
Otherwise, electrica lassemblies, e.g.
th ea lternator ,could be damaged. *
NO
TEDama getothev ehicle's electron‐
ics If
yo udon otdisconnec tthe batter yasdescri‐
bed here, thev ehicle's electronics could be
damaged. #
Alwaysd isconnect thes tarterb atter yin
fo llowing thes equence, and do not
re ve rset he batter yterminals under any
circums tances. Otherwise, thev ehicle's
electronics could be damaged. Ve
hicles wit hrear wheel drive
% If
th ev ehicle is expected tobe par kedf or an
ex tende dperiod or ou tofuseforl onger than
fo ur we eks, obser vethei nformation on park‐
ing thev ehicle forane xtende dperiod
(/ page 144). #
Vehicles with abatter ymain switch:
re mo vethem ain switc hofthe battery
(/ page121). #
Vehicles without abatter ymain switch:
switc hoffall electrical consumers. #
Switc hoffthee ngine and thep ower suppl y. #
Remo vethef loor co vering (/ page 233). #
Remo vescr ews 1and slide batter ycover
2 inthed irection of thea rrow.
The scr ewsm ustp rotrud eoverthe lar ger
re cesses. #
Remo vebatter ycover 2upwards. 234
Breakdown assi stance

If
yo uw ant toreplace thes tarter batter yyourself,
obser vethef ollowing no tes:
R Alwaysr eplace adefectiv estarter battery
wit has tarter batter ywhichm eets thes pe‐
cific requ irements of thev ehicle.
R Carryove rdetachable parts suc hasthevent
hose, elbo wfittin gort erminal co verfromt he
st ar terb atter ytober eplaced.
R Mak esuret hat thev ent hose is alw aysc on‐
nected toits original openin gonthe battery
side.
Ins tallth ee xisting or newly supplied stop
plugs.
Otherwise, gases or batter yacid could
escape.
R Mak esuret hat thed etachable parts ar econ‐
nec tedint he same wayasb efore. Disconnecting
thea uxiliar ybattery inthe
engine compa rtment *
NO
TEDama getoelectrical assemblies Elect
rical assemblies could be damaged if the
st ar terb atter yisd isconnected whil ethe
engine is running. #
Switc hoffthee ngine. Then, release the
batter yclamps of thes tarter batter y. #
Alwaysd isconnect thes tarterb atter yin
th eb atter ycase in thel eftf ootwell firs t.
Otherwise, electrica lassemblies, e.g.
th ea lternator ,could be damaged. *
NO
TEDama getothev ehicle's electron‐
ics Incor
rectly disconnecting thea uxiliar ybattery
can cause damag etothevehicle's electron‐
ics. #
Alwaysd isconnect thea uxiliar ybattery
as described in thef ollowing sequence.
Do no treve rset he batter yterminals
under an ycircums tances. #
Obser vethes afet ym easures and pr otection
notices when disconnectin gthe auxiliar ybat‐
te ry ( / pag e231). #
Switc hoffall electrical consumers. #
Switc hoffthee ngine and thep ower suppl y. #
Open theh ood (/ page214). #
Firstloosen and remo vethen egativ eterminal
clam pont he auxiliar ybatter ysot hatthe
cla mp is no longer in con tact wi th thetermi‐
nal. #
Remo vethep ositiv eterminal clam pcover. #
Loose nand remo vethep ositiv eterminal
clamp. To
wing or tow- starting Overvie
wofpermissible towing me thods In
thee vent of abreak down, Mercedes-Benz rec‐
ommends that youh ave thev ehicle transpor ted
ins tead of towe d.
* NO
TEDama getothev ehicle due to tow‐
ing away incor rectly #
Obser vethei nstruction sand no teson
to wing away. %
Ve
hicles with automatic transmission
and rear-wheel drive: ifth er eisam alfunc‐
tion, thea utomatic transmission ma ybe
loc kedinp osition 005D.
If th ea utomatic transmission cann otbe shif‐
te dtop osition 005C,transpor tthe vehicle
(/ page239). Atow ing vehicle wit hlifting
equipment is requ ired forv ehicle transport. 236
Breakdown assis tance

Pe
rm issible towing me thods Bo
th axle sont he
gr ound Fr
ont axle raised Re
ar axle raised
Ve hicles wit hauto‐
matic transmission and
re ar-wheel drive Ye
s, no fur ther than
31 miles (50 km) at
31 mp h(50 km/h) Ye
s, no fur ther than
31 miles (50 km) at
31 mp h(50 km/h) Ye
s, if thes teering
wheel is fixe dint he
center position wit ha
st eering wheel lock
Ve hicles wit hall-wheel
drive Ye
s, no fur ther than
31 miles (50 km) at
31 mp h(50 km/h) No
NoTo
toww ithar aisedaxle: towing should be per‐
fo rm ed byatow ing compan y. To
wing away thev ehicle wit hbotha xleson
th eg round #
Obser vethen otes on permissible towing
me thods (/ page236). #
Mak esuret hat theb atter yisc onnected and
ch arge d.
When theb atter yisd ischar ged, thef ollowing sit‐
uations occur:
R The engine canno tbestarted.
R It is no tpossible torelease or appl ythe elec‐
tric parking brake.
R Vehicles with automatic transmission: the
automatic transmission canno tbeshiftedto
position 005Cor005D.
* NO
TEDama gedue to to wing away at
exc essivel yhigh speeds or overlong dis‐
ta nces The driv
etra in could be damaged when towing
at exc essively high speeds or over long dis‐
ta nces. #
Atow ing speed of 30 mph(50 km/h)
mus tnotbe exc eeded. #
Atow ing distanc eof30miles (50 km)
mus tnotbe exc eeded. %
Ve
hicles with automatic transmission
and rear wheel drive: ifth er eisam alfunc‐
tion, thea utomatic transmission ma ybe
loc kedinp osition 005D. If
th ea utomatic transmission cann otbe shif‐
te dtop osition 005C,transpor tthe vehicle
(/ page239). Atow ing vehicle wit hlifting
equipment is requ ired forv ehicle transport. &
WARNING Risk of accident whe ntow ing
av ehicle whic histoo heavy
If th ev ehicle being tow- star tedort owed
aw ay is heavier than thep ermissible gross
mass of your vehicle, thef ollowing situations
can occur:
R The towing eyem aybecome de tach ed.
R The vehicle/trailer combination may
swer veoreve noverturn. #
If ano ther vehicle is tow- star tedor
to we da way,its weight mus tnotexc eed
th ep ermissible gross mass of your own
ve hicle. If
av ehicle needs tobe towe dort ow st arted, its
we ight should no tbegreater that thep ermissible
gross mass of thet ow ing vehicle. #
Information on thev ehicle's permissible gross
mass can be found on thev ehicle identifica‐
tion plat e(/pag e274). #
Vehicles with automatic transmission: do
no to pen thed rive r's or co-driver door ,asthe
automatic transmission will automatically
shif ttop osition 005D. #
Installth et ow ing eye( /pag e240). #
Secur ethe towing device. Breakdown assis
tance 237

Installing/removing
thet ow ing eye Ins
talling and removing thef ront towing eye #
Toinstall thef ront towing eye: press the
to poft he co vera nd remo vethec over. #
Screw intowing eye1clockwise tothes top
and tighten. #
Toremo vethef ront towing eye: unsc rew
to wing eye1counter-clockwise. #
Inser tthe co verw itht he tabs at thet op and
push in at theb otto muntilthec ove rengages. Re
ar towing eye( vehicles wit hpassenger vehicle
appr oval)
% Re
ar towing eye2is permanentl yattached
to thev ehicle.
* NO
TEDama getothev ehicle due to
incor rect use of thet ow ing eye When
atow ing eyeisu sedtoreco verav ehi‐
cle, thev ehicle ma ybedamaged in thep roc‐
ess. #
Onlyusethet ow ing eyetot ow aw ayor
to ws tartthe vehicle. To
ws tarting vehicl e(eme rgency engine start) Ve
hicles with automatic transmission
* NO
TEDama getothea utomatic trans‐
mission due to towstarting The automatic transmissio
nmaybe damaged
in thep rocess of tows tartin gv ehicles with
automatic transmission. #
Vehicles wit hautomatic transmission
mus tnotbe tows tarted. #
Do no ttow st artv ehicles wit hautomatic
transmission. Electrical fuses
Note
sone lectrical fuses &
WARNING Risk of accident and injury
du etoo verloaded lines
If yo um anipulat eorbridg eaf aulty fuse or if
yo ur eplace it wit hafuse wit hahigher
amperage, thee lectric line could be overloa‐
ded.
This could result in afire. #
Alwa ys replace faulty fuse swiths peci‐
fi ed ne wfuses containing thec orrect
amperage. *
NO
TEDama gedue toincor rect fuses Electrica
lcomponents or sy stems could be
damaged byincor rect fuses. #
Only use fuses whi chhave been
appr ovedbyM ercedes-Benza nd which
ha ve thec orrect fus erating. Th
ee lectrica lfus es in your vehicle switc hoff
defectiv ecircuits. If afuse blo ws,allth ec ompo‐
nent sont he circuit and their functions will cease
to operate.
Blown fuses mus tbereplaced wit hfuses of an
equivalent specification ,whic hyou can de ter‐
mine bythec olor and fuse rating .The fuse allo‐
cation charta nd fur ther information on thee lec‐
tric fuses and relays can be found in the" Fuse
allocation chart" supplement. 240
Breakdown assis tance

Information on
technical data
The given dat aonlya pplies tovehicles with
st andar dequipment. Further information can be
obtained at aqualified specialis tworks hop. On-board electronics
Note
sonw orkont he engine electronics *
NO
TES Premature wearthro ugh
improper main tenance Imprope
rmaintenance ma ycause vehicle
components towe ar mor equickl yand the
ve hicle's operating permit ma ybeinvalidated. #
Alwaysh ave workon thee ngine elec‐
tronics and related components car ried
out at aqualified specialis tworks hop. Tw
o-w ayradios In
stallation no tesf or two- wayradios &
WARNING Risk of accident du eto
improper workon two-w ayradios
The electromagnetic radiation from two-w ay
ra dios can inter fere wit hthe on-boar delec‐
tronics if RF transmit ters arem anipulated or
re trofitted inco rrectl y.
This could jeopardize theo perating saf etyof
th ev ehicle. #
Yous houl dhave allworkon electrical
and electronic component scarried out
at aq ualified specialis tworks hop. &
WARNING Risk of accident from incor‐
re ct ope ratio noft wo-way radios
If yo uo perat etwo -way radios incor rectl yin
th ev ehicle, thee lectromagnetic radiation
could inter fere wit hthe on-boar delectronics,
e.g.:
R ifth et wo -way radio is no tconnected to
an exterior antenna
R ifth ee xterio rantenna is no tcorrectly
mounted or is no toflowreflection
This could jeopardies theo perating saf etyof
th ev ehicle. #
Have thel ow -reflection exterior antenna
ins talled at aqualified specialis twork‐
shop. #
When operating two-w ayradios in the
ve hicle, alw aysc onnectt hemtothe
lo w- reflection exterior antenna. *
NO
TEInva lidation of theo perating per‐
mit due tofailur etoc omply wi th the
instructions fori ns tallation and use The operatin
gpermit ma ybeinvalidated if the
instructions fori ns tallation and use of two-
wa yradios ar enotobser ved. #
Onlyuse appr oved frequency bands. #
Obser vethem aximum permissible out‐
put po werint hese frequency bands. #
Onlyuse appr oved antenna positions. Use
Tech nica lSpecification ISO/T S21609 (Road
Ve hicles -EMC guidelines fori ns tallation of af ter‐
mar ketradio frequency transmitting equipmen t)
when retrofitting two-w ayradios. Comply wit hthe
legal requirements ford etachable parts.
If yo ur vehicle has ins talling fort wo -way radio
equipment ,use thep ower suppl yorantenna con‐
nections intended foru se wit hthe ins talling.
Obser vethem anufacturer's supplement during
ins tallation.
Information on two-w ayradio transmission
output
The maximum transmission outputs (PEAK) at the
base of thea ntenna mus tnotexc eed thev alues
in thef ollowing table:
Fr equency band and maximum transmission
output Fr
equency band Maximu mtransmis‐
sion output
Sho rtwa ve
3—54M Hz 10
0W
4—m—w aveband
74 —88M Hz 30 W
2—m—w aveband
14 4—1 74MHz 50 W
Tr unked radio sys‐
te m/T etra
380 —460 MHz 10 W Te
ch nica ldata 273

Fr
equency band Maximu mtransmis‐
sion output
70 —cm—w aveband
420 —450 MHz 35 W
Tw o-w ayradio
(2G/3G/4G) 10 WThe
following can be used in thev ehicle without
re strictions:
R two-w ayradios wit hamaximum transmission
output of up to100mW
R two-w ayradios wit htransmit terf requ encies
in the3 80 –410 MHz frequency band and a
maximu mtransmissio noutpu tofu pto2W
(trunked radio sy stem/T etra)
R mobil ephones (2G/3G/4G)
Ther eareno restrictions whe npositioning the
antenn aonthe outside of thev ehicle fort he fol‐
lowing frequenc ybands:
R Trunked radio sy stem/T etra
R 70—cm—w aveband
R 2G/3G/4G Ve
hicl eidenti fication pla te,v ehicle identifi‐
cation number (VIN )and engine number
Ve hicl eidenti fication pla te Depending on
thev ehicle model, thev ehicle iden‐
tification plat eislocated on thes eat base of the
driver's seat or on theB -pillar.
% The dat
aisvehicle-speci fica nd can dif fer
from that shown. Alw ayso bser vethes pecifi‐
cation sonyourvehicle's identification plate. Ve
hicle identification plat e(example: US A,
comple te vehicles)
1 Vehicle manufacturer
2 VIN (vehicle identification number)
3 Perm issible grossmass
4 Perm issible grossmassofv ehicle combina‐
tion
5 Perm issible front axle load
6 Perm issible rear axle load
7 Dateofm anufacture
8 Paint code Ve
hicle identification plat e(example: US A,
incomple te vehicles)
1 Vehicle manufacturer
2 VIN (vehicle identification number)
3 Perm issible grossmass
4 Perm issible grossmassofv ehicle combina‐
tion
5 Perm issible front axle load
6 Perm issible rear axle load
7 Dateofm anufacture
8 Paint code 274
Tech nica ldata

Engine number
The engine number is
stamped ont othe crank‐
case. Youc an obtain fur ther information from any
qu alified specialis tworks hop. Operating fluids and capacities
Note
sono perating fluids &
WARNING Risk of inju ryfrom operating
fl uids harmful to your health
Operatin gfluids ma ybepoisonous and harm‐
ful to yo ur health. #
Obse rvet he text on theo riginal contain‐
er sw hen using, storing or disposing of
operating fluids. #
Alwayss tore operating fluids sealed in
th eir original containers. #
Alwaysk eep children away from operat‐
ing fluids. +
ENVIRONMEN
TALN OTE Environmental
pollution du etodisposing of operating
fl uids in anon-en vironmen tallyr esponsi‐
ble manner Operating
fluids include thef ollowing:
R fuels
R exhaus tgas af tertre atment additives, e.g.
DEF
R lubricants
Incor rect disposal of ope rating fluids can
caus econsiderable damag etothe environ‐
ment. #
Dispose of operating fluids in an envi‐
ro nmentally responsible manner. Operating
fluids include thef ollowing:
R Fuels
R Exhaus tgas af tertre atment additives, e.g.
DEF
R Lubricants
R Coolant
R Brak efluid
R Windshield washer fluid
R Climat econtrol sy stem refrigerants
Use only products recommended byMercedes-
Benz.D amagecaused bytheu se of products that ha
ve notb eena pprove disn otcoveredbyt he
Mercedes-Benzg uarantee or goodwill gestures.
Yo uc an identif yoperatin gfluids appr oved by
Mercedes-Benzbyt hefollowing insc ript ions on
th ec ontainer:
R MB-F reigabe (e.g. MB- Freigabe 229. 51 )
R MB-Appr oval (e.g. MB-App rova l2 29.51)
Fu rther information on appr ovedoperating fluids
is available at thef ollowing locations:
R IntheMBS pecification sfor operating fluids
at http://be vo.mercedes-benz.com (b yenter‐
ing thed esignation)
R Ataq ualified specialis tworks hop &
WARNING Risk offire or explosion from
fuel
Fu els ar ehighl yflammable. #
Fire, open flames ,smokin gand creation
of spar ksmus tbea voided. #
Swit chofft he ignition and, if available,
th es tationar yheater ,befor eand while
re fueling thev ehicle. &
WARNING Risk of inju ryfrom fuels
Fu els ar epoisonous and hazardous to your
health. #
Do no tswa llowf uel or le titcomeinto
con tact wi thskin, eyes or clo thing. #
Do no tinhale fuel vapor. #
Keep children away from fuel. #
Keep door sand windo wsclosed du ring
th er efueling process.
If yo uoro ther people come int ocontact with
fuel, obser vethef ollowing: #
Immediatel yrins efueloffyo ur skin with
soap and water. #
If fuel comes int ocontact wit hyour
ey es, immediatel yrins ethem thor‐
oughly wit hclean water.Seek medical
attentio nimmediately. #
Ifyo us wallowf uel, seek medical atten‐
tio nimmediatel y.Do no tinduce vomit‐
ing. #
Chang eimmediately out of clo thing that
has com eintoc ontact wi thfuel. 276
Tech nica ldata
