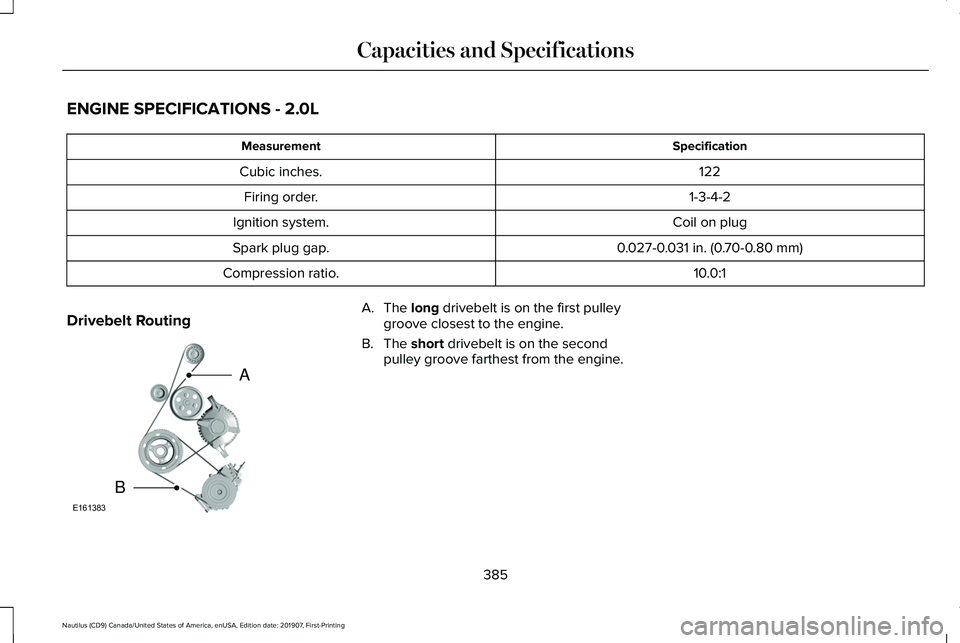

ENGINE SPECIFICATIONS - 2.0L
Specification
Measurement
122
Cubic inches.
1-3-4-2
Firing order.
Coil on plug
Ignition system.
0.027-0.031 in. (0.70-0.80 mm)
Spark plug gap.
10.0:1
Compression ratio.
Drivebelt Routing A. The long drivebelt is on the first pulley
groove closest to the engine.
B. The
short drivebelt is on the second
pulley groove farthest from the engine.
385
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Capacities and SpecificationsE161383
A
B
ENGINE SPECIFICATIONS - 2.7L
Specification
Measurement
164
Cubic inches
Minimum 87 octane
Required fuel
1-4-2-5-3-6
Firing order
10.0:1
Compression ratio
0.028-0.031 in. (0.7 - 0.8 mm)
Spark plug gap
Drivebelt Routing 386
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Capacities and SpecificationsE191903
