2020 KIA OPTIMA PHEV Advanced Driving Assistance System

(Buttons located on steering wheel)
See the Owner’s Manual for more detailed information, limitations and conditions.Images are for illustrative purposes only and may not reflect actual feature or operation. The LFA system is supplemental. Do not solely rely on this system and always pay attention to the road and its conditions.Actual User Settings steps may vary by model. Check your Owner’s Manual for more information.
REMINDERS: § If the ignition is cycled, the LFA returns to its previous state, on or off§ The LFA System is not a substitute for safe and proper driving Always drive safely and use caution
C
D
B
ADVANCED DRIVING ASSISTANCE SYSTEMS (ADAS)
17ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS
Lane Following Assist (LFA)
System*† (Continued)
A

The Smart Cruise Control (SCC) with Stop & Go system is designed to maintain a predetermined distance from vehicles detected ahead by automatically adjusting the driving speed as needed
To set/adjust the SCC speed:
§ Press the CRUISE button A to turn the system ON The CRUISE indicator will illuminate on the instrument cluster
§ Accelerate/decelerate to the desired speed
§ Press the SET - button B to set the speed Press the RES+/SET- button B up/down to increase/decrease the set speed
To set the vehicle-to-vehicle distance:
§ Press the SCC distance button C on the steering wheel
§ Each time you press the button C, the vehicle-to-vehicle distance will change D, indicated by the number of bars that appear on the display E Less bars indicates the system will maintain less distance between the vehicles and more bars indicates the system will maintain a greater distance between the vehicles
To cancel SCC operation: Press the CANCEL button F or press the brake pedal The LCD screen will display a message that the SCC operation is canceled
To turn SCC system OFF: Press the CRUISE button A The CRUISE indicator on the instrument cluster will turn OFF
To change the cruise control mode from SCC to standard cruise control, press and hold button C Repeat to switch back to SCC mode (The SCC system must not be activated to change modes)
Quick Tips
§ The speed setting for the SCC can be adjusted under the following conditions:
§ You must be travelling at a minimum speed of 20 mph
§ When following a vehicle, there is no minimum speed requirement
§ When following a vehicle, the system can automatically adjust your cruise speed based on the vehicle detected ahead If the vehicle detected ahead remains at a standstill and your vehicle is also stopped for longer than 3 seconds, the system will need to be reactivated by pressing the gas pedal or pressing the RES button
ADVANCED DRIVING ASSISTANCE SYSTEMS (ADAS)
ADAS Guide18*IF EQUIPPED†LEGAL DISCLAIMERS ON BACK INSIDE COVER
Smart Cruise Control (SCC)
with Stop & Go*†

(Distances are approximate and vary depending on vehicle speed)
(Display on LCD screen)
172ft131ft
82ft
107ft
D
Images are for illustrative purposes only and may not reflect actual feature or operation.
SMART CRUISE CONTROL (SCC) WITH STOP & GO VIDEOTo view a video on your mobile device, snap this QR Code or visit the listed website
www.youtube.com/KiaFeatureVideos
REMINDERS: § CRUISE indicator must be ON in order to operate SCC§ The cruise control system will not activate until the brake pedal has been depressed at least once after the ignition is ON or engine starting§ When following a vehicle, the system will automatically adjust your cruise speed based on the vehicle detected in front§ SCC is also canceled when the driver’s door is opened, gear shift is changed out of D (Drive), EPB is activated and various other conditions See the Owner’s Manual for other conditions§ If the SCC system is left on, it can be activated inadvertently Keep the system off when not in use to avoid setting a speed which the driver is not aware of§ The SCC system is a supplemental system and is not a substitute for safe driving It is the responsibility of the driver to always check the speed and distance to the vehicle ahead
A
B
(Buttons located on steering wheel)CF
E
ADVANCED DRIVING ASSISTANCE SYSTEMS (ADAS)
19ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS
Smart Cruise Control (SCC)
with Stop & Go*† (Continued)

Standard Cruise Control Settings
A Cruise Control ON/OFF button: Press to turn the cruise control ON/OFF
B Resume Cruising Speed button: Press up to resume or increase cruising speed
B Set Cruising Speed button: Press down to set or decrease cruising speed
C Cruise Control Cancel button: To cancel cruise control setting, do one of the following:
§ Press the brake pedal
§ Press the CANCEL button
Quick Tips
§ The standard cruise control system is designed to function above approximately 20 mph only
§ The Cruise Control system will not activate until the brake pedal has been depressed at least once after ignition ON or engine start
ADAS Guide20*IF EQUIPPED†LEGAL DISCLAIMERS ON BACK INSIDE COVER
ADVANCED DRIVING ASSISTANCE SYSTEMS (ADAS)

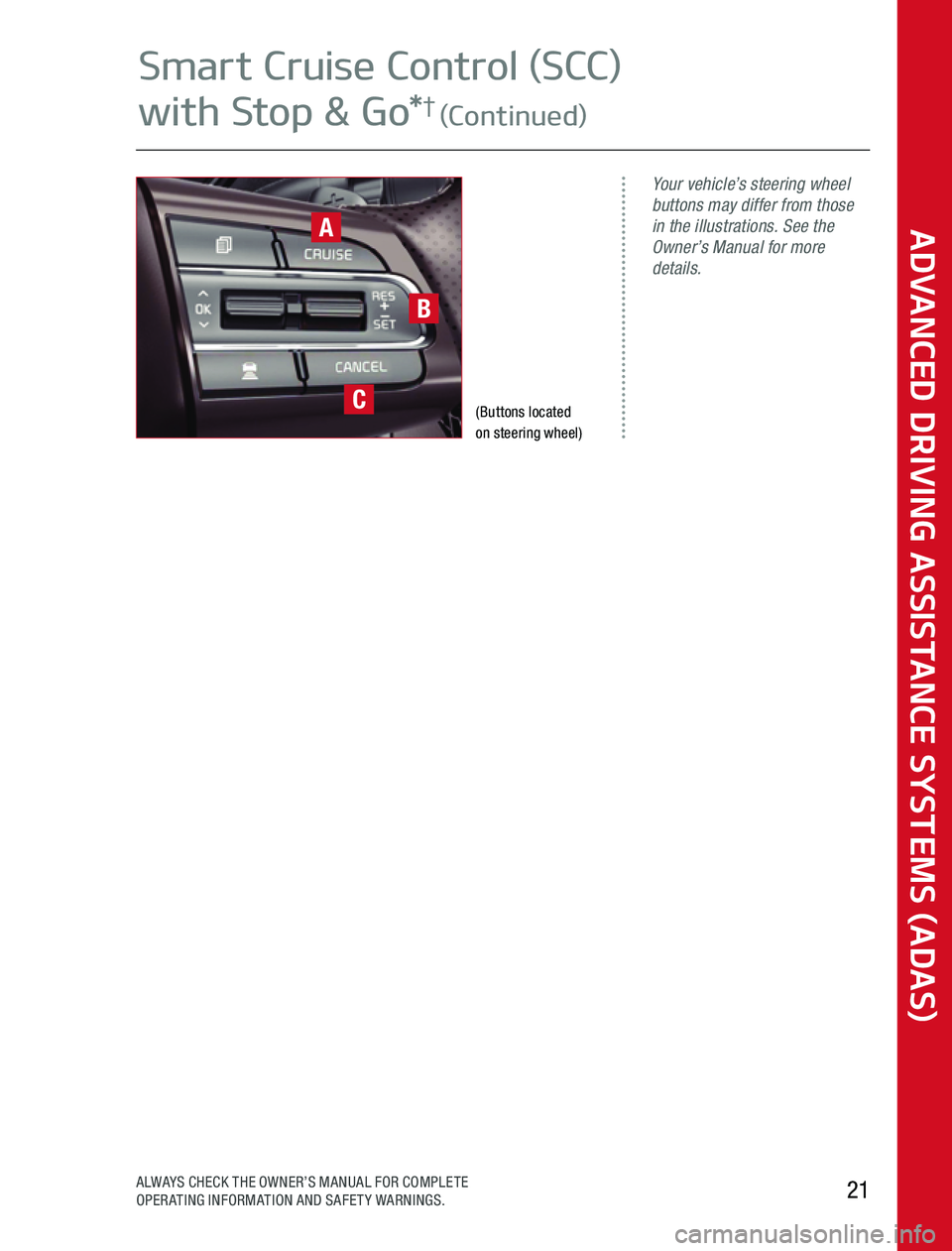

Smart Cruise Control (SCC)
with Stop & Go*†

(Buttons located on steering wheel)
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See the Owner’s Manual for more details.
21ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS
A
B
C
ADVANCED DRIVING ASSISTANCE SYSTEMS (ADAS)
Smart Cruise Control (SCC)
with Stop & Go*† (Continued)

ADAS Guide22
ADVANCED DRIVING ASSISTANCE SYSTEMS (ADAS)

Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions Always drive safely
† Driver Assist Features – Forward Collision-Avoidance Assist (FCA) / Forward Collision Warning (FCW), Blind-Spot Collision-Avoidance Assist (BCA) / Blind-Spot Collision Warning (BCW), Blind-Spot View Monitor (BVM) System, Rear Cross-Traffic Collision Warning (RCCW) / Rear Cross-Traffic Collision-Avoidance Assist (RCCA), Lane Keeping Assist (LKA) / Lane Departure Warning (LDW), Lane Following Assist (LFA) System*, Smart Cruise Control (SCC) with Stop & Go: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle Always drive safely and use caution
23ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS
ADVANCED DRIVING ASSISTANCE SYSTEMS (ADAS)
Legal Disclaimers

© 2019 Kia Motors America, Inc All rights reserved
