2020 INFINITI QX80 Owner's Manual

killed.
. Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is in
a seat and using a seat belt properly.
. Do not fold down the rear seats when
occupants are in the rear seat area or
any cargo is on the rear seats.
. Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been
removed for any reason.
. If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to the
vehicle in case of sudden braking or
an accident.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.
. When folding the bench seat seat-
back down for maximum storage,
make sure the seat base is in the
latched position by rocking the seat
base. If the seat base is not properly
secured, cargo stored on top of a
folded seatback may become a pro-
jectile causing personal injury or
vehicle damage.
CAUTION
.When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center
console of the captain’s seat (if so
equipped) to avoid possible damage
to the console.
. When folding or returning the seat(s)
to the upright position, to avoid
injury to yourself and others:
— Make sure that the seat path is clear before moving the seat.
— Be careful not to allow hands or feet to get caught or pinched in
the seat.
SSS1119
Stowing 2nd and 3rd row seats
To stow 2nd and 3rd row seats for maximum
cargo capacity:
Manual Operation:
1. Pull lever located on the 2nd row seat.
The seatback folds down and the seat
base will tip forward. See “Entry to 3rd
row seat” (P.1-6).
Power Operation:
1. Push and hold the corresponding switch located on the instrument panel below
the audio system. The seatback will fold
down and tip forward. See “Entry to 3rd
row seat” (P.1-6).
Safety — seats, seat belts and supplemental restraint system1-11

1-12Safety — seats, seat belts and supplemental restraint system
SSS1120
2. Push the folded seat down until it locksin position.
SSS1121
3. Fold the 3rd row seat flat using theswitches located in the cargo area. See
“Power folding ” (P.1-9).
4. Return 3rd row seats to seating posi- tions by raising the 3rd row seatbacks to
an upright position using the switches.
Make sure the seatback is locked in
position. See “Power folding ” (P.1-9).
5. Return the 2nd row seat to a seating position by raising the 2nd row seat-
backs to an upright position. Make sure
the seatback is locked in position.
CAUTION
When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center con-
sole of the captain’s seat (if so equipped)
to avoid possible damage to the console.

WARNING
Head restraint/headrest supplement the
other vehicle safety systems. They may
provide additional protection against
injury in certain rear end collisions.
Adjustable head restraints/headrests
must be adjusted properly, as specified
in this section. Check the adjustment
after someone else uses the seat. Do not
attach anything to the head restraint/
headrest stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly
adjust the head restraint/headrest be-
fore an occupant uses the seating posi-
tion. Failure to follow these instructions
can reduce the effectiveness of the head
restraint/headrest. This may increase
the risk of serious injury or death in a
collision.
JVR0403X
The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is
equipped with a head restraint.
Indicates the seating position is
equipped with a headrest.
. Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
. Adjustable head restraints/headrests
have multiple notches along the stalk to
lock them in a desired adjustment posi-
tion.
. The non-adjustable head restraints/
headrests have a single locking notch to
secure them to the seat frame. .
Proper Adjustment:
— For the adjustable type, align the head restraint/headrest so the center of
your ear is approximately level with
the center of the head restraint/
headrest.
— If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that
designated seating position.
Safety — seats, seat belts and supplemental restraint system1-13
HEAD RESTRAINTS/HEADRESTS

1-14Safety — seats, seat belts and supplemental restraint system
SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
JVR0203X
NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPO-
NENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVE
CAUTION
The front head restraints with a rear
display are not designed to be pulled out.
The rear display may be damaged if the
head restraint is forcibly pulled out.
Use the following procedure to remove the
head restraint/headrest.
1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.

3. Remove the head restraint/headrestfrom the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occupant
uses the seating position.
SSS0996
INSTALL
1. Align the head restraint/headrest stalks
with the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the
adjustment notch
must be installed in
the hole with the lock knob.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/head- rest before an occupant uses the seating
position.
SSS0997
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
Safety — seats, seat belts and supplemental restraint system1-15

1-16Safety — seats, seat belts and supplemental restraint system
JVR0259X
For non-adjustable head restraint/head-
rest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seat-
ing position.
SSS1035
Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seat-
ing position.
SSS1036
Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seat-
ing position.

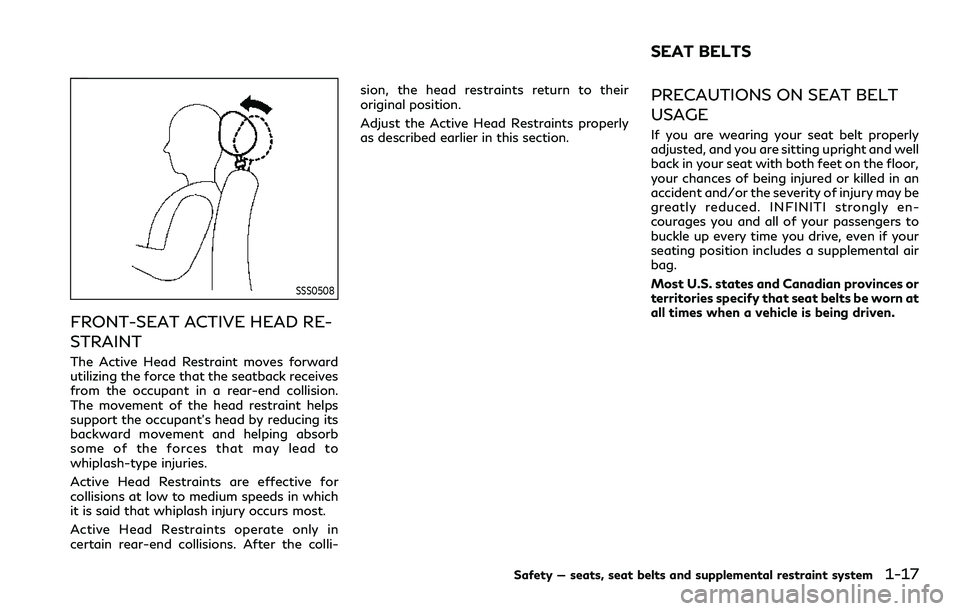

SSS0508
FRONT-SEAT ACTIVE HEAD RE-
STRAINT
The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision.
The movement of the head restraint helps
support the occupant’s head by reducing its
backward movement and helping absorb
some of the forces that may lead to
whiplash-type injuries.
Active Head Restraints are effective for
collisions at low to medium speeds in which
it is said that whiplash injury occurs most.
Active Head Restraints operate only in
certain rear-end collisions. After the colli-sion, the head restraints return to their
original position.
Adjust the Active Head Restraints properly
as described earlier in this section.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor,
your chances of being injured or killed in an
accident and/or the severity of injury may be
greatly reduced. INFINITI strongly en-
courages you and all of your passengers to
buckle up every time you drive, even if your
seating position includes a supplemental air
bag.
Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
Safety — seats, seat belts and supplemental restraint system1-17
SEAT BELTS

1-18Safety — seats, seat belts and supplemental restraint system
SSS0136A
SSS0134A
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be properly
restrained in the rear seat and, if
appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of injury
in an accident. Serious injury or death
can occur if the seat belt is not worn
properly.
. Always route the shoulder belt over
your shoulder and across your chest.
Never put the belt behind your back,
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder.
. Position the lap belt as low and snug
as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal
injuries in an accident.
. Be sure the seat belt tongue is
securely fastened to the proper
buckle.
