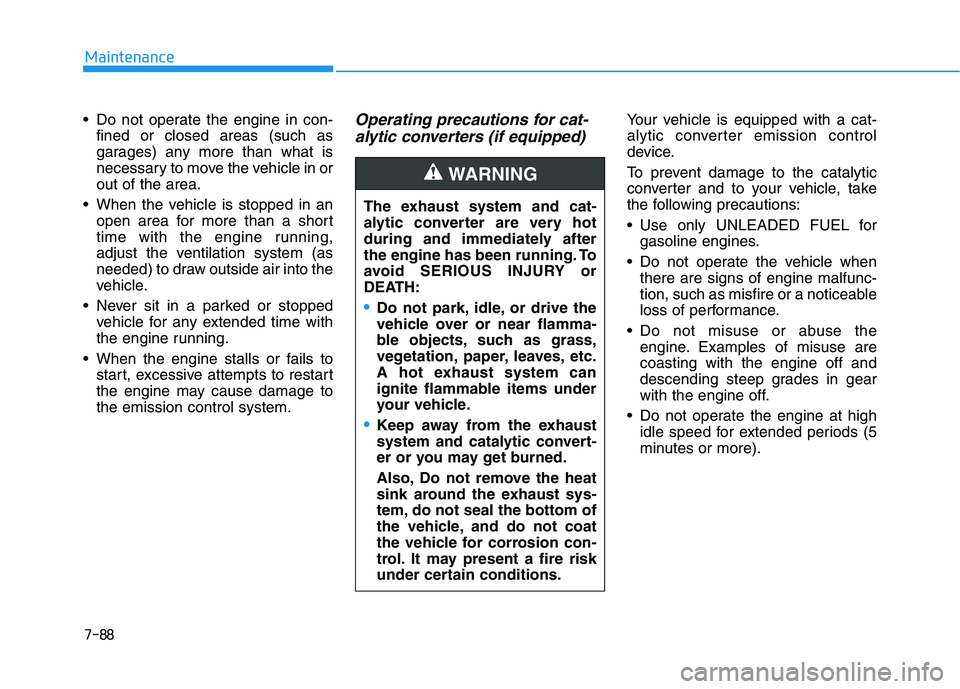

7-88
Maintenance
Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an
open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to
the emission control system.
Operating precautions for cat-
alytic converters (if equipped)Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
Use only UNLEADED FUEL for
gasoline engines.
Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the
engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high
idle speed for extended periods (5
minutes or more). The exhaust system and cat-
alytic converter are very hot
during and immediately after
the engine has been running. To
avoid SERIOUS INJURY or
DEATH:
Do not park, idle, or drive the
vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Keep away from the exhaust
system and catalytic convert-
er or you may get burned.
Also, Do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle, and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.
WARNING

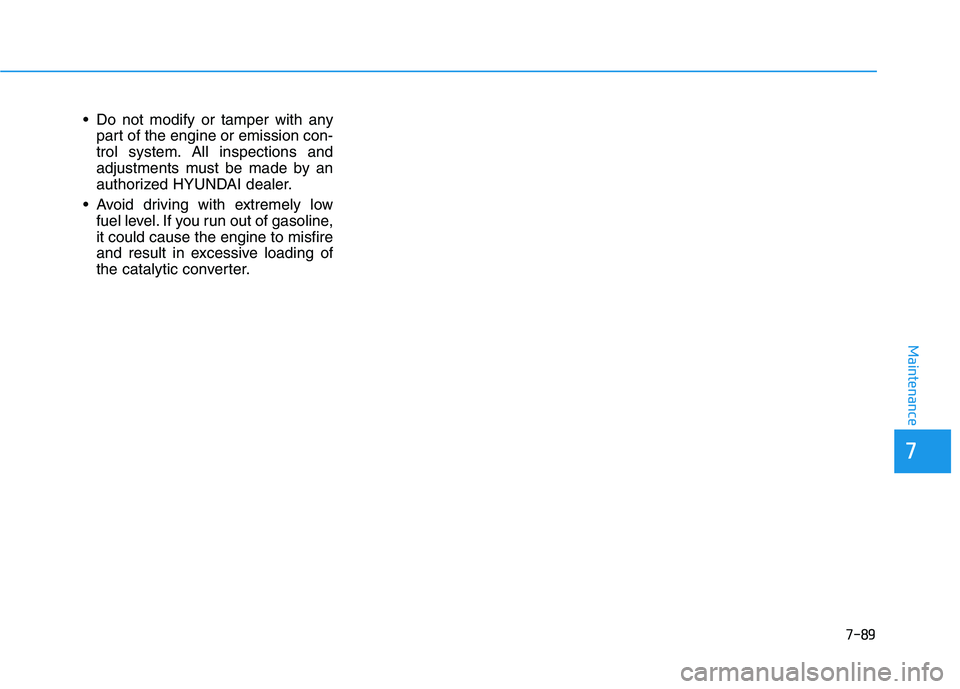

7-89
7
Maintenance
Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
Avoid driving with extremely low
fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.

888

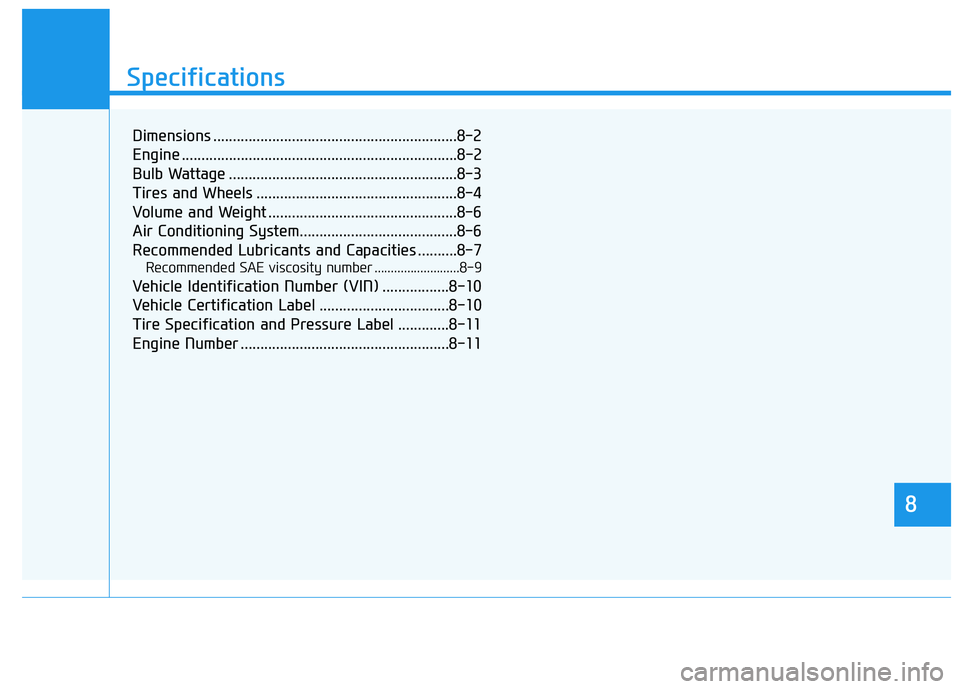

Specifications & Consumer information
8
Specifications
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11

D DI
IM
ME
EN
NS
SI
IO
ON
NS
S

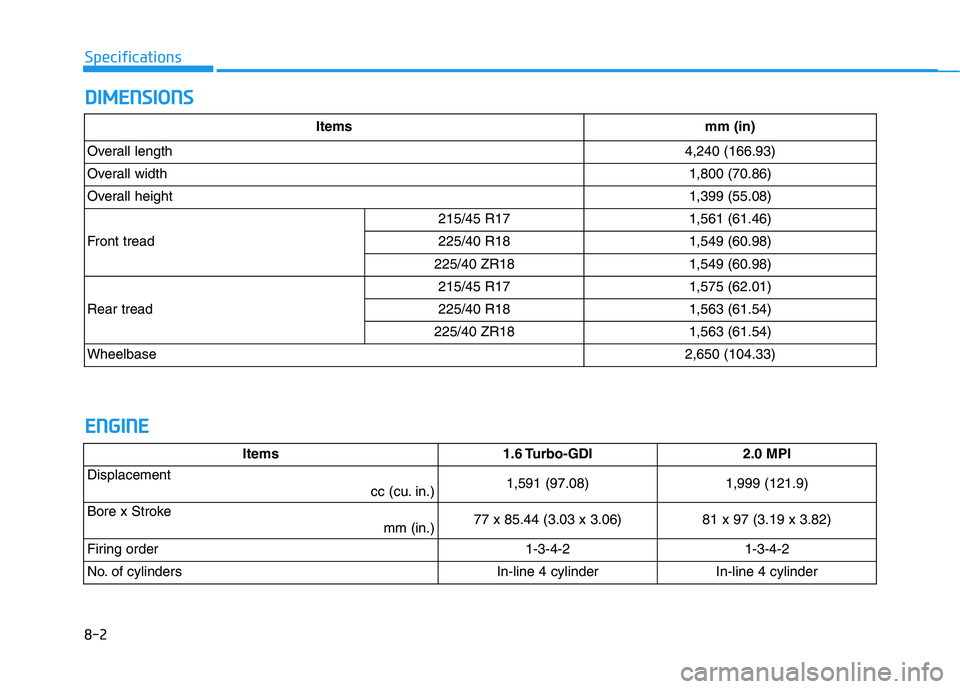

8-2
Specifications
E
EN
NG
GI
IN
NE
E
Items 1.6 Turbo-GDI2.0 MPI
Displacement
cc (cu. in.)1,591 (97.08)1,999 (121.9)
Bore x Stroke
mm (in.)77 x 85.44 (3.03 x 3.06)81 x 97 (3.19 x 3.82)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
Itemsmm (in)
Overall length4,240 (166.93)
Overall width1,800 (70.86)
Overall height1,399 (55.08)
Front tread
215/45 R171,561 (61.46)
225/40 R181,549 (60.98)
225/40 ZR181,549 (60.98)
Rear tread
215/45 R171,575 (62.01)
225/40 R181,563 (61.54)
225/40 ZR181,563 (61.54)
Wheelbase2,650 (104.33)

B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E
88
Specifications
8-3 Light Bulb Bulb Type Wattage
FrontHeadlampLow (Type A) H7 55
High (Type A) HB3 60
Low (Type B) LED LED
High (Type B) HB3 60
Turn signal lamp 28/8W(2357A) 28
Turn signal lamp (Outside mirror) LED LED
Daytime running lamp (DRL) / position lamp LED LED
Side Marker LampType A W5W 5
Type B LED LED
RearRear combination lampStop/Tail (Type A) P21/5W 21/5
Tail (Type A) P21/5W 5
Stop/Tail (Type B) LED LED
Turn signal 27W(1156A) 27
Back up W16W 16
Side Marker LampType A W5W 5
Type B LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
InteriorMap lamp W10W 10
Room lamp (without sunroof) FESTOON 8
Sunvisor lamp FESTOON 5
Tailgate room lamp FESTOON 10

T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S

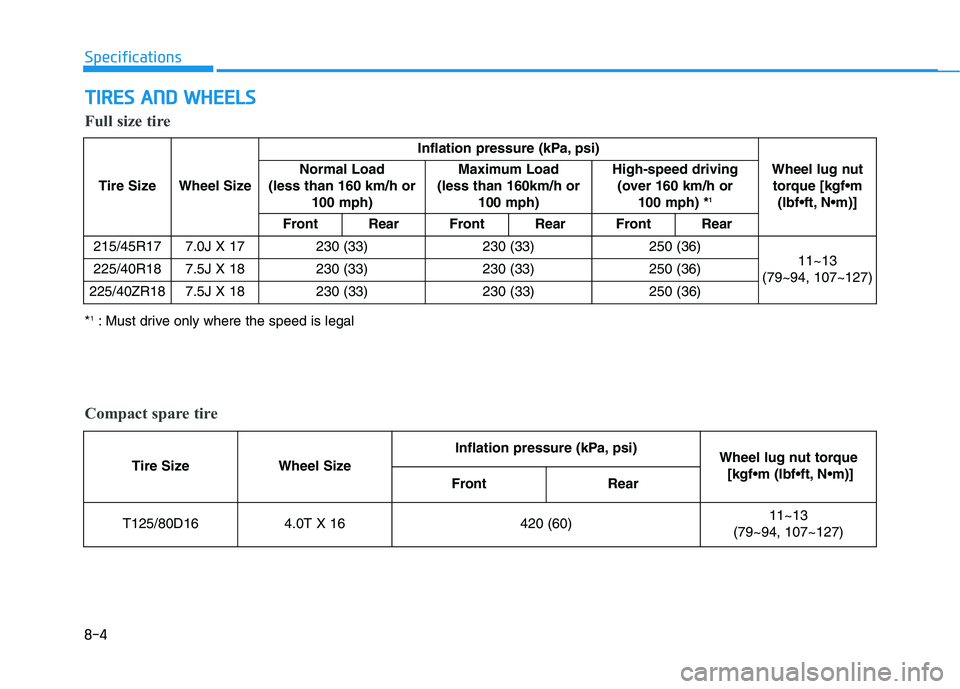

8-4
Specifications
Tire Size Wheel SizeInflation pressure (kPa, psi)
Wheel lug nut
torque [kgf•m
Normal Load
(less than 160 km/h or
100 mph)Maximum Load
(less than 160km/h or
100 mph)High-speed driving
(over 160 km/h or
100 mph) *1
Front Rear Front Rear Front Rear
215/45R17 7.0J X 17 230 (33) 230 (33) 250 (36)
11~13
(79~94, 107~127) 225/40R18 7.5J X 18 230 (33) 230 (33) 250 (36)
225/40ZR18 7.5J X 18 230 (33) 230 (33) 250 (36)
Full size tire
Compact spare tire
Tire Size Wheel SizeInflation pressure (kPa, psi)
Wheel lug nut torque

Front Rear
T125/80D16 4.0T X 16 420 (60)11~13
(79~94, 107~127)
*1: Must drive only where the speed is legal

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION

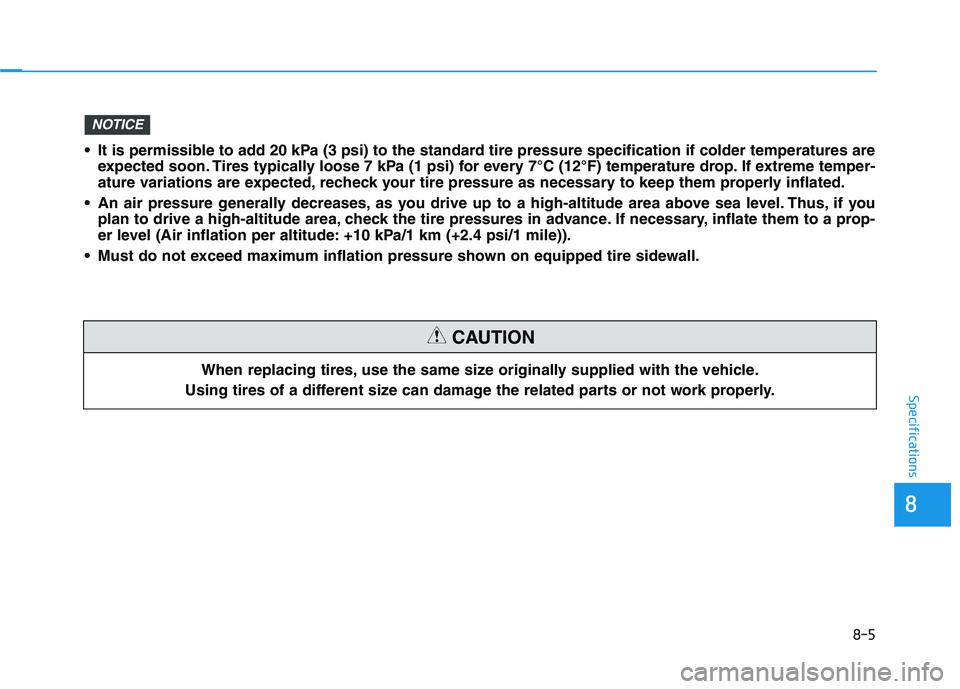

8-5
88
Specifications
It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if colder temperatures are
expected soon. Tires typically loose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme temper-
ature variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you
plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level (Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile)).
Must do not exceed maximum inflation pressure shown on equipped tire sidewall.
NOTICE

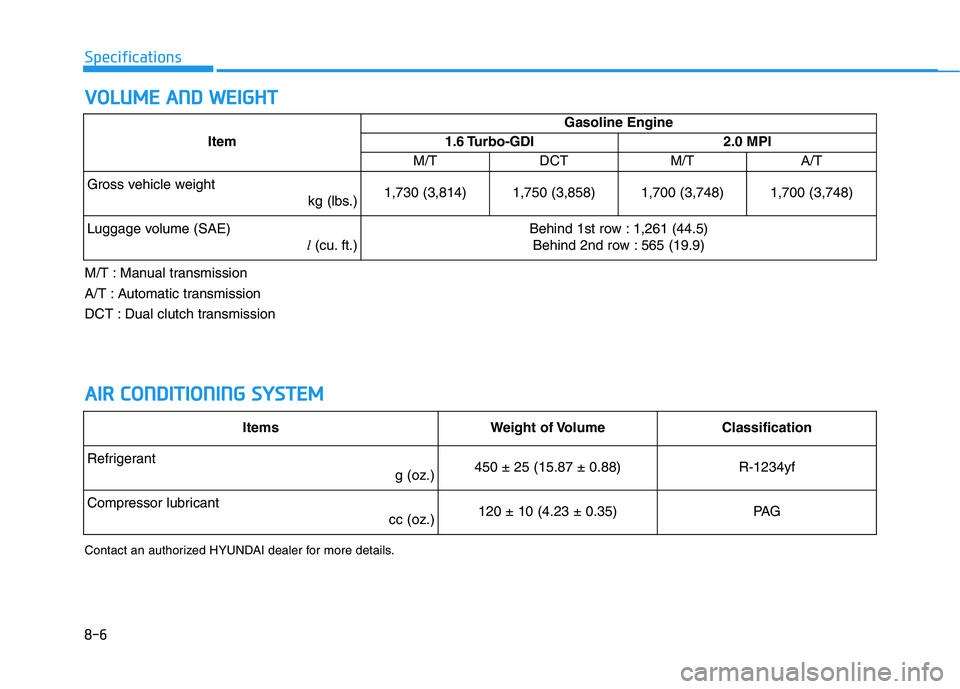

8-6
Specifications
V VO
OL
LU
UM
ME
E
A
AN
ND
D
W
WE
EI
IG
GH
HT
T
A AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M
Contact an authorized HYUNDAI dealer for more details.
Item
Gasoline Engine
1.6 Turbo-GDI2.0 MPI
M/TDCTM/TA/T
Gross vehicle weight
kg (lbs.)1,730 (3,814)1,750 (3,858)1,700 (3,748)1,700 (3,748)
Luggage volume (SAE)
l(cu. ft.)Behind 1st row : 1,261 (44.5)
Behind 2nd row : 565 (19.9)
ItemsWeight of VolumeClassification
Refrigerant
g (oz.) 450 ± 25 (15.87 ± 0.88) R-1234yf
Compressor lubricant
cc (oz.) 120 ± 10 (4.23 ± 0.35)PA G
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
