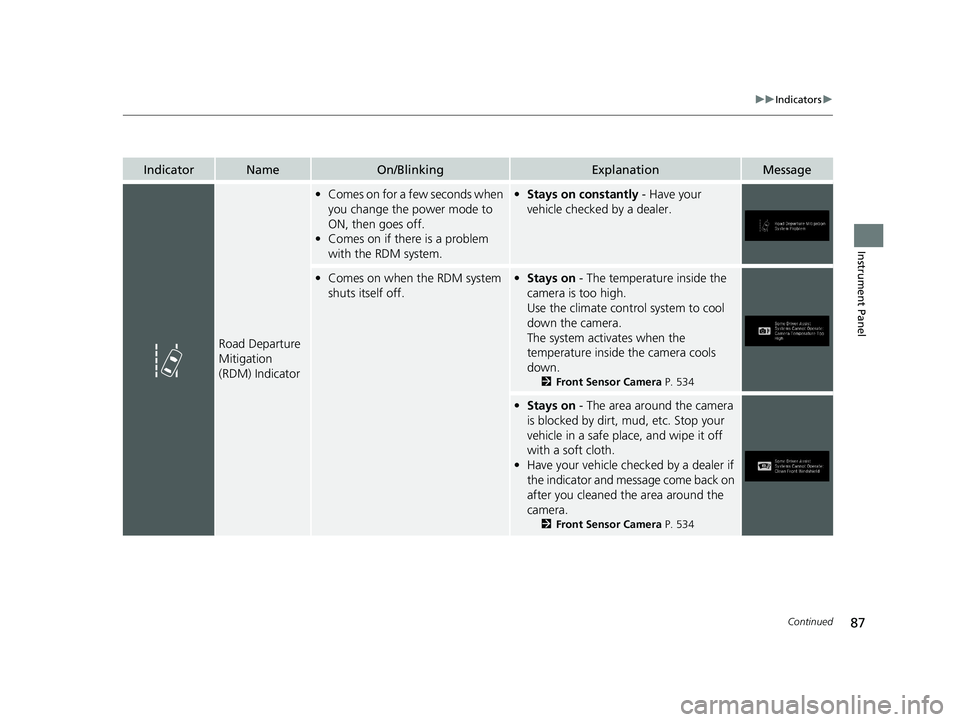

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation
(RDM) Indicator
•Comes on for a few seconds when
you change the power mode to
ON, then goes off.
• Comes on if there is a problem
with the RDM system.•Stays on constantly - Have your
vehicle checked by a dealer.
• Comes on when the RDM system
shuts itself off.•Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 534
•Stays on - The area around the camera
is blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 Front Sensor Camera P. 534
20 PASSPORT-31TGS6100.book 87 ページ ２０１９年８月３０日　金曜日　午後６時２２分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
Indicator
(Amber)• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with ACC.•Comes on while driving - Have your
vehicle checked by a dealer.
Adaptive Cruise
Control ( ACC)
Indicator (Green)• Comes on when you press the
MAIN button.2Adaptive Cruise Control (ACC)
P. 507—
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
• Comes on for a few seconds when
you change the power mode to
ON, then goes off.
• Comes on when you deactivate
the CMBS
TM. A driver information
interface message appears for five
seconds.
• Comes on if there is a problem
with the CMBS
TM.
•Stays on constantly without the
CMBSTM off - Have your vehicle checked
by a dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 495
20 PASSPORT-31TGS6100.book 88 ページ ２０１９年８月３０日　金曜日　午後６時２２分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
• Comes on when the CMBSTM
system shuts itself off.• Stays on - The temperature inside the
camera is too high. Use the climate
control system to cool down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 534
•Stays on - The area around the camera
is blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
2 Front Sensor Camera P. 534
•When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft cloth. Indicator may take
some time to go off after the radar
sensor is cleaned.
• Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
2 Radar Sensor P. 536
20 PASSPORT-31TGS6100.book 89 ページ ２０１９年８月３０日　金曜日　午後６時２２分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind spot
information
System Indicator
•Stays on while blind spot
information system is turned off.—
•Comes on when mud, snow, or ice
accumulates in the vicinity of
sensor.•Comes on while driving - Remove the
obstacle in the vicinity of the sensor.
2 Blind spot information System*
P. 482
• Comes on if there is a problem
with the system.•Comes on while driving - Have your
vehicle checked by a dealer.
Models with Blind spot information System
* Not available on all models
20 PASSPORT-31TGS6100.book 90 ページ ２０１９年８月３０日　金曜日　午後６時２２分

91
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings, then press the
ENTER button to see the message again wi th the system message indicator on.
MessageConditionExplanation
•Appears if any door or the tailgate is not completely
closed.•Goes off when all doors and the tailgate are closed.
•Appears when the hood is opened.•Close the hood.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Warning Appears P. 629
•Appears when the washer fluid is low*.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 580
•Appears while you are customizing the settings and
the transmission is in other than
(P.
2 Vehicle Customization P. 119
Models with color audio system
* Not available on all models
20 PASSPORT-31TGS6100.book 91 ページ ２０１９年８月３０日　金曜日　午後６時２２分

92
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the temperature of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears if the battery charge becomes low.•Charge the battery.
•Appears when there is a problem with the sensor on
the battery.•Have your vehicle checked by a dealer.
2 Checking the Battery P. 599
•Appears when the schedu led maintenance is due
soon.
• Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 565
•Appears when the engine coolant temperature gets
abnormally high.2 Overheating P. 627
20 PASSPORT-31TGS6100.book 92 ページ ２０１９年８月３０日　金曜日　午後６時２２分

93
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when there is a problem with the power
tailgate system.
• Manually open or close the power tailgate.
• Have your vehicle checked by a dealer.
•Appears when the starter system has a problem.•As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal and manually start the engine.
• Have your vehicle checked by a dealer.
•Appears when the steer ing wheel is locked.•Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
•Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
Models with power tailgate
U.S.
Canada
Canada
20 PASSPORT-31TGS6100.book 93 ページ ２０１９年８月３０日　金曜日　午後６時２２分

94
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears after the driver’s door is opened when the
power mode is in ACCESSORY.•Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 165
•Appears when you close the door with the power
mode in ON without the remote inside the vehicle.•Disappears when you bring the remote back inside the
vehicle and close the door.
2 Smart Entry Remote Reminder P. 167
•Appears when the remote battery becomes weak.•Replace the battery as soon as possible.
2 Replacing the Button Battery P. 601
•Appears if the remote battery is too weak to start the
engine or the key is not within operating range to
start the engine.
A beeper sounds six times.• Bring the remote in front of the ENGINE START/STOP
button to be touched with.
2 If the Smart Entry Remote Battery is Weak P. 622
●Appears three seconds after the To Start, Hold
Remote Near Start Button, then To Start Engine
messages appeared sequentially.●Unless you bring the smart en try remote in front of the
ENGINE START/STOP button, this message does not
appear.
2 If the Smart Entry Remote Battery is Weak P. 622
•Appears if there is a problem with the cooling
system.•Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
•Appears if there is a problem with the headlights.
•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.Models with LED headlights
