2020 HONDA INSIGHT Owner's Manual (in English)

159
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/ Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s
Door Opens*1/ All Doors
When Shifted To Park /All
Doors When Ignition
Switched OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
20 INSIGHT-31TXM6100.book 159 ページ ２０１９年４月２４日　水曜日　午後２時２分

160
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Maintenance
Reset —Resets the engine oil life display when you have
performed the maintenance service. Cancel
/All Due Items /Item #
Only (#: A, B, 1, 2, 3, 4, 5, 7)
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
20 INSIGHT-31TXM6100.book 160 ページ ２０１９年４月２４日　水曜日　午後２時２分

161
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Roll the multi-function steering-wheel
controls to select Vehicle Settings , then
push the left selector wheel.
2. Roll the multi-function steering-wheel
controls until Meter Setup appears on the
display.
3. Push the left selector wheel.
u Language Selection appears first on
the display.
20 INSIGHT-31TXM6100.book 161 ページ ２０１９年４月２４日　水曜日　午後２時２分

162
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
4. Roll the left selector wheel until “Trip A”
Reset Timing appears on the display, then
push the left selector wheel.
u The display switches to the
customization setup screen, where you
can select When Refueled , IGN Off,
Manually Reset , or Exit .
5. Roll the left selector wheel and select
When Refueled , then push the left
selector wheel.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Roll the left selector wheel until Exit
appears on the display, then push the left
selector wheel.
7. Repeat Step 6 until you return to the
normal screen.
20 INSIGHT-31TXM6100.book 162 ページ ２０１９年４月２４日　水曜日　午後２時２分

163
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 164
Locking and Unlocking the Doors Key Types and Functions .................. 166
Low Remote Signal Strength ............ 168
Locking/Unlocking the Doors from the Outside .......................................... 169
Locking/Unlocking the Doors from the Inside ............................................. 176
Childproof Door Locks ..................... 178
Auto Door Locking/Unlocking .......... 179
Opening and Closing the Trunk ....... 180
Security System
Immobilizer System .......................... 183 Security System Alarm...................... 184
Opening and Closing the Windows ... 186
Moonroof*................................................ 189Operating the Switches Around the
Steering Wheel POWER Button................................. 190
Turn Signals ..................................... 193
Light Switches.................................. 193
Fog Lights
*...................................... 196
Daytime Running Lights ................... 196
Auto High-Beam .............................. 197
Wipers and Washers ........................ 200
Rear Defogger/Heated Door Mirror Button ........................................ 202
Brightness Control ........................... 203
Adjusting the Steering Wheel .......... 204
Adjusting the Mirrors Interior Rearview Mirror ................... 205
Power Door Mirrors ......................... 206
Adjusting the Seats .......................... 207
Interior Lights/Interior Convenience
Items ................................................ 215
Climate Control System Using Automatic Climate Control .... 225
Automatic Climate Control Sensors ... 231
* Not available on all models
20 INSIGHT-31TXM6100.book 163 ページ ２０１９年４月２４日　水曜日　午後２時２分

164
Controls
Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen with the power
mode in ON.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Adjusting the Time
1Clock
The clock is automatically updated through the audio
system.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features
* P. 359, 366
Models with Display Audio
Models with color audio
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
* Not available on all models
20 INSIGHT-31TXM6100.book 164 ページ ２０１９年４月２４日　水曜日　午後２時２分

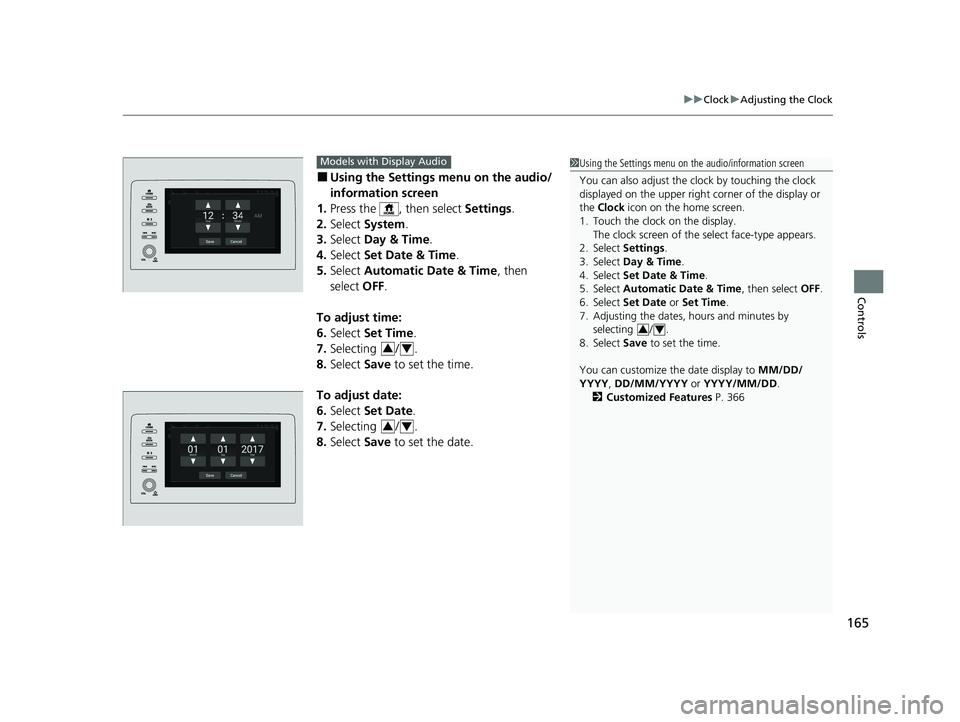

165
uuClock uAdjusting the Clock
Controls
■Using the Setti ngs menu on the audio/
information screen
1. Press the , then select Settings.
2. Select System.
3. Select Day & Time.
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
8. Select Save to set the time.
To adjust date:
6. Select Set Date.
7. Selecting / .
8. Select Save to set the date.
1Using the Settings menu on the audio/information screen
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display. The clock screen of the select face-type appears.
2. Select Settings .
3. Select Day & Time.
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by
selecting / .
8. Select Save to set the time.
You can customize th e date display to MM/DD/
YYYY , DD/MM/YYYY or YYYY/MM/DD .
2 Customized Features P. 366
34
Models with Display Audio
34
34
20 INSIGHT-31TXM6100.book 165 ページ ２０１９年４月２４日　水曜日　午後２時２分

166
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the keys to turn on and off the power
system, and to lock and unlock all the doors
and to open the trunk.
You can also use the remote transmitter to
lock and unlock all the doors and to open the
trunk.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 183
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start. 2 Remote Engine Start with Vehicle
Feedback
* P. 450
Models with remote engine starter
Models without smart entry system
Models with smart entry system and
remote engine starter
* Not available on all models
20 INSIGHT-31TXM6100.book 166 ページ ２０１９年４月２４日　水曜日　午後２時２分
