2020 HONDA INSIGHT spark plugs replace
[x] Cancel search: spark plugs replacePage 561 of 675

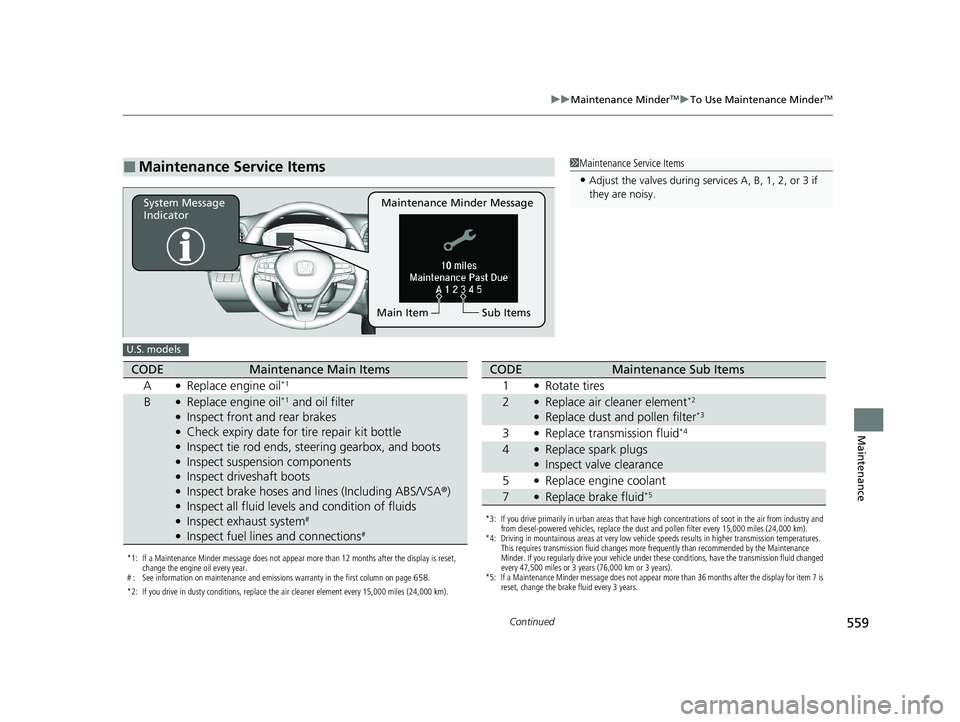

559
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 658.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
20 INSIGHT-31TXM6100.book 559 ページ ２０１９年４月２４日 水曜日 午後２時２分
Page 562 of 675
560
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder Message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder Message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 658.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steer ing gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system #
●Inspect fuel lines and connections #
20 INSIGHT-31TXM6100.book 560 ページ ２０１９年４月２４日 水曜日 午後２時２分
Page 671 of 675
669
Index
POWER/CHARGE Gauge.......................... 130
Precautions While Driving ....................... 454
Rain ........................................................ 454
Pregnant Women ....................................... 49
Puncture (Tire) ......................................... 605
R
Radar Sensor............................................ 531
Radiator .................................................... 570
Radio (AM/FM) ......................................... 290
Radio (FM/AM) ......................................... 248
Radio (SiriusXM ®)..................................... 294
Radio Data System (RDS) ................. 249, 292
Range ........................................................ 136
RDS (Radio Data System) ................. 249, 292
Readiness Codes (Emissions Testing) ...... 657
Rear Defogger/Heated Door Mirror
Button ..................................................... 202
Rear Seat (Folding Down) ....................... 210
Rear Seat Heaters ..................................... 224
Rearview Mirror ....................................... 205
Refueling .................................................. 547
Fuel Gauge ............................................. 128
Gasoline ......................................... 547, 652
Low Fuel Indicator..................................... 90
Regulations .............................. 475, 585, 655
Remote Engine Start with Vehicle Feedback ................................................. 450
Remote Transmitter ................................. 173 Replacement
Battery .................................................... 593
Bulbs ....................................................... 575
Fuses ............................................... 641, 645
Tires ........................................................ 588
Wiper Blade Rubber ................................. 579
Reporting Safety Defects ......................... 656
Resetting a Trip Meter ..................... 134, 136
Road Departure Mitigation (RDM) .......... 518
On and Off .............................................. 520
S
Safe Driving ................................................ 39
Safety Check ............................................... 43
Safety Labels ............................................... 78
Safety Message ............................................. 1
Safety Support .......................................... 148
Seat Belts ..................................................... 44
Adjusting the Shoulder Anchor .................. 48
Automatic Seat Belt Tensioners .................. 46
Checking ................................................... 50
Fastening ................................................... 47
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 71
Pregnant Women ...................................... 49
Reminder ................................................... 45
Warning Indicator ................................ 45, 90
Seat Heaters ...................................... 223, 224
Seats .......................................................... 207
Adjusting ................................................. 207 Front Seats .............................................. 207
Rear Seats ............................................... 210
Seat Heaters .................................... 223, 224
Security System ......................................... 183
Immobilizer System Indicator ..................... 95
Security System Alarm Indicator................. 95
Selecting a Child Seat ................................. 68
Selector Knob (Audio) .............................. 241
Shift Buttons ....................................... 28, 457
Operation................................................ 459
Shift Position Indicator .............................. 88
Shifting (Transmission) ............................. 457
Shoulder Anchor ........................................ 48
Side Airbags ................................................ 58
Side Curtain Airbags .................................. 60
Siri Eyes Free ..................................... 261, 324
SiriusXM ® Radio ........................................ 294
Smart Entry with Push Button Start System ..................................................... 169
Snow Tires ................................................. 590
Spare Tire .......................................... 605, 653
Spark Plugs ............................................... 652
Specifications ............................................ 652
Specified Fuel ................................... 547, 652
Speedometer ............................................ 128
SPORT Mode ............................................. 463
Indicator.................................................... 96
SRS Airbags (Airbags) ................................. 54
Steering Wheel Adjusting ................................................ 204
Stopping ................................................... 542
20 INSIGHT-31TXM6100.book 669 ページ ２０１９年４月２４日 水曜日 午後２時２分
