2020 HONDA CLARITY FUEL CELL Navigation Manual (in English)

39
uu Navigation u Custom Avoidances
Continued
System Setup

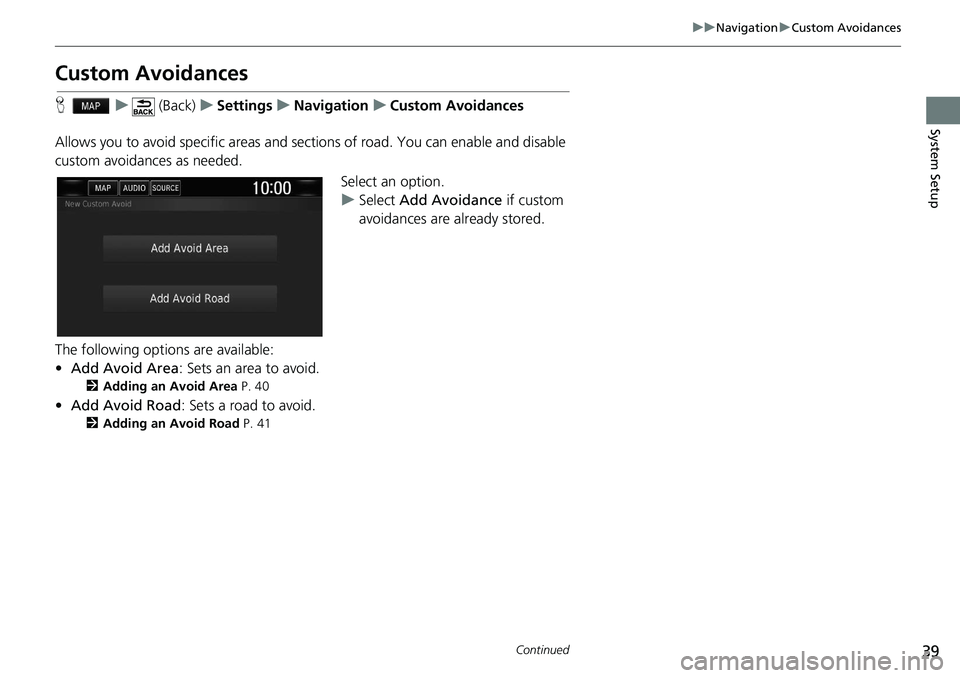

Custom Avoidances
H u (Back) u Settings u Navigation u Custom Avoidances
Allows you to avoid specific areas and sect ions of road. You can enable and disable
custom avoidances as needed.
Select an option.
uSelect Add Avoidance if custom
avoidances are already stored.
The following options are available:
• Add Avoid Area: Sets an area to avoid.
2 Adding an Avoid Area P. 40
•Add Avoid Road : Sets a road to avoid.
2Adding an Avoid Road P. 41

40
uu Navigation u Custom Avoidances
System SetupH u (Back) u Settings u Navigation u Custom Avoidances

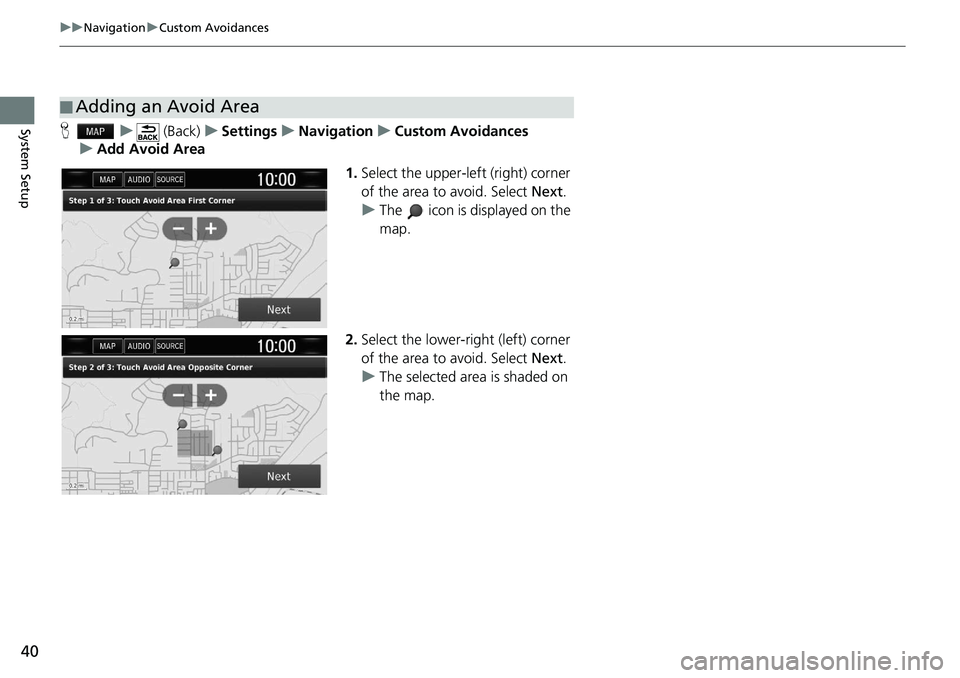

u Add Avoid Area
1.Select the upper-left (right) corner
of the area to avoid. Select Next.
u The icon is displayed on the
map.
2.Select the lower-right (left) corner
of the area to avoid. Select Next.
uThe selected area is shaded on
the map.
■Adding an Avoid Area

41
uu Navigation u Custom Avoidances
Continued
System Setup

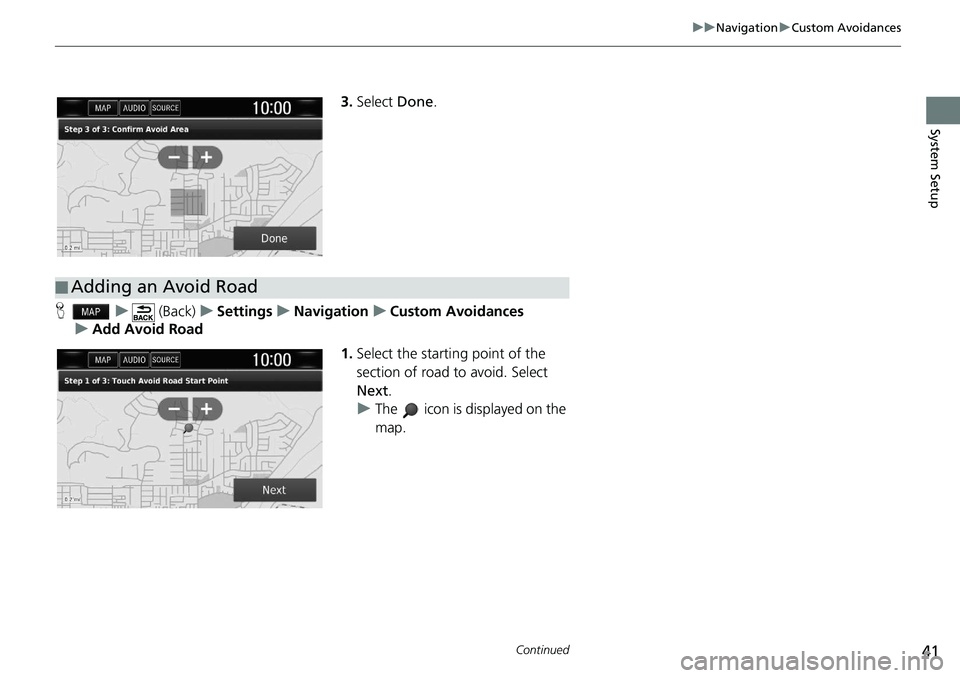

3. Select Done.
H u (Back) u Settings u Navigation u Custom Avoidances
u Add Avoid Road
1.Select the starting point of the
section of road to avoid. Select
Next .
u The icon is displayed on the
map.
■Adding an Avoid Road

42
uu Navigation u Custom Avoidances
System Setup

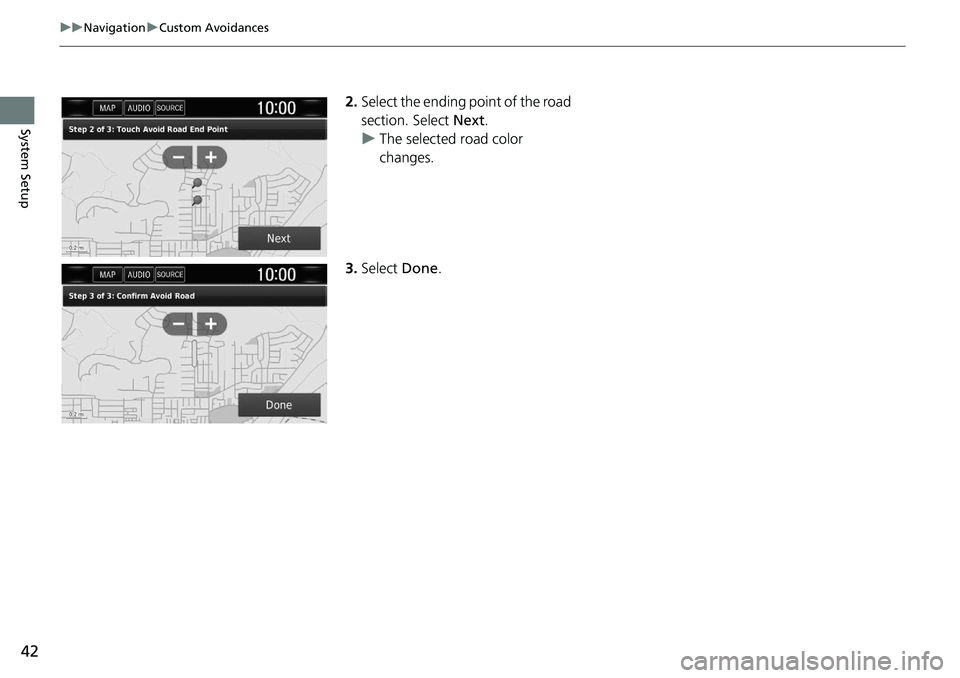

2. Select the ending point of the road
section. Select Next.
uThe selected road color
changes.
3. Select Done.

43
uu Navigation u Custom Avoidances
Continued
System SetupH u (Back) u Settings u Navigation u Custom Avoidances

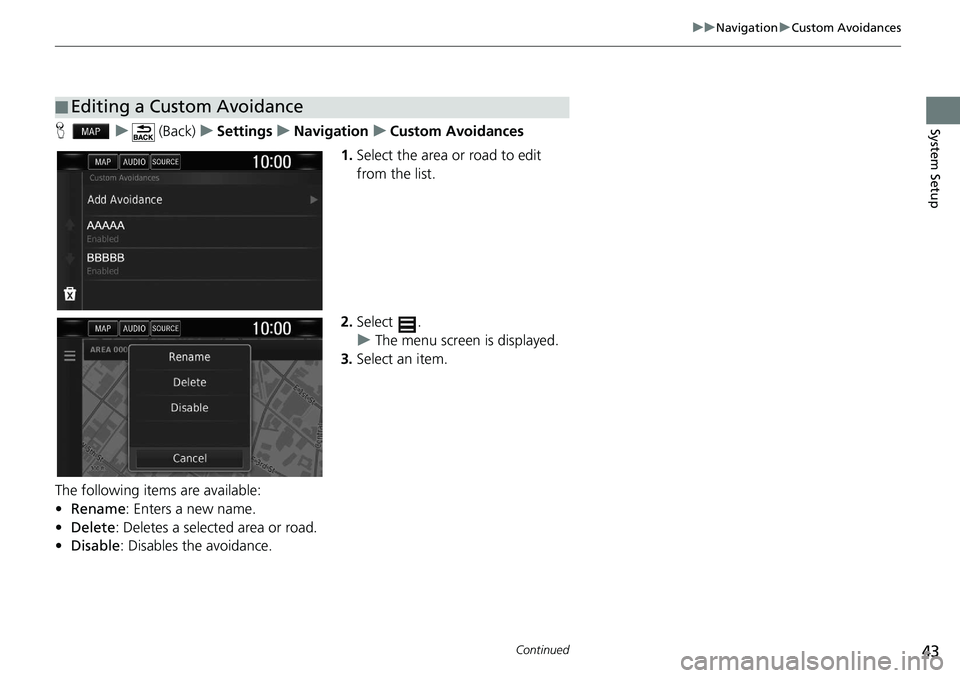

1. Select the area or road to edit
from the list.
2.Select .
u The m
enu screen is displayed.
3. Select an item.
The following items are available:
•Rename : Enters a new name.
• Delete: Deletes a selected area or road.
• Disable : Disables the avoidance.
■Editing a Custom Avoidance

uu Navigation u Custom Avoidances
44
System SetupH u (Back) u Settings u Navigation u Custom Avoidances

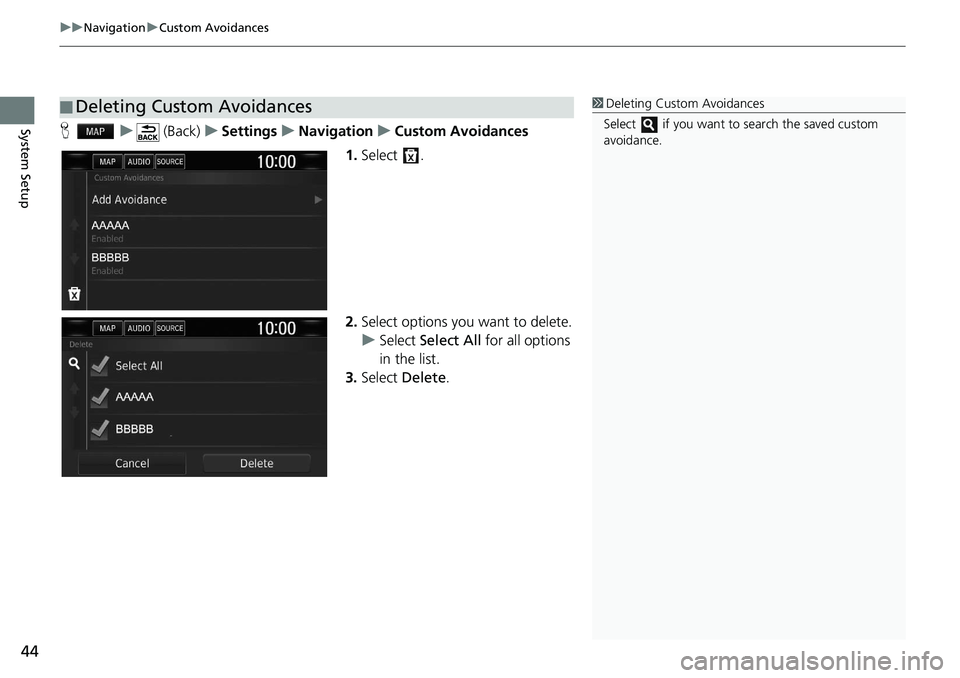

1. Select .
2.Select options you want to delete.
u Select Select All for all options
in
the list.
3. Select De
lete.
■Deleting Custom Avoidances1
Deleting Custom Avoidances
Select if you want to search the saved custom
avoidance.

45
System Setup

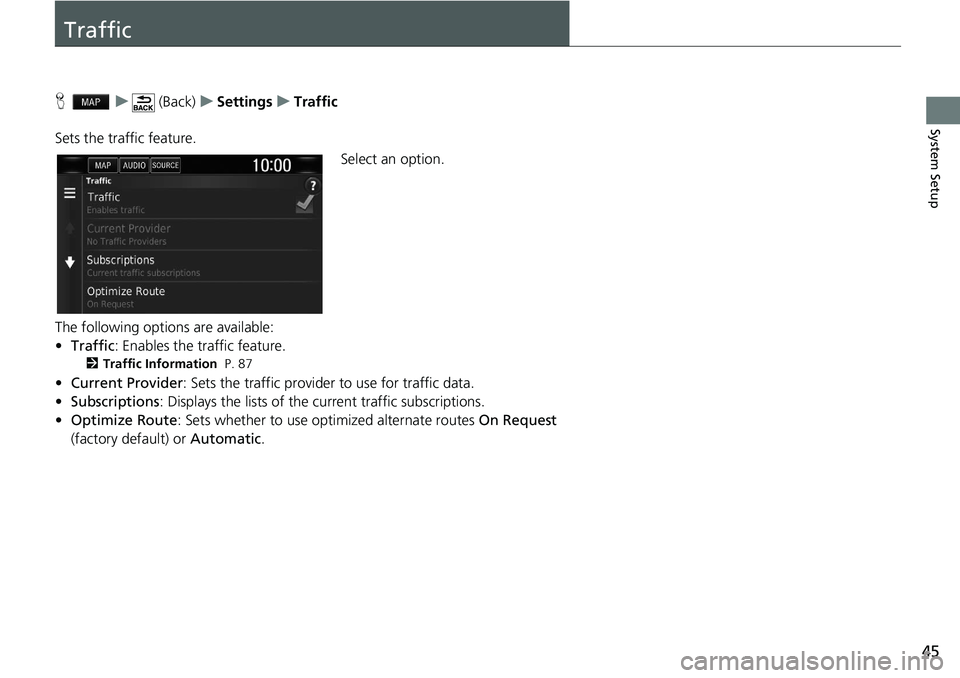

Traffic
H u (Back) u Settings u Traffic
Sets the traffic feature. Select an option.
The following options are available:
• Traffic : Enables the traffic feature.
2Traffic Information P. 87
•Current Provider : Sets the traffic provider to use for traffic data.
• Subscriptions : Displays the lists of the current traffic subscriptions.
• Optimize Route : Sets whether to use optimized alternate routes On Request
(factory default) or Automatic.

46
System Setup

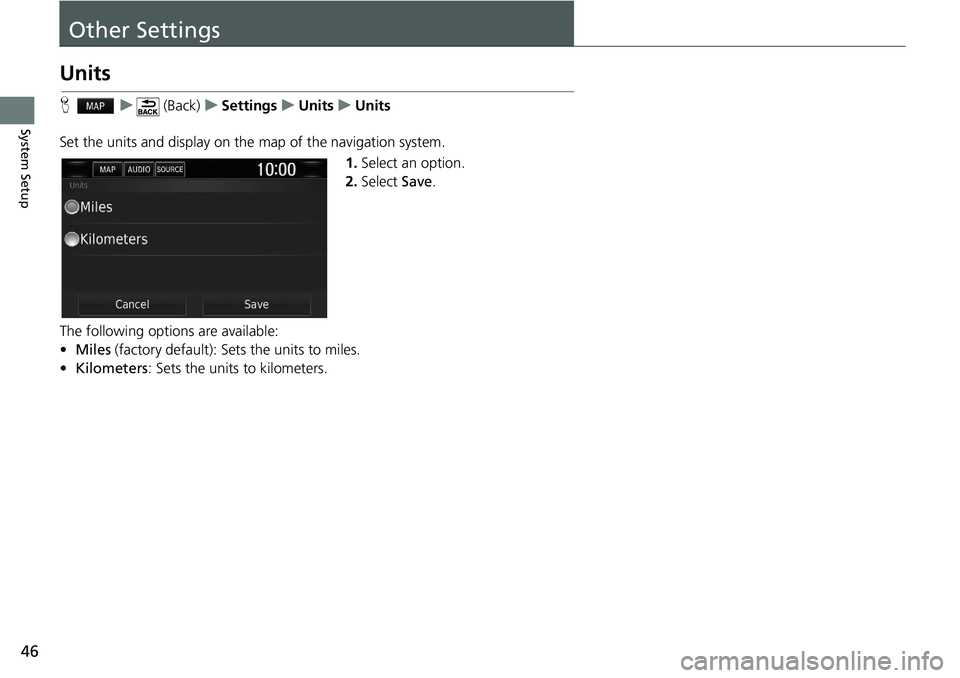

Other Settings
Units
H u (Back) u Settings u Units u Units
Set the units and display on the map of the navigation system. 1.Select an option.
2.Select Save.
The following options are available:
•Miles (factory default): Sets the units to miles.
• Kilometers : Sets the units to kilometers.
