2020 HONDA CLARITY FUEL CELL Navigation Manual (in English)

23
uu Personal Information u Saved Locations
Continued
System Setup
5. Select an option.
The following options are available:
•Name: Enters a new name for the location.
• Phone Number : Enters a phone number.
• Categories : Creates or changes the category in which this location is saved.
• Change Map Symbol : Select a new symbol.

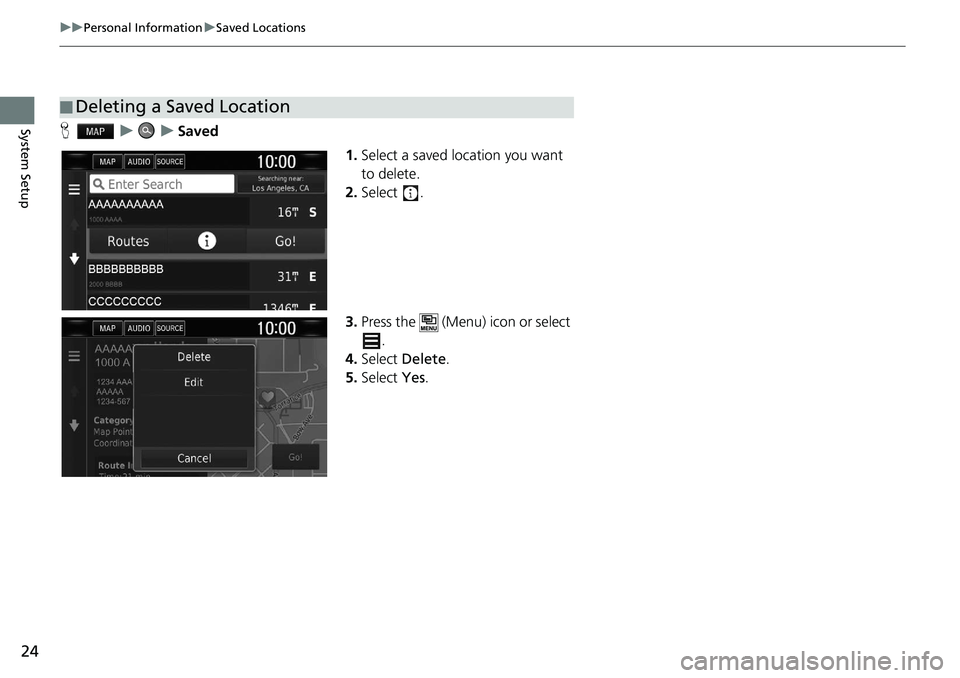

24
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Select a saved location you want
to delete.
2.Select .
3.Press the (Menu) icon or select
.
4. Select De
lete.
5. Select Yes.
■Deleting a Saved Location

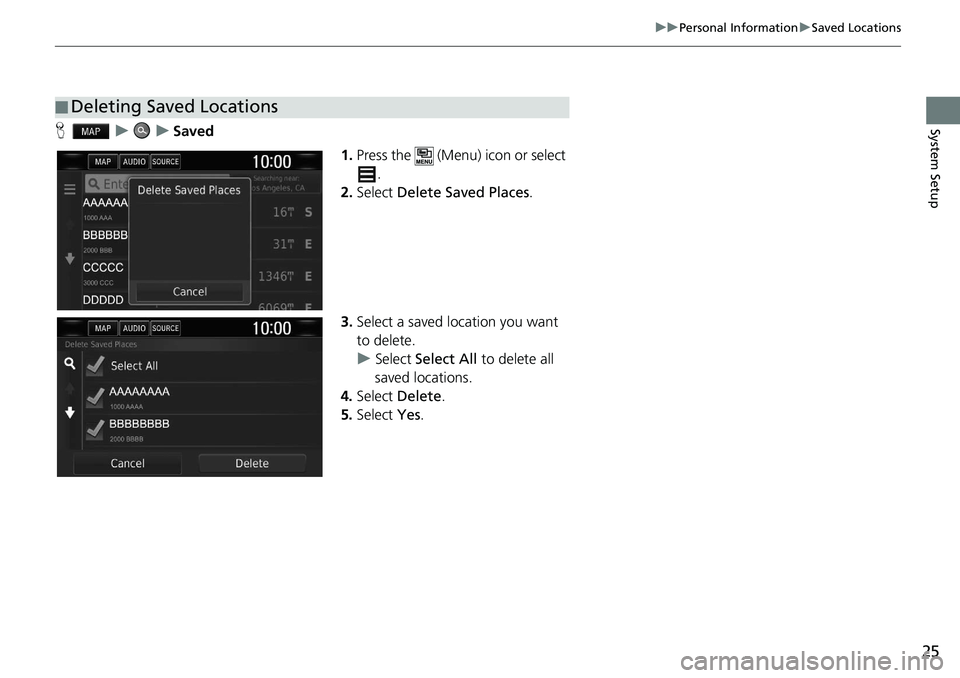

25
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Press the (Menu) icon or select
.
2.Select Delete Saved Places .
3.Select a saved location you want
to delete.
u Select Select All to
delete all
saved locations.
4. Select Delet
e.
5. Select Yes.
■Deleting Saved Locations

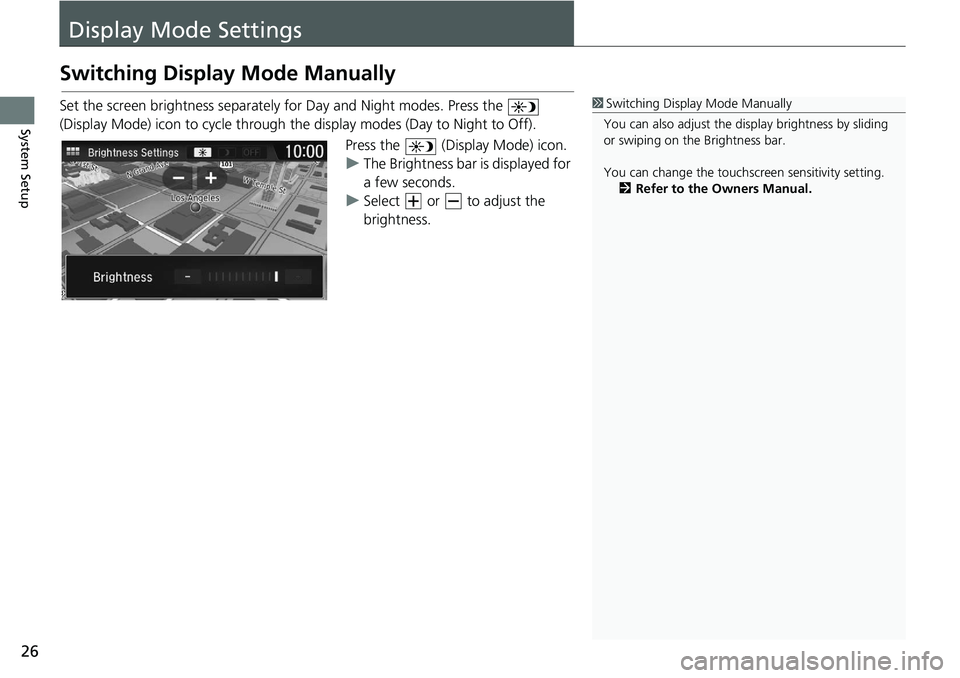

26
System Setup
Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display Mode) icon.
uThe Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
You can change the touchs creen sensitivity setting.
2 Refer to the Owners Manual.

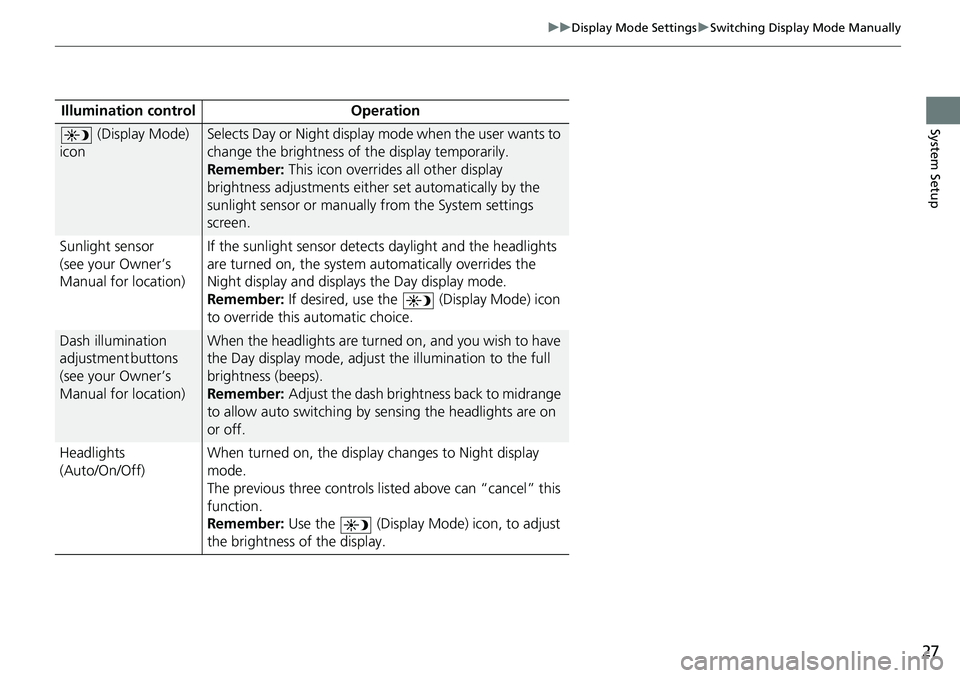

27
uu Display Mode Settings u Switching Display Mode Manually
System SetupIllumination control Operation
(Display Mode)
iconSelects Day or Night display mode when the user wants to
change the brightness of the display temporarily.
Remember: This icon overrides all other display
brightness adjustments either set automatically by the
sunlight sensor or manually from the System settings
screen.
Sunlight sensor 
(see your Owner’s
Manual for location) If the sunlight sensor detects daylight and the headlights
are turned on, the system
automatically overrides the
Night display and displays the Day display mode.
Remember: If desired, use the (Display Mode) icon
to override this automatic choice.
Dash illumination
a d j u s t m e n t b u t t o n s
(see your Owner’s
Manual for location)When the headlights are turned on, and you wish to have
the Day display mode, adjust the illumination to the full
brightness (beeps).
Remember: Adjust the dash brightness back to midrange
to allow auto switching by sensing the headlights are on
or off.
Headlights 
(Auto/On/Off) When turned on, the displa
y changes to Night display
mode.
The previous three controls lis ted above can “cancel” this
function.
Remember: Use the (Display Mo de) icon, to adjust
the brightness of the display.

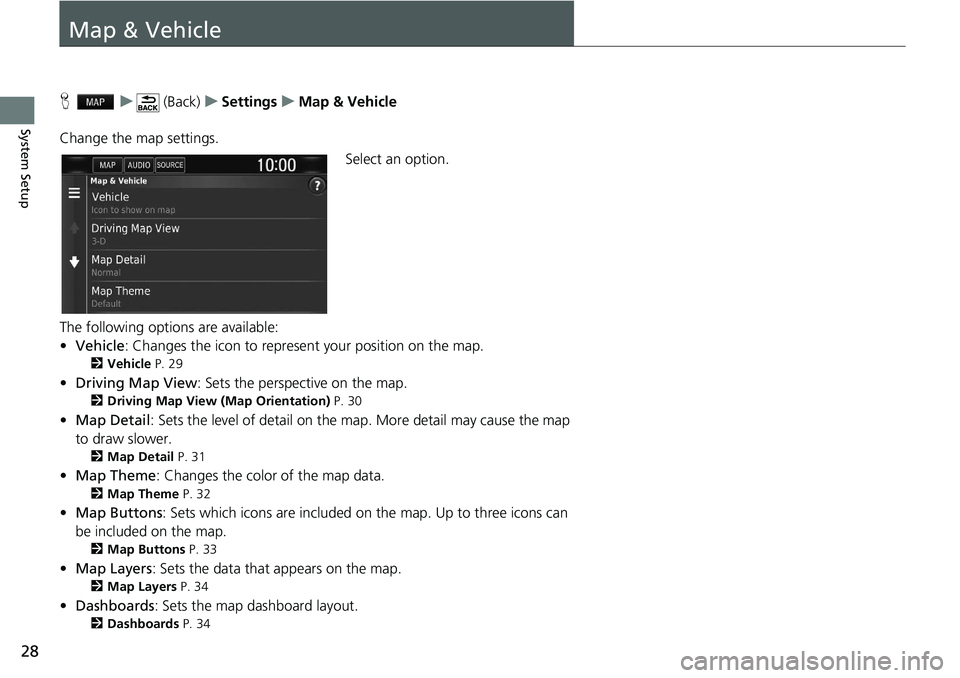

28
System Setup
Map & Vehicle
H u (Back) u Settings u Map & Vehicle
Change the map settings. Select an option.
The following options are available:
• Vehicle : Changes the icon to represent your position on the map.
2Vehicle P. 29
•Driving Map View : Sets the perspective on the map.
2Driving Map View (Map Orientation) P. 30
•Map Detail : Sets the level of detail on the map. More detail may cause the map
to draw slower.
2 Map Detail P. 31
•Map Theme : Changes the color of the map data.
2Map Theme P. 32
•Map Buttons : Sets which icons are included on the map. Up to three icons can
be included on the map.
2 Map Buttons P. 33
•Map Layers : Sets the data that appears on the map.
2Map Layers P. 34
•Dashboards : Sets the map dashboard layout.
2Dashboards P. 34

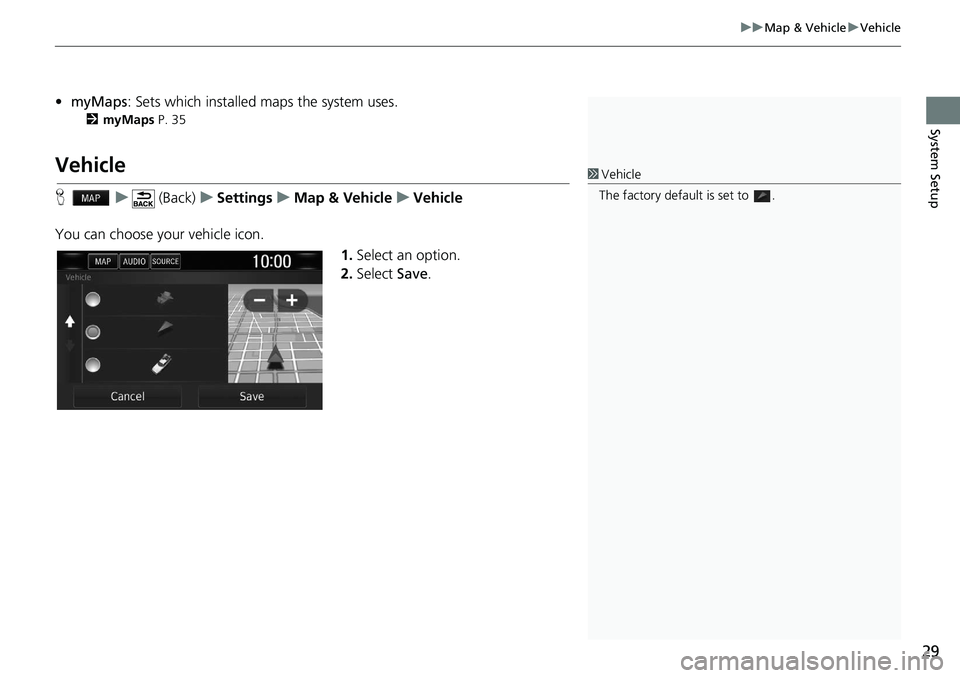

29
uu Map & Vehicle u Vehicle
System Setup
• myMaps : Sets which installed maps the system uses.
2myMaps P. 35
Vehicle
H u (Back) u Settings u Map & Vehicle u Vehicle
You can choose your vehicle icon. 1.Select an option.
2.Select Save.
1Vehicle
The factory default is set to .

30
uu Map & Vehicle u Driving Map View (Map Orientation)
System Setup
Driving Map View (Map Orientation)
H u (Back) u Settings u Map & Vehicle u Driving Map View
Select the map orientation. 1.Select an option.
2.Select Save.
The following options are available:
•Track Up : Displays the map with your di rection of travel facing upwards.
• North Up: Displays the map with no rth always pointing up.
• 3-D (factory default): Displays the map in 3D with your direction of travel facing
upwards.
