Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19

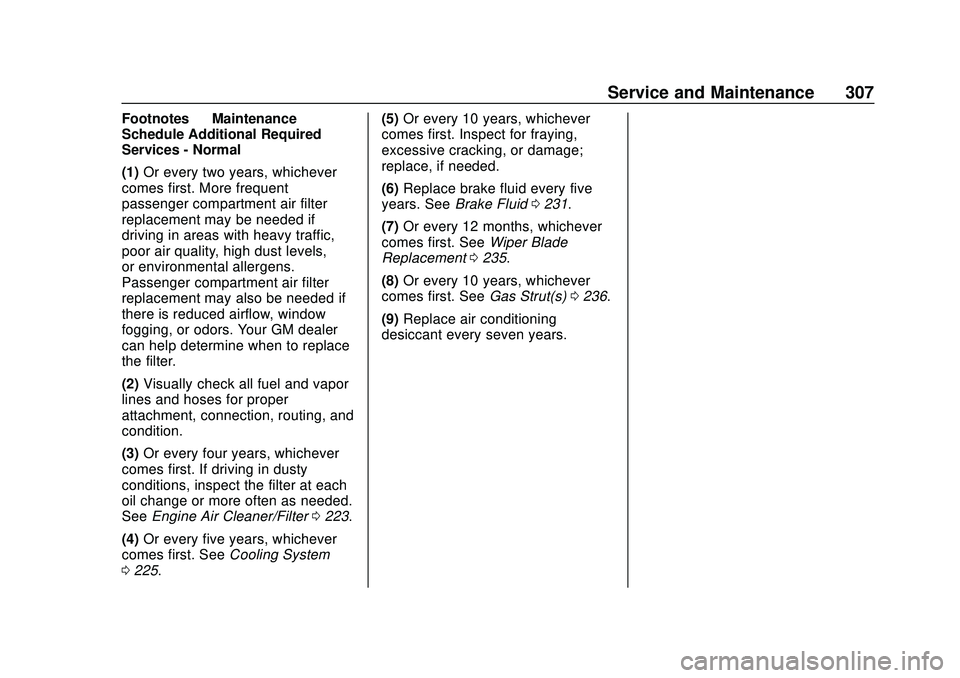

Service and Maintenance 307
Footnotes—Maintenance
Schedule Additional Required
Services - Normal
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
See Engine Air Cleaner/Filter 0223.
(4) Or every five years, whichever
comes first. See Cooling System
0 225. (5)
Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(6) Replace brake fluid every five
years. See Brake Fluid 0231.
(7) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0235.
(8) Or every 10 years, whichever
comes first. See Gas Strut(s)0236.
(9) Replace air conditioning
desiccant every seven years.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
308 Service and Maintenance
Maintenance Schedule
Additional Required
Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed. Check
engine air filter life percentage and status.
Change engine air filter, if needed.
@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Inspect evaporative control system. (2)@ @@
If the vehicle is not equipped with the engine air
filter life system, replace engine air cleaner
filter. (3)@@@
Change automatic transmission fluid. (Except
1.5L engine.)@@@
Change automatic transmission fluid and filter.
(1.5L engine only.)@@@
Replace spark plugs. Inspect spark plug wires
and/or boots.@ @
Drain and fill engine cooling system and Power
Electronics cooling system. (4)@
Visually inspect accessory drive belts. (5)@
Replace brake fluid. (6)
Replace windshield wiper blades. (7)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas
struts. (8)@ @
Replace air conditioning desiccant. (9)

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19

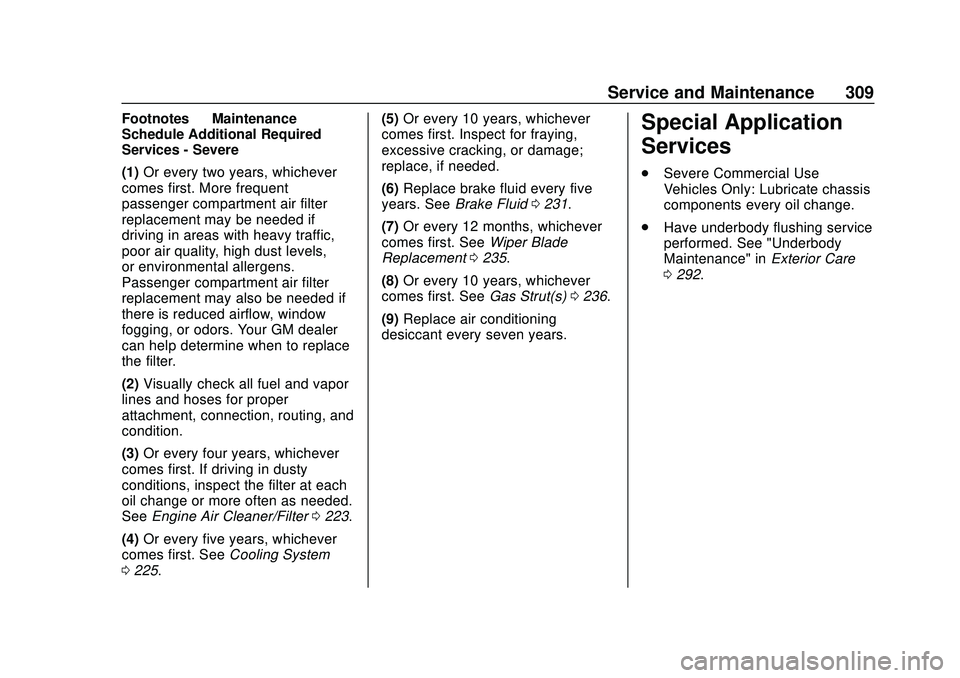

Service and Maintenance 309
Footnotes—Maintenance
Schedule Additional Required
Services - Severe
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
See Engine Air Cleaner/Filter 0223.
(4) Or every five years, whichever
comes first. See Cooling System
0 225. (5)
Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(6) Replace brake fluid every five
years. See Brake Fluid 0231.
(7) Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0235.
(8) Or every 10 years, whichever
comes first. See Gas Strut(s)0236.
(9) Replace air conditioning
desiccant every seven years.Special Application
Services
. Severe Commercial Use
Vehicles Only: Lubricate chassis
components every oil change.
. Have underbody flushing service
performed. See "Underbody
Maintenance" in Exterior Care
0 292.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19

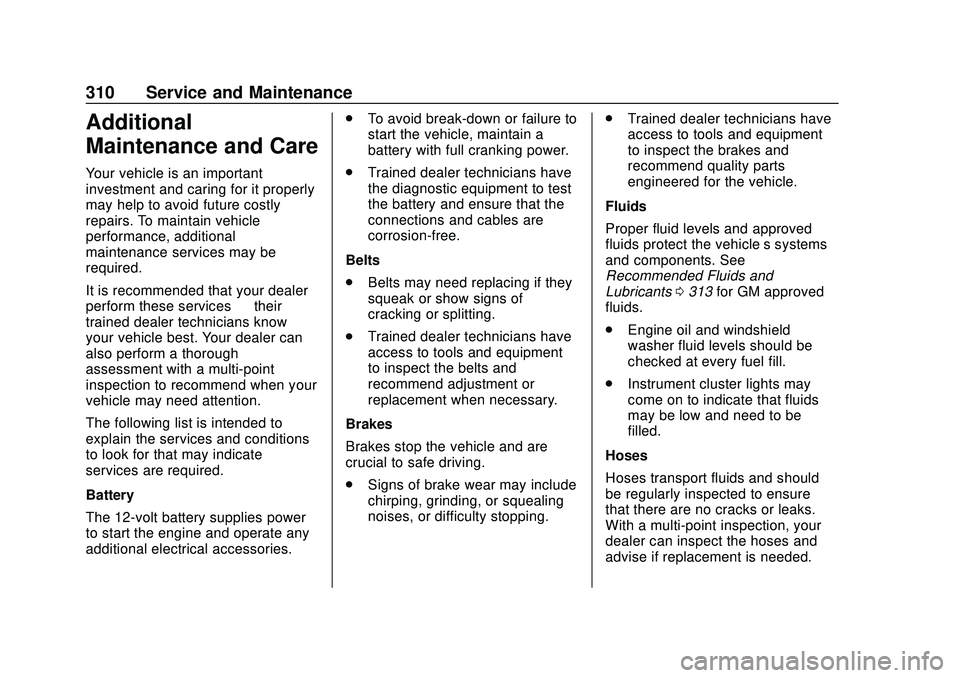

310 Service and Maintenance
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services—their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention.
The following list is intended to
explain the services and conditions
to look for that may indicate
services are required.
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories. .
To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0313 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
Technical Data 317
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System* 1.5L L4 Engine (LFV) 6.5 L 6.9 qt
2.0L L4 Engine (LTG) 6.8 L 7.2 qt
Engine Oil with Filter 1.5L L4 Engine 4.0 L 4.2 qt
2.0L L4 Engine 4.7 L 5.0 qt
Fuel Tank 1.5L L4 Engine 59.8 L 15.8 gal
2.0L L4 Engine 59.8 L15.8 gal
Wheel Nut Torque 140Y 100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19

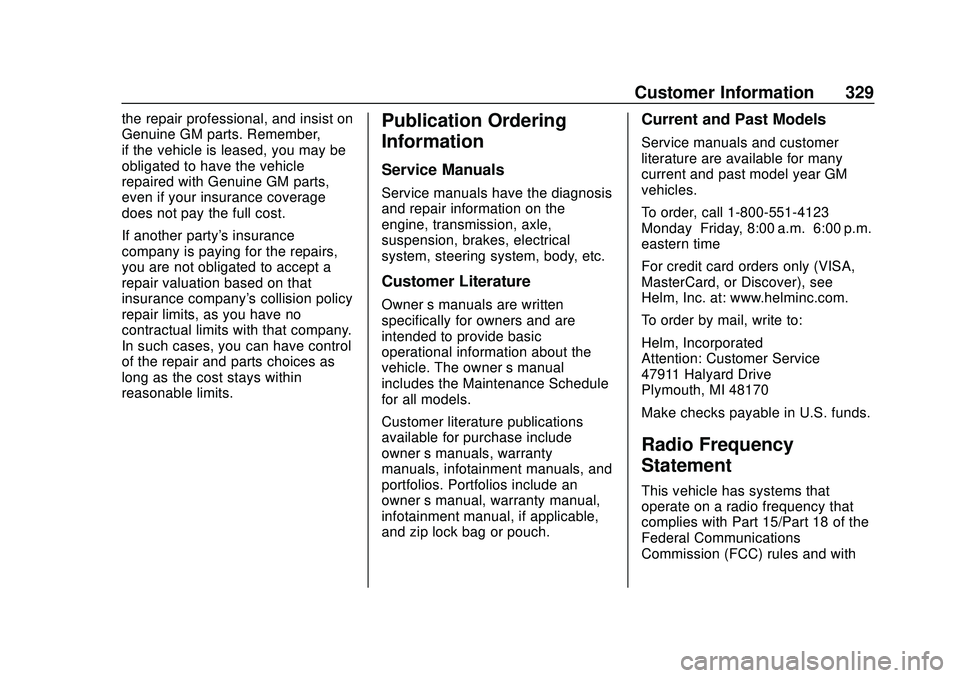

Customer Information 329
the repair professional, and insist on
Genuine GM parts. Remember,
if the vehicle is leased, you may be
obligated to have the vehicle
repaired with Genuine GM parts,
even if your insurance coverage
does not pay the full cost.
If another party's insurance
company is paying for the repairs,
you are not obligated to accept a
repair valuation based on that
insurance company's collision policy
repair limits, as you have no
contractual limits with that company.
In such cases, you can have control
of the repair and parts choices as
long as the cost stays within
reasonable limits.Publication Ordering
Information
Service Manuals
Service manuals have the diagnosis
and repair information on the
engine, transmission, axle,
suspension, brakes, electrical
system, steering system, body, etc.
Customer Literature
Owner’s manuals are written
specifically for owners and are
intended to provide basic
operational information about the
vehicle. The owner ’s manual
includes the Maintenance Schedule
for all models.
Customer literature publications
available for purchase include
owner ’s manuals, warranty
manuals, infotainment manuals, and
portfolios. Portfolios include an
owner ’s manual, warranty manual,
infotainment manual, if applicable,
and zip lock bag or pouch.
Current and Past Models
Service manuals and customer
literature are available for many
current and past model year GM
vehicles.
To order, call 1-800-551-4123
Monday–Friday, 8:00 a.m.–6:00 p.m.
eastern time
For credit card orders only (VISA,
MasterCard, or Discover), see
Helm, Inc. at: www.helminc.com.
To order by mail, write to:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
Make checks payable in U.S. funds.
Radio Frequency
Statement
This vehicle has systems that
operate on a radio frequency that
complies with Part 15/Part 18 of the
Federal Communications
Commission (FCC) rules and with

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19

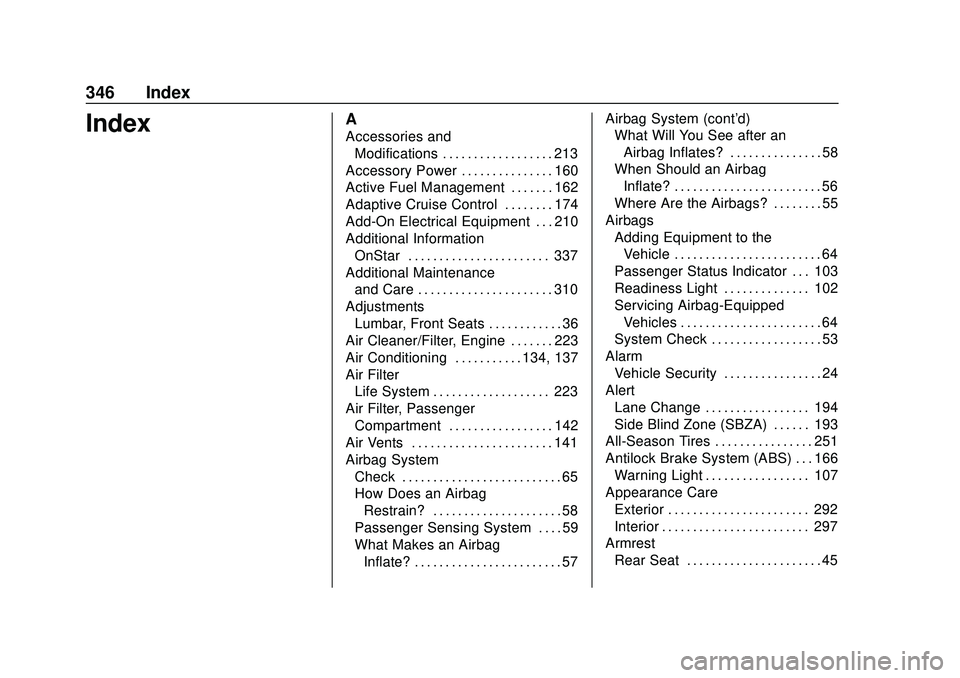

346 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 213
Accessory Power . . . . . . . . . . . . . . . 160
Active Fuel Management . . . . . . . 162
Adaptive Cruise Control . . . . . . . . 174
Add-On Electrical Equipment . . . 210
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 337
Additional Maintenance
and Care . . . . . . . . . . . . . . . . . . . . . . 310
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 36
Air Cleaner/Filter, Engine . . . . . . . 223
Air Conditioning . . . . . . . . . . . 134, 137
Air Filter
Life System . . . . . . . . . . . . . . . . . . . 223
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . 142
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 141
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 65
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 58
Passenger Sensing System . . . . 59
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 57 Airbag System (cont'd)
What Will You See after an
Airbag Inflates? . . . . . . . . . . . . . . . 58
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 56
Where Are the Airbags? . . . . . . . . 55
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 64
Passenger Status Indicator . . . 103
Readiness Light . . . . . . . . . . . . . . 102
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 64
System Check . . . . . . . . . . . . . . . . . . 53
Alarm Vehicle Security . . . . . . . . . . . . . . . . 24
Alert Lane Change . . . . . . . . . . . . . . . . . 194
Side Blind Zone (SBZA) . . . . . . 193
All-Season Tires . . . . . . . . . . . . . . . . 251
Antilock Brake System (ABS) . . . 166 Warning Light . . . . . . . . . . . . . . . . . 107
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 292
Interior . . . . . . . . . . . . . . . . . . . . . . . . 297
Armrest Rear Seat . . . . . . . . . . . . . . . . . . . . . . 45

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
Index 347
Assistance Program,Roadside . . . . . . . . . . . . . . . . . . . . . . 323
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 188
Assistance Systems for Parking and Backing . . . . . . . . . . 183
Auto Stop
Stop/Start System . . . . . . . . . . . . 158
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 21
Emergency Braking (AEB) . . . . 190
Headlamp System . . . . . . . . . . . . 128
Transmission . . . . . . . . . . . . . . . . . 164
Transmission Fluid . . . . . . . . . . . 222
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 165
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 234
B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 132
Load Management . . . . . . . . . . . . 131
Power Protection . . . . . . . . . . . . . 132
Battery - North America . . . . 232, 286
Blade Replacement, Wiper . . . . . 235 Brake
Parking, Electric . . . . . . . . . . . . . . 168
System Warning Light . . . . . . . . 106
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 230 Antilock . . . . . . . . . . . . . . . . . . . . . . . 166
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 169
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Parking . . . . . . . . . . . . . . . . . . . . . . . 167
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 146 AutomaticEmergency (AEB) . . . . . . . . . . . 190
Braking System Front Pedestrian (FPB) . . . . . . . 191
Break-In, New Vehicle . . . . . . . . . . 155
Bulb Replacement Halogen Bulbs . . . . . . . . . . . . . . . . 238
Headlamp Aiming . . . . . . . . . . . . . 237
Headlamps . . . . . . . . . . . . . . . . . . . 238
Headlamps, Front Turn
Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 238
License Plate Lamps . . . . . . . . . 240
Taillamps, Turn Signal, Stoplamps, and
Back-up Lamps . . . . . . . . 239, 240
Buying New Tires . . . . . . . . . . . . . . . 266
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 91
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 213
California Proposition
65 Warning . . . . . . . . . .213, 232, 286, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 317
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 163
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Winter Driving . . . . . . . . . . . . . . . . 150
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . 86
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . . 86
Chains, Tire . . . . . . . . . . . . . . . . . . . . 271
Charging
Wireless . . . . . . . . . . . . . . . . . . . . . . . . 92
Charging System Light . . . . . . . . . 104
Check
Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 104
