Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/21/19
288 Vehicle Care
Warning (Continued)
and some have been blinded.
Use a flashlight if you need more
light.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Connect the red positive (+) cable to the positive (+) or
remote positive (+) terminal of
the discharged battery.
6. Connect the other end of the positive (+) cable to the
positive (+) terminal of the good battery. Use a remote
positive (+) terminal if the
vehicle has one.
7. Connect one end of the black negative (−) cable to the
negative (−) terminal of the
good battery.
8. Connect the other end of the negative (−) cable to the
negative (–) ground terminal for
the discharged battery.
9. Start the vehicle with the good battery and run the engine at
idle speed for at least
four minutes.
10. Try to start the vehicle that had the dead battery. If it will not
start after a few tries, it
probably needs service.
Caution
If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
(Continued)
Caution (Continued)
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct order,
making sure that the cables do
not touch each other or other
metal.
Jumper Cable Removal
Reverse the sequence exactly when
removing the jumper cables.
After starting the disabled vehicle
and removing the jumper cables,
allow it to idle for several minutes.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
324 Customer Information
.Your name, home address, and
home telephone number
. Telephone number of your
location
. Location of the vehicle
. Model, year, color, and license
plate number of the vehicle
. Odometer reading, Vehicle
Identification Number (VIN), and
delivery date of the vehicle
. Description of the problem
Coverage
Services are provided for the
duration of the vehicle’s powertrain
warranty.
In the U.S., anyone driving the
vehicle is covered. In Canada, a
person driving the vehicle without
permission from the owner is not
covered.
Roadside Assistance is not a part of
the New Vehicle Limited Warranty.
General Motors North America and
Chevrolet reserve the right to make any changes or discontinue the
Roadside Assistance program at
any time without notification.
General Motors North America and
Chevrolet reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Services Provided
.
Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
. Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification
before this service is given.
. Emergency Tow from a Public
Road or Highway: Tow to the
nearest Chevrolet dealer for
warranty service, or if the vehicle
was in a crash and cannot be driven. Assistance is not given
when the vehicle is stuck in the
sand, mud, or snow.
. Flat Tire Change: Service to
change a flat tire with the spare
tire. The spare tire, if equipped,
must be in good condition and
properly inflated. It is the owner's
responsibility for the repair or
replacement of the tire if it is not
covered by the warranty.
. Battery Jump Start: Service to
jump start a dead battery.
. Trip Interruption Benefits and
Assistance: If your trip is
interrupted due to a warranty
event, incidental expenses may
be reimbursed within the
Powertrain warranty period.
Items considered are reasonable
and customary hotel, meals,
rental car, or a vehicle being
delivered back to the customer,
up to 500 miles.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
OnStar 337
Security
If equipped, OnStar provides these
services:
.With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
. With Remote Ignition Block,
if equipped, OnStar can block
the engine from being restarted.
. With Stolen Vehicle Slowdown,
if equipped, OnStar can work
with law enforcement to
gradually slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked
and the vehicle alarm sounds, a
notification by text, e-mail, or phone
call will be sent. If the vehicle is
stolen, an OnStar Advisor can work
with authorities to recover the
vehicle.
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
.Prior to vehicle purchase.
Press
Qto set up an account.
. After change in ownership and
at 90 days.
Transferring Service
PressQto request account transfer
eligibility information. The Advisor
can cancel or change account
information.
Selling/Transferring the
Vehicle
Call 1-888-4ONSTAR
(1-888-466-7827) immediately to
terminate your OnStar or connected
services if the vehicle is disposed
of, sold, transferred, or if the
lease ends.
Reactivation for Subsequent
Owners
PressQand follow the prompts to
speak to an Advisor as soon as
possible. The Advisor will update
vehicle records and explain OnStar
or connected service options.
How OnStar Service Works
Automatic Crash Response,
Emergency Services, Crisis Assist,
Stolen Vehicle Assistance, Remote
Services, and Roadside Assistance
are available on most vehicles. Not
all OnStar services are available
everywhere or on all vehicles. For
more information, a full description
of OnStar services, system
limitations, and OnStar User Terms,
Privacy Statement, and Software
Terms:
. Call 1-888-4ONSTAR
(1-888-466-7827).
. See www.onstar.com (U.S.).
. See www.onstar.ca (Canada).
. Call TTY 1-877-248-2080.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
OnStar 339
Languages
The vehicle can be programmed to
respond in multiple languages.
Press
Qand ask for an Advisor.
Advisors are available in English,
Spanish, and French. Available
languages may vary by country.
Potential Issues
OnStar cannot perform Remote
Door Unlock or Stolen Vehicle
Assistance after the vehicle has
been off continuously for 10 days
without an ignition cycle. If the
vehicle has not been started for
10 days, OnStar can contact
Roadside Assistance or a locksmith
to help gain access to the vehicle.
Global Positioning
System (GPS)
. Obstruction of the GPS can
occur in a large city with tall
buildings; in parking garages;
around airports; in tunnels and
underpasses; or in an area with
very dense trees. If GPS signals
are not available, the OnStar
system should still operate to call OnStar. However, OnStar
could have difficulty identifying
the exact location.
. In emergency situations, OnStar
can use the last stored GPS
location to send to emergency
responders.
A temporary loss of GPS can cause
loss of the ability to send a
Turn-by-Turn Navigation route. The
Advisor may give a verbal route or
may ask for a call back after the
vehicle is driven into an open area.
Cellular and GPS Antennas
Cellular reception is required for
OnStar to send remote signals to
the vehicle. Do not place items over
or near the antenna to prevent
blocking cellular and GPS signal
reception.
Unable to Connect to OnStar
Message
If there is limited cellular coverage
or the cellular network has reached
maximum capacity, this message may come on. Press
Qto try the
call again or try again after driving a
few miles into another cellular area.
Vehicle and Power Issues
OnStar services require a vehicle
electrical system, wireless service,
and GPS satellite technologies to be
available and operating for features
to function properly. These systems
may not operate if the battery is
discharged or disconnected.
Add-on Electrical Equipment
The OnStar system is integrated
into the electrical architecture of the
vehicle. Do not add any electrical
equipment. See Add-On Electrical
Equipment 0210. Added electrical
equipment may interfere with the
operation of the OnStar system and
cause it to not operate.
Vehicle Software Updates
OnStar or GM may remotely deliver
software updates or changes to the
vehicle without further notice or
consent. These updates or changes
may enhance or maintain safety,

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
Connected Services 345
vehicles, the SSID and
password can be changed in
the Wi-Fi Hotspot menu.
After initial set-up, your vehicle’s
Wi-Fi hotspot will connect
automatically to your mobile
devices. Manage data usage by
turning Wi-Fi on or off on your
mobile device, using the
myChevrolet mobile app, or by
contacting an OnStar Advisor. On
some vehicles, Wi-Fi can also be
managed from the Wi-Fi
Hotspot menu.
MyChevrolet Mobile App (If
Available)
Download the myChevrolet mobile
app to compatible Apple and
Android smartphones. Chevrolet
users can access the following
services from a smartphone:
. Remotely start/stop the vehicle,
if factory-equipped.
. Lock/unlock doors, if equipped
with automatic locks.
. Activate the horn and lamps. .
Check the vehicle’s fuel level, oil
life, or tire pressure,
if factory-equipped with the Tire
Pressure Monitor System.
. Send destinations to the vehicle.
. Locate the vehicle on a map
(U.S. market only).
. Turn the vehicle's Wi-Fi hotspot
on/off, manage settings, and
monitor data consumption,
if equipped.
. Locate a dealer and schedule
service.
. Request roadside assistance.
. Set a parking reminder with pin
drop, take a photo, make a note,
and set a timer.
. Connect with Chevrolet on social
media.
Features are subject to change. For
myChevrolet mobile app information
and compatibility, see
my.chevrolet.com.
An active OnStar or connected
service plan may be required.
A compatible device, factory-installed remote start, and
power locks are required. Data rates
apply. See www.onstar.com for
details and system limitations.
Remote Services
Contact an OnStar Advisor to
unlock the doors or sound the horn
and flash the lamps.
Marketplace
OnStar Advisors can provide offers
from restaurants and retailers on
your route, help locate hotels,
or book a room. These services
vary by market.
Diagnostics
By monitoring and reporting on the
vehicle's key systems, OnStar
Advanced Diagnostics, if equipped,
provides a way to keep up on
maintenance. Capabilities vary by
model. See www.onstar.com for
details and system limitations.
Features are subject to change. For
updates on feature capabilities, see
my.chevrolet.com. Message and
data rates may apply.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
Index 351
I
Ignition Positions . . . . . . . . . . . . . . . 155
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 25
IndicatorPedestrian Ahead . . . . . . . . . . . . 108
Vehicle Ahead . . . . . . . . . . . . . . . . 108
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 67
Information Publication Ordering . . . . . . . . . . 329
Infotainment . . . . . . . . . . . . . . . . . . . . 133
Infotainment System . . . . . . . . . . . . 334
Instrument Cluster . . . . . . . . . . . 96, 97
Instrument Panel Overview . . . . . . . 5
Interior Rearview Mirrors . . . . . . . . . 28
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 286
K
Keyless Entry
Remote (RKE) System . . . . . . . . . . 8
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
L
Labeling, Tire Sidewall . . . . . . . . . . 252 Lamps
Courtesy . . . . . . . . . . . . . . . . . . . . . . 130
Daytime Running (DRL) . . . . . . 127
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 130
Exterior Controls . . . . . . . . . . . . . . 125
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 127
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 132
License Plate . . . . . . . . . . . . . . . . . 240
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 104
On Reminder . . . . . . . . . . . . . . . . . .112
Reading . . . . . . . . . . . . . . . . . . . . . . 130
Lane Change Alert (LCA) . . . . . . . 194
Lane Keep Assist (LKA) . . . . . . . . 196
Lane Keep Assist Light . . . . . . . . . 108
Lap-Shoulder Belt . . . . . . . . . . . . . . . 49
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 79
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 72
LED Lighting . . . . . . . . . . . . . . . . . . . . 238
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 131
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Illumination Control . . . . . . . . . . . 129 Lighting (cont'd)
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Lights Airbag Readiness . . . . . . . . . . . . . 102
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 107
Brake System Warning . . . . . . . 106
Charging System . . . . . . . . . . . . . 104
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . 104
Cruise Control . . . . . . . . . . . . . . . . .112
Door Ajar . . . . . . . . . . . . . . . . . . . . . .113
Electric Parking Brake . . . . . . . . 106
Engine Coolant Temperature Warning . . . . . . . .110
Engine Oil Pressure . . . . . . . . . . .110
Flash-to-Pass . . . . . . . . . . . . . . . . . 127
High-Beam On . . . . . . . . . . . . . . . . .112
High/Low Beam Changer . . . . . 127
Lane Keep Assist . . . . . . . . . . . . . 108
Low Fuel Warning . . . . . . . . . . . . . 111
Seat Belt Reminders . . . . . . . . . . 102
Security . . . . . . . . . . . . . . . . . . . . . . . 111
Service Electric Parking Brake . . . . . . . . . . . . . . . . . . . . . . . 107
StabiliTrak OFF . . . . . . . . . . . . . . . 109
Tire Pressure . . . . . . . . . . . . . . . . . .110

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19

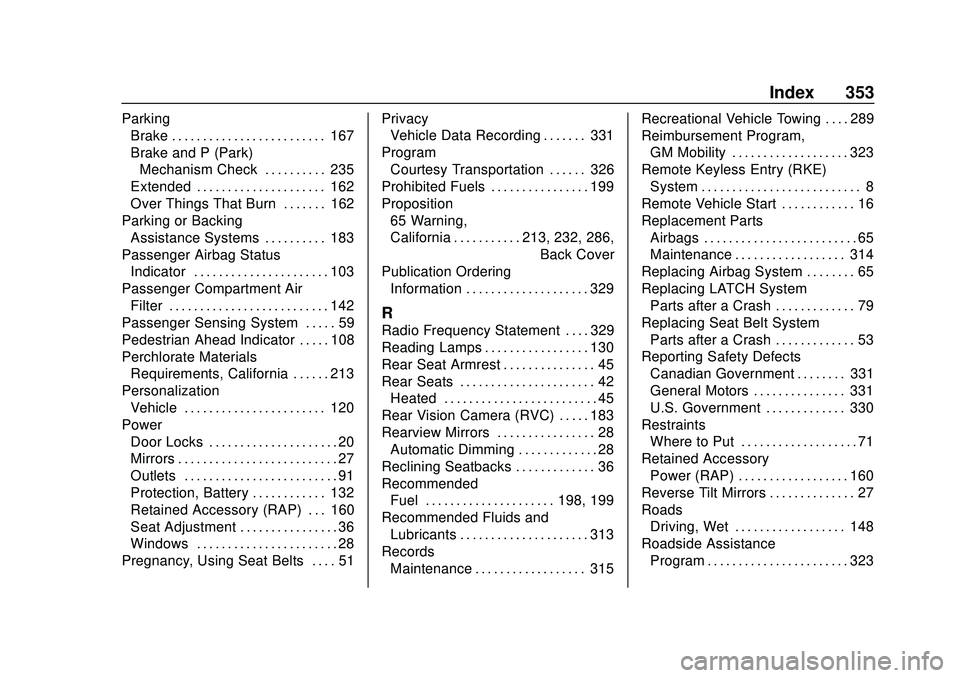

Index 353
ParkingBrake . . . . . . . . . . . . . . . . . . . . . . . . . 167
Brake and P (Park)
Mechanism Check . . . . . . . . . . 235
Extended . . . . . . . . . . . . . . . . . . . . . 162
Over Things That Burn . . . . . . . 162
Parking or Backing
Assistance Systems . . . . . . . . . . 183
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 103
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Passenger Sensing System . . . . . 59
Pedestrian Ahead Indicator . . . . . 108
Perchlorate Materials Requirements, California . . . . . . 213
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 120
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 20
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . 91
Protection, Battery . . . . . . . . . . . . 132
Retained Accessory (RAP) . . . 160
Seat Adjustment . . . . . . . . . . . . . . . . 36
Windows . . . . . . . . . . . . . . . . . . . . . . . 28
Pregnancy, Using Seat Belts . . . . 51 Privacy
Vehicle Data Recording . . . . . . . 331
Program Courtesy Transportation . . . . . . 326
Prohibited Fuels . . . . . . . . . . . . . . . . 199
Proposition 65 Warning,
California . . . . . . . . . . . .213, 232, 286,
Back Cover
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . 329
R
Radio Frequency Statement . . . . 329
Reading Lamps . . . . . . . . . . . . . . . . . 130
Rear Seat Armrest . . . . . . . . . . . . . . . 45
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 42
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 45
Rear Vision Camera (RVC) . . . . . 183
Rearview Mirrors . . . . . . . . . . . . . . . . 28 Automatic Dimming . . . . . . . . . . . . . 28
Reclining Seatbacks . . . . . . . . . . . . . 36
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . 198, 199
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 313
Records Maintenance . . . . . . . . . . . . . . . . . . 315 Recreational Vehicle Towing . . . . 289
Reimbursement Program,
GM Mobility . . . . . . . . . . . . . . . . . . . 323
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . . 16
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 65
Maintenance . . . . . . . . . . . . . . . . . . 314
Replacing Airbag System . . . . . . . . 65
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . 79
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 53
Reporting Safety Defects Canadian Government . . . . . . . . 331
General Motors . . . . . . . . . . . . . . . 331
U.S. Government . . . . . . . . . . . . . 330
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 71
Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . . 160
Reverse Tilt Mirrors . . . . . . . . . . . . . . 27
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 148
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 323

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13555849) - 2020 - CRC - 8/16/19
354 Index
RoofSunroof . . . . . . . . . . . . . . . . . . . . . . . . . 30
Rotation, Tires . . . . . . . . . . . . . . . . . . 265
Routing, Engine Drive Belt . . . . . . 318
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 163
S
Safety Defects ReportingCanadian Government . . . . . . . . 331
General Motors . . . . . . . . . . . . . . . 331
U.S. Government . . . . . . . . . . . . . 330
Safety Locks . . . . . . . . . . . . . . . . . . . . . 21
Safety System Check . . . . . . . . . . . . 52
Scheduling Appointments . . . . . . . 325
Sealant Kit, Tire . . . . . . . . . . . . . . . . 273
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 45 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Extender . . . . . . . . . . . . . . . . . . . . . . . . 52
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 47
Lap-Shoulder Belt . . . . . . . . . . . . . . 49
Reminders . . . . . . . . . . . . . . . . . . . . 102
Replacing after a Crash . . . . . . . . 53
Use During Pregnancy . . . . . . . . . . 51
Seats
Adjustment, Front . . . . . . . . . . . . . . . 35
Head Restraints . . . . . . . . . . . . . . . . 33 Seats (cont'd)
Heated and Ventilated Front . . . . 41
Heated, Rear . . . . . . . . . . . . . . . . . . . 45
Lumbar Adjustment, Front . . . . . . 36
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power Adjustment, Front . . . . . . . 36
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Reclining Seatbacks . . . . . . . . . . . . 36
Securing Child Restraints . . . . 80, 82
Security
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
OnStar . . . . . . . . . . . . . . . . . . . . . . . 337
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 24
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 24
Service . . . . . . . . . . . . . . . . . . . . . . . . . 142 Accessories andModifications . . . . . . . . . . . . . . . . 213
Climate Control System . . . . . . . 134
Doing Your Own Work . . . . . . . . 214
Maintenance Records . . . . . . . . 315
Maintenance, General
Information . . . . . . . . . . . . . . . . . . 302
Parts Identification . . . . . . . . . . . . 316
Scheduling Appointments . . . . . 325
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . 107
Services Special Application . . . . . . . . . . . 309 Servicing the Airbag . . . . . . . . . . . . . 64
Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 234
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 160
Out of Park . . . . . . . . . . . . . . . . . . . 161
Side Blind Zone Alert (SBZA) . . . 193
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 129
Spare Tire
Compact . . . . . . . . . . . . . . . . . . . . . . 285
Special Application Services . . . . 309
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 317
Speedometer . . . . . . . . . . . . . . . . . . . . 99
StabiliTrak
OFF Light . . . . . . . . . . . . . . . . . . . . . 109
Start Assist, Hill . . . . . . . . . . . . . . . . . 169
Start Vehicle, Remote . . . . . . . . . . . 16
Starter Switch Check . . . . . . . . . . . 234
Starting the Engine . . . . . . . . . . . . . 157
Steering . . . . . . . . . . . . . . . . . . . . . . . . 146 Heated Wheel . . . . . . . . . . . . . . . . . . 89
Wheel Adjustment . . . . . . . . . . . . . . 89
Wheel Controls . . . . . . . . . . . . . . . . . 89
Stop/Start System . . . . . . . . . . . . . . 158
