uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the multi-information
display. 2 Customized Features P. 95
You can turn off or cha nge to another auto door
locking/unlocking settin g using the information
screen or multi-information display. 2 Customized Features P. 95, 310
Models with one display
Models with two displays
20 ACURA ILX-31TX66710.book 123 ページ ２０２０年４月１６日　木曜日　午後８時４６分

148
uuOperating the Switches Around the Steering Wheel uBrightness Control
Controls
Brightness Control
When the power mode is in ON, you can use
the brightness control knob to adjust
instrument panel brightness.
Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.
You will hear a beep when the brightness
reaches minimum or maximum. Several
seconds after adjusting the brightness, you
will be returned to the previous display.
■Brightness level indicator
The brightness level is shown on the display
while you are adjusting it.
1 Brightness Control
The brightness of the in strument panel will be
reduced when the following conditions:
•The power mode is in ON.
•The light switch is in any position other than OFF
and it is da rk outside.
To cancel the reduced in strument panel brightness
when the exterior lights are on, turn the knob to the
right until the brightness display is up to max, the
beeper sounds.
The brightness can be set differently for when the
exterior lights are on, and when they are off.
Control Knob
20 ACURA ILX-31TX66710.book 148 ページ ２０２０年４月１６日　木曜日　午後８時４６分

150
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
Controls

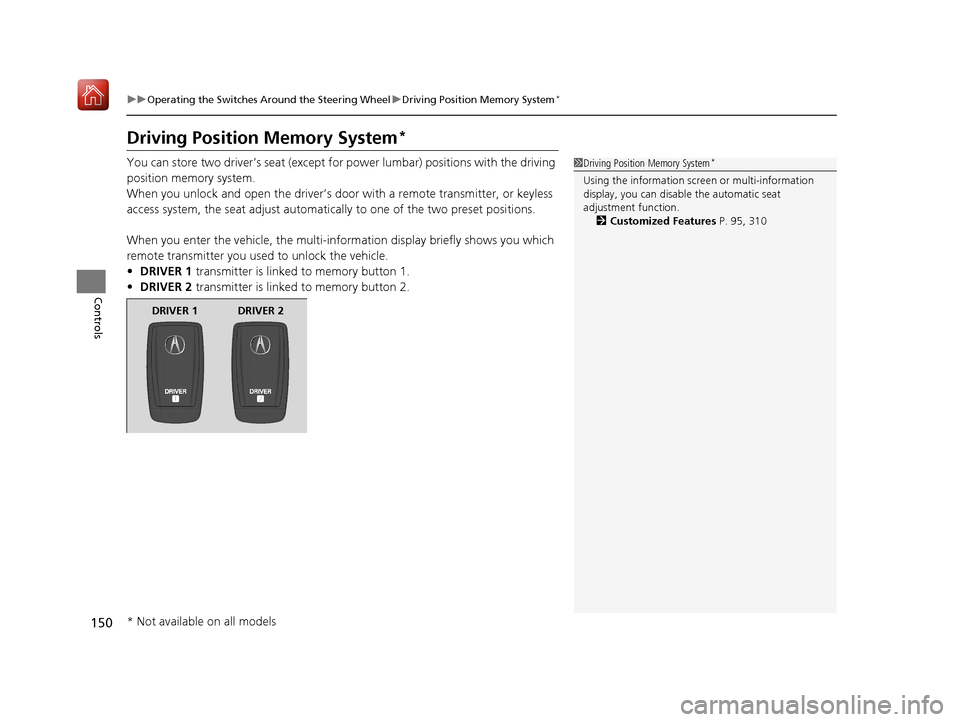

Driving Position Memory System*
You can store two driver’s seat (except fo r power lumbar) positions with the driving
position memory system.
When you unlock and open th e driver’s door with a remote transmitter, or keyless
access system, the seat adjust automatica lly to one of the two preset positions.
When you enter the vehicle, the multi-in formation display briefly shows you which
remote transmitter you used to unlock the vehicle.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.1Driving Position Memory System*
Using the information scr een or multi-information
display, you can disable the automatic seat
adjustment function. 2 Customized Features P. 95, 310
DRIVER 1 DRIVER 2
* Not available on all models
20 ACURA ILX-31TX66710.book 150 ページ ２０２０年４月１６日　木曜日　午後８時４６分

171Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (ON/OFF) button to cancel.
■Switching between the recirc ulation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation Mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Floor and
defroster
vents Floor vents
Dashboard
and floor
ventsDashboard
vents
(ON/OFF) Button
(Recirculation) ButtonAUTO
Button
A/C (Air Conditioning) Button SYNC
(Synchronization)
Button
/ (Fan Control)
Buttons
Driver’s Side Temperature
Control Dial
Passenger's Side
Temperature
Control Dial
20 ACURA ILX-31TX66710.book 171 ページ ２０２０年４月１６日　木曜日　午後８時４６分

175
Features
This chapter describes how to operate technology features.
Audio System.................................... 176
USB Adapter Cable*........................ 177
USB Port*........................................ 178
Auxiliary Input Jack .......................... 179
Audio System Theft Protection ......... 180
Audio Remote Controls .................... 181
Audio System Basic Operation ........ 183
Audio/Information Screen ................ 184
Playing AM/FM Radio ....................... 190
Playing a CD .................................... 192
Playing an iPod ................................ 195
Playing Pandora ®
*1........................... 198
Playing a USB Flash Drive ................. 201
Models with one display
Playing Bluetooth ® Audio................. 204
Audio System Basic Operation ........ 206
On Demand Multi-Use Display
TM...... 207
Information Screen .......................... 211
Display Setup ................................... 217
Playing AM/FM Radio ....................... 221
Playing SiriusXM ® Radio ................... 224
Playing a CD .................................... 235
Playing Hard Disk Drive (HDD) Audio ... 238
Playing an iPod ................................ 251
Song By Voice
TM (SBV) ...................... 254
Playing Pandora ®*1........................... 258
Playing a USB Flash Drive ................. 260
Models with two displaysPlaying Bluetooth ® Audio ................ 263
Siri Eyes Free .................................... 265
Apple CarPlay .................................. 266
Android Auto .................................. 270
Audio Error Messages ...................... 275
General Information on the Audio System ............................................. 286
HomeLink® Universal Transceiver*......336Customized Features ................ 304, 310
Bluetooth ® HandsFreeLink® ..... 339, 368
AcuraLink®
*....................................... 410
*1: Available only on U.S. models.
* Not available on all models
20 ACURA ILX-31TX66710.book 175 ページ ２０２０年４月１６日　木曜日　午後８時４６分

176
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and the SiriusXM® Radio service*. It can also
play audio CDs, WMA/MP3/AAC files, Hard Disk Drive (HDD) audio*, USB flash
drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
icons on the On Demand Multi-Use Display
TM, or the remote controls on the steering
wheel.
1 About Your Audio System
SiriusXM ® Radio
* is available on a subscription basis
only.
For more information on SiriusXM ® Radio
*, contact a
dealer. 2 General Information on the Audio System
P. 286
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a registered trademark of SiriusXM
Radio, Inc.
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may prohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Remote Control iPod
USB Flash
Drive
iPod USB Flash
Drive
Models with one display
Models with two displays
* Not available on all models
20 ACURA ILX-31TX66710.book 176 ページ ２０２０年４月１６日　木曜日　午後８時４６分

177
uuAudio System uUSB Adapter Cable*
Features
USB Adapter Cable*
The USB adapter cable (0 .5A) is for playing
audio files on a USB flas h drive, connecting a
cellular phone, a nd charging devices.
1. Unclip the USB connec tor and loosen the
adapter cable.
2. Install the iPod USB connector or the USB
flash drive to the USB connector.1USB Adapter Cable*
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•Do not use an extension cable with the USB
adapter cable.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
* Not available on all models
20 ACURA ILX-31TX66710.book 177 ページ ２０２０年４月１６日　木曜日　午後８時４６分

178
uuAudio System uUSB Port*
Features
USB Port*
The USB port (2.4A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto. u To prevent any potential issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.1 USB Port*
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend that you us e a USB cable if you are
attaching a USB flash drive to the USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard disk
drive, as the device or your files may be damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
The USB port can supply up to 2.4A of power. It does
not output 2.4A unless requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
* Not available on all models
