Continued49
uuAirbags uAirbag System Indicators
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain ai rbags may also inflate in a moderate-to-severe angled
frontal collision.
Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the mu lti-information display.
■When the power mode is set to ON
The indicator comes on for a few seconds,
then goes off. This te lls you the system is
working properly.
If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as s oon as possible. If you
don't, your airbags and seat belt tensioners
may not work properly when they are needed.
■Supplemental Restraint System (SRS) Indicator1 Supplemental Restraint Sy stem (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if th e SRS indicator alerts
you to a possible problem.
20 ACURA ILX-31TX66710.book 49 ページ ２０２０年４月１６日　木曜日　午後８時４６分

67
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 68
Multi-Information Display Warning and Information Messages ...................... 81
Gauges and Multi-Information Display Gauges .............................................. 88
Multi-Information Display .................. 89
20 ACURA ILX-31TX66710.book 67 ページ ２０２０年４月１６日　木曜日　午後８時４６分

73
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when you partially disable
VSA ®.
2VSA ® On and Off P. 438—
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds when
you set the power mode to ON.
●Comes on if the tire pressure of any
of the tires becomes significantly
low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire
* is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a compact spare tire, get your regular
tire repaired or repl aced and put back on
your vehicle as soon as you can.
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the
(information) button to see the message
again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
●The multi-information display does not return
to the normal screen unless the warning is
canceled, or the button is pressed.
—
* Not available on all models
20 ACURA ILX-31TX66710.book 73 ページ ２０２０年４月１６日　木曜日　午後８時４６分

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind spot
information
System Indicator
*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Stays on while blind spot information
system is turned off.
2Customized Features P. 95
●Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.●Comes on while driving - Remove the
obstacle in the vicinity of sensor.
2 Blind spot information System* P. 439
●Comes on if there is a problem with
the system.●Comes on while driving - Have your
vehicle checked by a dealer.
Collision
Mitigation Braking
System
TM
(CMBSTM)
Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 449
* Not available on all models
20 ACURA ILX-31TX66710.book 79 ページ ２０２０年４月１６日　木曜日　午後８時４６分

81
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel

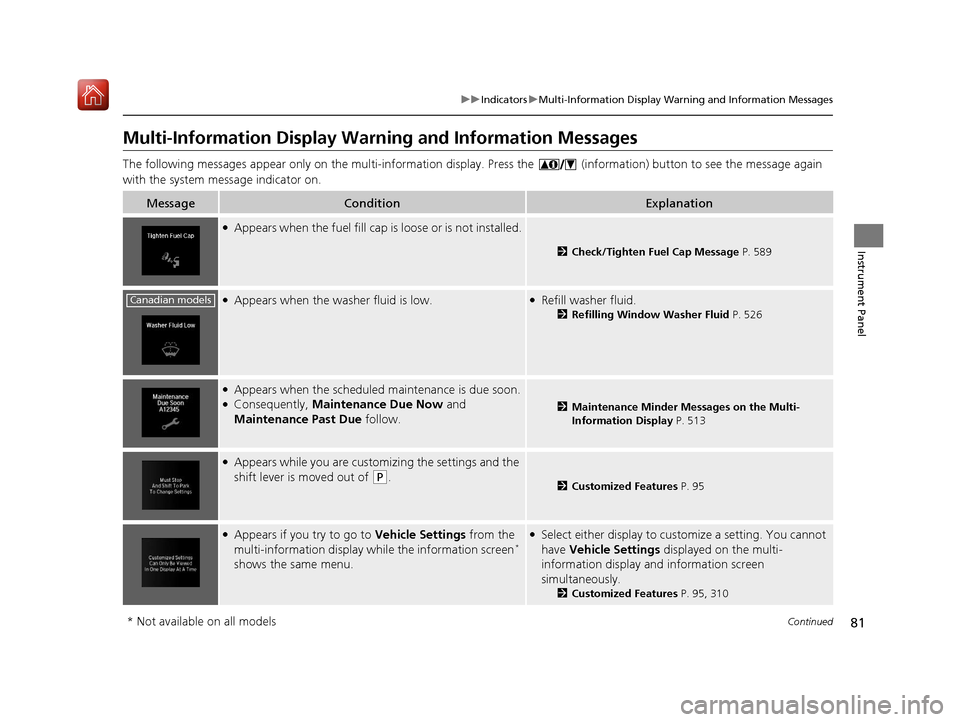

Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Press the (inf ormation) button to see the message again
with the system message indicator on.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not installed.
2Check/Tighten Fuel Cap Message P. 589
●Appears when the washer fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 526
●Appears when the scheduled maintenance is due soon.●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Multi-
Information Display P. 513
●Appears while you are customizing the settings and the
shift lever is moved out of
(P.2Customized Features P. 95
●Appears if you try to go to Vehicle Settings from the
multi-information display while the information screen*
shows the same menu.
●Select either display to cu stomize a setting. You cannot
have Vehicle Settings displayed on the multi-
information display and information screen
simultaneously.
2 Customized Features P. 95, 310
Canadian models
* Not available on all models
20 ACURA ILX-31TX66710.book 81 ページ ２０２０年４月１６日　木曜日　午後８時４６分

82
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for 15 seconds while pressing the
brake pedal and manually start the engine.
Have your vehicle checked by a dealer.
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 586
●Appears when there is a problem with the sensor on the
battery.●Have your vehicle checked by a dealer.
2Checking the Battery P. 543
U.S.
Canada
20 ACURA ILX-31TX66710.book 82 ページ ２０２０年４月１６日　木曜日　午後８時４６分

83
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the transmission system temperature is
too high. The vehicle no longer moves.●Immediately stop in a safe place in (P.●Let the engine idle until the message disappears.
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or the trunk is opened while driving.
The beeper sounds.
●Disappears when all doors and the trunk are closed.
●Appears when there is a problem with the headlights.●Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have
your vehicle checked by a d ealer as soon as possible.
●Appears if there is a problem with the Auto high-beam.●Manually operate the headlight switch.●If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.
20 ACURA ILX-31TX66710.book 83 ページ ２０２０年４月１６日　木曜日　午後８時４６分

84
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2Keyless Access Remote Reminder P. 137
●Appears when the keyless access remote battery
becomes weak.
2Replacing the Button Battery P. 544
●Appears if the keyless access remote’s battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the back of the keyless access remote into contact
with the ENGINE START/STOP button.
2If the Keyless Access Remote Battery is Weak P. 580
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 135
●Appears when the power mode is in ACCESSORY.
—
