2019 VOLVO XC90 TWIN ENGINE tow bar

||STARTING AND DRIVING
* Option/accessory.
482 12. Remove the jumper cables in the reverse
order ‒ first the black cables and then the
red cables.
Make sure that none of the clamps of the
black jumper cables come into contact with
either vehicle's positive (+) jump start termi-
nals or either of the red jumper cable's con-
nected clamps.
WARNING PROPOSITION 65 WARNING! Battery posts,
terminals, and related accessories contain
lead and lead compounds, chemicals known
to the state of California to cause cancer and
reproductive harm. Wash hands after han-
dling.
WARNING
Batteries generate hydrogen gas, which
is flammable and explosive.
Do not connect the jumper cable to any
part of the fuel system or to any moving
parts. Avoid touching hot manifolds.
Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces.
If contact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.
Never expose the battery to open flame
or electric spark. Do not smoke near the
battery. Failure to follow the instructions
for jump starting can lead to injury.
NOTE The vehicle cannot be started if the hybrid
battery is discharged.
Related information

Starting the vehicle (p. 434)
Ignition modes (p. 437)
Adjusting the steering wheel (p. 201)
Selecting ignition mode (p. 438) Detachable towbar*
Volvo recommends the use of Volvo towbars
that are specially designed for the vehicle.
NOTE The optional detachable trailer hitch may not
be available in all markets or on all models.
Consult your Volvo retailer.
Ball holder
Cotter pin
Towbar assembly
Locking bolt
Safety wire attachment bracket

STARTING AND DRIVING
}}
483

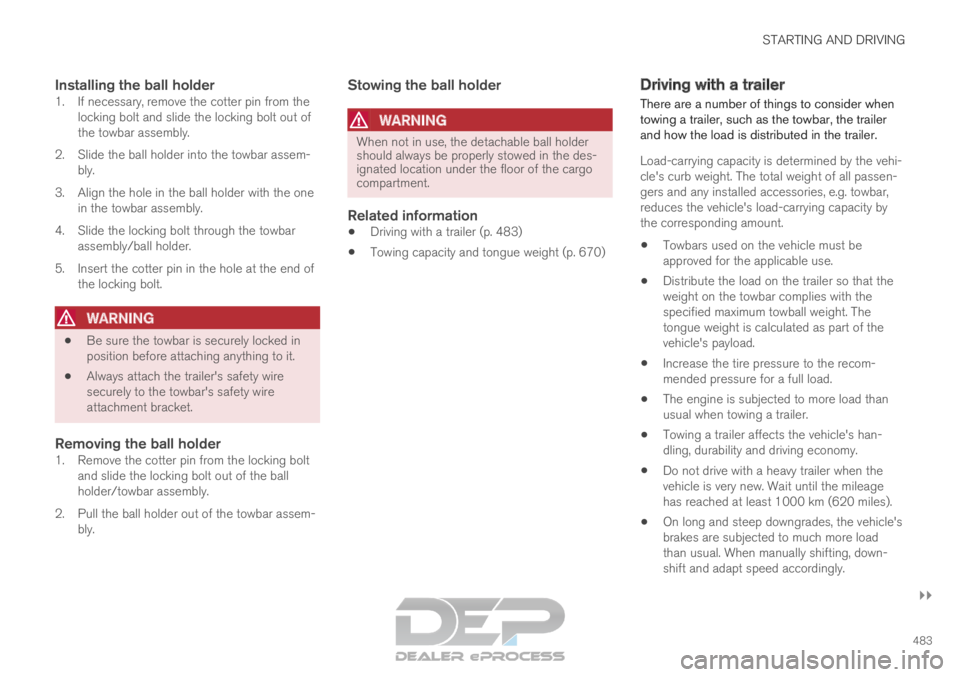

Installing the ball holder1. If necessary, remove the cotter pin from the locking bolt and slide the locking bolt out of
the towbar assembly.
2. Slide the ball holder into the towbar assem- bly.
3. Align the hole in the ball holder with the one in the towbar assembly.
4. Slide the locking bolt through the towbar assembly/ball holder.
5. Insert the cotter pin in the hole at the end of the locking bolt.
WARNING
Be sure the towbar is securely locked in
position before attaching anything to it.
Always attach the trailer's safety wire
securely to the towbar's safety wire
attachment bracket.
Removing the ball holder1. Remove the cotter pin from the locking bolt
and slide the locking bolt out of the ball
holder/towbar assembly.
2. Pull the ball holder out of the towbar assem- bly.
Stowing the ball holder
WARNING When not in use, the detachable ball holder
should always be properly stowed in the des-
ignated location under the floor of the cargo
compartment.
Related information

Driving with a trailer (p. 483)
Towing capacity and tongue weight (p. 670) Driving with a trailer
There are a number of things to consider when
towing a trailer, such as the towbar, the trailer
and how the load is distributed in the trailer.
Load-carrying capacity is determined by the vehi-
cle's curb weight. The total weight of all passen-
gers and any installed accessories, e.g. towbar,
reduces the vehicle's load-carrying capacity by
the corresponding amount.
Towbars used on the vehicle must be
approved for the applicable use.
Distribute the load on the trailer so that the
weight on the towbar complies with the
specified maximum towball weight. The
tongue weight is calculated as part of the
vehicle's payload.
Increase the tire pressure to the recom-
mended pressure for a full load.
The engine is subjected to more load than
usual when towing a trailer.
Towing a trailer affects the vehicle's han-
dling, durability and driving economy.
Do not drive with a heavy trailer when the
vehicle is very new. Wait until the mileage
has reached at least 1000 km (620 miles).
On long and steep downgrades, the vehicle's
brakes are subjected to much more load
than usual. When manually shifting, down-
shift and adapt speed accordingly.

||STARTING AND DRIVING
* Option/accessory.
486 When Trailer Stability Assist is
activated, the ESC symbol is
displayed in the instrument
panel.
Related information

Driving with a trailer (p. 483)
Electronic Stability Control (p. 279) Checking trailer lights
When connecting a trailer, make sure that all of
the lights on the trailer are functioning before
starting to drive.
Trailer turn signals and brake lightsIf one or more of the turn signals or brake lights
on the trailer is not working, a symbol and mes-
sage will be displayed in the instrument panel.
The other lights on the trailer must be checked
manually by the driver before the vehicle is driven. Symbol
Message
Trailer turn indicator Right
turn indicator malfunction
Trailer turn indicator Left
turn indicator malfunction
Trailer brake light Malfunc-
tion If any of the trailer's turn signal lights is not work-
ing, the turn signal symbol in the instrument
panel will also flash more quickly than normal.
Trailer rear fog lightWhen a trailer is connected, the vehicle's rear fog
light may not illuminate and rear fog light func-
tionality is instead transferred to the trailer. If this
is the case, check to see if the trailer is equipped
with a rear fog light before activating the vehicle'sfog lights when driving with a trailer to help
ensure safe operation.
Checking trailer lights*
Automatic check
When the trailer has been connected to the vehi-
cle's electrical system, its lights can be checked
by automatically activating them. This function
helps the driver check that the trailer's lights are
functioning correctly before starting to drive.
In order to perform this check, the engine must
be turned off.
1. When a trailer is connected to the towbar, the message Automatic Trailer Lamp
Check will appear in the instrument panel.
2.

Acknowledge the message by pressing the
O button on the right-side steering wheel
keypad.
> The light check will begin.
3. Get out of the vehicle to perform the check. > All of the lights on the trailer will beginflashing, and then illuminate separately
one at a time.
4. Visually check that all of the trailer's lights are functioning correctly.
5. After a short time, all of the trailer's lights will start flashing again.
> The light check is completed.

STARTING AND DRIVING
* Option/accessory.
488 Attaching and removing the towing
eyelet
Use the towing eyelet to tow another vehicle.
Screw the towing eyelet securely into place in
the threaded outlet behind the cover on the
right-hand side of the rear bumper.
NOTE If the vehicle is equipped with a towbar, there
is no rear attachment for the towing eye.
Attaching the towing eyelet
Take out the towing eyelet, which is stored in
a foam block under the floor in the cargo
compartment. Remove the cover - press the marker with
your finger while prying open the opposite
side/corner open with a coin or similar.
>

The cover turns along its center line and
can then be removed. 3. Screw in the towing eyelet until it reaches its
stop. Fasten the eyelet securing by, for example,
inserting a lug wrench* through it and using
this as a lever.
CAUTION It is important that the towing eye is screwed
in securely as far as possible.
Removing the towing eyelet
–
Unscrew the towing eyelet after use and
return it to its storage location in the foam
block.
Replace the cover on the bumper.
Related information
Towing using a towline (p. 487)
Recovery (p. 489)
Tool kit (p. 574)

WHEELS AND TIRES
}}
585
3.
Make sure the switch is in the 0 (Off) posi-
tion and take out the electric cable and the
hose.
4.

Unscrew the orange cover on the compres-
sor and unscrew the cap on the sealing com-
pound bottle.
5. Screw the bottle onto the bottle holder as far as possible.
The bottle and the bottle holder are equip-
ped with catches to help prevent the sealing
compound from leaking. Once the bottle is
screwed into place into the bottle holder, it
cannot be unscrewed. The bottle can only be
removed by a workshop. Volvo recommends
an authorized Volvo workshop.
WARNING Do not unscrew the bottle. It is equipped with
a catch to prevent leakage.
6.

Unscrew the tire's valve cap and screw the
hose's valve connector as far as possible
onto the valve.
Be sure the air release valve on the com-
pressor's hose is completely closed. 7. Connect the electrical cable to the nearest
12 V outlet and start the vehicle.
NOTE Make sure that none of the vehicle's other
12 V sockets are used while the compressor
is running.
WARNING
Never leave children unattended in the vehicle
while the engine is running.
WARNING
Inhaling exhaust fumes could lead to serious
injury. Never leave the engine running in an
enclosed space or a space without sufficient
ventilation.
8.

Start the compressor by moving the switch to
the I (On) position.
WARNING Never stand next to a tire being inflated with
the compressor. If cracks, bulges, etc. form on
the tire, switch off the compressor immedi-
ately. The vehicle should not be driven. Call
roadside assistance to have the vehicle towed
to a workshop for inspection/replacement of
the tire. Volvo recommends an authorized
workshop.
NOTE
When the compressor first starts, air pressure
may temporarily increase up to 6 bar (88 psi)
but should decrease again after approxi-
mately 30 seconds.
9. Inflate the tire for 7 minutes.
CAUTION
To help avoid overheating, the compressor
should never be used for more than
10 minutes at a time.

||WHEELS AND TIRES
586

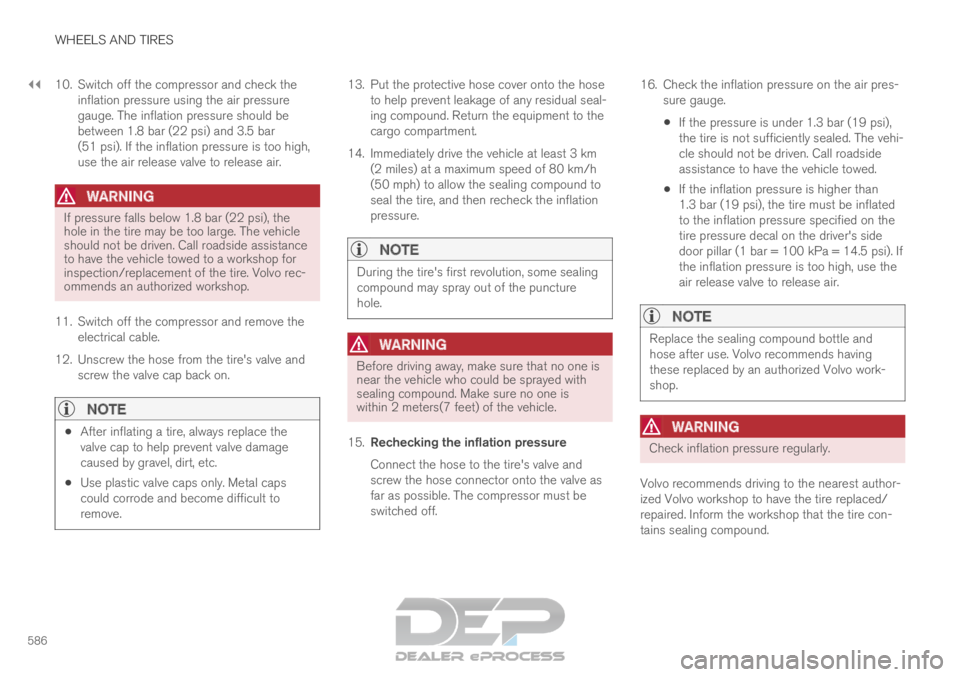

10. Switch off the compressor and check the
inflation pressure using the air pressure
gauge. The inflation pressure should be
between 1.8 bar (22 psi) and 3.5 bar
(51 psi). If the inflation pressure is too high,
use the air release valve to release air.
WARNING If pressure falls below 1.8 bar (22 psi), the
hole in the tire may be too large. The vehicle
should not be driven. Call roadside assistance
to have the vehicle towed to a workshop for
inspection/replacement of the tire. Volvo rec-
ommends an authorized workshop.
11.

Switch off the compressor and remove the
electrical cable.
12. Unscrew the hose from the tire's valve and screw the valve cap back on.
NOTE
After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.
Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove. 13. Put the protective hose cover onto the hose
to help prevent leakage of any residual seal-
ing compound. Return the equipment to the
cargo compartment.
14.

Immediately drive the vehicle at least 3 km
(2 miles) at a maximum speed of 80 km/h
(50 mph) to allow the sealing compound to
seal the tire, and then recheck the inflation
pressure.
NOTE During the tire's first revolution, some sealing
compound may spray out of the puncture
hole.
WARNING
Before driving away, make sure that no one is
near the vehicle who could be sprayed with
sealing compound. Make sure no one is
within 2 meters(7 feet) of the vehicle.
15. Rechecking the inflation pressure
Connect the hose to the tire's valve and
screw the hose connector onto the valve as
far as possible. The compressor must be
switched off. 16.

Check the inflation pressure on the air pres-
sure gauge.
If the pressure is under 1.3 bar (19 psi),
the tire is not sufficiently sealed. The vehi-
cle should not be driven. Call roadside
assistance to have the vehicle towed.
If the inflation pressure is higher than
1.3 bar (19 psi), the tire must be inflated
to the inflation pressure specified on the
tire pressure decal on the driver's side
door pillar (1 bar = 100 kPa = 14.5 psi). If
the inflation pressure is too high, use the
air release valve to release air.
NOTE Replace the sealing compound bottle and
hose after use. Volvo recommends having
these replaced by an authorized Volvo work-
shop.
WARNING
Check inflation pressure regularly.
Volvo recommends driving to the nearest author-
ized Volvo workshop to have the tire replaced/
repaired. Inform the workshop that the tire con-
tains sealing compound.

||WHEELS AND TIRES
588
Related information

Recommended tire pressure (p. 569)
Using the tire sealing system (p. 583)
Tire sealing system (p. 582) Determining the vehicle's permitted
weight
Properly loading your vehicle will provide maxi-
mum return of vehicle design performance.
Weight designationsBefore loading your vehicle, familiarize yourself
with the following terms for determining your
vehicle's weight ratings, with or without a trailer,
from the vehicle's Federal/Canadian Motor Vehi-
cle Safety Standards (FMVSS/CMVSS) label, and
the vehicle's tire information placard:
Curb weight
The weight of the vehicle including a full tank of
fuel and all standard equipment. It does not
include passengers, cargo, or optional equipment.
Capacity weight
All weight added to the curb weight, including
cargo and optional equipment. When towing, tow-
bar weight is also part of cargo weight.
Permissible axle weight
The maximum allowable weight that can be car-
ried by a single axle (front or rear). These num-
bers are shown on the Federal/Canadian Motor
Vehicle Safety Standards (FMVSS/CMVSS) label.
The total load on each axle must never exceed its
maximum permissible weight.
Gross vehicle weight (GVW)
The vehicle's curb weight + cargo + passengers.
Steps for Determining Correct Load
Limit
1. Locate the statement "the combined weight of occupants and cargo should never exceed
XXX kg or XXX lbs." on your vehicle's plac-
ard.
2. Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of cargo and luggage load capacity.
For example, if the "XXX" amount equals
1400 lbs. and there will be five 150 lb. pas-
sengers in your vehicle, the amount of availa-
ble cargo and luggage load capacity is 650
lbs. (1400 - 750 (5 × 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in Step 4.
6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and lug-
gage load capacity of your vehicle.

MAINTENANCE AND SERVICE
}}
* Option/accessory. 643
Positions
Fuses 13-17 and 21-36 are "Micro" fuses.
Fuses 1-12, 18-20 and 37 are "MCase"
fuses and should only be replaced by a work-
shop 18
. Function
AmpereHeated rear window
30Central electrical module 40
Pneumatic suspension* com-
pressor 40Rear electric heater (right-
hand side)
30Electrical outlets in the tunnel
console between the rear
seats
A –
30 A Rear electric heater (left-hand
side)
15
30Door module right side, rear 20
Control module for reduction
of nitrous oxides (diesel)
30Power tailgate*
25Door module right side, front 20 Function
Ampere Towbar* control module
40 Seat belt tensioner module
(right side)
40 Internal relay windings
5 Door module left side, rear 20
Foot movement detection
module for opening the power
tailgate*
5 USB hub/accessory port –
Module for electrically folding
third-row seats*
20 Towbar* control module
25
Accessory module
40 Door module left side, front 20
Seat belt tensioner module
(left side)
40 Park Assist Camera*
5 –
– –
– Function
Ampere –
– Feed when ignition is on 10
Control module for airbags
and seat belt tensioners
5 Cooler
A
; Heated/cooled cup
holder (rear) A
Accessory module 10
A
5 Heated rear seat (left side)*
15 –
– Blind Spot Information
(BLIS)*; Exterior reverse signal
control module 5 –
– Modules for seat belt tension-
ers
5 Emissions system actuator
(gasoline, certain engine vari-
ants)
5 –
– –
–18
An authorized Volvo workshop is recommended.
