2019 TOYOTA SEQUOIA audio

15
1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
Select to display the map screen.228
Select to display the audio control screen.70
Select to display the hands-free operation screen.186
Select to display the “Messages” screen.202
*Select to display weather information.172
Select to reorder the applications.35
*Select to display traffic incidents.241
*Select to display the traffic map information.173
Select to display the “Setup” screen.20
*Select to update the Entune App Suite applications.302
Select to display the “Maintenance” screen.63
*Select to display the application screen. 296
*If a turn-by-turn navigation application has been downloaded to a con-
nected phone, the application will be displayed and can be used.
For details, refer to http://www.toyota.com/entune/
.

Select to display the f uel consumption screen.“Owner’s
Manual“
*: Available in the 48 st ates, D.C. and Alaska

16
1. CONTROLS AND FEATURES
3. “Home” SCREEN
Three-way split screen
Press the “HOME” button to display the “Home” screen.
The “Home” screen can display multiple information screens, suc h as the naviga-
tion system, audio system and hands-free system, simultaneously . When a screen
is selected, the selected screen is switched to a full-screen d isplay. The “Home”
screen can be set to either a three-way split screen or a two-w ay split screen.
For details about setting the “Home” screen:  P.34

17
1. CONTROLS AND FEATURES
QUICK GUIDE
1Two-way split screen
No.FunctionPage
Displays the status display18
Select to display the “Setup” screen.20
INFORMATION
● Entune Audio Plus only: Turn-by-turn navigation application scr een can be displayed.

20
1. CONTROLS AND FEATURES

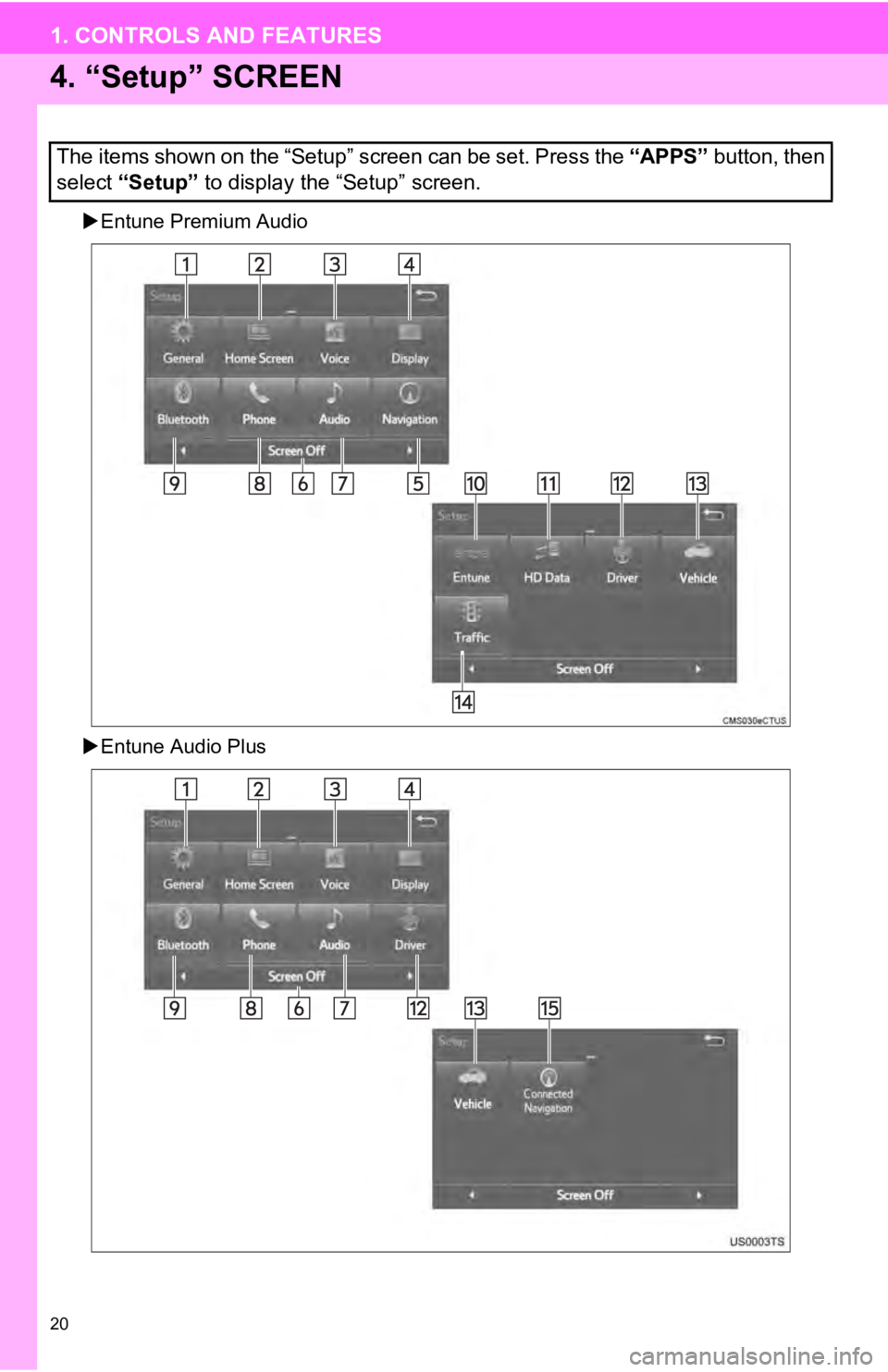

4. “Setup” SCREEN
Entune Premium Audio
 Entune Audio Plus
The items shown on the “Setup” screen can be set. Press the “APPS” button, then
select “Setup” to display the “Setup” screen.

21
1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.54
Select to customize the “Home” screen.34
Select to set the voice settings.59
Select to adjust the contrast a nd brightness of the screens.39
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
271, 280
Select to turn the screen off.
Select to set radio and external media settings.11 2
Select to set the phone sound, cont acts, message settings, etc.207
Select to set Bluetooth® phones and Bluetooth® audio devices.47
*Select to set Entune App Suite settings.308
*Select to set data services settings.174
Select to link the driver’s cellular phone settings (audio pres ets, lan-
guage, etc.).62
Select to set vehicle information.“Owner’s Manual“
*Select to set traffic information.284
*Select to change the phone data plan pop-up message timing.
(Connected navigation is downl oadable application via smartphon es.)
*: Available in the 48 st ates, D.C. and Alaska

22
2. NAVIGATION OPERATION
1. REGISTERING HOME*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select “Go Home”.
Select “Yes”.
Choose a search method.

There are different kinds of methods to
search for your home. ( P.244)
*:Entune Premium Audio only
1
2
3
4
5
6

24
2. NAVIGATION OPERATION
2. REGISTERING PRESET DESTINATIONS*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.Select one of the preset destina-
tion buttons.
Select “Yes”.
Choose a search method.

There are different kinds of methods to
search for a destination. ( P.244)
Select “Enter ”.
Select a position for this preset
destination.
Select “OK”.
Registration of preset destinations is
complete.
Registering preset destinations in a dif-
ferent way
P.273
 Editing the name, location, phone num-
ber and icon
P.274
 Setting preset destinations as the desti-
nation
P.247
*:Entune Premium Audio only
1
2
3
4
5
6
7
8
9

25
2. NAVIGATION OPERATION
QUICK GUIDE
1
3. OPERATION FLOW: GUIDING THE ROUTE*
Press the “APPS” button.
Select “Navigation”.
Select “Dest.”.
Choose a search method.
There are different kinds of methods to
search for a destination. ( P.244)
Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended (P.257)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*:Entune Premium Audio only
1
2
3
4
5
6
