2019 Seat Mii electric Owner's Manual

Driver assistance systems

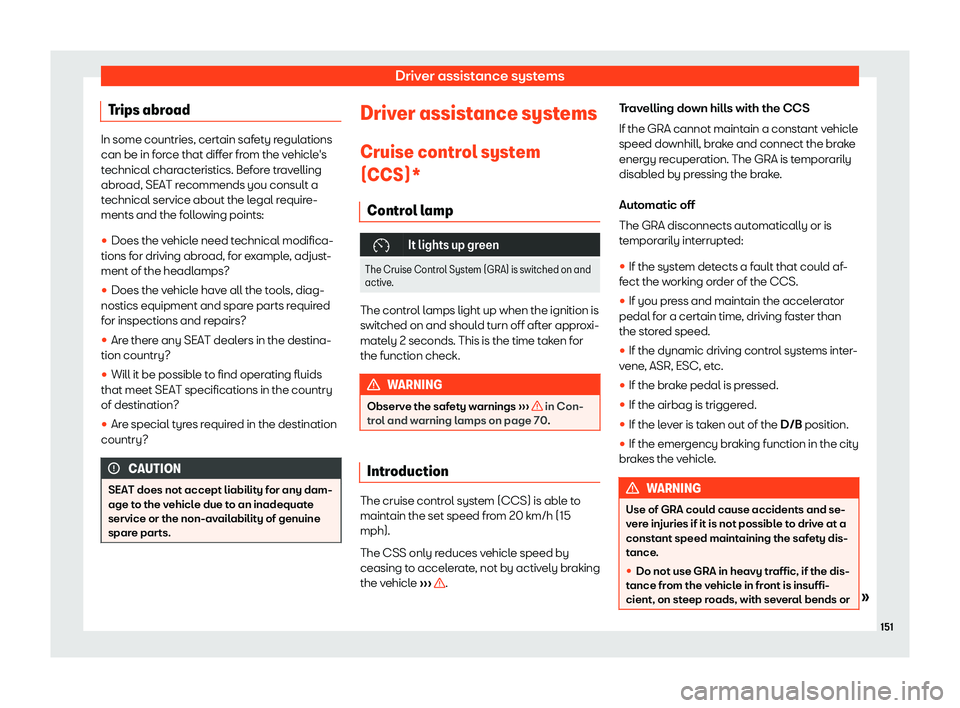

Trips abroad In some countries, certain safety regulations
can be in f
or
ce that differ from the vehicle's
technical characteristics. Before travelling
abroad, SEAT recommends you consult a
technical service about the legal require-
ments and the following points:

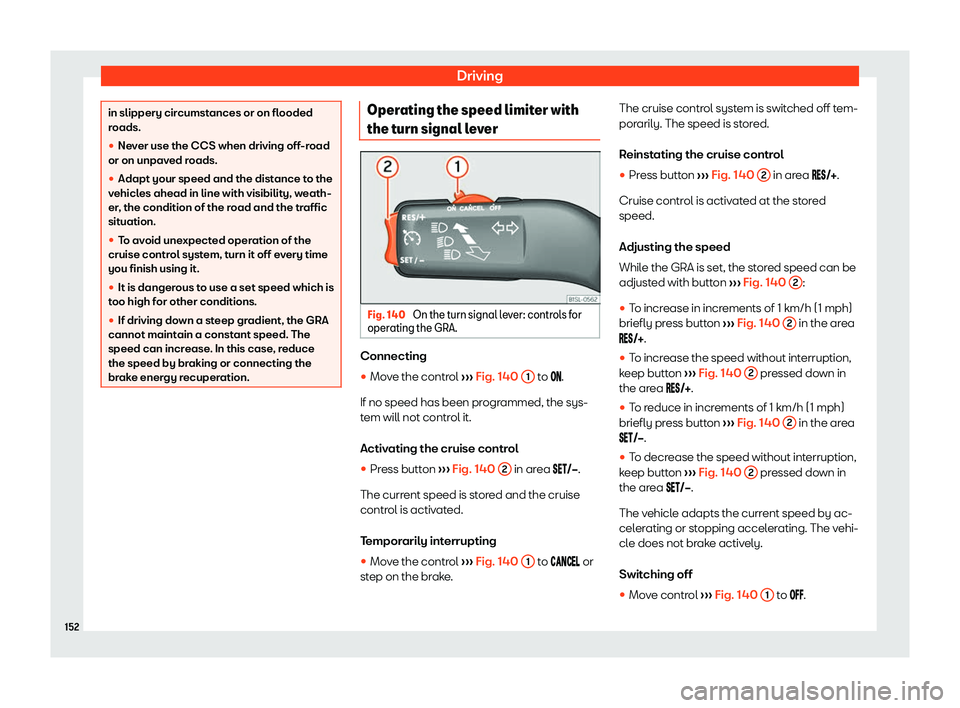

Driving
in slippery circumstances or on flooded
r
oads.

Driver assistance systems
The system is disconnected and the memo-
rised speed is del et
ed.

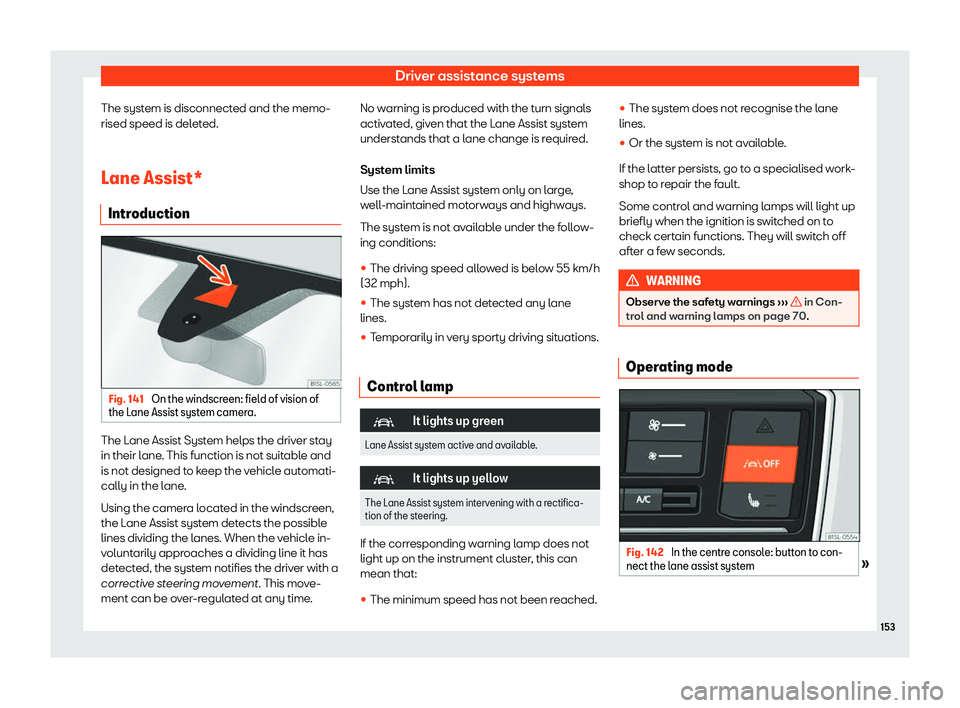

Lane Assist* Introduction Fig. 141
On the windscreen: field of vision of
the L ane Assist syst

em camera. The Lane Assist System helps the driver stay
in their l
ane

. This function is not suitable and
is not designed to keep the vehicle automati-
cally in the lane.
Using the camera located in the windscreen,
the Lane Assist system detects the possible
lines dividing the lanes. When the vehicle in-
voluntarily approaches a dividing line it has
detected, the system notifies the driver with a
corrective steering movement. This move-
ment can be over-regulated at any time. No warning is produced with the turn signals
activat

ed, given that the Lane Assist system
understands that a lane change is required.
System limits
Use the Lane Assist system only on large,
well-maintained motorways and highways.
The system is not available under the follow-
ing conditions:

Driving

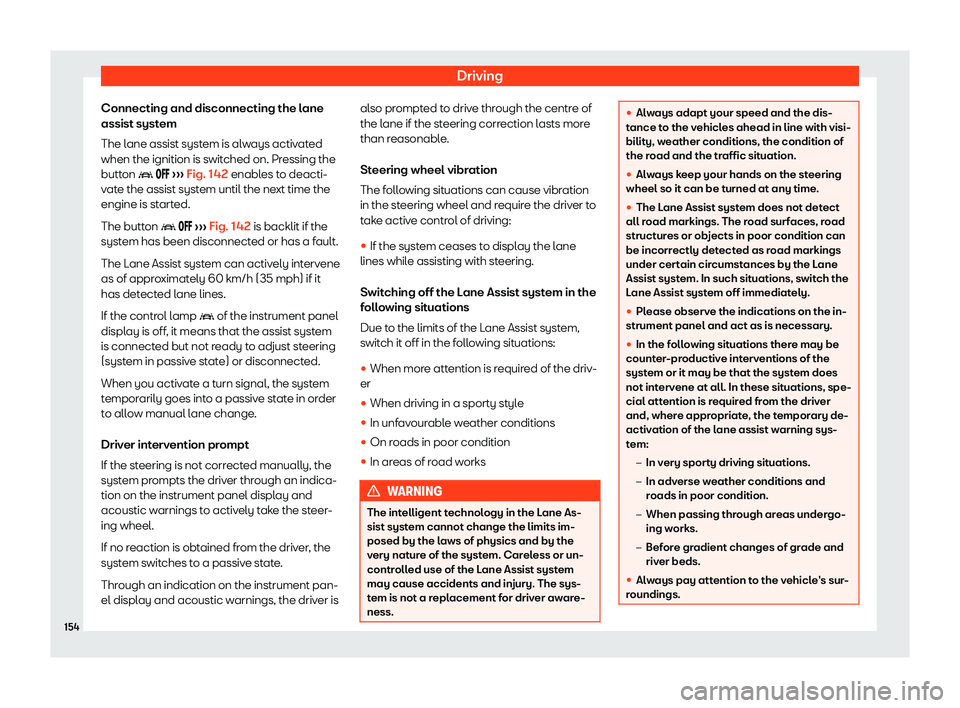

Connecting and disconnecting the lane
assist syst em
The l
ane assist system is always activated
when the ignition is switched on. Pressing the
button

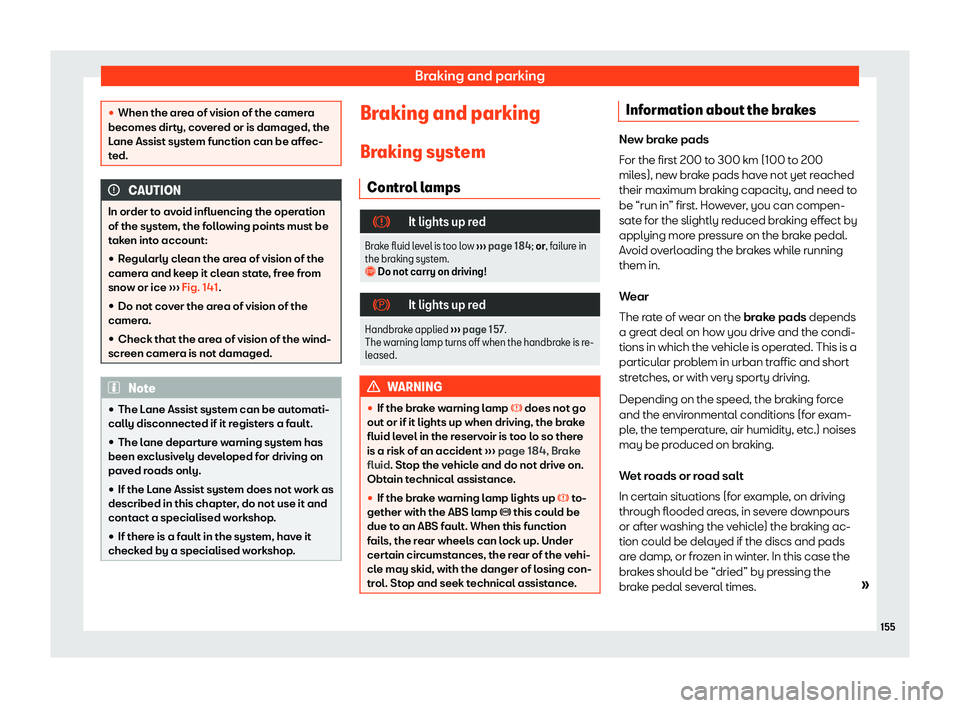

Braking and parking

Driving

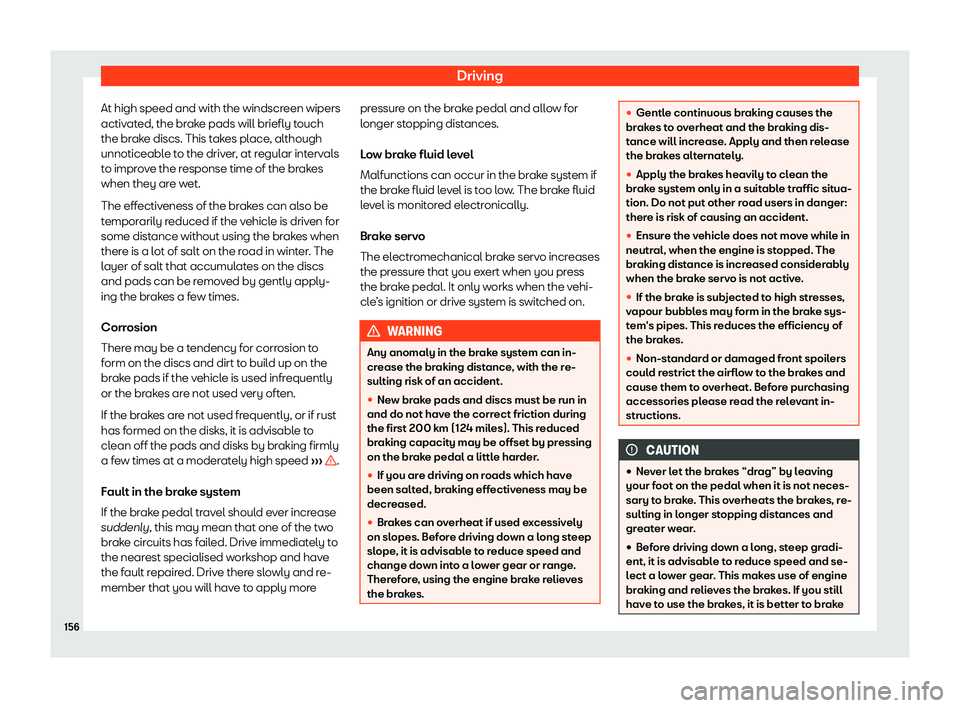

At high speed and with the windscreen wipers
activ at
ed, the brake pads will briefly touch
the brake discs. This takes place, although
unnoticeable to the driver, at regular intervals
to improve the response time of the brakes
when they are wet.
The effectiveness of the brakes can also be
temporarily reduced if the vehicle is driven for
some distance without using the brakes when
there is a lot of salt on the road in winter. The
layer of salt that accumulates on the discs
and pads can be removed by gently apply-
ing the brakes a few times.
Corrosion
There may be a tendency for corrosion to
form on the discs and dirt to build up on the
brake pads if the vehicle is used infrequently
or the brakes are not used very often.
If the brakes are not used frequently, or if rust
has formed on the disks, it is advisable to
clean off the pads and disks by braking firmly
a few times at a moderately high speed ››› .
F ault in the br

ake system
If the brake pedal travel should ever increase
suddenly, this may mean that one of the two
brake circuits has failed. Drive immediately to
the nearest specialised workshop and have
the fault repaired. Drive there slowly and re-
member that you will have to apply more pressure on the brake pedal and allow for
longer st

opping distances.
Low brake fluid level
Malfunctions can occur in the brake system if
the brake fluid level is too low. The brake fluid
level is monitored electronically.
Brake servo
The electromechanical brake servo increases
the pressure that you exert when you press
the brake pedal. It only works when the vehi-
cle’s ignition or drive system is switched on. WARNING
Any anomaly in the brake system can in-
cr ease the br

aking distance, with the re-
sulting risk of an accident.

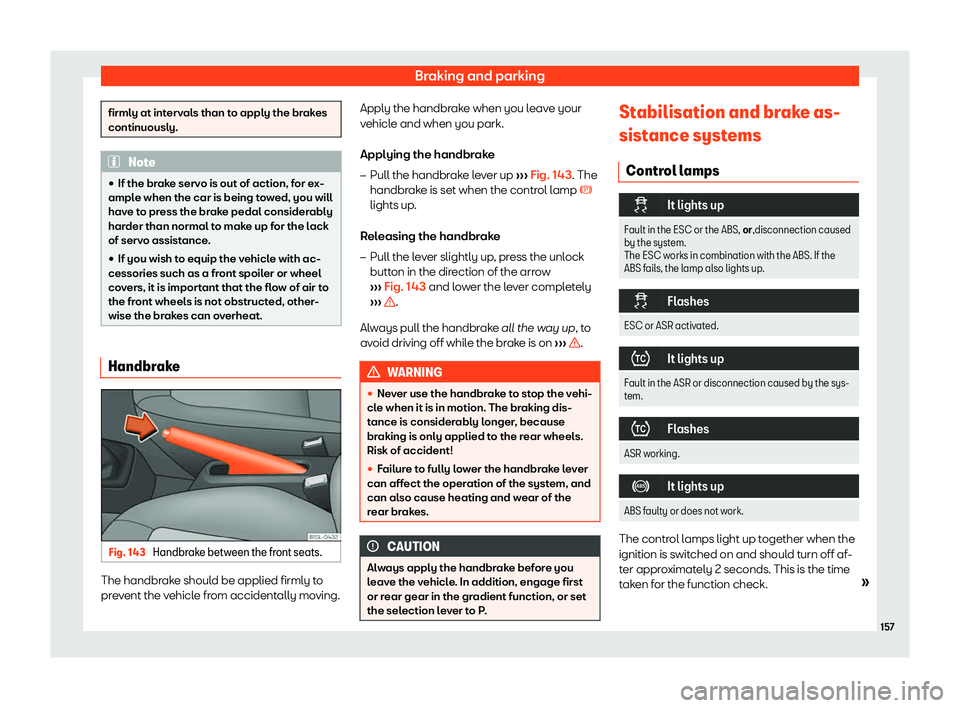

Braking and parking
firmly at intervals than to apply the brakes
continuously.
Note

Driving
WARNING
Observe the safety warnings ››
› in Con-
tr ol and w
arning lamps on page 70. Brake assist systems
Electronic Stability Control (ESC)*
The ESC helps t
o impr

ove safety. It reduces
the tendency to skid and improves the stabili-
ty and roadholding of the vehicle. The ESC
detects critical handling situations, such as
vehicle understeer or oversteer, or wheelspin
on the driving wheels. It stabilises the vehicle
by braking individual wheels or by reducing
the engine torque. The warning lamp will
flash on the instrument panel when the ESC is
intervening !.
The ESC includes the anti-lock brake system
(ABS), the hydraulic brake assist (HBA), the
traction control system (ASR) and the elec-
tronic differential lock (EDS)
ESC also helps stabilise the vehicle by
changing the torque.
Anti-lock brake system (ABS)
ABS prevents the wheels from locking up un-
der braking until the vehicle has reached a
virtual standstill. You can continue to steer the
vehicle even when the brakes are on full.
Keep your foot on the brake pedal and do not pump the brakes. You will feel the brake pedal
pul
sat

e while the ABS is working.
If the running gear or brake system is modi-
fied, the effectiveness of the ABS could be se-
verely limited.
Hydraulic Brake Assist (HBA)*
The brake assist system can reduce the re-
quired braking distance. The braking force is
automatically boosted if you press the brake
pedal quickly in an emergency. You must
keep pressing the brake pedal until the dan-
ger has passed.
Traction control system (ASR)
In the event of wheelspin, the traction control
system reduces the engine torque to match
the amount of grip available. This helps the
car to start moving, accelerate or climb a
gradient.
Electronic differential lock (EDL)*
When the EDL detects wheelspin, it brakes
the spinning wheel and directs the power to
the other driven wheel. This function is active
up to approximately 100 km/h (62 mph).
To prevent the disc brake of the braked wheel
from overheating, the EDL cuts out automati-
cally if subjected to excessive loads. The ve-
hicle can still be driven. The EDL will switch on
again automatically when the brake has
cooled down. Electronic brake pressure distribution
(EBV)
In all vehicl
es, when the brakes are applied,
the centre of gravity of the vehicle moves for-
ward. As a consequence, there is a danger
that the rear wheels may lock due to their low
traction. The electronic brake pressure distri-
bution controls the brake pressure for the rear
wheels and ensures that this pressure is dis-
tributed optimally between the front and rear
axles. Under normal circumstances it pre-
vents the rear part of the vehicle from skid-
ding due to excessive braking of the rear
wheels. The function of the electronic brake
pressure distribution is incorporated in the
ABS function.
Electromechanical brake servo (eBKV)
With the ignition switched on, the electrome-
chanical brake servo supports the force of
the foot by increasing the pressure that the
driver exerts on the brake pedal. After discon-
necting the ignition, the assistance of the
brake servo is progressively reduced. Once
stopped, immobilise the vehicle to prevent it
from moving ››› page 159.
If the electromechanical brake servo does
not work, the yellow control lamps
