207
With a manual gearbox, move the gear
lever into neutral.
With an automatic gearbox, place the gear
selector into position N.
Failure to adhere to this instruction
may lead to damage to braking system
components and the lack of braking
assistance on restarting the engine.

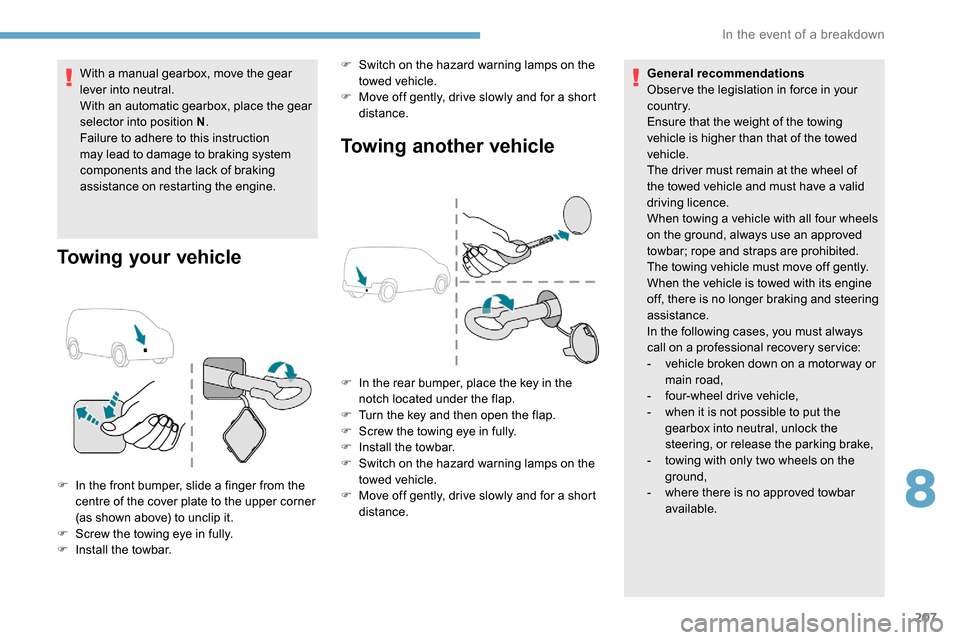

Towing your vehicle Towing another vehicle
F In the front bumper, slide a finger from the
centre of the cover plate to the upper corner
(as shown above) to unclip it.
F

S
crew the towing eye in fully.
F

I
nstall the towbar. F

S
witch on the hazard warning lamps on the
towed vehicle.
F
M
ove off gently, drive slowly and for a short
distance. General recommendations
Obser ve the legislation in force in your
c o u nt r y.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towbar; rope and straps are prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
In the following cases, you must always
call on a professional recovery ser vice:
-
v
ehicle broken down on a motor way or
main road,
-
f
our-wheel drive vehicle,
-
w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,
-
t
owing with only two wheels on the
ground,
- w here there is no approved towbar
available.
F

I
n the rear bumper, place the key in the
notch located under the flap.
F
T
urn the key and then open the flap.
F
S
crew the towing eye in fully.
F
I
nstall the towbar.
F
S
witch on the hazard warning lamps on the
towed vehicle.
F M ove off gently, drive slowly and for a short
distance.
8
In the event of a breakdown

208
Dimensions (mm)
These dimensions have been measured on an
unladen vehicle.
Your vehicle is available in two lengths
(Standard et Long).
The values may vary depending on wheel
diameters, load, engine, etc.Vehicle length
Standard (L1) Long (L2)
A Overall length 4,4034,753
B Overall height Standard version
1,79 6 to 1,825 1,812 to 1,820
Worksite version 1,8 4 0 to 1,8 6 0 1,8 49 to 1,8 6 0
C Wheelbase 2,7852,975
D Front overhang 892
E Rear overhang 726886
F Width with mirrors Folded
1,921
Unfolded 2 ,1 0 7
G Front track width 1,5 5 3 to 1,5 621,553
H Rear track width 1,5 6 8 to 1,57 7 1,5 49 to 1,5 6 8
Technical data

209
Vehicle length
Standard (L1) Long (L2)
M Useable height of the opening 1,072
N Interior load height
(varies depending on the angle of the floor and the cur ve of
the roof) 1, 20 0 to 1, 270
O Loading sill height Standard version
548 to 588 X
Standard version with increased
payload 568 to 578 561 to 565
Commercial vehicle version 602 to 610 605 to 610
P Useable width of
the opening Without Multi-Flex bench seat
675
With Multi-Flex bench seat 6 41
Q Loading sill height Standard version
534 to 558
Standard version with increased
payload 551 to 558 543 to 552
Commercial vehicle version 574 to 581 575 to 587Vehicle length
Standard (L1) Long (L2)
I Interior width between wheel arches 1, 2 2 9
J Maximum interior
width Without sliding side door
1,73 3
With 1 sliding side door 1,6 3 0
With 2 sliding side doors 1,527
K Useable height of
the opening With side-hinged doors
1,13 7
With tailgate 1,1 9 7
L Useable width of the opening 1, 242
9
Technical data

210
Vehicle length
Standard (L1) Long (L2)
R Length of interior
floor With Multi-Flex bench seat
1, 8172 ,1 6 7
With ladder 1,79 02 ,14 0
S Maximum loading length
(protective cover in place) 3,090
3,440
Engine technical data and
towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.
The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC). For more information, contact a PEUGEOT
dealer or a qualified workshop.
Weights and towed loads
The weights and towed loads relating to
your vehicle are indicated on the registration
document, as well as in sales brochures.
These values are also indicated on the
manufacturer's plate or label.
For more information, contact a PEUGEOT
dealer or a qualified workshop. The GTW (Gross Train Weight) and towed load
values indicated are valid up to a maximum
altitude of 1,000
metres. The towed load value
must be reduced by 10% for each additional
1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball.
When exterior temperatures are high,
the vehicle per formance may be limited
in order to protect the engine. When the
exterior temperature is higher than 37°C,
limit the towed weight.
Towing even with a lightly loaded vehicle
can adversely affect its road holding.
Braking distances are increased when
towing a trailer.
When using a vehicle to tow, never exceed
a speed of 62 mph (100 km/h) (obser ve
the local legislation in force).
If the exterior temperature is high, it is
recommended that the engine is allowed
to idle for 1 to 2
minutes after the vehicle
comes to a stop, to facilitate its cooling.
Technical data

211
Engines and towed loads – PETROL
EngineVTi 115 BVM5
Gearbox Manual 5-speed
Code EC5F BE
Length Standard (L1)Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
3 seats
Cubic capacity (cm
3) 1,5 87
Max. power: EC standard (kW) 85
Fuel Unleaded
Braked trailer (within the GTW limit) on
a 12

% slope (kg) 2-3 seats
1,0001,0001,000
Unbraked trailer (kg) 2-3 seats680690 720
Maximum authorised nose/towball
weight (kg) 2-3 seats
747474
9
Technical data

212
Engines and towed loads – PETROL EURO 6.2
EnginePureTech 110
S&S BVM6 PureTech 130 S&S EAT8
Gearbox Manual 6-speedAutomatic 8-speed
Code EB2ADT MB6
STTD – TBC EB2ADTS ATN8 STTD
Length Standard (L1) Standard (L1)Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
EU H N PJ - G
3 seats EU H N PJ - H
Cubic capacity (cm
3) 1,1 9 91,1 9 9
Max. power: EC standard (kW) 8196
Fuel UnleadedUnleaded
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1, 20 01,3 0 0 9001,1 5 0
Unbraked trailer (kg) 2-3 seats680690 690 720
Maximum authorised nose/towball
weight (kg) 2-3 seats
74747474
Technical data

213
Engines and towed loads – DIESEL
EngineHDi 75 BVM5HDi 92 S&S BVM5
Gearbox Manual 5-speedManual 5-speed
Code DV6E BEDV6D BE
Length Standard (L1)Standard (L1)
(increased payload) Standard (L1) Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
3 seats
Cubic capacity (cm
3) 1,5 6 01,5 6 0
Max. power: EC standard (kW) 5568
Fuel DieselDiesel
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1,1 0 07501, 25 0 850850
Unbraked trailer (kg) 2-3 seats680690 680690 720
Maximum authorised nose/towball
weight (kg) 2-3 seats
7474747474
9
Technical data

214
Engines and towed loads – DIESEL EURO 6.1
EngineBlueHDi 75 BVM5BlueHDi 100 S&S BVM5
Gearbox Manual 5-speedManual 5-speed
Code DV6FE BEDV6FD BE STTD
Length Standard (L1)Standard (L1)
(increased payload) Standard (L1) Standard (L1)
(increased payload) Long (L2)
Model code 2 seats
EFBHWB-G EFBHYB-G EFBHYB-J
3 seats EFBHWB-H EFBHYB-HEFBHYB-K
Cubic capacity (cm
3) 1,5 6 01,5 6 0
Max. power: EC standard (kW) 5573
Fuel DieselDiesel
Braked trailer (within the GTW limit) on
a 12% slope (kg) 2-3 seats
1,0007501, 20 0 1,000 950
Unbraked trailer (kg) 2-3 seats680690 690690 730
Maximum authorised nose/towball
weight (kg) 2-3 seats
7474747474
Technical data
